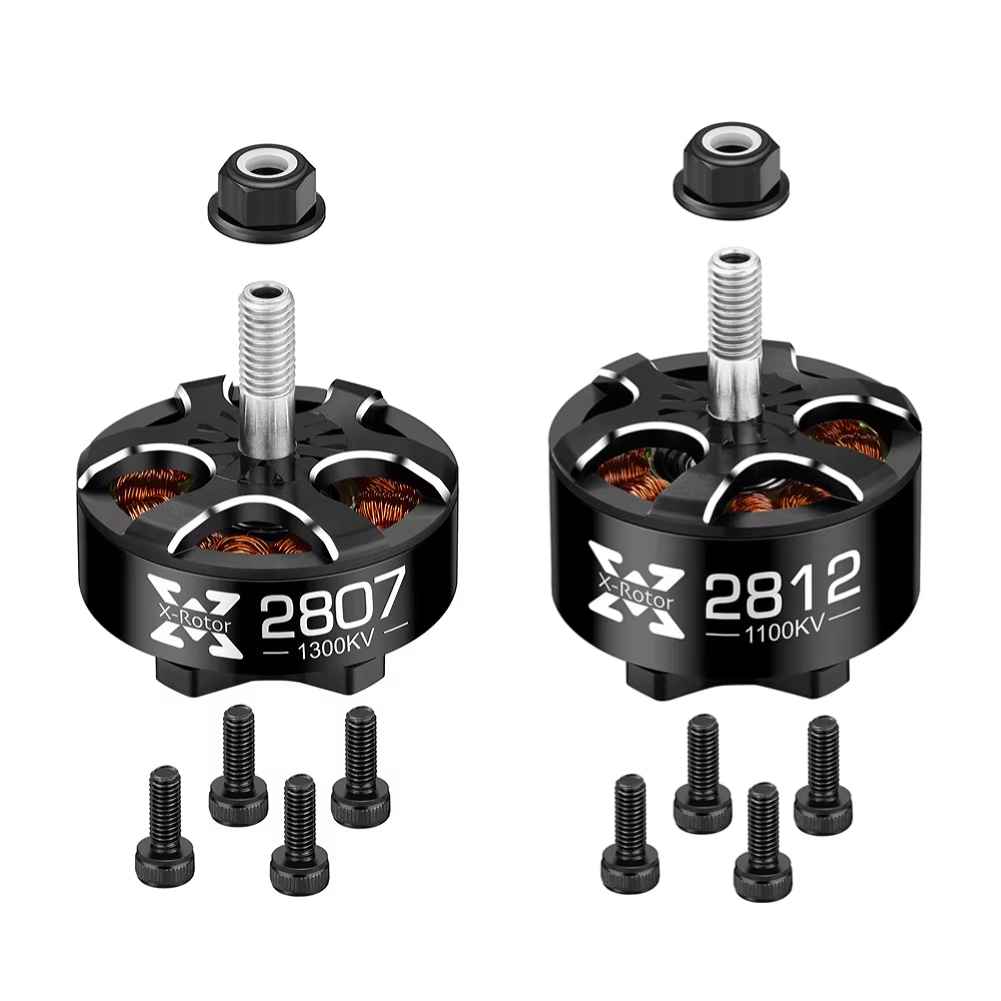

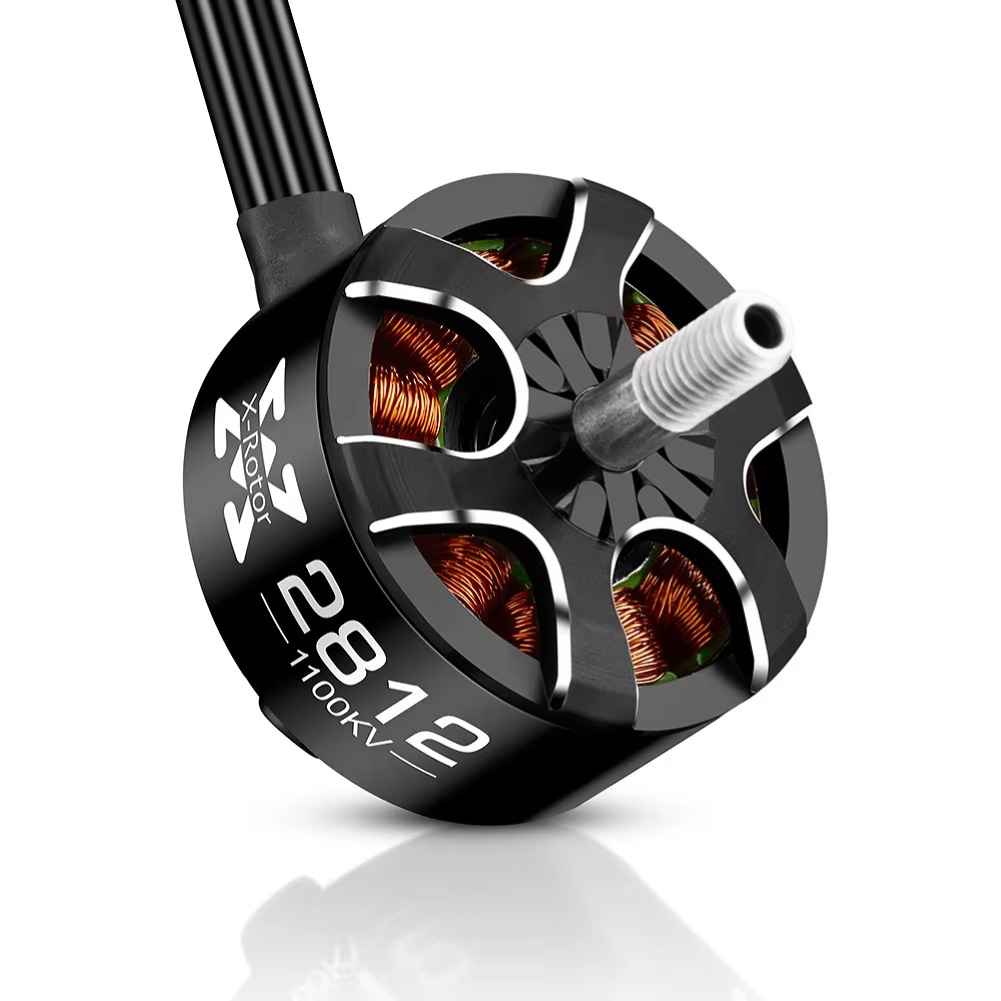

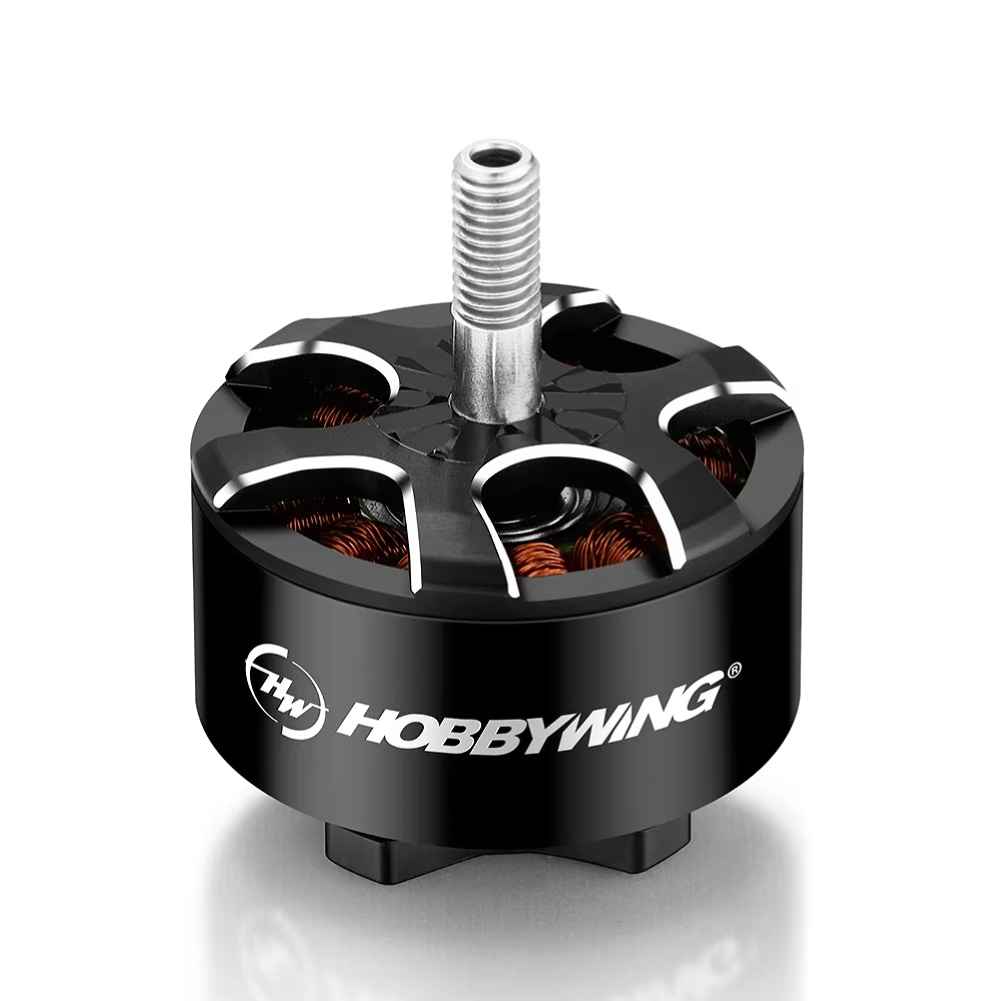

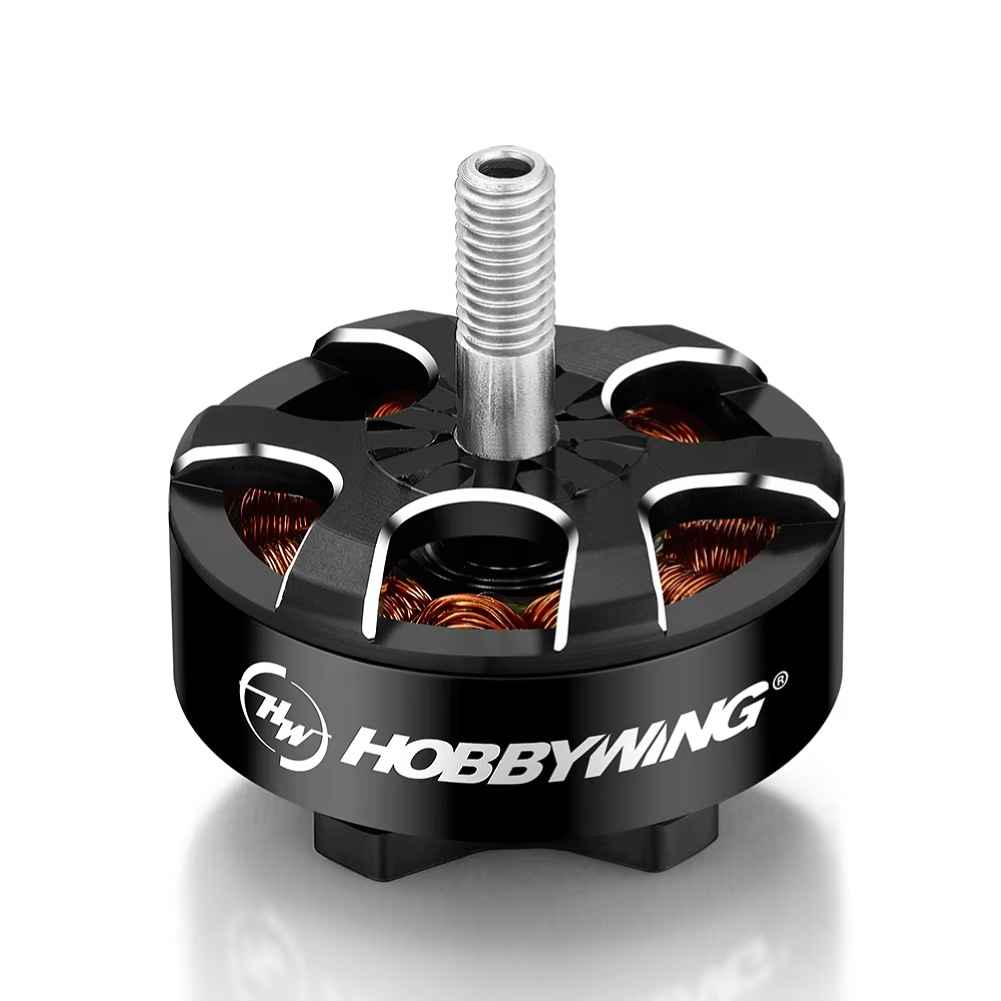

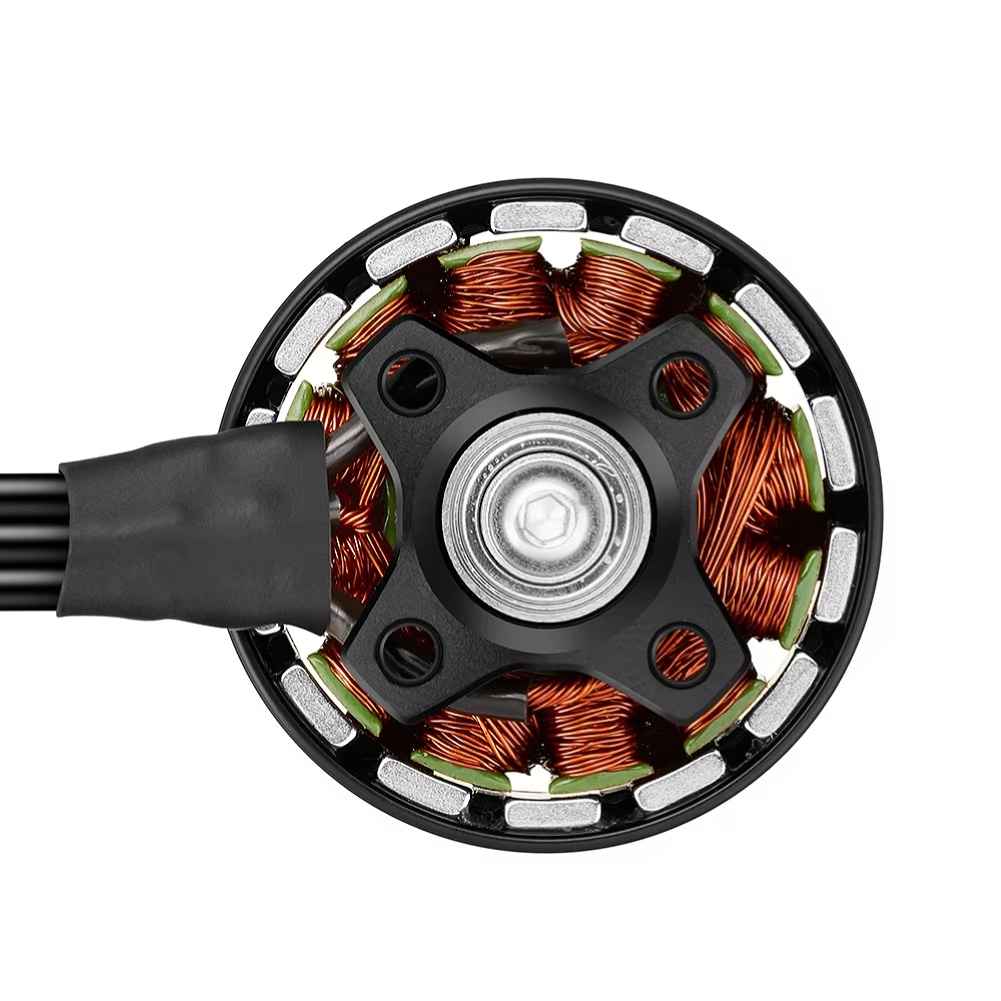

Hobbywing XRotor 2807/2812 Brushless Motor, 1300KV-1700KV, M5 Shaft, High Performance for 7 Inch FPV Drone

SKU: RC2028096Brand: Hobbywing

Price range: $23.38 through $101.44

  • High-performance 0.2mm silicon steel sheets
  • Multi-strand enameled wire winding for increased slot full rate
  • 200鈥礐 high-temperature resistant enameled wire
  • Strong N52 magnetic tiles for enhanced torque
  • Compatible with 4-6S LiPo cells

You May Also Like

Description

1PC /4PCS Hobbywing XRotor 2807 1300KV 1500KV 1700KV / 2812 900KV 1100KV Brushless Motor M5 Shaft for RC 7 Inch FPV Drone

The Hobbywing XRotor Brushless Motor series offers exceptional performance for RC enthusiasts. Designed with high-performance 0.2mm silicon steel sheets and a multi-strand enameled wire winding design, these motors increase the slot full rate by over 5%. Featuring 200锝濩 high-temperature resistant enameled wire and N52 strong magnetic tiles with an arc-shaped design, these motors deliver enhanced torque and meet the needs of users seeking extreme motor performance. Compatible with 4-6S LiPo cells, this motor series is perfect for 7-inch FPV drones, providing maximum continuous current and thrust for optimal flight.

Feature:
1. High-performance 0.2mm silicon steel sheets.
2. The multi-strand enameled wire winding design increases the slot full rate by approximately more than 5%.
3. 200锕爃igh-temperature resistant enameled wire.
4. Meet the needs of users pursuing extreme motor performance.
5. Uses N52 strong magnetic tiles with an arc- shaped design to provide a stronger torque to the motor.
Specification:
Brand: Hobbywing
Model: Xrotor 2807 1300KV 1500KV 1700KV /2812 900KV 1100KV Brushless Motor(Optional)

Model

XRotor 2807 1300KV

XRotor 2807 1500KV

XRotor 2807 1700KV

XRotor 2812 900KV

XRotor 2812 1100KV

Product Number:

30418000

30418001

30418002

30418003

30418004

KV Rating:

1300KV

1500KV

1700KV

900KV

1100KV

LiPo Cells (LiPo):

4-6S

4-5S

3-4S

4-6S

4-6S

No-Load Current:

2A/24V

2.27A/20V

2.13A/16V

1.5A/24V

1.88A/24V

Maximum Continuous Current:

56.7A/6s

59.5A/7s

53.9A/13s

49.6A/9s

64.1A/10s

Maximum Continuous Rating:

1361W/6s

1195W/7s

864W/13s

1191W/9s

1538W/10s

Maximum Thrust:

2818g

2646g

2205g

3355g

3722g

Motor Weight:

59g

58.7g

58.4g

83.4g

83.8g

Motor Size:

?34 * 20.5mm

?34 * 20.5mm

?34 * 20.5mm

?34 * 25.5mm

?34 * 25.5mm

Slot/Pole:

12N14P

12N14P

Package Included:
1 x Hobbywing XRotor 2807/2812 Brushless Motor

Recommended Category:
Toys & Games > Remote & App Controlled Vehicles & Parts > Remote & App Controlled Vehicle Parts > Remote & App Controlled Vehicle Motor Parts
Weight 0.098 kg
Quantity

1 PC, 4 PCS

KV

1100KV, 1300KV, 1500KV, 1700KV, 900KV

Motor

072, 28, 812
