iFlight BLITZ Mini E55S 55A 2-6S BLheli_S 4IN1 Brushless ESC for FPV Racing Drones, 20x20mm
Original price was: $72.54.$64.92Current price is: $64.92.
- Compact 20x20mm mounting size
- Supports 2-6S LiPo input
- Delivers 55A constant and 65A burst current
- Compatible with DShot, MultiShot, and OneShot protocols
- Includes current sensor for power monitoring
You May Also Like
Description

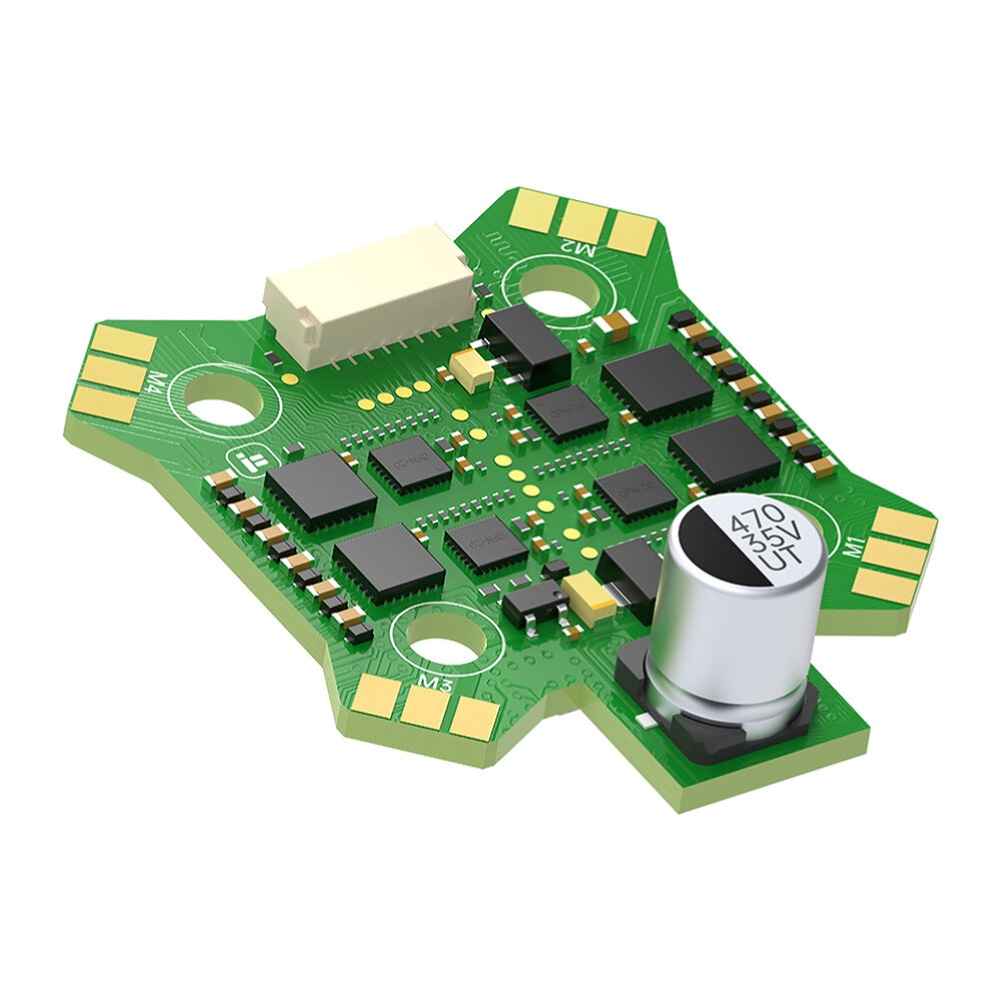

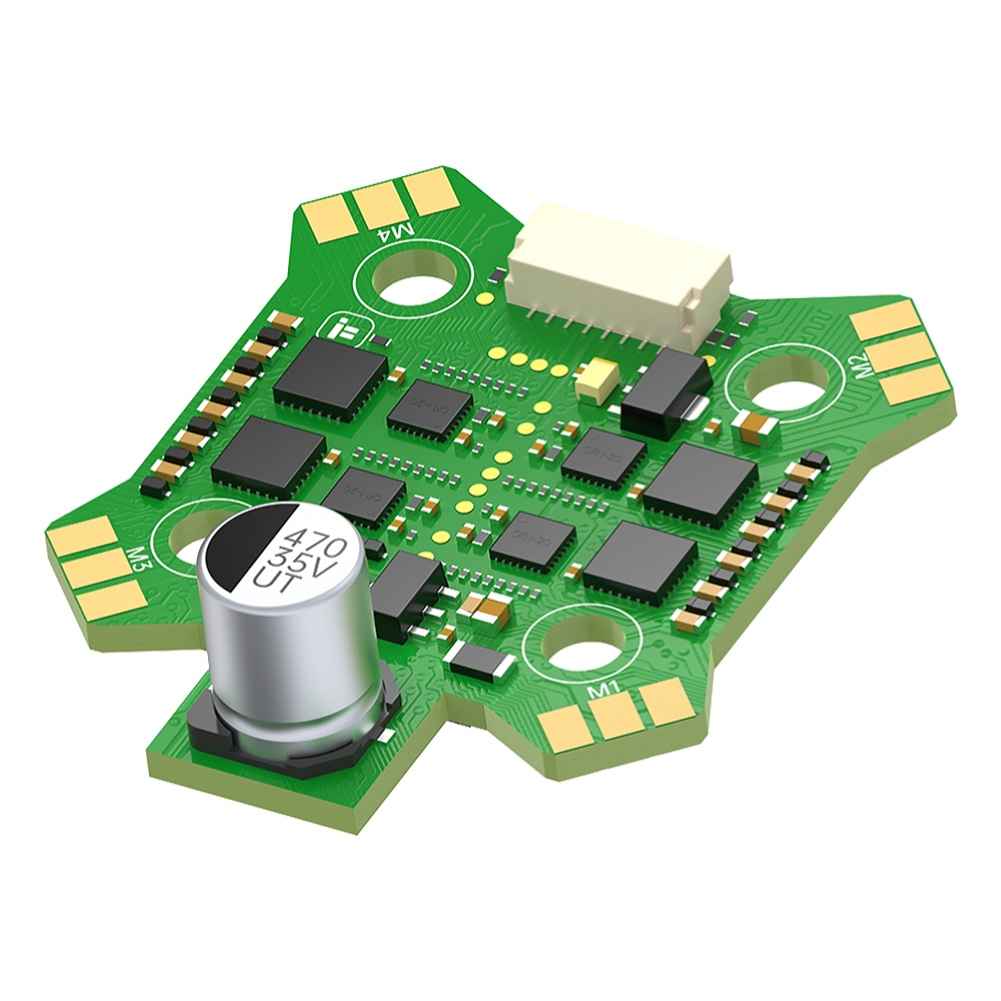

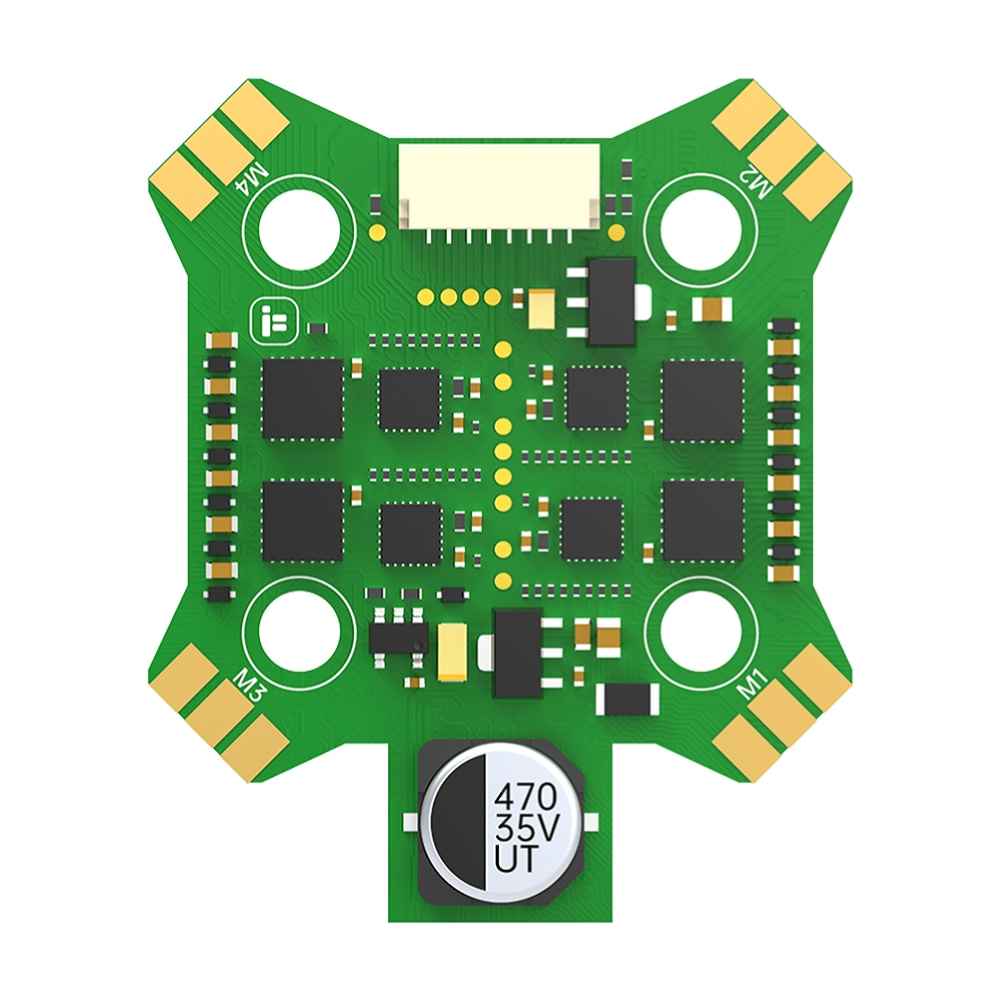

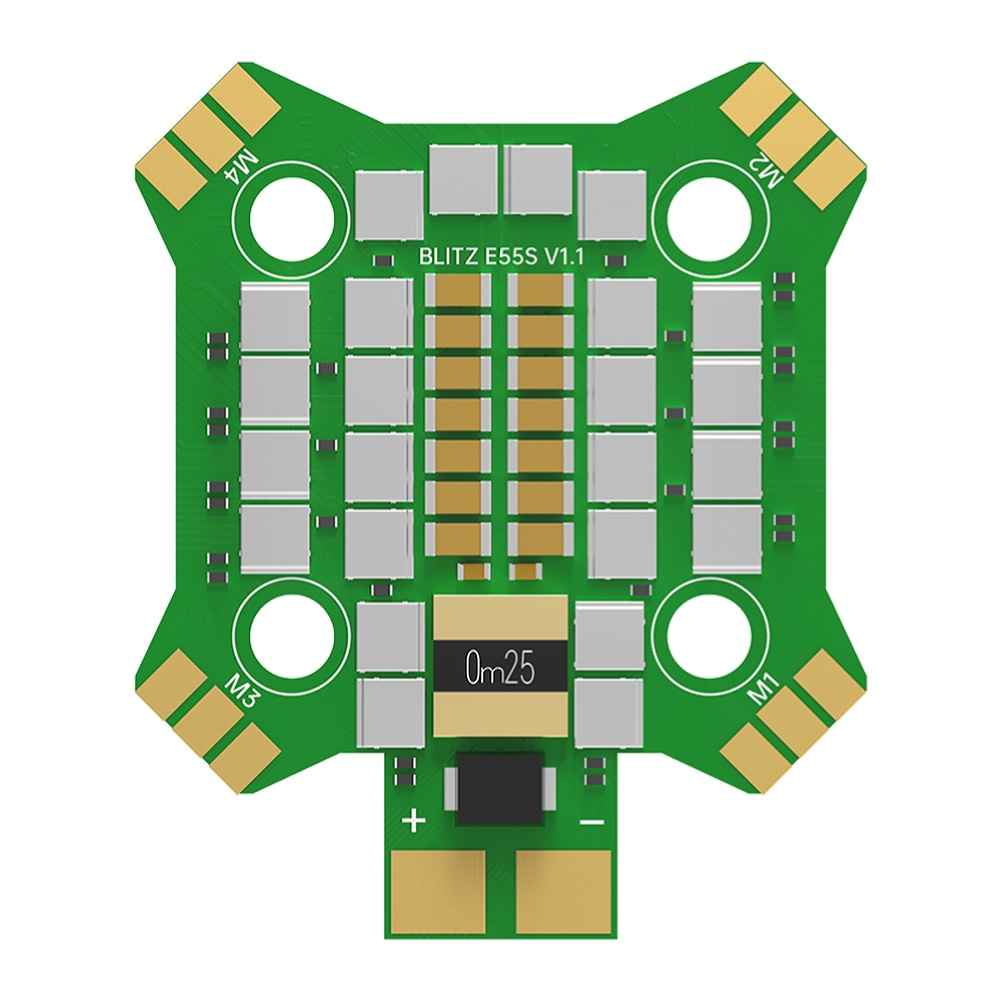

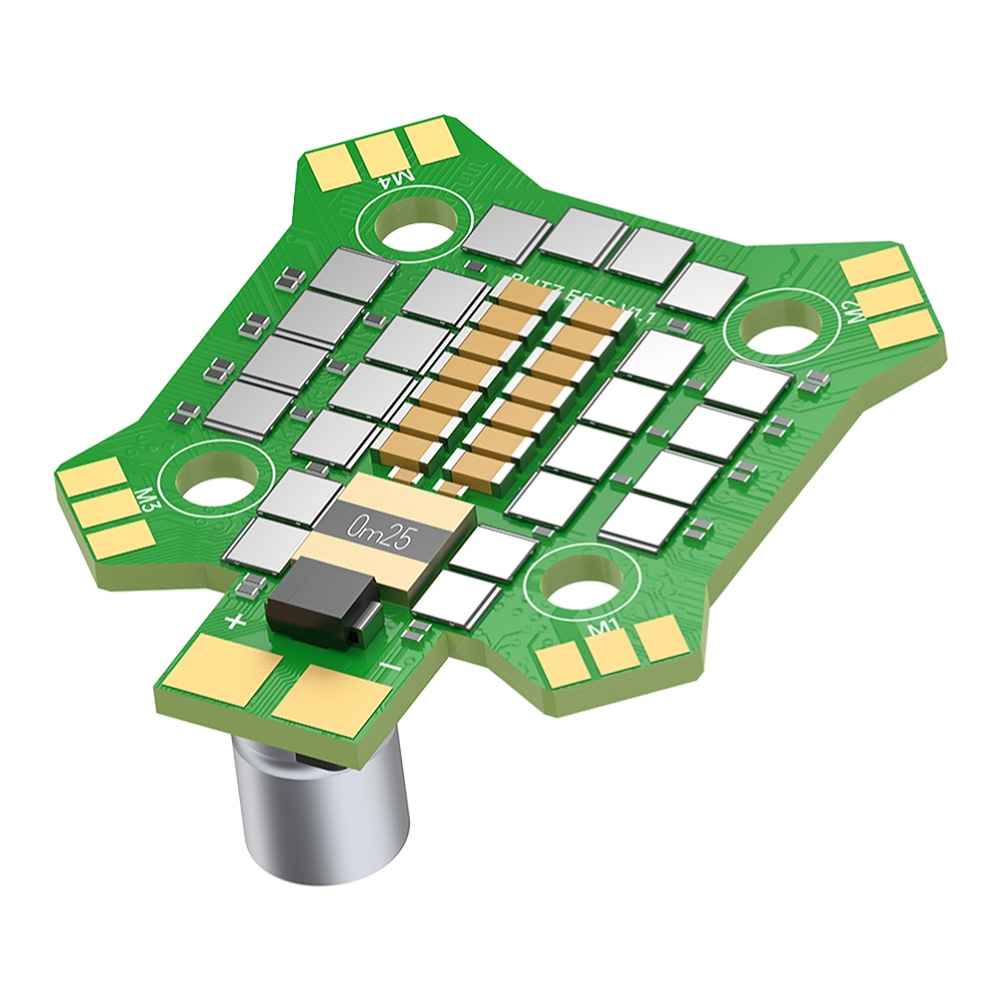

20x20mm iFlight BLITZ Mini E55S 55A 2-6S BLheli_S 4IN1 Brushless ESC for FPV RC Racing Drone
The iFlight BLITZ Mini E55S is a high-performance 4-in-1 brushless ESC designed for FPV racing drones. Featuring a compact 20x20mm mounting size, this ESC supports 2-6S LiPo input and delivers a constant current of 55 amps with a burst capability of 65 amps, ensuring robust power management. Equipped with a BB21 MCU and supporting DShot, MultiShot, and OneShot protocols, it offers versatile compatibility for various flight configurations. The ESC includes a current sensor for monitoring power usage, though it does not feature telemetry output or a BEC. Ideal for drone racing enthusiasts seeking reliability and efficiency.
Specifications:
Brand: iFlight
Model: BLITZ Mini E55S
Item Name: 55A 2-6S BLheli_S 4IN1 Brushless ESC
Mounting Holes: 20*20mm/?4mm
Weight: 11.3g
Supports 2-6S lipo input
MCU: BB21
Constant: 55 Amps
Burst: 65 Amps
Telemetry Output: No
Current sensor: Yes
BEC: No
Current rate: 200
Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
Target: Q-H-25 16.7(BlheliS) / Bluejay Q-H-50 (Bluejay)
Package Included:
1 x BLITZ Mini E55S 4-IN-1 2-6S ESC
1 x Power cables & ESC signal wires
