ISDT ESC90 90A Waterproof Brushed ESC, App Programmable with Brake, for RC Car/Buggies/Trucks/Rock Crawler

Description

ISDT ESC90 90A Brushed ESC Full Waterproof App Programming with Brake Motor Electronic Speed Controller RC Car Touring Car/Buggies/Trucks/Rock Crawler Vehicles Models Parts

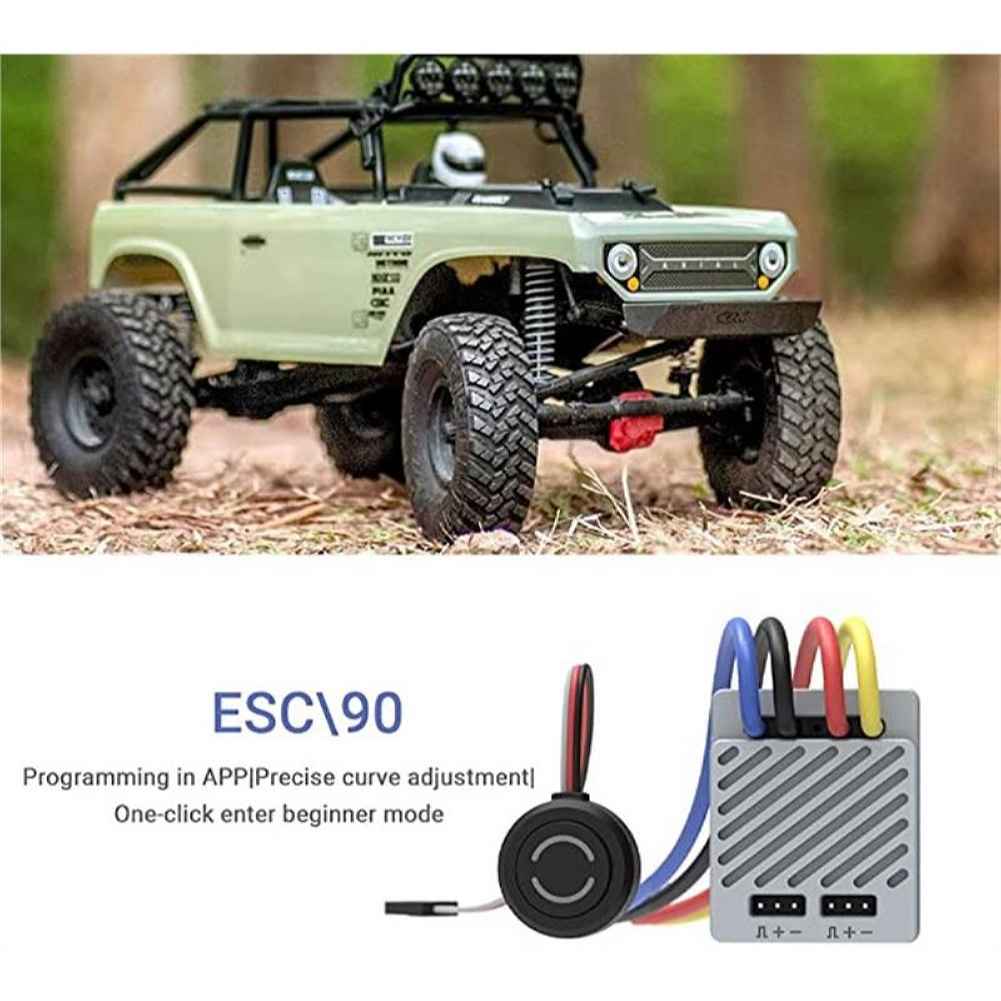

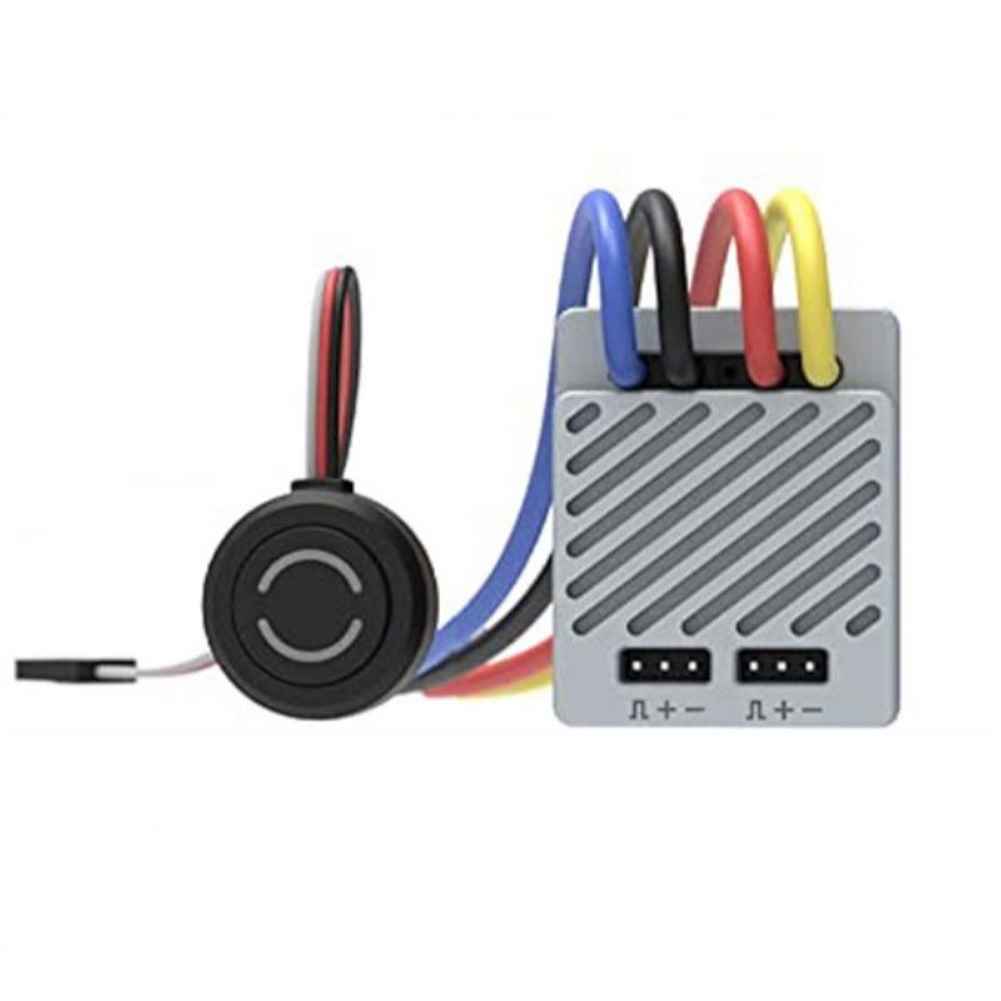

The ISDT ESC90 is a 90A brushed electronic speed controller designed for RC vehicles such as cars, buggies, trucks, and rock crawlers. It features a fully waterproof design, ensuring durability in all conditions. The ESC supports 540, 550, and 775 brushed motors and is compatible with 1/8 and 1/10 scale models. It accommodates Lipo (2-3S) and NiMH (6-8S) batteries, with a built-in BEC output of 3A and adjustable voltage from 5V to 7.5V. The advanced electronic switch and Bluetooth module allow real-time monitoring via the ISD Go APP. The ESC also includes adjustable PWM frequency, active drag brake function, and slope anti-skid locking for superior performance on tough terrains.

Description:
Item Brand:ISDT
Model:ESC90
Cont./Peak Current:90/180A
Motor Type:540/550/775 Brushed Motor
Application:1/8 1/10
Support batteries:Lipo(2-3S)/NiMH(6-8S)
BEC Output:3A amp rating,5V-7.5V Switch (Stepping 0.1V)
Wire/Connectors:16AWG 200mm / No
Explanation for LED Status
Power On:Short press once-white LED flashes
Standby:Green LED on
Error:Red LED flashes
Bluetooth to be connected:Long press 5 seconds before use to enter setting Blue LED flashes
Bluetooth Connected: Blue LED ON
Power Off: Long press once
Features:
▽Waterproof brushed esc▼Fully waterproof design for all conditions. (Note: please clean and perform maintenance after use for avoiding corrosion)

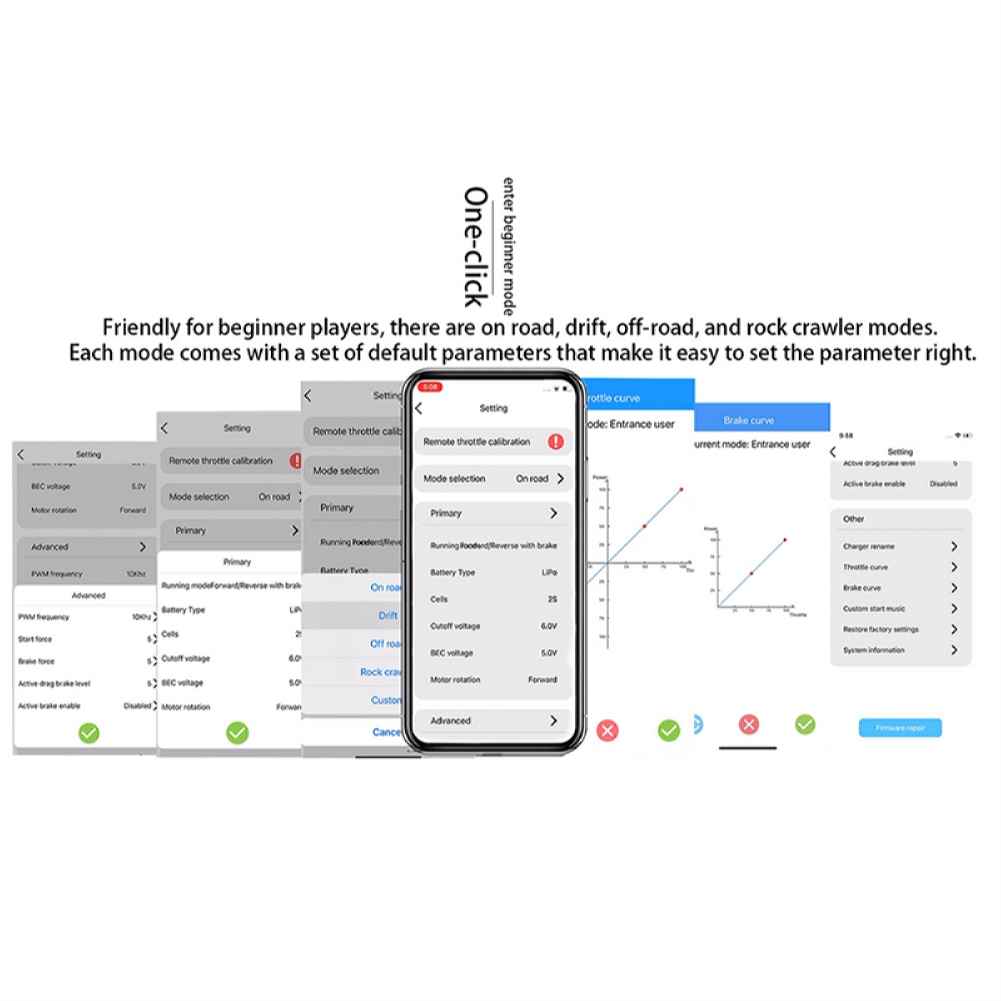

▽Smart brushed esc 1/10▼ Advanced electronic switch and Bluetooth two-in-one module, Support real time operating parameter and status via the ISD Go APP.
▽ISDT ESC 90 90A brushed motor▼Built-in BEC with adjustable output features; outputs continuous current up to 3A, and support 5V to 7.5V with 0.1V adjustment via ISD Go APP. Support various powerful rc applications and high-voltage servos.

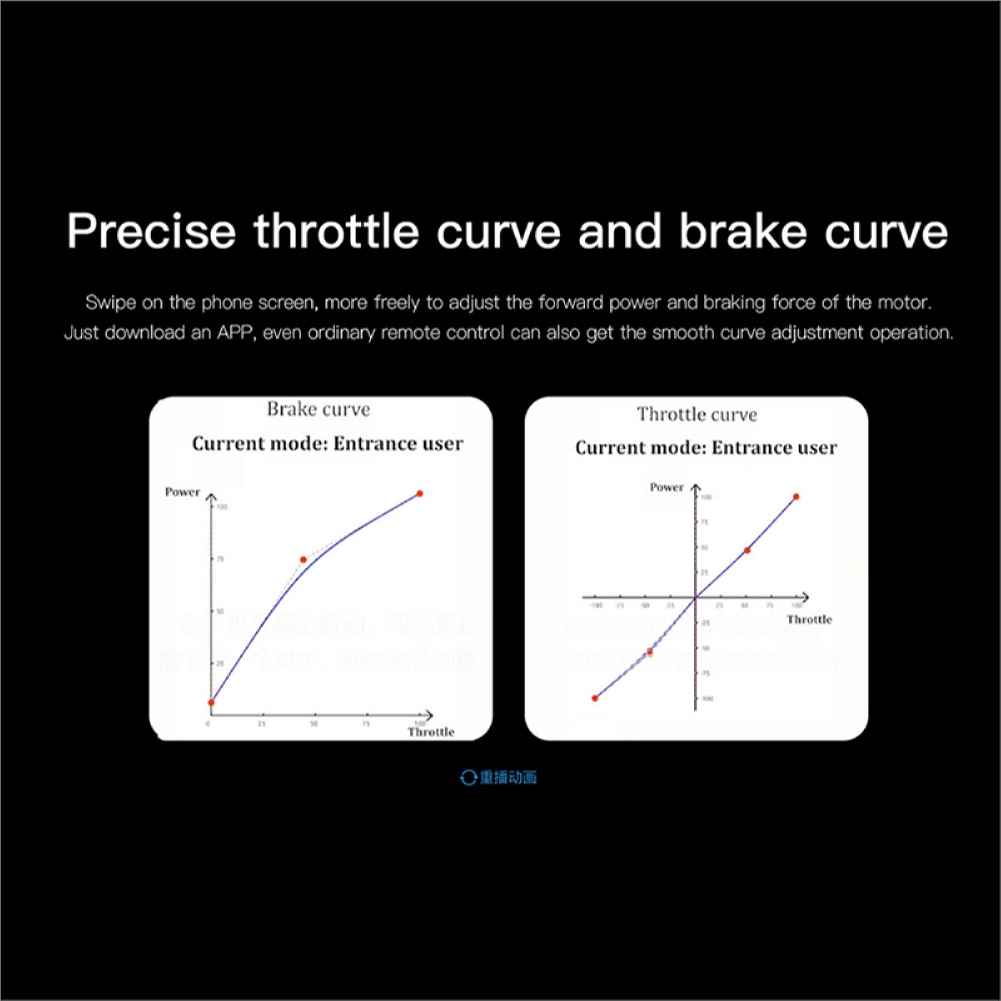

▽Brushed Crawler Esc 1/10▼The electronic speed controllerㄛadjustable PWM frequency and advanced synchronous function provide ideal throttle curve and outstanding performance for dierent vehicles, conditions.
▽RC crawler esc▼Adjustable Active drag brake function and adjustable Brake force or initial braking. Slope anti-skid locking function specially designed for RC Crawler that characteristics operating on toughest terrain.

Package Included:
1 x 90A ESC
