ISDT K4 AC 400W DC 600W Dual Mode Smart Balance Charger for 1-8S LiPo Battery

Description

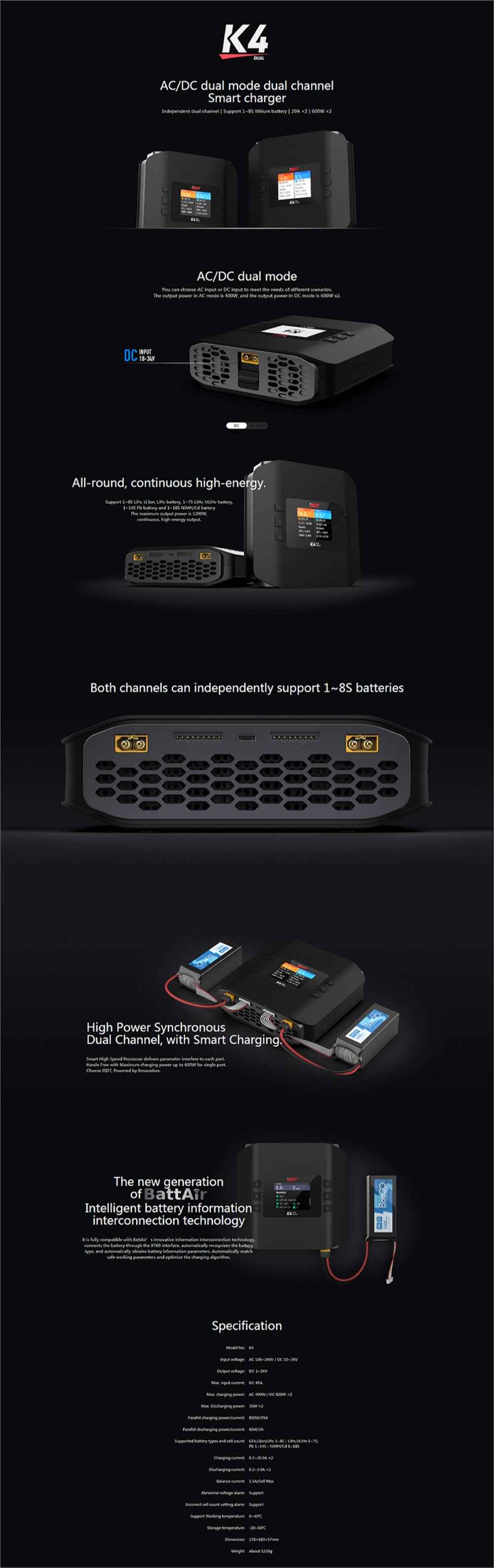

ISDT K4 AC 400W DC 600W Dual Mode Smart Balance Charger for 1-8S LiPo Battery

The ISDT K4 Charger is a versatile dual-mode smart balance charger designed for 1-8S LiPo batteries. It features an input voltage range of AC 100~240V and DC 10~34V, with a maximum charging power of 400W for AC and 600W for DC. This charger supports a variety of battery types, including LiFe, LiIon, LiPo, LiHv, ULiHv, Pb, and NiMH/Cd, accommodating a wide range of cell counts. It offers a charging current from 0.2A to 20.0A and a discharging current from 0.2A to 3.0A. Additionally, it includes safety features such as abnormal voltage and incorrect cell count setting alarms. The compact design measures 176 x 183 x 57mm and weighs approximately 1230g.

Specification:
Model No: K4
Input voltage: AC 100~240V / DC 10~34V
Output voltage: DC 1~34V
Max. input current: DC 45A
Max. charging power: AC 400W / DC 600W â„…2
Max. Discharging power: 30W â„…2
Parallel charging power/current: 800W/35A
Parallel discharging power/current: 60W/3A
Supported battery types and cell count: LiFe,LiIon,LiPo 1~8S˙LiHv,ULiHv 1~7S;
Pb 1~14S˙NiMH/Cd 1~18S
Charging current: 0.2~20.0A â„…2
Discharging current: 0.2~3.0A â„…2
Balance current: 1.5A/Cell Max
Abnormal voltage alarm: Support
Incorrect cell count setting alarm: Support
Support Working temperature: 0~40⊥
Storage temperature: -20~60⊥
Dimension: 176â„…183â„…57mm
Weight: About 1230g
Cautionã„©The UK and AU plug versions are actually shipped with EU plug, and we will send UK or AU adapters with them.
Packaging included:
1X ISDT K4 Charger
or
The UK and AU plug versions are actually shipped with EU plug,we will ship with UK or AU adapters

Package Included:
1 x ISDT K4 Charger
