JDHMBD 20A High Current BEC Step-Down Module SBEC UBEC, Input 6-50V, Compatible with 12S RC Aircraft Helicopter

Description

JDHMBD 20A High Current BEC Step-down Module SBEC UBEC External Power Supply Input 6-50V Supports 12S for RC Aircraft Helicopter

The JDHMBD 20A High Current BEC Step-Down Module SBEC UBEC is engineered for RC aircraft and helicopter enthusiasts. With an input range of 6V to 50.4V and a maximum output current of 20A, this module is designed for high performance and reliability. It features a world-class switching power supply chip and high-power FETs, ensuring over-current protection and stable operation. The compact and lightweight design includes a dual-wire output with a filter magnetic ring, minimizing electromagnetic interference. Users can select the output voltage through a short-circuit plug, and the module operates efficiently within a wide voltage range. Please ensure the distance between the output filter magnetic ring and the main control board to maintain optimal performance.

Specification:
Output Voltage:

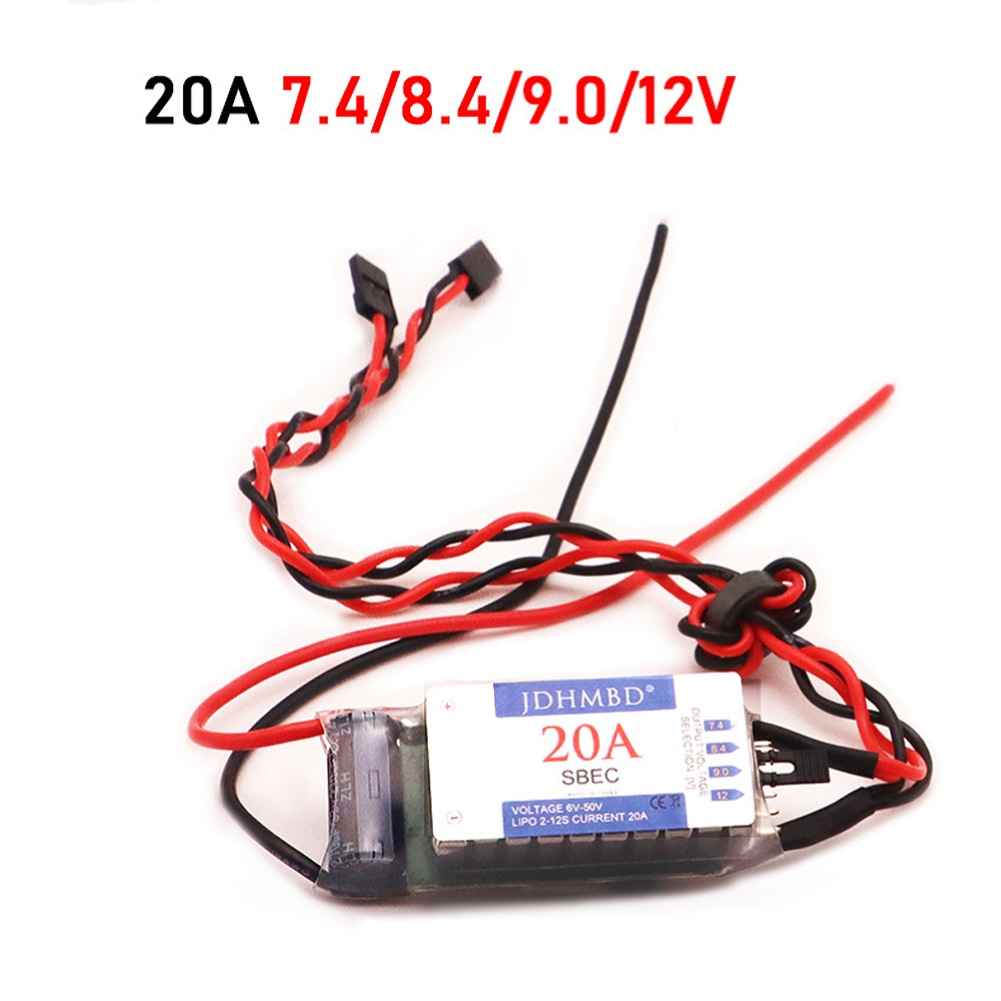

Optional 1: 7.4V/8.4V/9.0V/12V

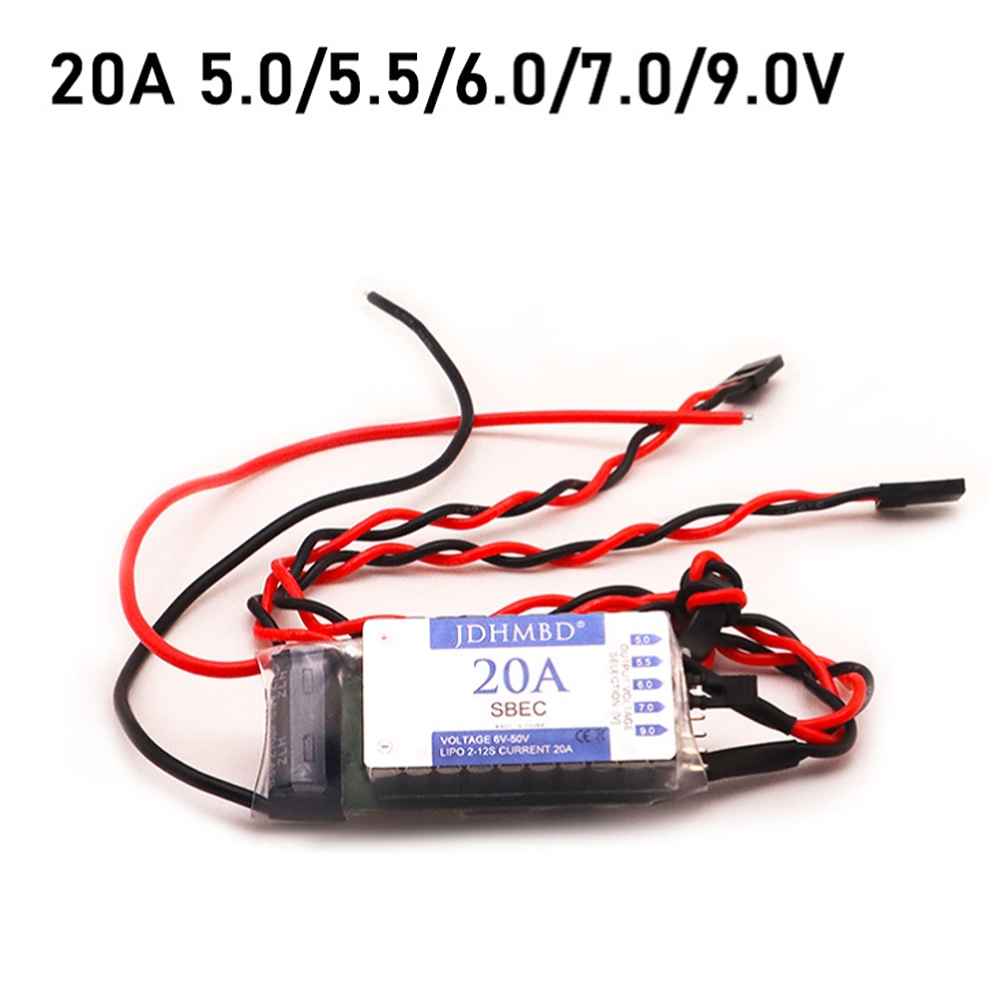

Optional 2: 5V/5.5V/6V/7V/9V
Output Current: 0-20 amps
Input: 6V – 50.4V (2-12S lithium battery)
Quiescent current: 60è­™A, 200è­™A
Size: 62mm*26mm*21MM (length*width*height)
Weight: 30g
Features:
1. Adopting the world’s most advanced switching power supply main control chip design, with ultra-low impedance high-power FET, with over-current protection function;
2. Small size, light weight, maximum output current of 20A, and extremely strong load capacity. It is the first domestic UBEC with high current output;
3. Using high-power brand components, product performance is stable and excellent;
4. Output voltage can be selected by short-circuit plug (jumper);
5. The dual-wire output is equipped with a professional filter magnetic ring, which greatly reduces electromagnetic interference and wire internal resistance, and ensures the normal operation of the load;
6. Wide voltage working range, which can work normally within 6V-50.4V;
7. Stable operating frequency: 100% duty cycle (Duty Cycle)
8 .Fully enclosed inductors are used to greatly reduce electromagnetic interference.

Package Included:
1 x 20A BEC
