JINJIEAN B19 PRO MAX Mini FPV Camera, 1800TVL, 1/2.8” Sensor, 2.1mm Lens, Night Vision, Low Light, PAL/NTSC, for RC FPV Racing Drone

Description

JINJIEAN B19 PRO MAX Mini Full Color Night Vision FPV Camera 1/2.8” Sensor 2.1mm Lens 1800TVL 5V-30V PAL/NTSC Low Light Level for RC FPV Racing Drone

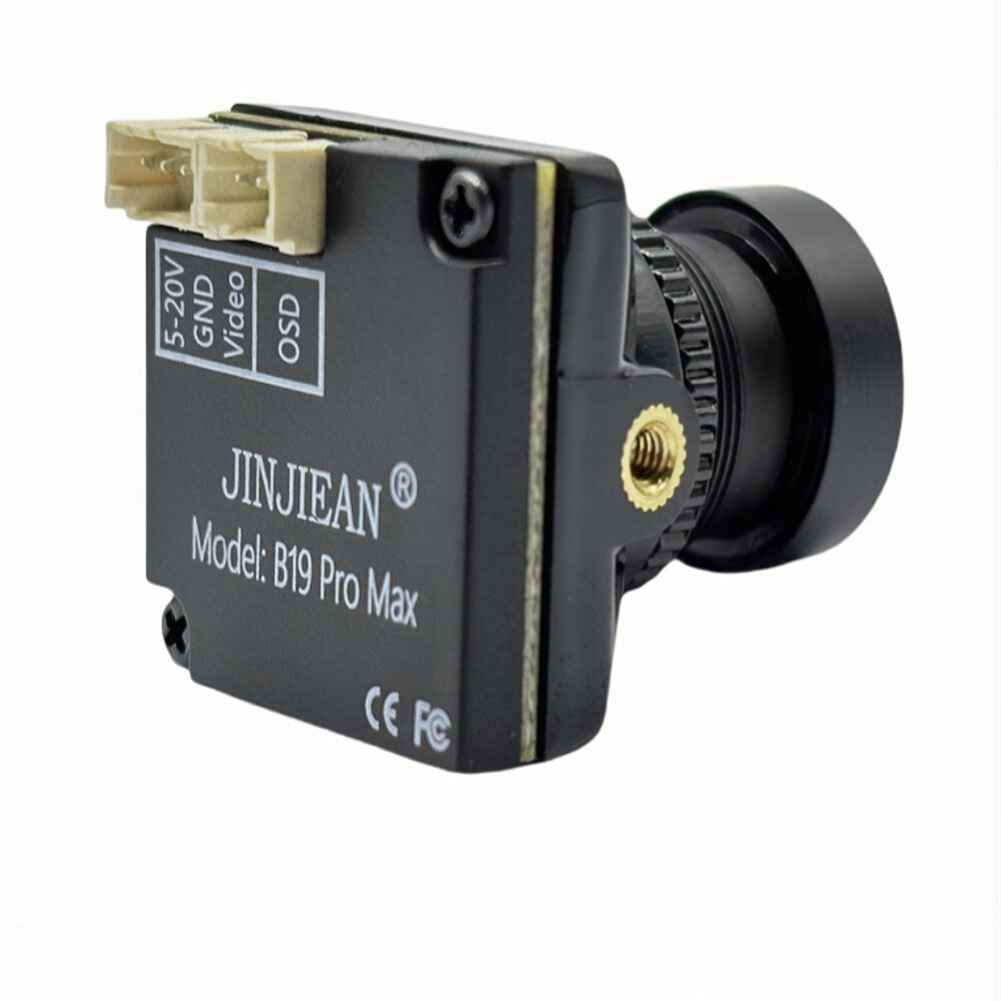

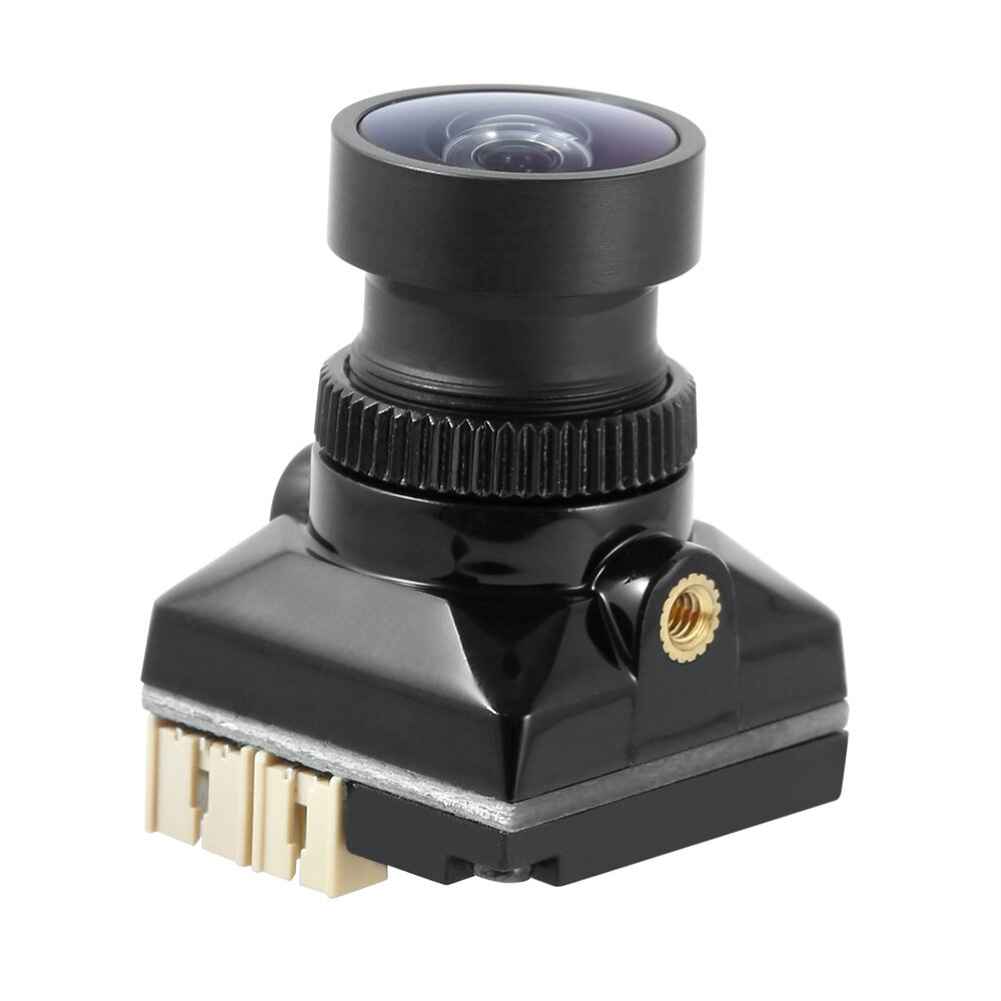

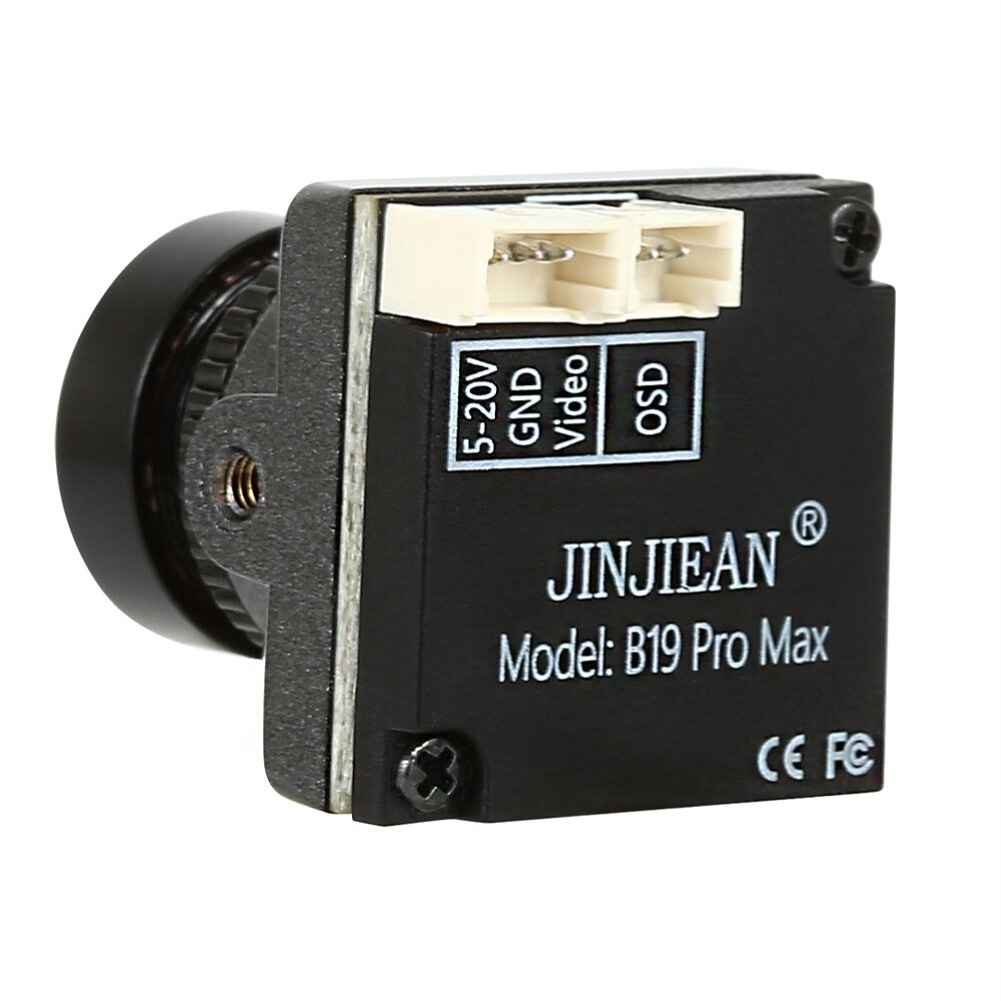

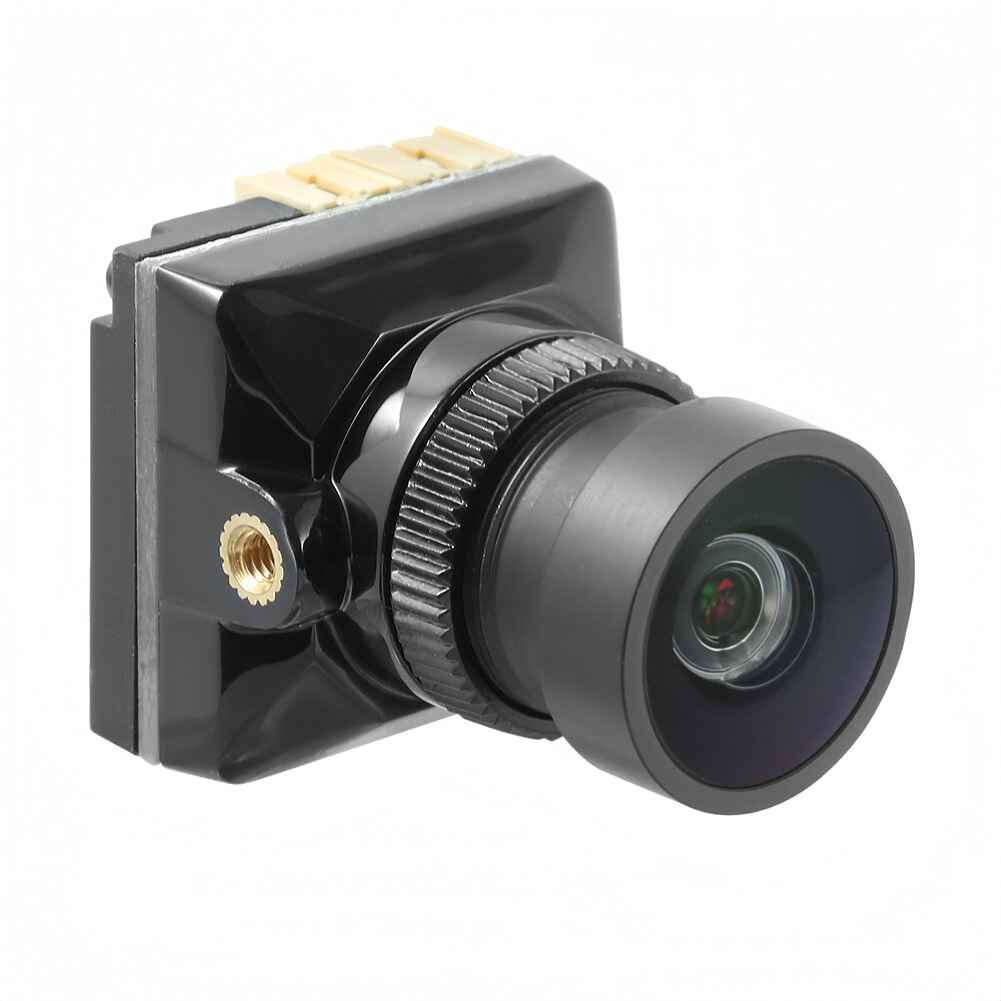

The JINJIEAN B19 PRO MAX Mini FPV Camera is designed for RC FPV racing drones, offering exceptional image quality with its 1800TVL resolution and 1/2.8” sensor. Its 2.1mm wide-angle lens provides expansive views with minimal distortion, while the low light sensitivity of 0.00001Lux ensures excellent performance in dim conditions. This camera supports both PAL and NTSC video formats, adjustable manually, and features a compact design weighing just 6.0g, making it ideal for lightweight drones. With advanced features like digital noise reduction and wide dynamic range, it captures clear visuals in various lighting conditions.

Specification:

Brand:

JINJIEAN

Model:

B19 Pro Max

Sensor:

1/2.8”

Resolution:

1800TVL

Lens:

2.1mm

Video Format:

PAL/NTSC (Manually Adjustable)

Signal-To-Noise Ratio:

>60dB (AGC Off)

Electronic Shutter:

PAL: 1/50-100,000SEC,
NTSC: 1/60-100,000

Video Output:

CVBS/AHD

Backlight Compensation (BLC):

Yes

Minimum Illumination:

0.00001Lux

Wide Dynamic Range (WDR):

D-WDR (Ultra)

Digital Noise Reduction:

3DNR

Day/Night Mode:

Color/Black & White/Auto

Power Supply:

DC 5V-30V

Weight:

6.0g

Operating Temperature:

-20‵C~70‵C

Dimensions:

19mm*19mm*22mm

OSD Parameters

Aspect Ratio:

4:3 / 16:9

Image Adjustment:

Electronic Shutter/Auto Adjustment/Resolution/Brightness/Digital Wide Dynamic Range

Backlight Setting:

BLC/Anti-Intense Light

Color Adjustment:

Red Adjustments/Blue Adjustments/Mirror/Flip Image

Display Language:

Chinese/English/Fast Mode Switch

Exit Options:

OK

Features:
* 1800TVL High Resolution: Captures crisp, clear visuals with outstanding detail, perfect for drone racing or monitoring applications.
* Wide-Angle 2.1mm Lens: Offers panoramic views with minimal distortion for enhanced coverage and visibility.
* Low Light Performance: 0.00001Lux sensitivity ensures usability even in dim environments, enabling night and indoor operations.
* Multi-Mode Video Output: Supports PAL/NTSC switchable formats with CVBS/AHD video outputs to match varied system requirements.
* Compact and Lightweight Design: Fits into tight spaces with dimensions 19mm*19mm*22mm and only 6.0g, ideal for lightweight drones and setups.

Package Included:
1 x B19 PRO MAX FPV Camera
