JX CLS-HV7346MG 46KG High Precision Steel Gear Digital Coreless Servo, Waterproof, CNC Aluminum Shell, Dual Ball Bearings

Description

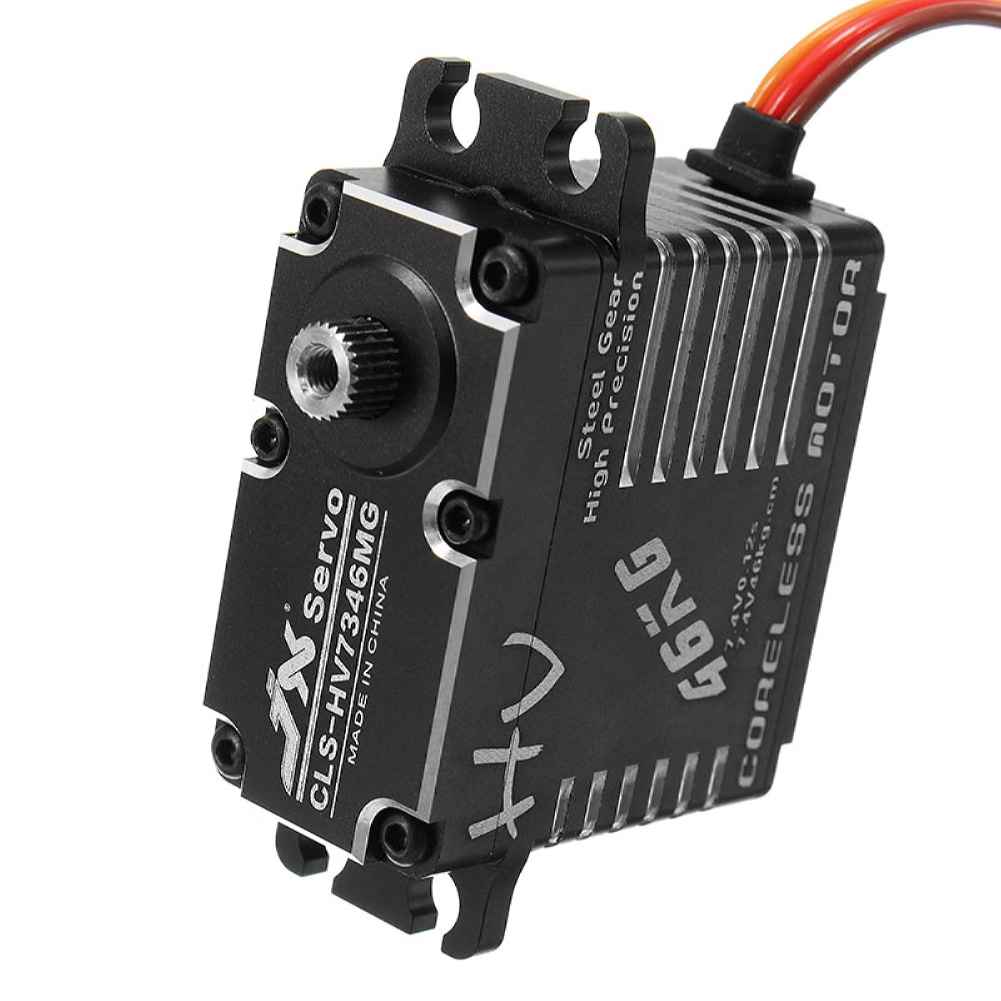

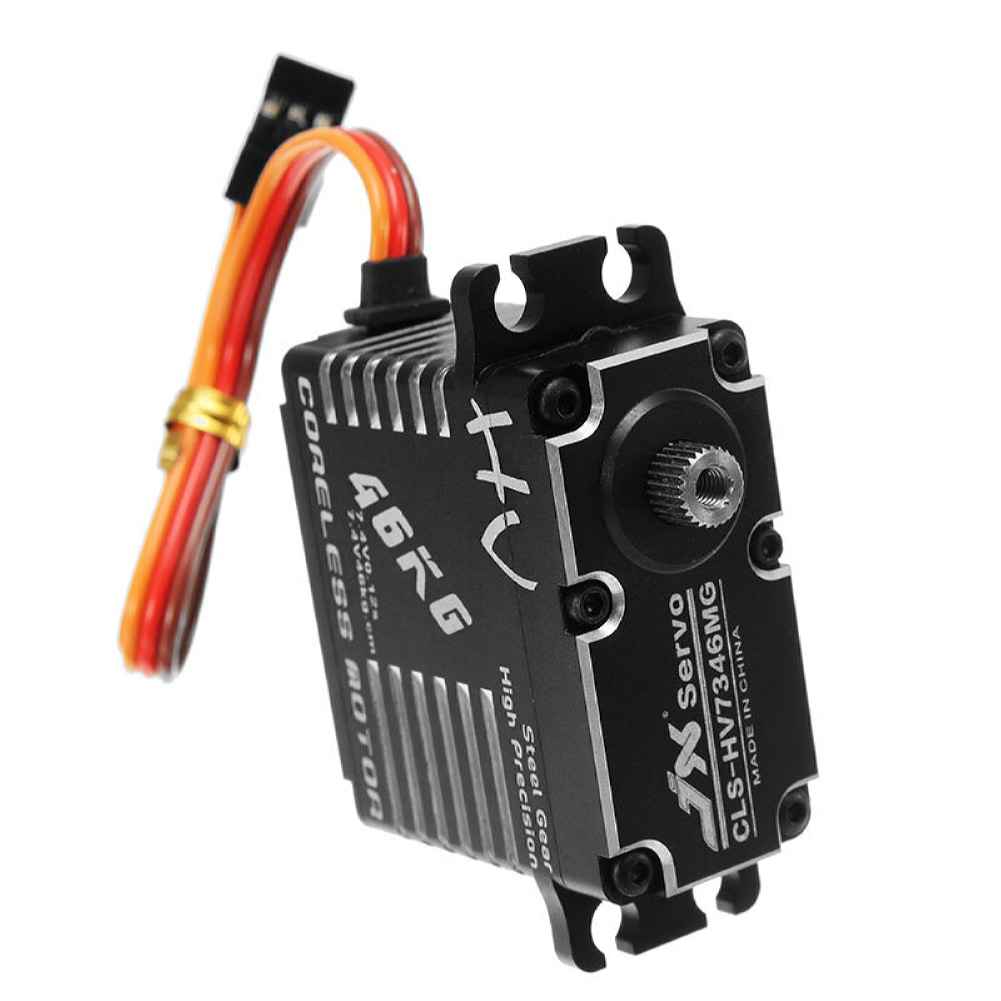

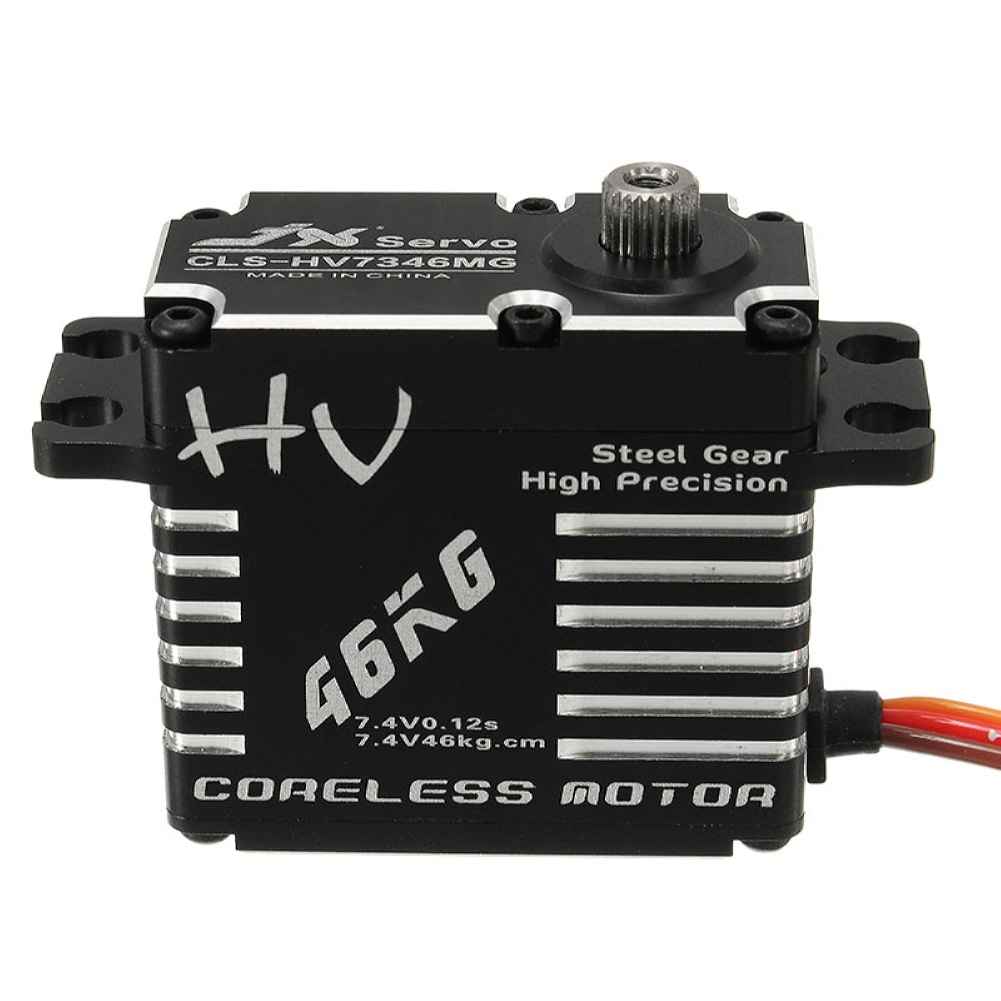

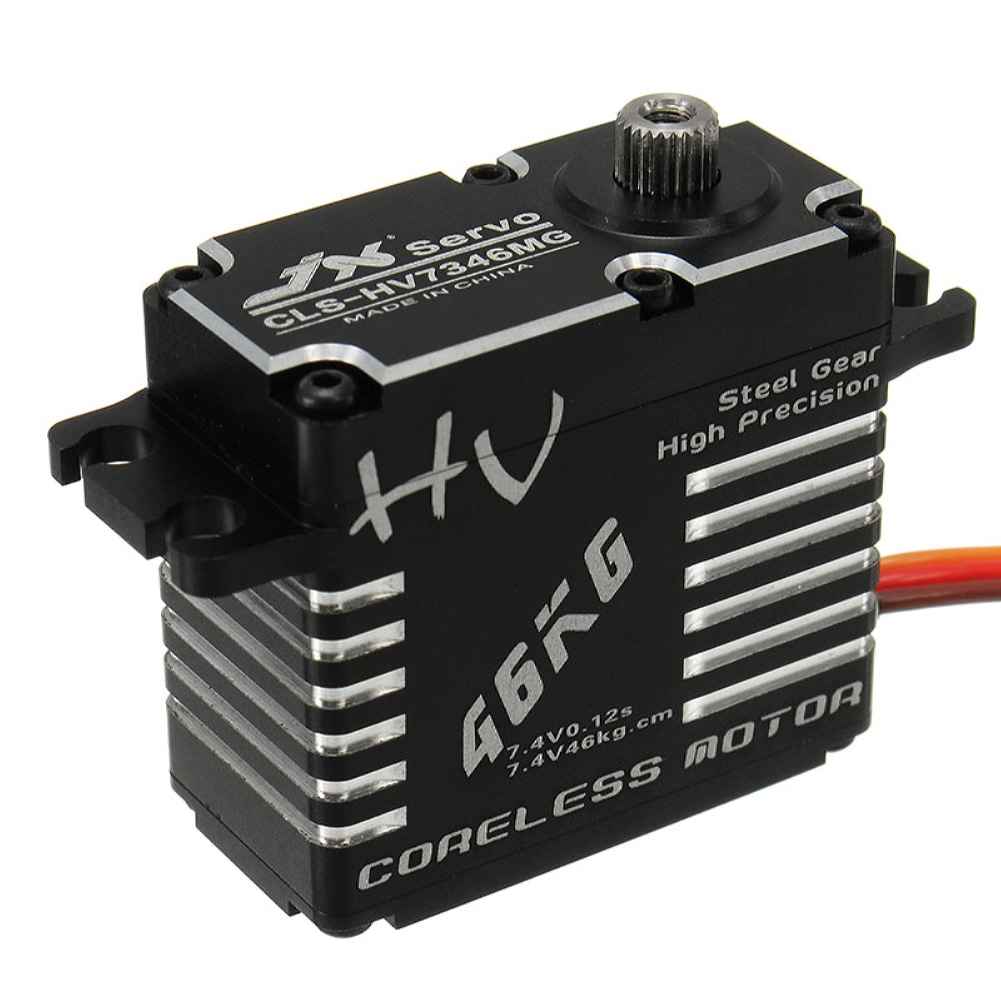

JX CLS-HV7346MG 46KG HV High Precision Steel Gear Digital Coreless Servo

The JX CLS-HV7346MG is a high-performance digital coreless servo designed for precision and reliability. Featuring high-precision Taiwan-made steel gears with hard anodizing, this servo ensures durability and smooth operation. It operates at a frequency of 1520μs/330hz with a coreless motor, delivering a fast operating speed of 0.12sec/60° at 7.4V and a stall torque of 46.9kg.cm. The servo’s full CNC aluminum shell structure and dual ball bearings provide enhanced stability and performance. With a waterproof design, it is suitable for various RC applications. The servo measures 40x20x37mm and weighs 73g, making it a compact yet powerful choice for hobbyists.

Specification:
Dead band: 1μs
Working frequence: 1520μs / 330hz
Motor: coreless motor
Operating Speed (6V): 0.14sec/60°
Operating Speed (7.4V): 0.12sec/60°
Stall Torque (6V): 37.5 kg.cm
Stall Torque (7.4V): 46.9kg.cm
Dimensions: 40X20X37mm
Weight: 73 g
Connector Wire Length: JR 265 mm
Bearing: 2BB
Feature:
– High voltage
– High performance programmable digital coreless standard servo
– High-precision Taiwan-made steel gears with hard anodizing
– Full CNC aluminium Shell structure
– Dual ball bearings
– Waterproof

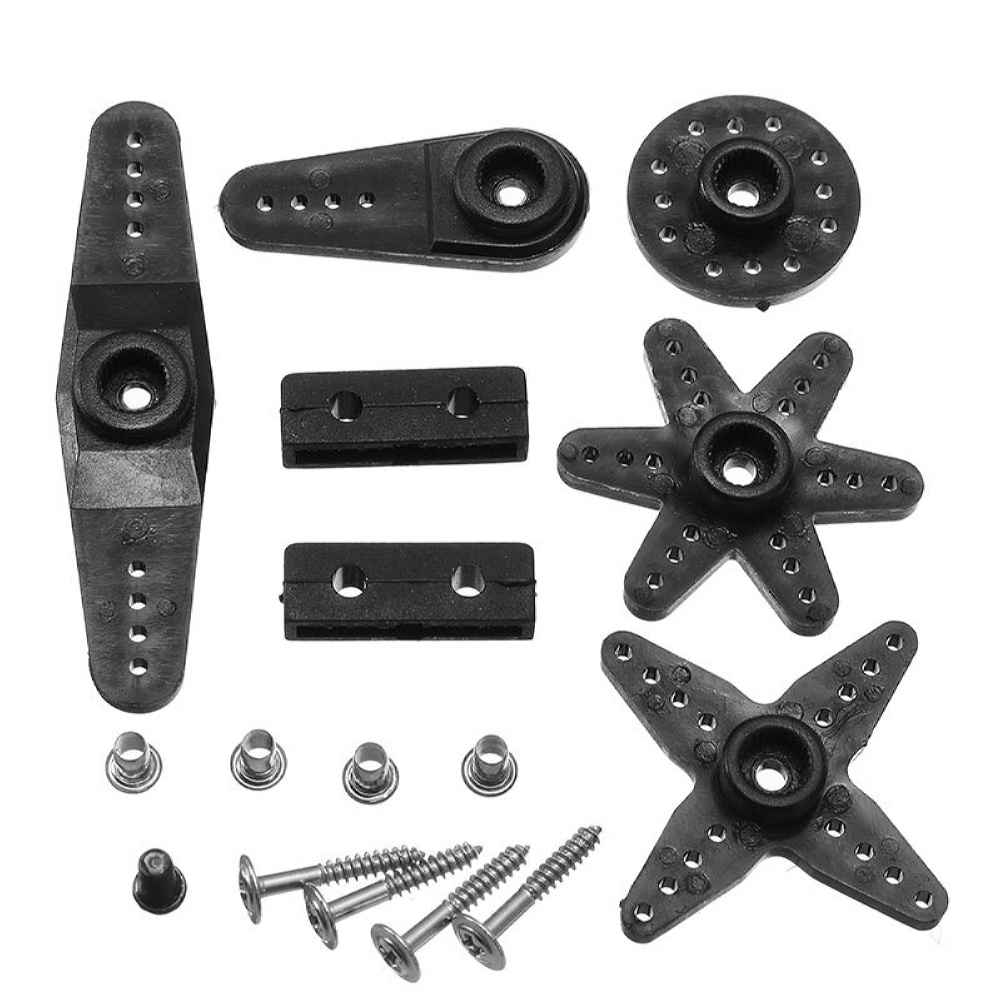

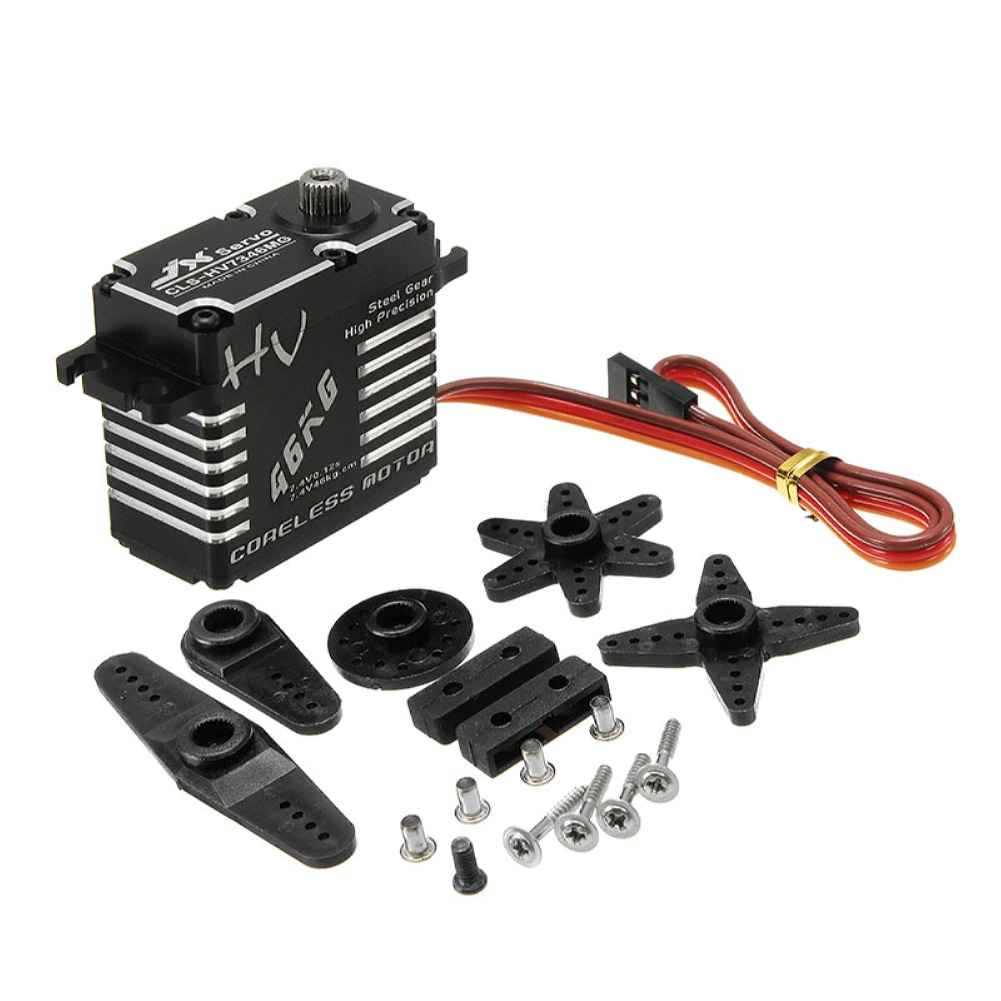

Package Included:
1 x JX CLS-HV7346MG 46KG Servo
