JX PDI-6221MG 20KG Large Torque Digital Servo, 180‵ Rotation for RC Cars, Robots, Drones, Airplanes

Description

JX PDI-6221MG 20KG Large Torque Digital Standard Servo 180 Degree for 104001 104002 104072 RC Car Robot Drone Airplane

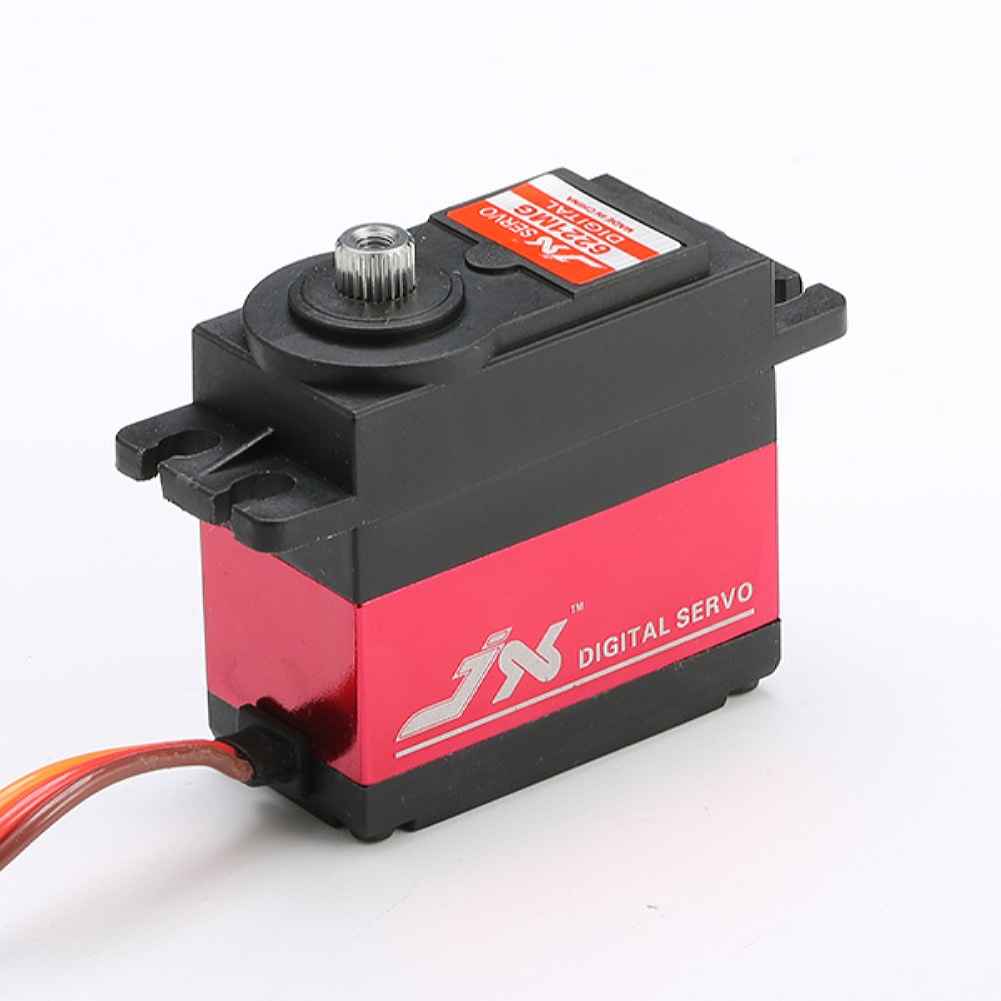

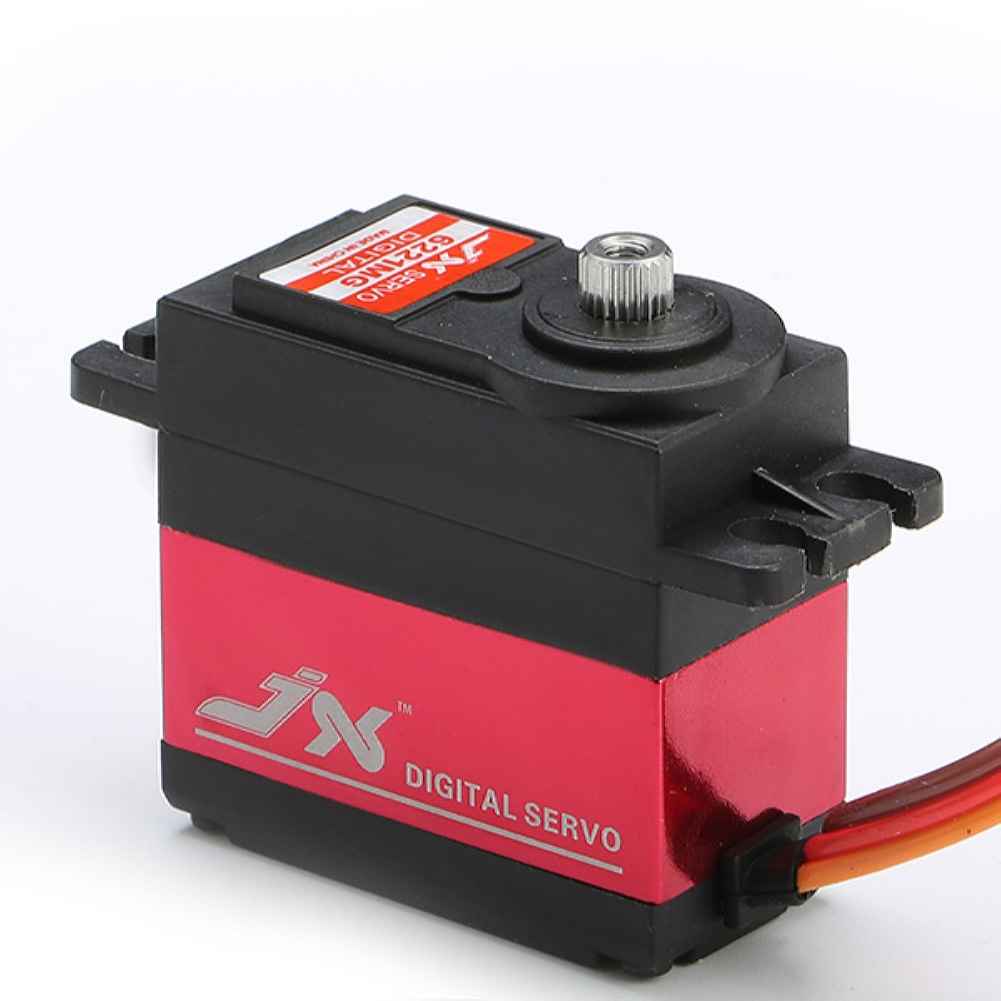

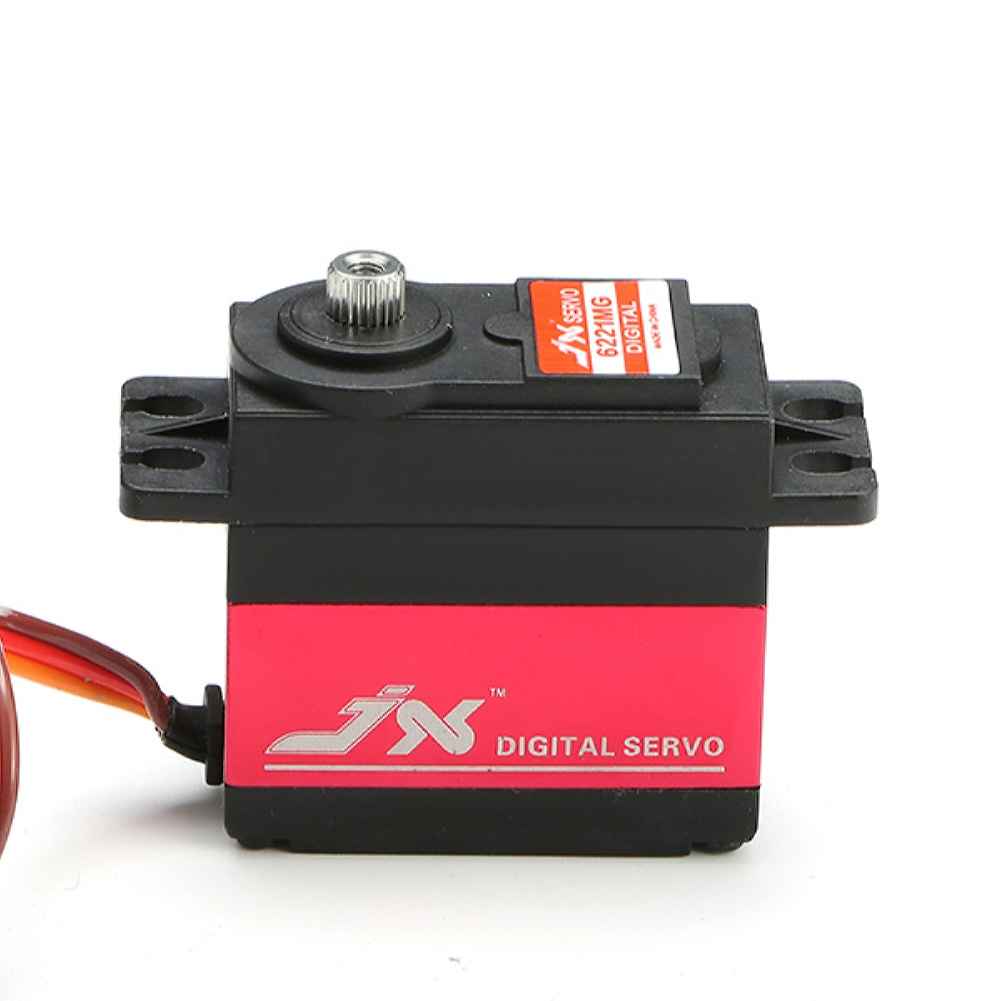

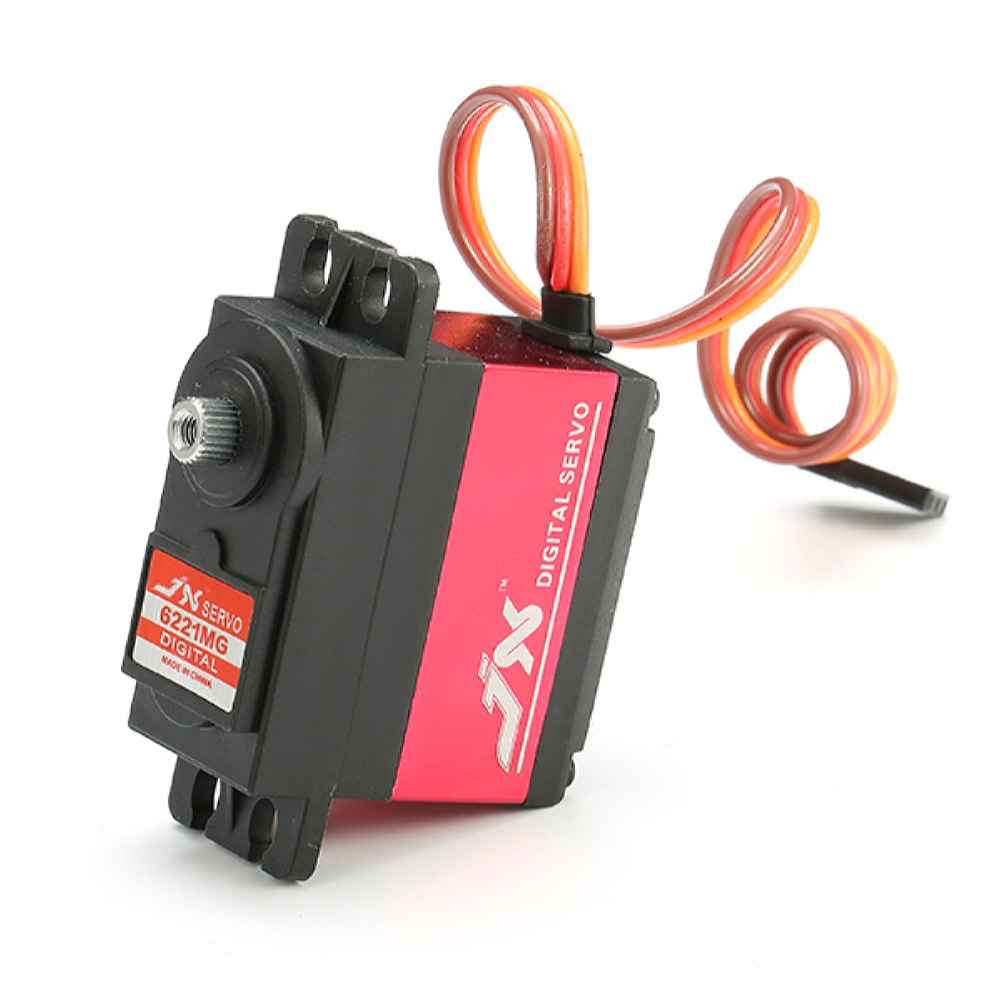

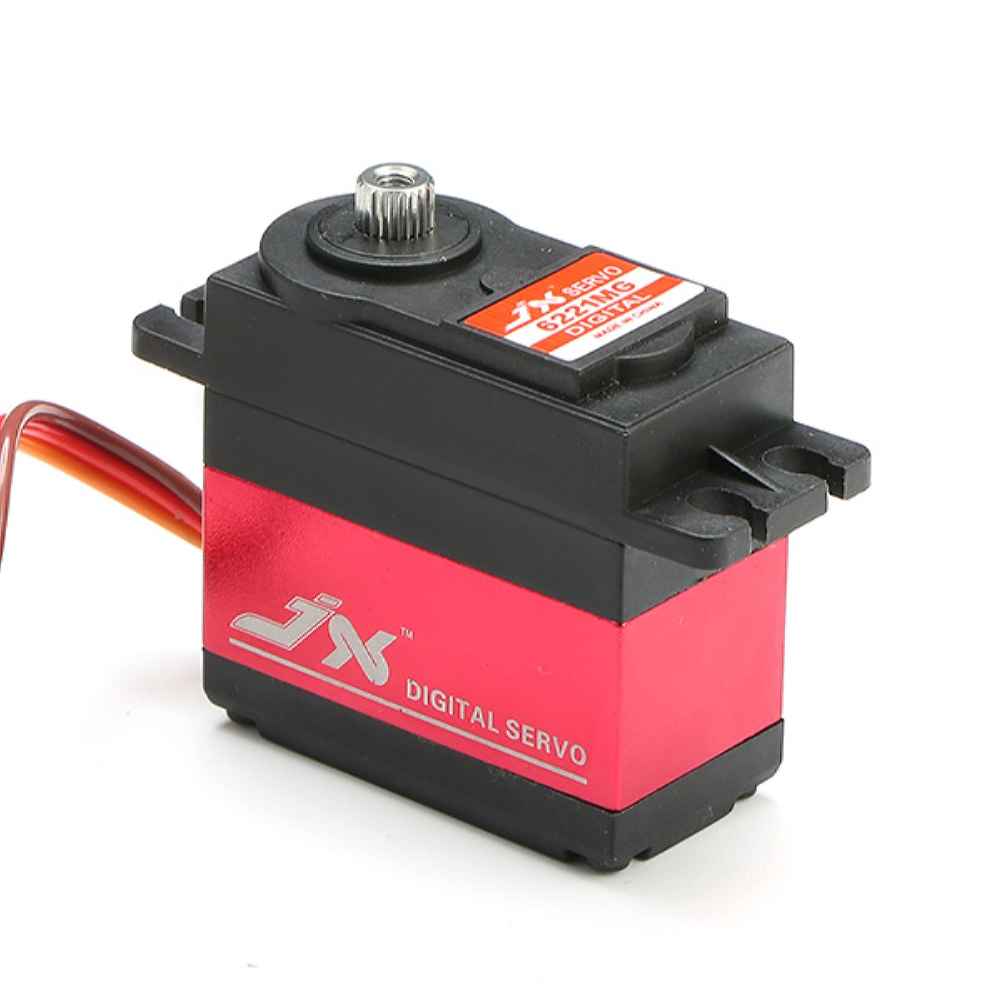

The JX PDI-6221MG is a high-performance digital standard servo, designed to deliver large torque with precision. It features a 180-degree rotation angle, making it ideal for a variety of applications including RC cars, robots, drones, and airplanes. This servo is equipped with high-precision aluminum gears that are hard-anodized for durability. It operates at a frequency of 500米s/2500Hz, with operating speeds of 0.18 sec/85～ at 4.8V and 0.16 sec/85～ at 6V. The stall torque is 17.25 kg.cm at 4.8V and 20.32 kg.cm at 6V, providing powerful performance. With dual ball bearings and a CNC aluminum middle shell, this servo ensures smooth and reliable operation.

JX PDI-6221MG 20KG Large Torque Digital Standard Servo 180 Degree
Description:
Brand:JX
Item: PDI-6221MG 20KG Large Torque Digital Standard Servo
Degree: 180‵
Dead band: 2è­™s
Working frequence: 500è­™s /2500hz
Angle Range: 172呼2‵
Operating Speed (4.8V): 0.18 sec/85‵
Operating Speed (6V): 0.16 sec/85‵
Stall Torque (4.8V): 17.25 kg.cm (239.55oz/in)
Stall Torque (6V): 20.32 kg-cm (281.89 oz/in)
Dimensions: 40.5X20.2X38mm /1.59 X0.80X49 in
Weight: 62 g (2.18oz)
Connector Wire Length: JR 265 mm (10.43in)
Bearing: 2BB
Features:
– High performance digital standard servo
– High-precision aluminium gears with hard anodizing
– CNC aluminium middle Shel
– Dual ball bearings

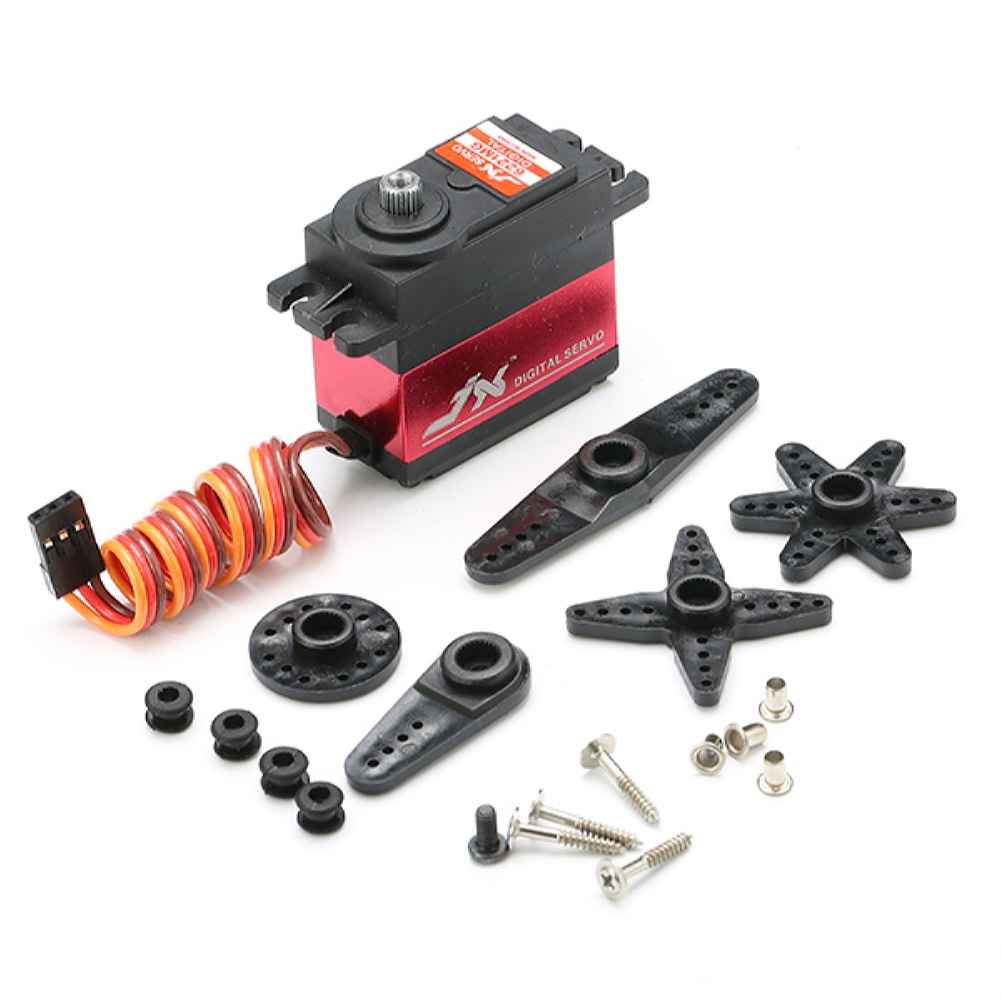

Package Included:
1 x PDI-6221MG 20KG Large Torque Digital Standard Servo 180 Degree
