JX Servo PDI-HV0903MG 9.4g High Torque Digital Standard Servo for RC Models, 6-Pack

Description

6X JX Servo PDI-HV0903MG 9.4g High Torque Digital Standard Servo For RC Model

The JX Servo PDI-HV0903MG is a high torque digital standard servo designed for RC models. Weighing just 9.4g, this servo features a dead band of 2渭s and a control system with pulse width control. It operates at a frequency of 1520渭s/330hz, with a voltage range of DC6 to 7.4V, and a temperature range from -10 to +60掳C. The servo offers an operating speed of 0.09sec/60掳 at 6V and 0.07sec/60掳 at 7.4V, with a stall torque of 2kg.cm at 6V and 2.6kg.cm at 7.4V. It includes a direct drive potentiometer, dual ball bearings, and a JR/Futaba connector wire measuring 150mm.

6X JX Servo PDI-HV0903MG 9.4g High Torque Digital Standard Servo For RC Model
Description:
Brand name: JX
Item number: PDI-HV0903MG 9.4g High Torque Digital Standard Servo
Dead band: 2μs
Control System: +Pulse Width Control
Working frequence: 1520μs / 330hz
Operating Voltage: DC6~7.4 V
Operating Temperature Range: -10 to + 60°C
Operating Speed (6V): 0.09sec/60°
Operating Speed (7.4V): 0.07sec/60°
Stall Torque (6V): 2kg.cm
Stall Torque (7.4V): 2.6kg.cm
Potentiometer Drive: Direct Drive
Dimensions: 23.5X8X24mm
Weight: 9.4g (0.33oz)
Connector Wire Length: JR/Futaba 150 mm
Bearing: 2BB

Package Included:

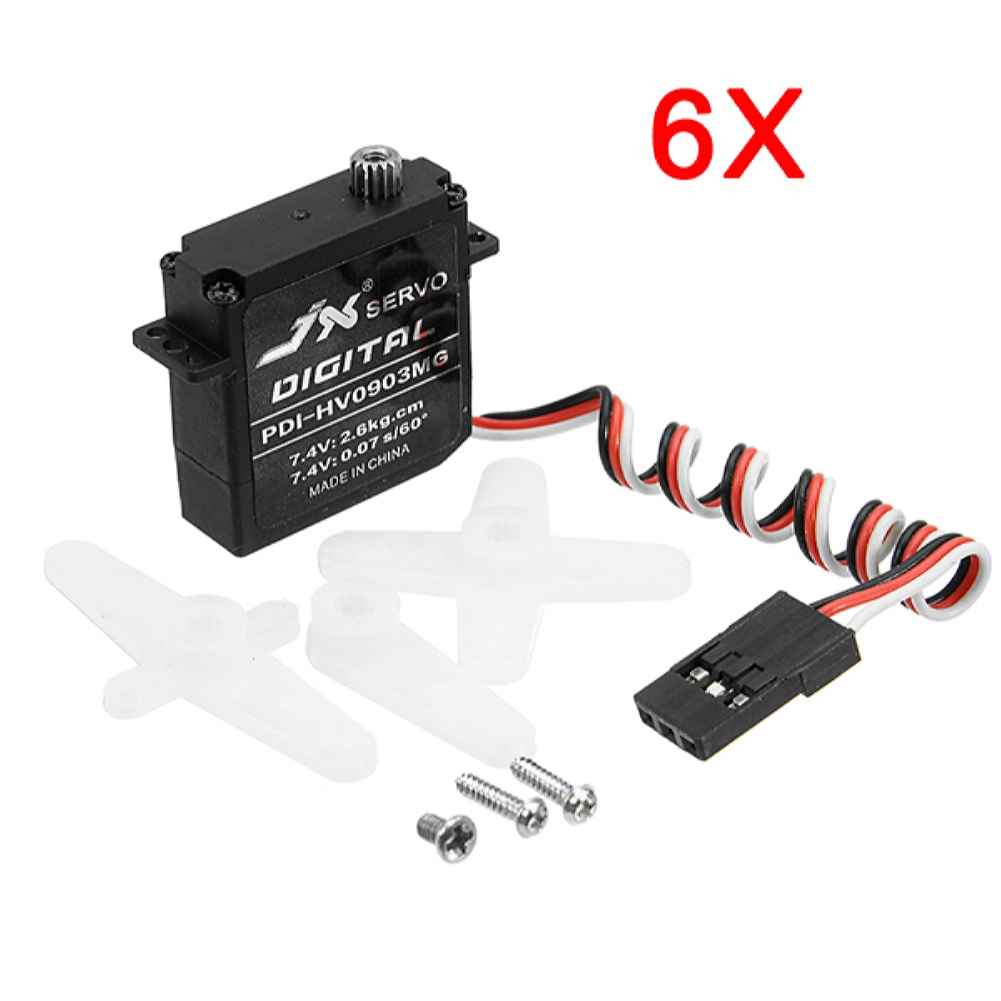

6 x JX PDI-HV0903MG 9.4g High Torque Digital Standard Servo
