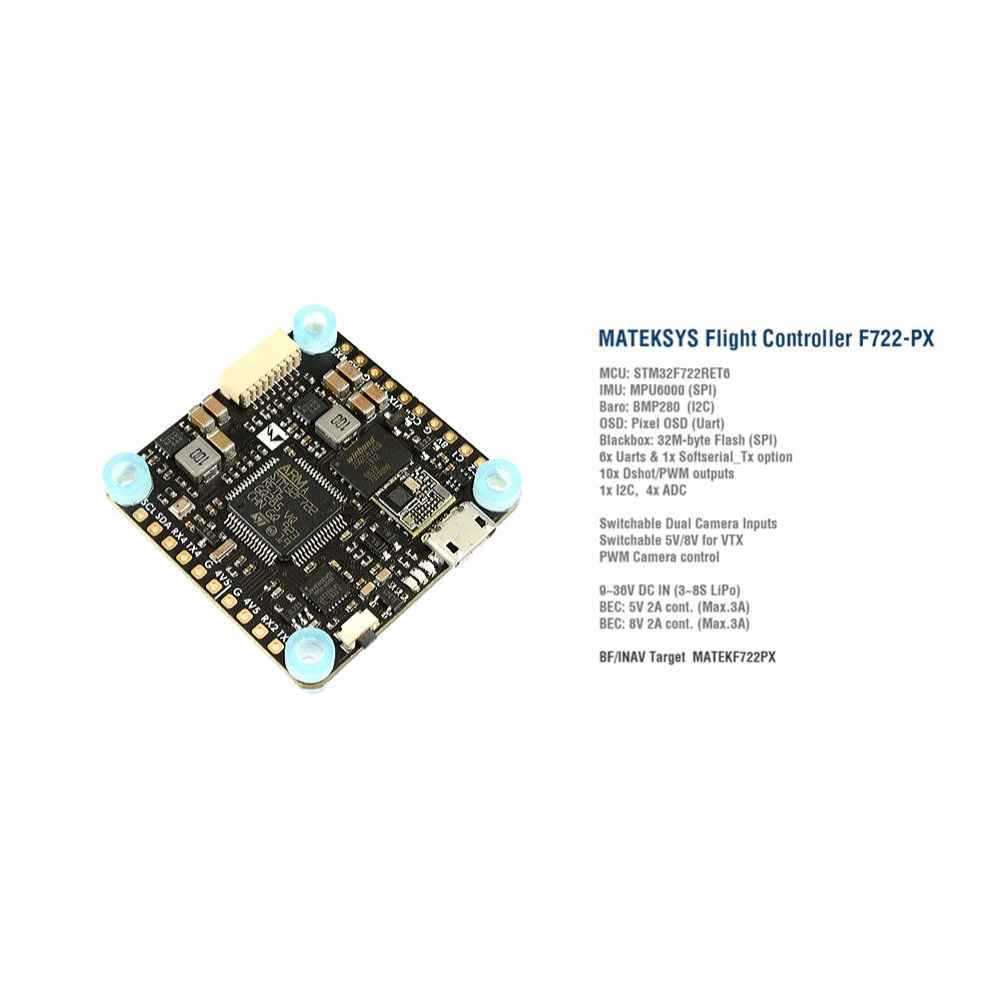

MATEK Systems F722-PX Flight Controller STM32F722, MPU6000, BMP280, Pixel OSD, 32M Flash, for RC Drone Airplane

Description

MATEK Systems F722-PX Flight Controller STM32F722 MPU6000 BMP280 Pixel OSD 32M Flash Blackbox for RC Drone Airplane

The MATEK Systems F722-PX Flight Controller is engineered for RC drones and airplanes, featuring a powerful 216MHz STM32F722RET6 MCU. It includes an MPU6000 for precise motion sensing and a BMP280 barometer for accurate altitude readings. The controller supports dual camera inputs with switchable 5V/8V for VTX, PWM camera control, and TR/SA VTX control. With a 32M-byte Flash memory for Blackbox logging, it also offers a versatile interface with 6 Uarts, 10 Dshot/PWM outputs, and WS2812 LED strip support. Power input ranges from 9~36V, suitable for 3~8S LiPo batteries, with built-in BECs providing 5V and 8V outputs.

FC Specifications
MCU: 216MHz STM32F722RET6
IMU: MPU6000 (SPI)
Baro: BMP280 (I2C)
OSD: Pixel OSD/FrskyOSD (Uart6)
Blackbox: 32M-byte Flash memory (SPI)
Switchable Dual Camera Inputs
Switchable 5V/8V for VTX
PWM camera control: Yes
TR/SA VTX control: Yes
WS2812 Led Strip : Yes
Beeper : Yes
RSSI: Yes
Analog Airspeed sensor: Yes
Digital Airspeed sensor: Yes
Power
Input: 9~36V (3~8S LiPo)
BEC: 5V 2A cont. (Max.3A)
BEC: 8V 2A cont. (Max.3A)
LDO 3.3V: Max.200mA
Battery Voltage Sensor: 1:10 (Scale 110)
No Current Sensor built-in
FC Firmware
BetaFlight unified target: MATEKF722PX(MTKS)
INAV target: MATEKF722PX

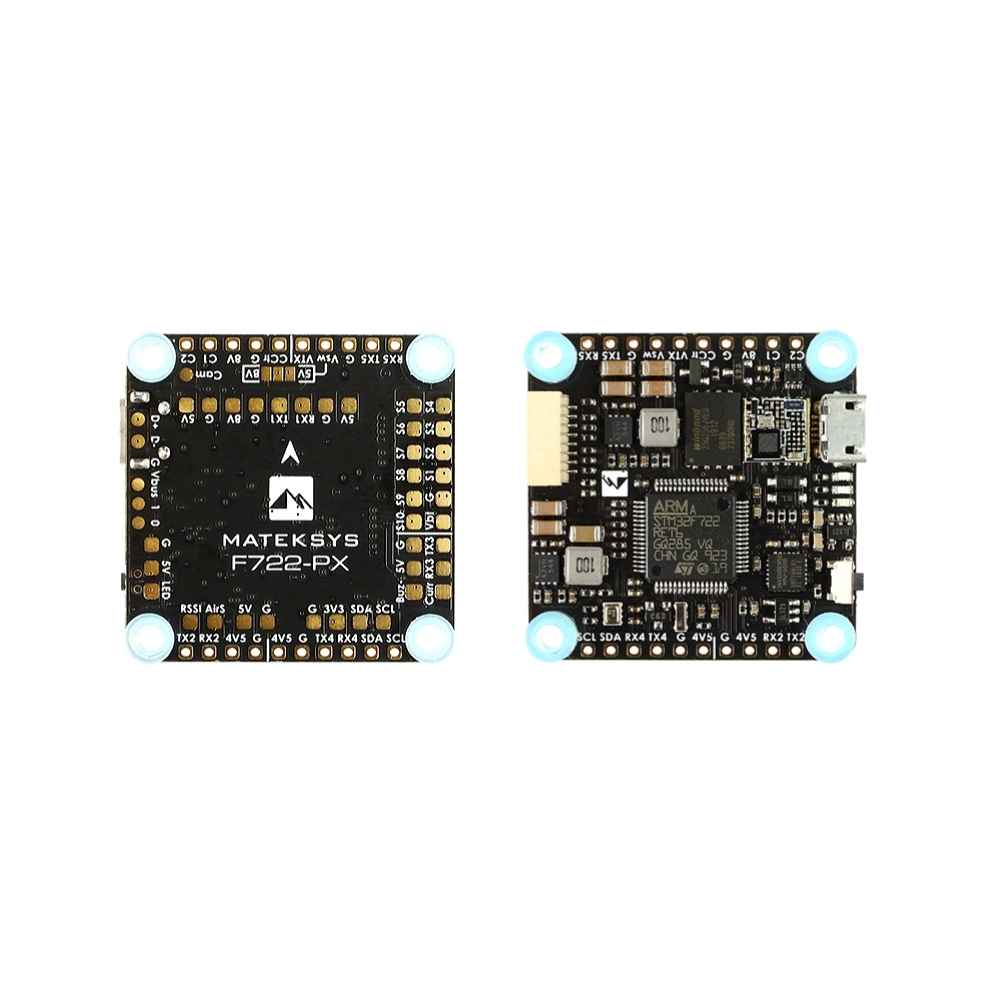

Interface
6x Uarts with built-in inversion
1x Softserial_Tx option
10x Dshot/PWM outputs
1x I2C
4x ADC (VBAT, Current, RSSI, AirSpeed)
1x SH1.0_8pin connector (Vbat/G/Curr/Rx3/S1/S2/S3/S4)
3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
Physical
Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
Dimensions: 36 x 36 x 5 mm
Weight: 6.5g

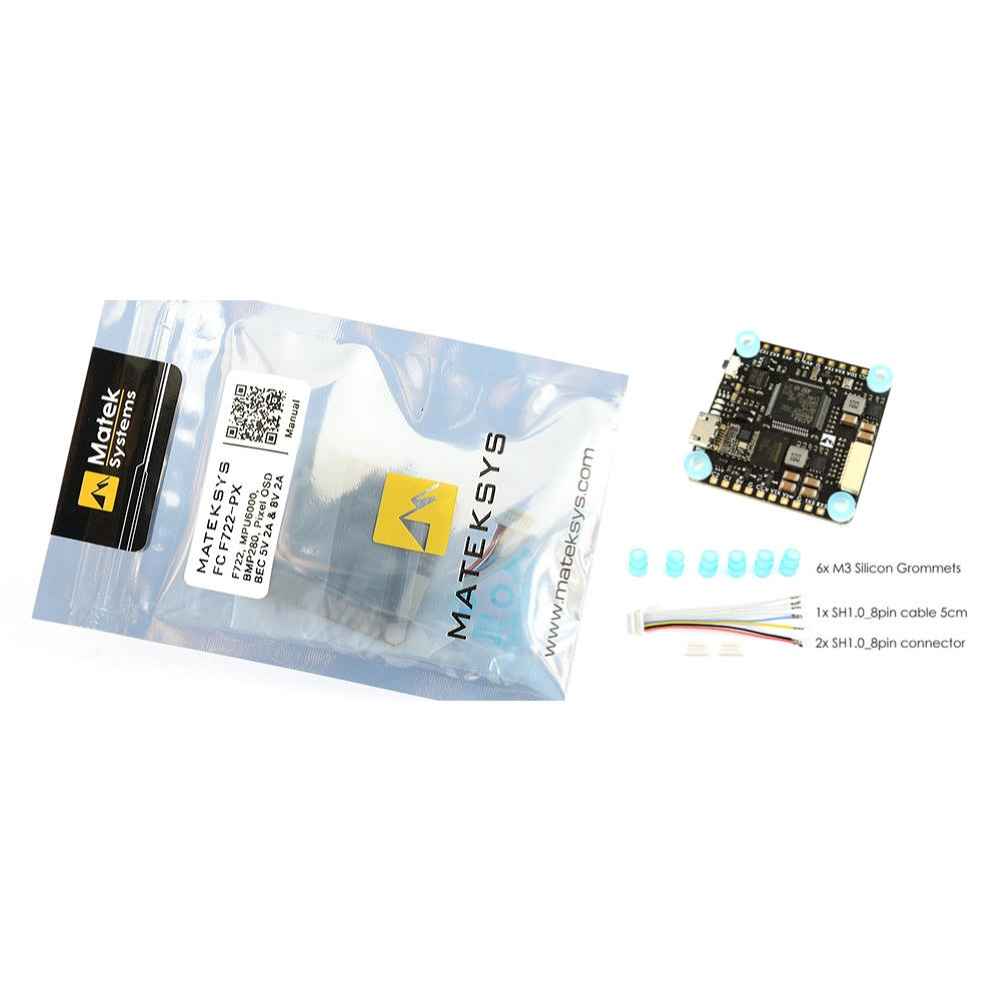

Package Included:
1 x FC F722-PX
6 x Silicon grommets M4 to M3
1 x SH1.0_8pin cable 5cm
