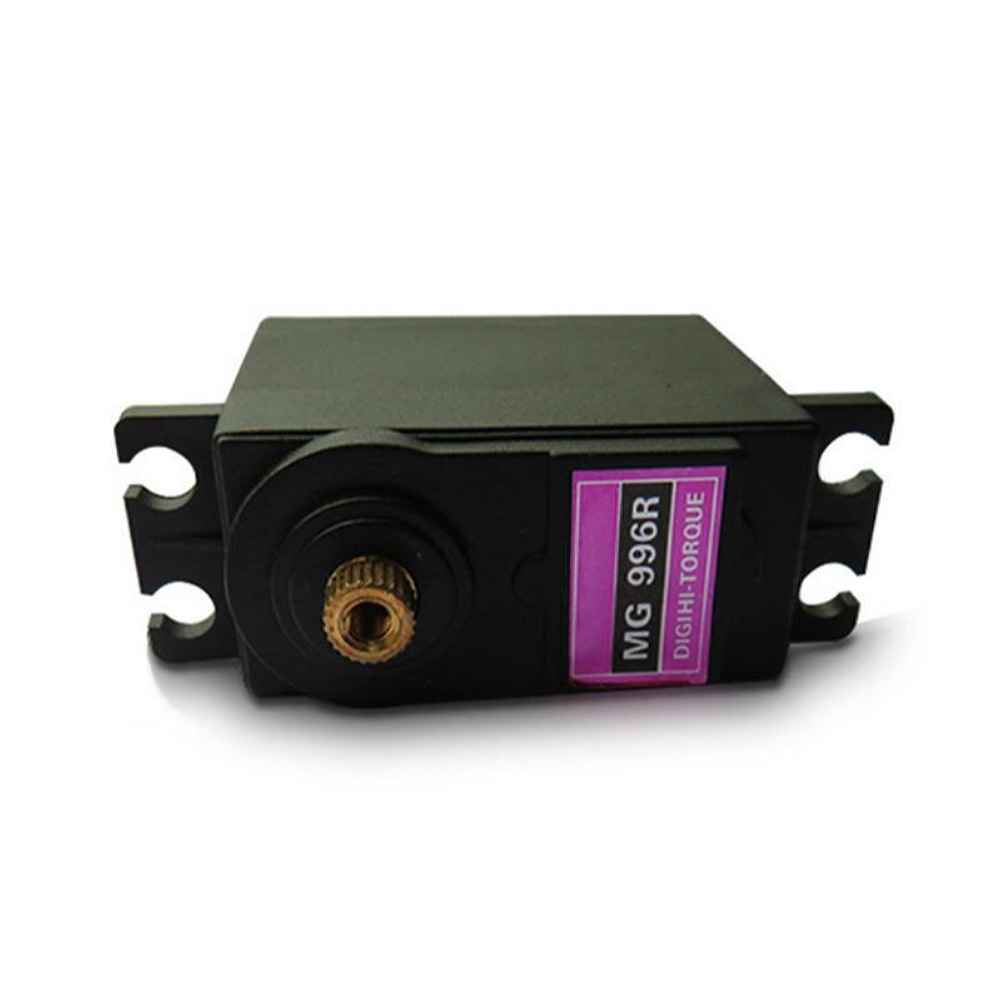

MG996R High Torque Metal Gear Analog Servo, 13kg/cm, 4.8V-6V, for RC Airplane, Helicopter, Boat, DIY Models

Description

MG996R 55g 4.8V-6V 13kg/cm High Torque Metal Gear Analog Servo for RC Airplane Fixed Wing Robot Helicopter Boat DIY Models

The MG996R Metal Gear Analog Servo is designed for high-performance applications in RC airplanes, helicopters, boats, and DIY models. With a compact size of 40.5x20x41mm and a weight of 55g, it operates efficiently within a voltage range of 4.8V-6V. This servo features a high stall torque of up to 13kg/cm at 6V, ensuring powerful and precise control. It has an operating speed of 0.11 seconds per 60 degrees at 6V, making it ideal for responsive maneuvers. The MG996R is built to withstand storage temperatures from -20°C to 60°C and operating temperatures from -10°C to 50°C. Its analog control system provides reliable performance, with a pulse width range of 800-2200μs and a maximum travel of approximately 145 degrees.

Description:
Model: MG996R

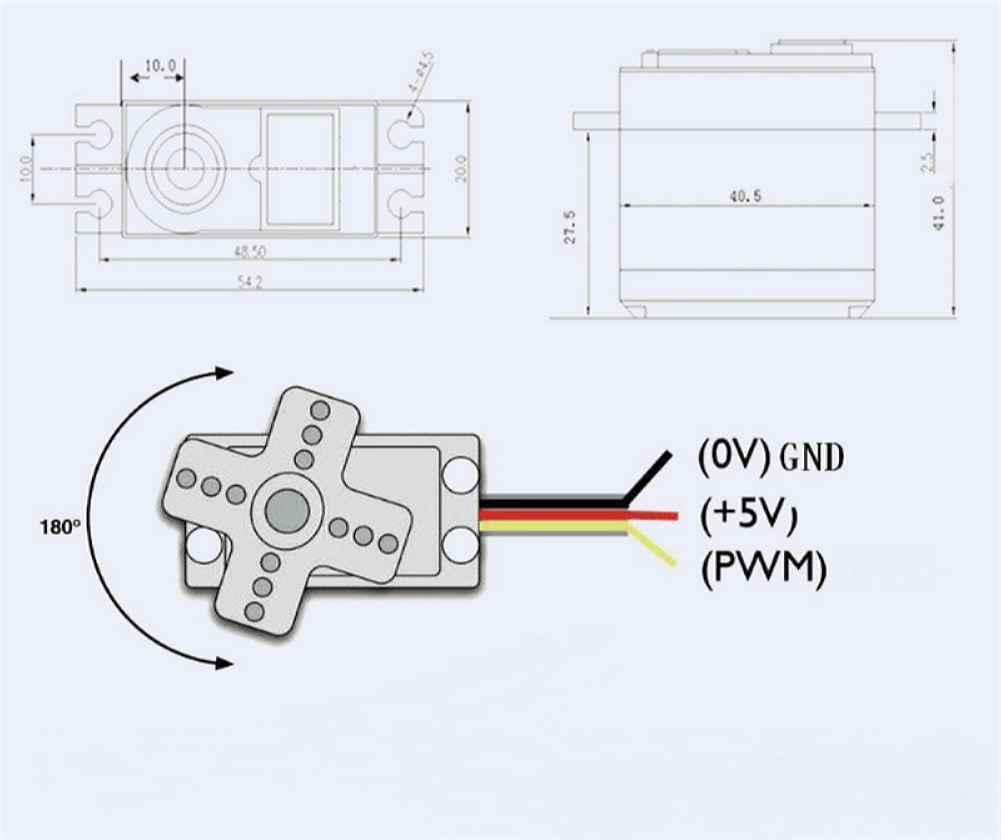

Dimensions: 40.5x20x41mm
Weight: 55g
Apply Enciromental Condition:
Storage Temperature range: -20～C-60～C
Operating Temperature range: -10～C-50～C
Operating Voltage range: 4.8V-6V
Electrical Specification:
Operating Speed(at no load): 0.12㊣0.01sec/60 (4.8v), 0.11㊣0.01sec/60 (6v)
Running Curret(at no load): 220㊣20mA (4.8v), 250㊣20mA (6v)
Stall Torque(at locked): 11㊣0.1kg.cm (4.8v), 13㊣0.1kg.cm (6v)
Stall Current (at locked): 2000mA㊣30mA (4.8v), 2200mA㊣30mA (6v)
Idle Current (at stopped): 4㊣1mA (4.8v), 4㊣1mA (6v)
Control Specification:
Control System: Change the pulse width
Amplifier Type: Analog controller
Operating Travel: 90～㊣3～(1000-2000u sec)
Left and Right Travelling Angle Deviation: ≒3～
Centering Deviation: ≒1～
Neutral Position: 1500 ç±³ sec
Dead Band Width: ≒5米sec
Rotating Direction: Counter clockwise(1500-1000ç±³ sec)
Pulse Width Range: 800-2200ç±³ sec
Maximum Travel: About 145～(800-2200米sec)

Package Included:

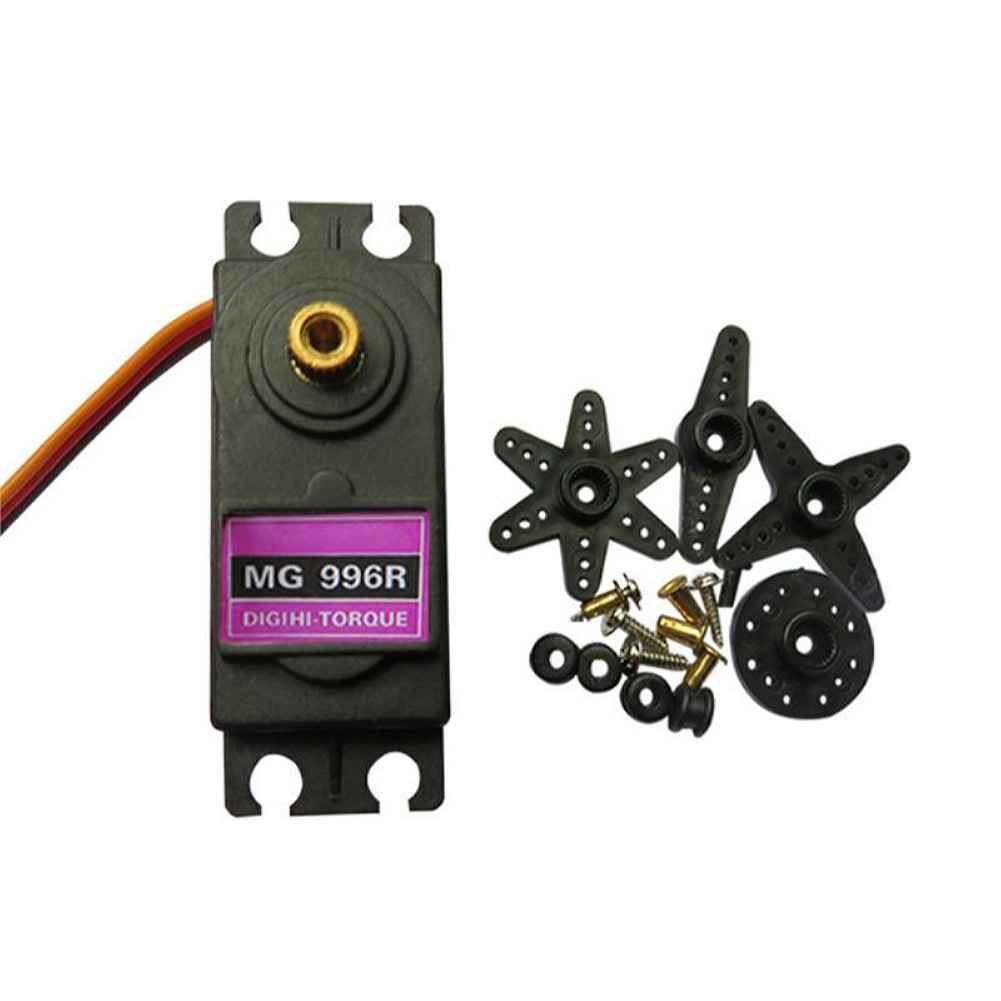

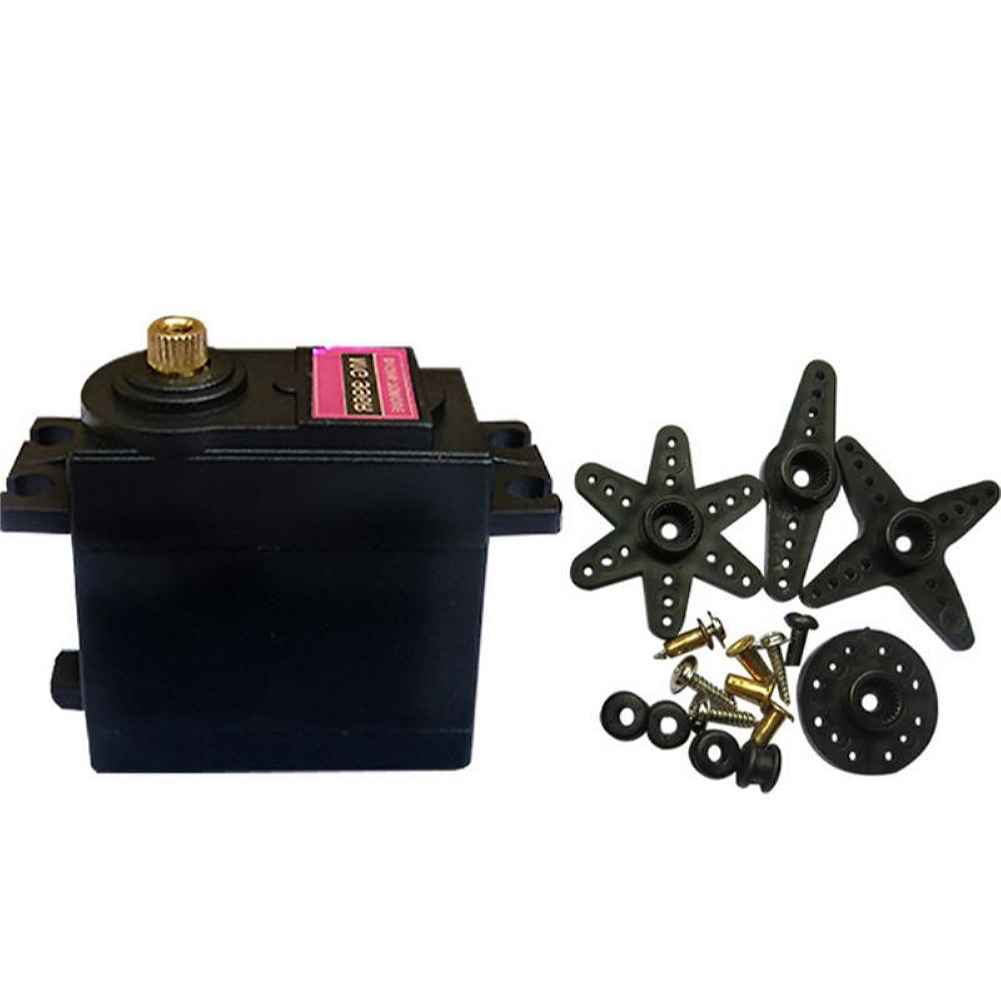

1 x MG996R 55g Metal Gear Analog Servo
