Power HD-1501MG 17KG Large Torque Servo for Futaba RC Car/Robot, High Speed, Copper Gear
Original price was: $38.02.$26.59Current price is: $26.59.
- 17KG large torque for powerful performance
- High-speed operation at 0.14 sec (6.0V)
- Durable copper gears and dual ball bearings
- Suitable for temperatures from -20°C to 60°C
- Compatible with Futaba RC cars and robots
You May Also Like
Description

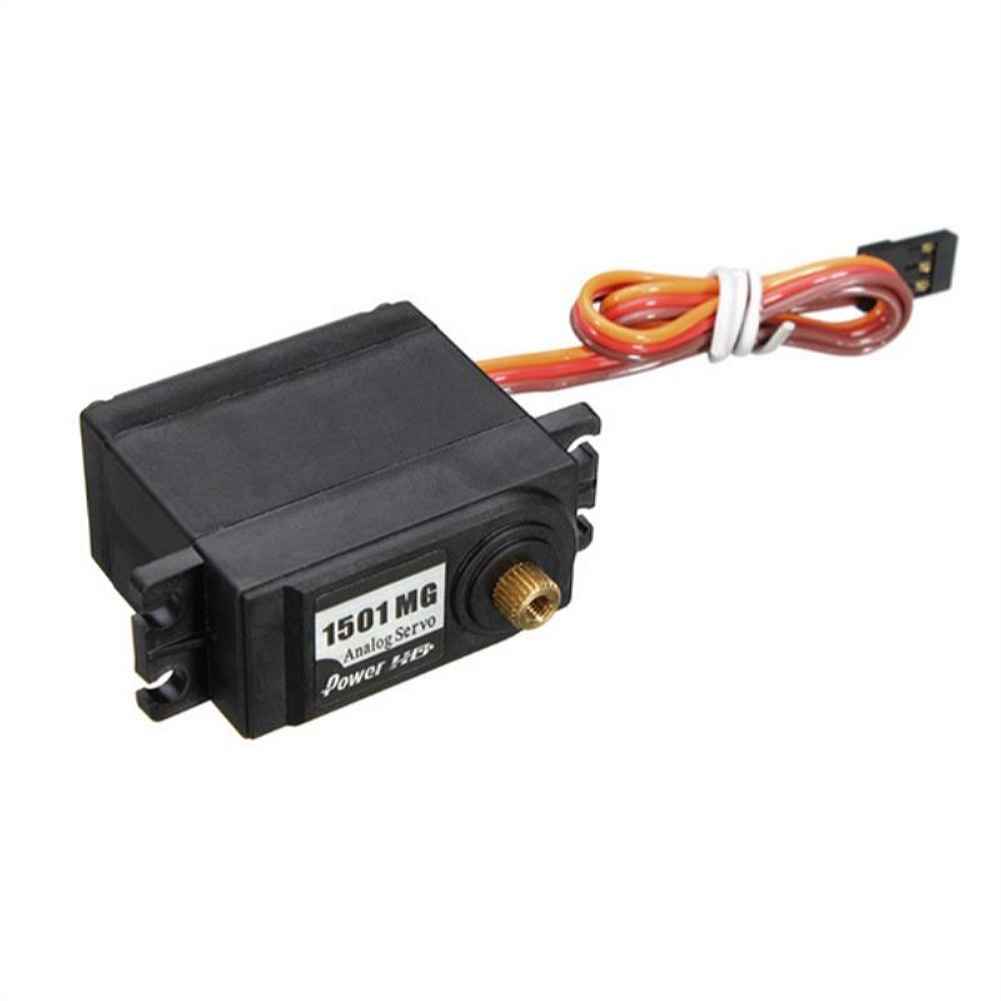

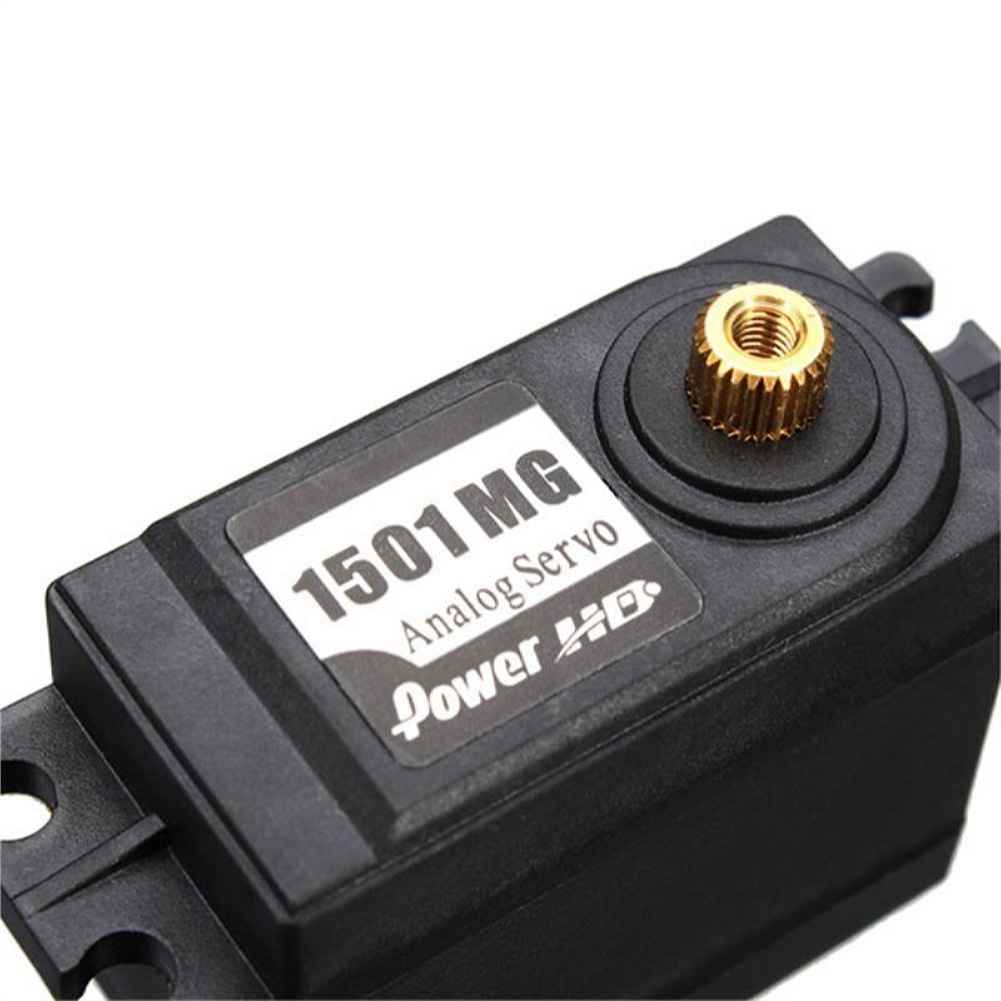

Power HD-1501MG 180 17KG Large Torque Servo for Futaba RC Car/Robot
The Power HD-1501MG servo is designed for high-performance RC cars and robots. It delivers a torque of 15.5 kg-cm at 4.8V and 17.0 kg-cm at 6.0V, ensuring exceptional power and control. With a speed of 0.16 sec at 4.8V and 0.14 sec at 6.0V, it offers quick responsiveness. This servo operates at a voltage range of 4.8 to 6.0 DC volts and weighs 63 grams. It features dual ball bearings, a DC motor, and durable copper gears. The servo is designed to function efficiently between temperatures of -20掳C and 60掳C. Its compact size of 40.7 x 20.5 x 39.5 mm makes it ideal for various applications.
Specification:
Brand: Power HD
Item Name: Servo
Torque(4.8V): 15.5 kg-cm (215.3 oz/in)
Torque(6.0V): 17.0 kg-cm (236.1 oz/in)
Speed: 0.16 sec (4.8V) 宀?0.14 sec (6.0V)
Operating Voltage銊?.8 ~ 6.0 DC Volts
Weight: 63.0 g (2.22 oz)
Bearing Type銊〣all Bearing x 2
Motor Type銊〥C Motor
Gear Type銊〤opper
Operating Temperature銊?20鈯60鈯?br/>Working frequence銊?520绫硈 / 50hz
Size銊?0.7 x 20.5 x 39.5 mm ( 1.60 x 0.81 x 1.56 in)

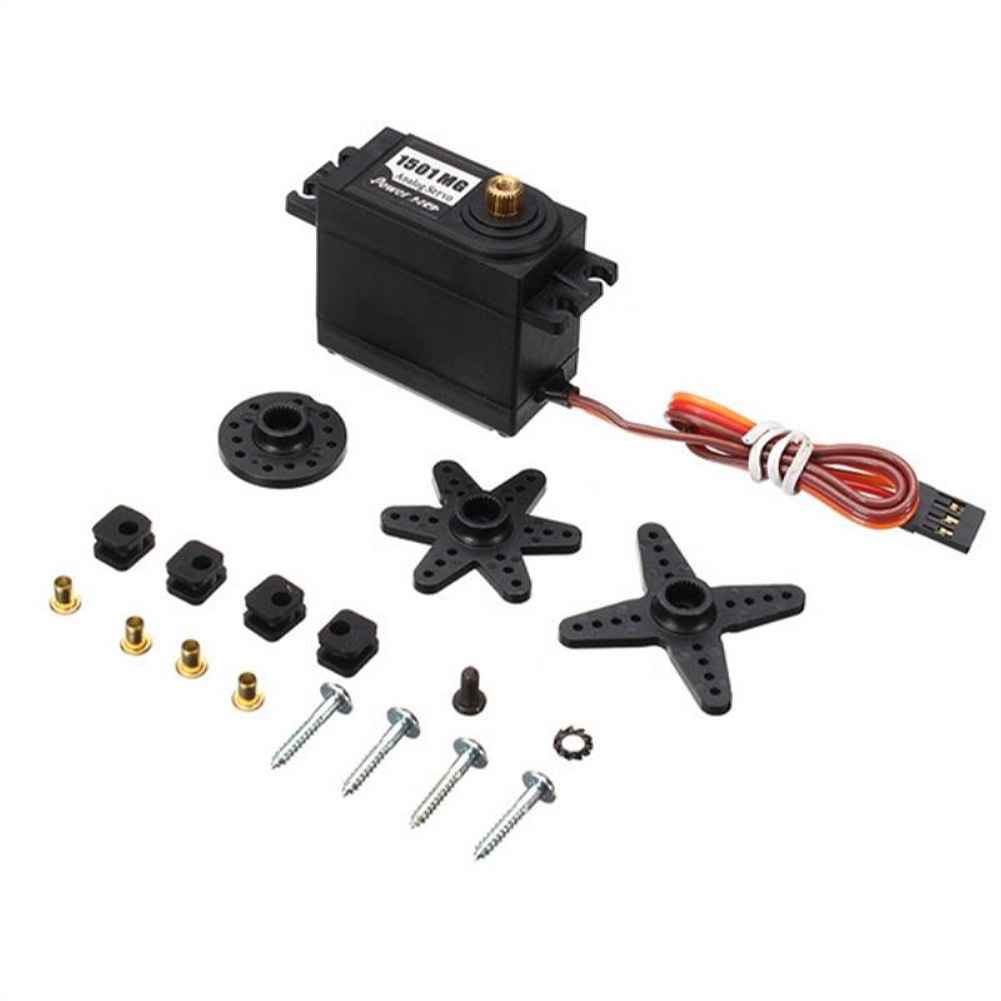

Package Included:
1 x Servo
