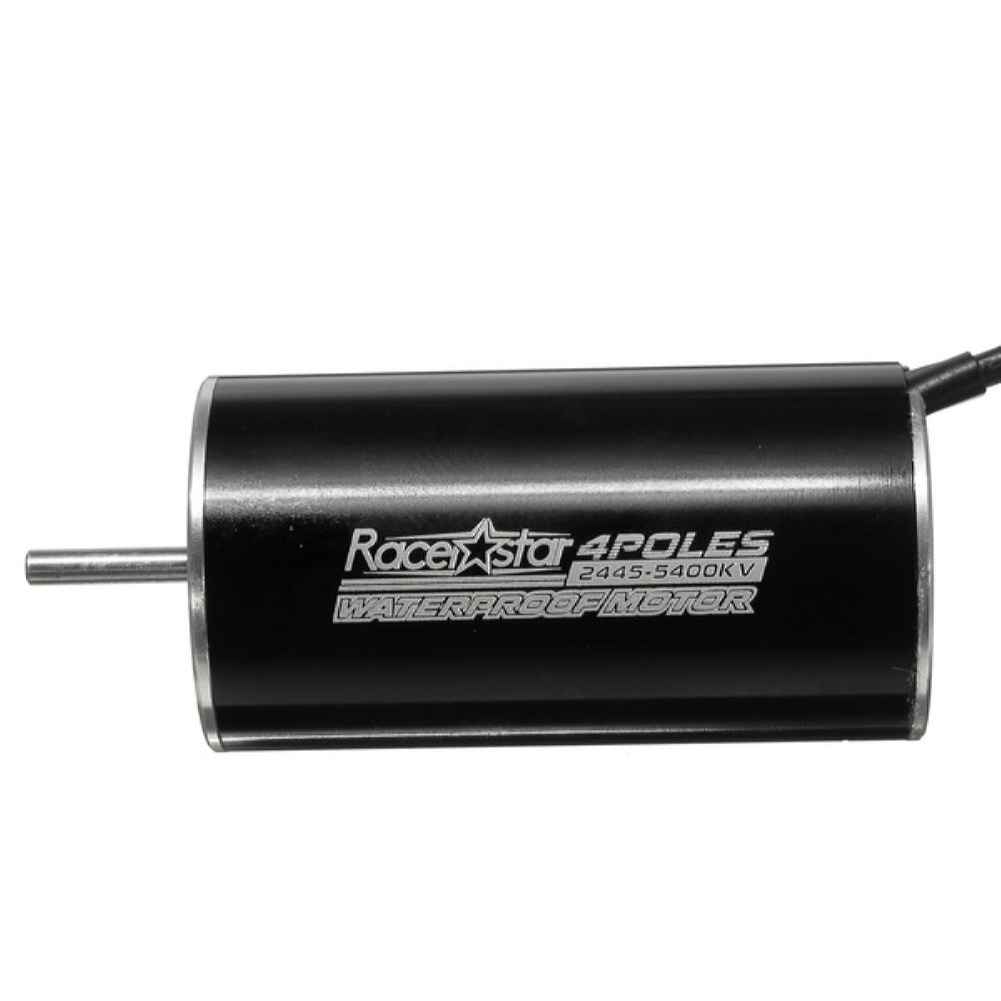

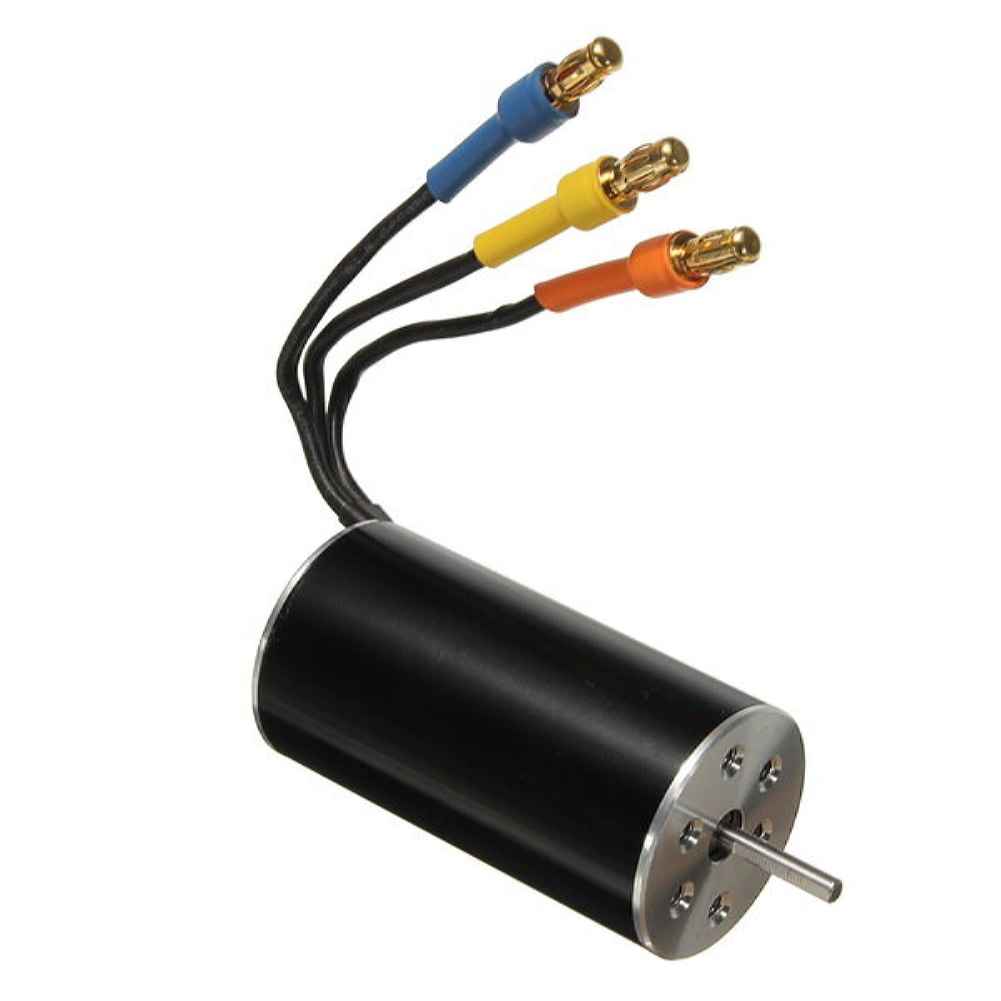

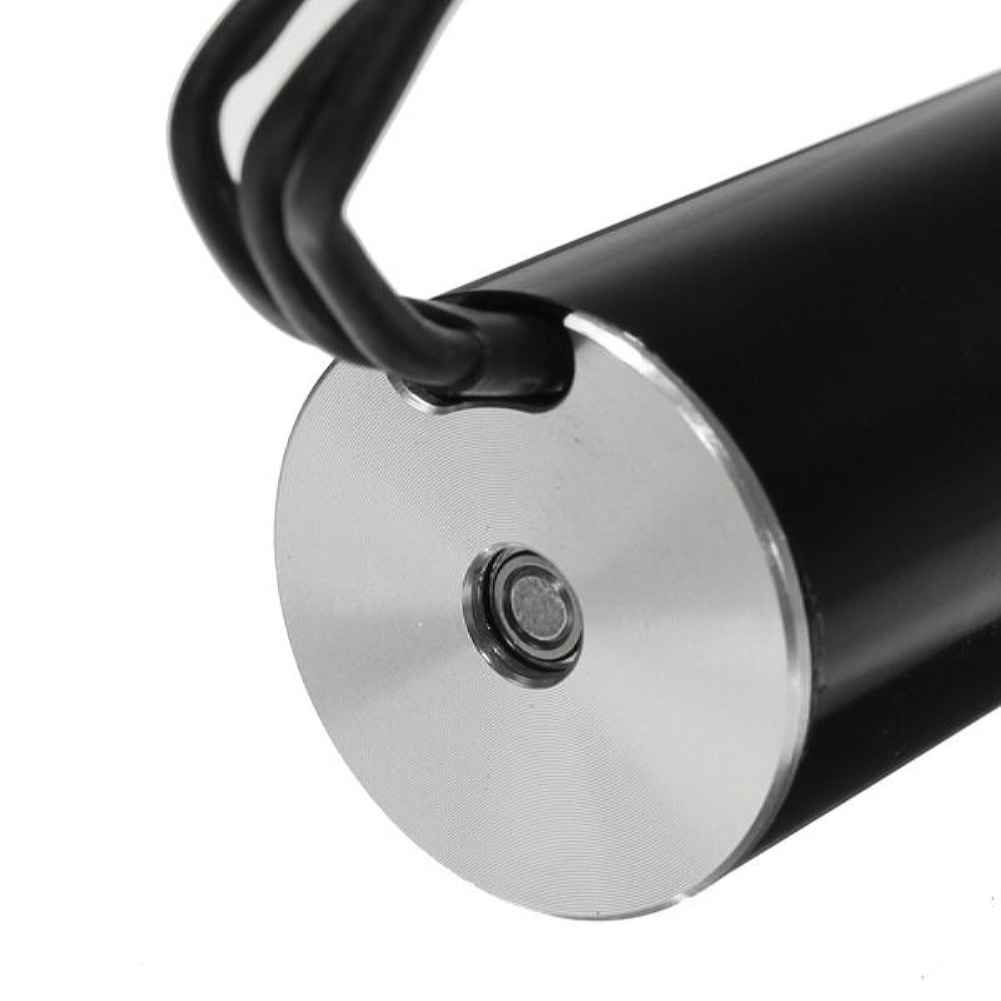

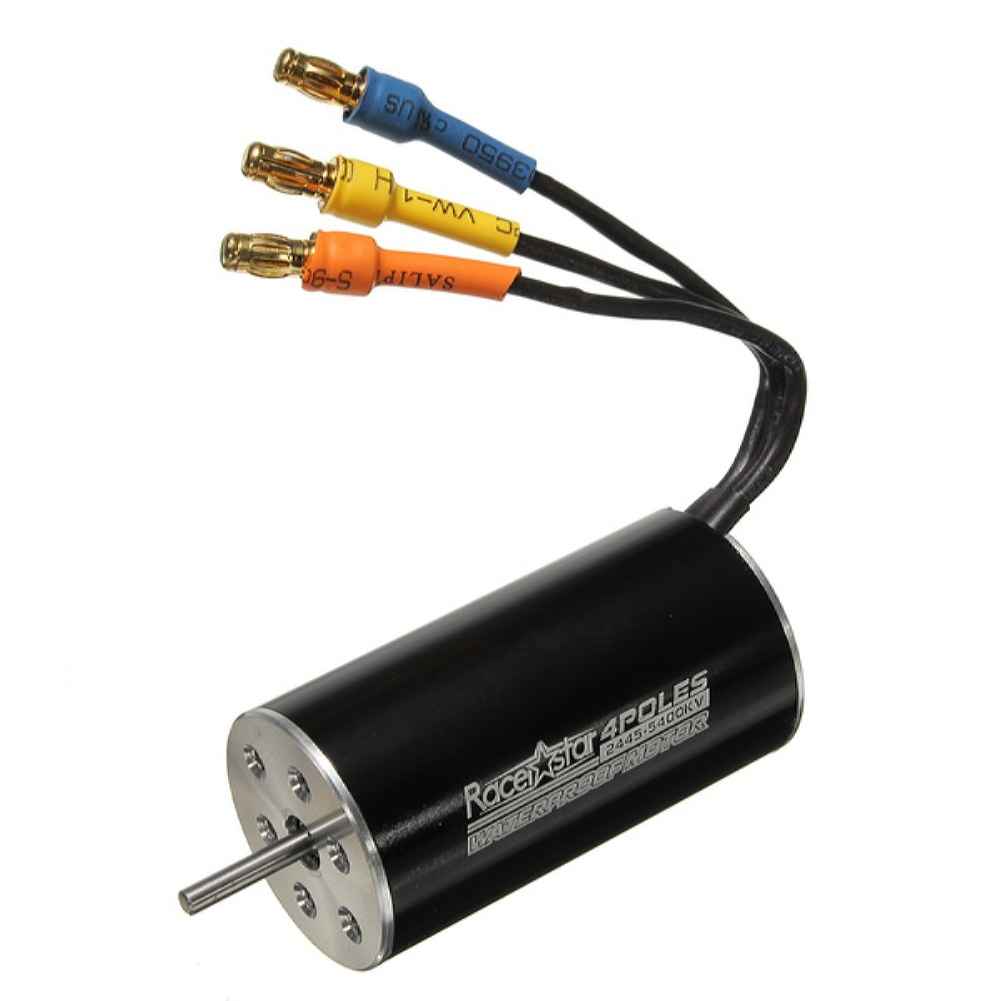

Racerstar 2445 Senseless Brushless Waterproof Motor 5400/3600/3000KV for 1/16 1/18 RC Cars

Description

Racerstar 2445 Motor Senseless Brushless Waterproof 5400/3600/3000KV 1/16 1/18 RC Car Part

The Racerstar 2445 Motor is a senseless brushless motor available in 5400KV, 3600KV, and 3000KV options, designed for 1/16 and 1/18 RC cars. It features a 4-pole, 12-slot high-torque motor design with a CNC machined 6061 T6 billet aluminum heatsink can. The motor is equipped with high purity copper windings for maximum efficiency and high RPM ABEC5 oversized bearings for smooth operation. With a precision balanced rotor, it ensures reliability and maximum RPM. The motor is universally compatible with all 1/8 brushless cars, thanks to its multi-mounting system for M3 screws.

Description:
Brand: Racerstar
Item name: Brushless 5400/3600/3000KV Motor
KV: 5400/3600/3000KV
Resist: 0.0042/0.0065/0.0117Ω
Max Voltage:<8.4/13.2/14.8V
IO:3.0/2.4/1.8A
Max Amps:59/38/32A

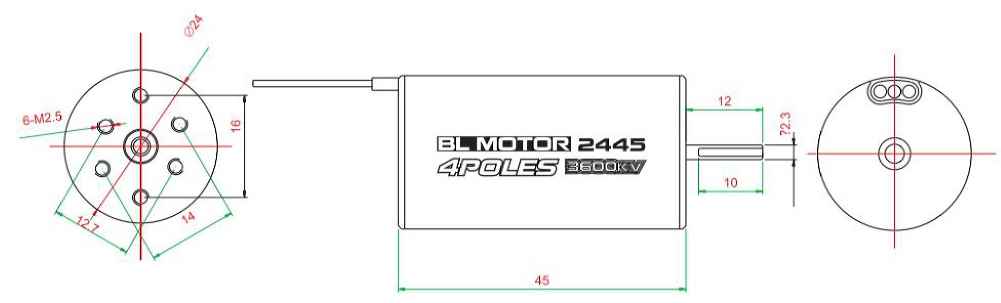

Outer Diameter/Length: 24mm /45mm
Diameter of the Shaft: 2.3mm
Length of extend shaft: 12mm
Poles: 4
Weight: 72g
Application: 1:18 1:16 On/Off-road/ Truck /Monster
Feature:
4 Pole 12 Slot Hi-torque Motor Design
CNC Machined 6061 T6 Billet Aluminum Heatsink Can
High Purity Copper Windings Maximizes Efficiency
High RPM ABEC5 Oversized Bearings
Universal fit,fits all 1/8 brushless cars-multi-mounting system for M3 screws
Precision balanced rotor,smoothness for best reliability and maximum RPM
Stator – Super Thin (0.35mm) Laminations
Removable/Replaceable Rotor
Precision Engineered for Maximum Energy Conversion

Package Included:
1 x Racerstar 2445 Motor
