Racerstar 3660 Brushless Waterproof Motor for 1/8 1/10 RC Cars, 3800/3300/2600KV, CNC Aluminum, High Torque

Description

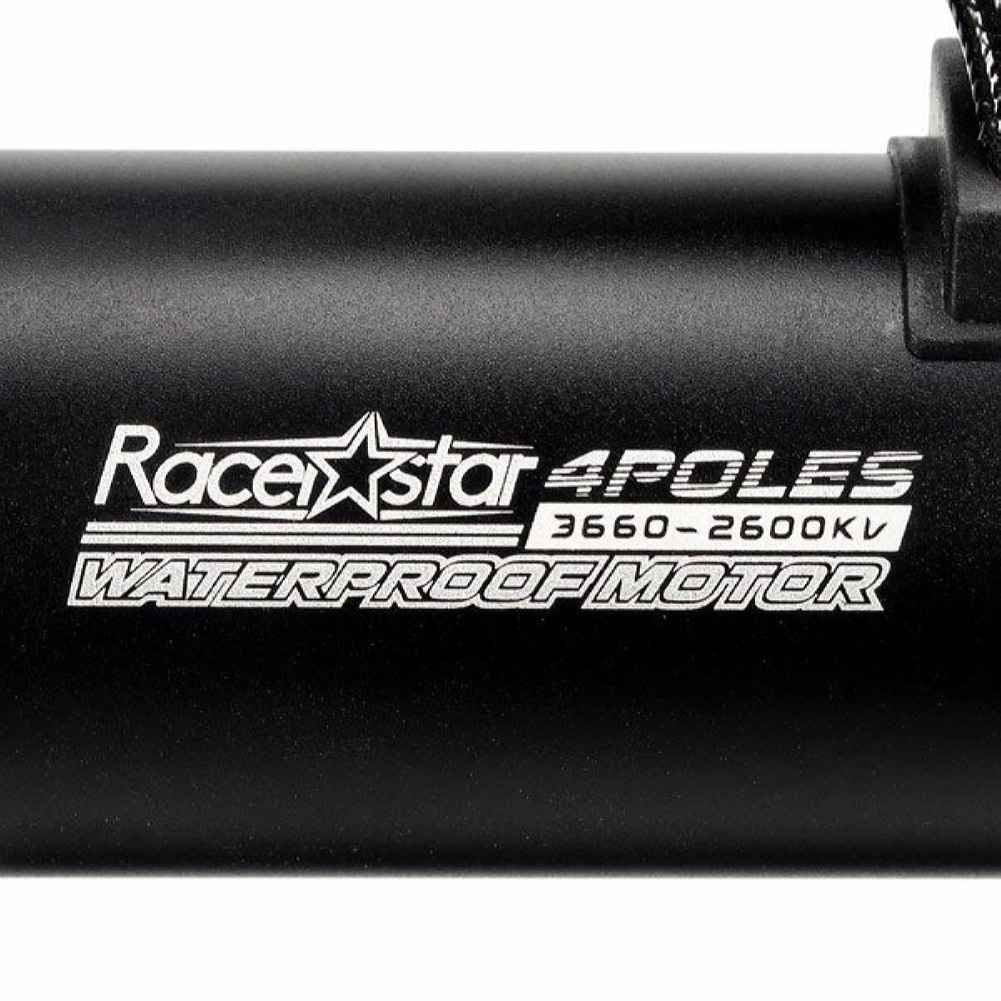

Racerstar 3660 Motor Brushless Waterproof Sensorless 1/8 1/10 RC Car Part 3800/3300/2600KV

The Racerstar 3660 Motor is a high-performance, waterproof brushless motor designed for 1/8 and 1/10 RC cars. It features a 4-pole 12-slot hi-torque design and is crafted from CNC machined 6061 T6 billet aluminum for enhanced durability. The motor includes high purity copper windings for maximum efficiency and oversized ABEC 5 bearings for high RPMs. Its universal fit ensures compatibility with all 1/8 and 1/10 brushless cars. The precision-balanced rotor promotes smooth operation and reliability, while the removable rotor allows for easy maintenance. With a maximum power of 1200W and a maximum RPM of 50000, this motor delivers exceptional performance.

Description:
Brand: Racerstar
Item: 3660 Motor
Waterproof Level: Splash-proof
Features:
– 4 pole 12 slot hi-torque motor design
– CNC machined 6061 T6 billet aluminum heatsink can
– High purity copper windings maximizes efficiency
– High RPM ABEC 5 oversized bearings
– Universal fit, fits all 1/8, 1/10 brushless cars
– Precision balanced rotor, smoothness for best reliability and maxium RPM
– Stator- super thin 0.2mm laminations
– Removalbe/replaceable rotor
– Precision engineered for maxium energy coversion
Specification:
Max Power: 1200W
Max Voltage: 18V
Max Amps: 66A
Rotor Poles: 4
Max RPM: 50000
Length: 60mm
Diameters: 36mm
Weight: About 195g
Shaft: ?5mm
Length of Extend Shaft: 17mm
Note:
This motor usually work with 80A ESC.
For more information, please click here.

Package Included:
1 x Racerstar 3660 Motor
