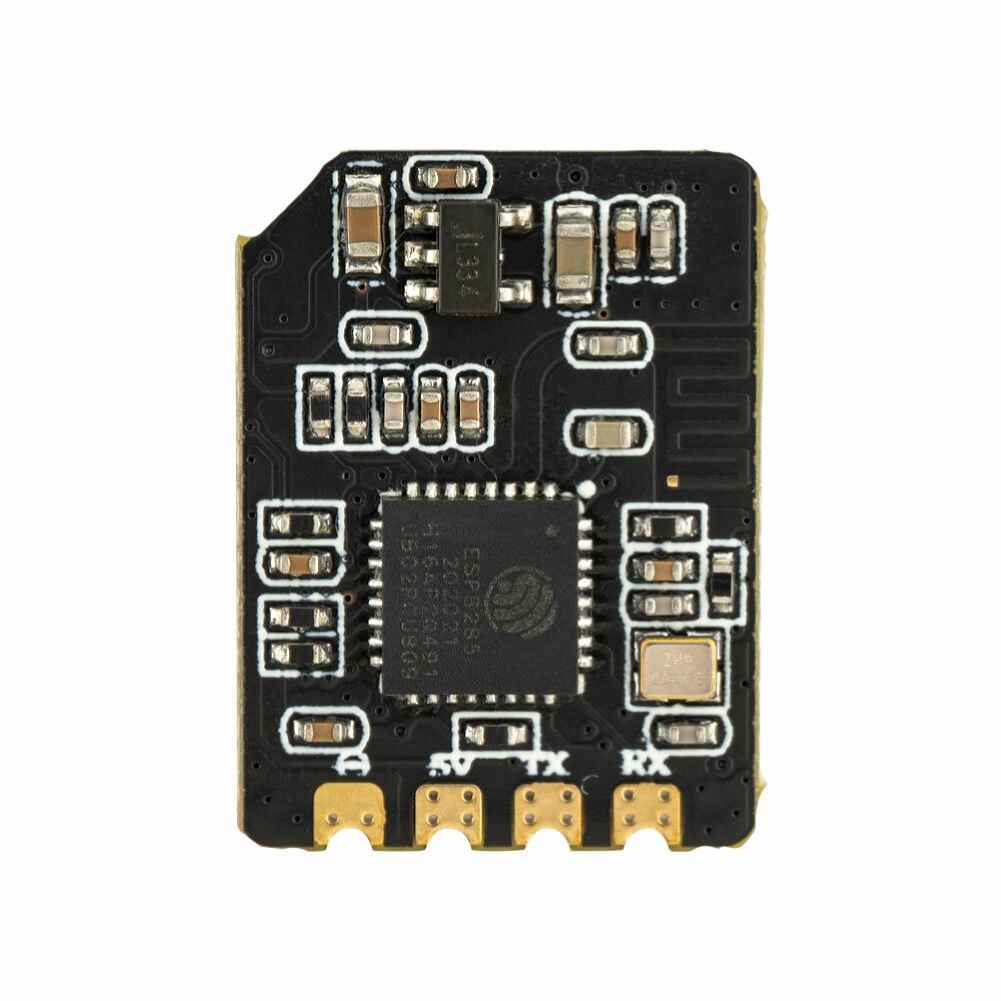

RadioMaster Bandit BR1 ExpressLRS ELRS 915MHz Receiver with TCXO for Drone Fixed Wing

Description

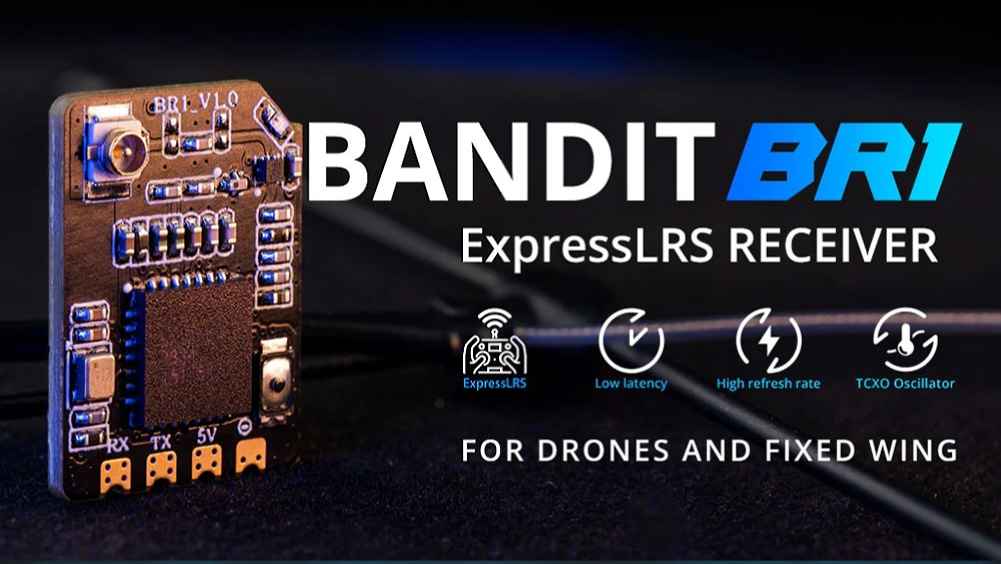

Bandit BR1 ExpressLRS ELRS 915MHz Receiver for Drone Fixed Wing

The RadioMaster Bandit BR1 ExpressLRS ELRS 915MHz Receiver is designed for drone and fixed-wing enthusiasts, offering reliable and stable signal reception. It features a built-in TCXO oscillator for superior performance in demanding environments. With an ESP8285 MCU and SX1276 RF chip, this receiver delivers low latency, high sensitivity, and exceptional long-range capabilities. The lightweight and compact design includes high-sensitivity T and Y antennas, ensuring easy installation and versatility for FPV freestyle or long-range applications. The use of 0402 components provides excellent resistance to vibration, making it a durable choice for your drone adventures.

RadioMaster Bandit BR1 ExpressLRS ELRS 915MHz Receiver for Drone Fixed Wing
Description:

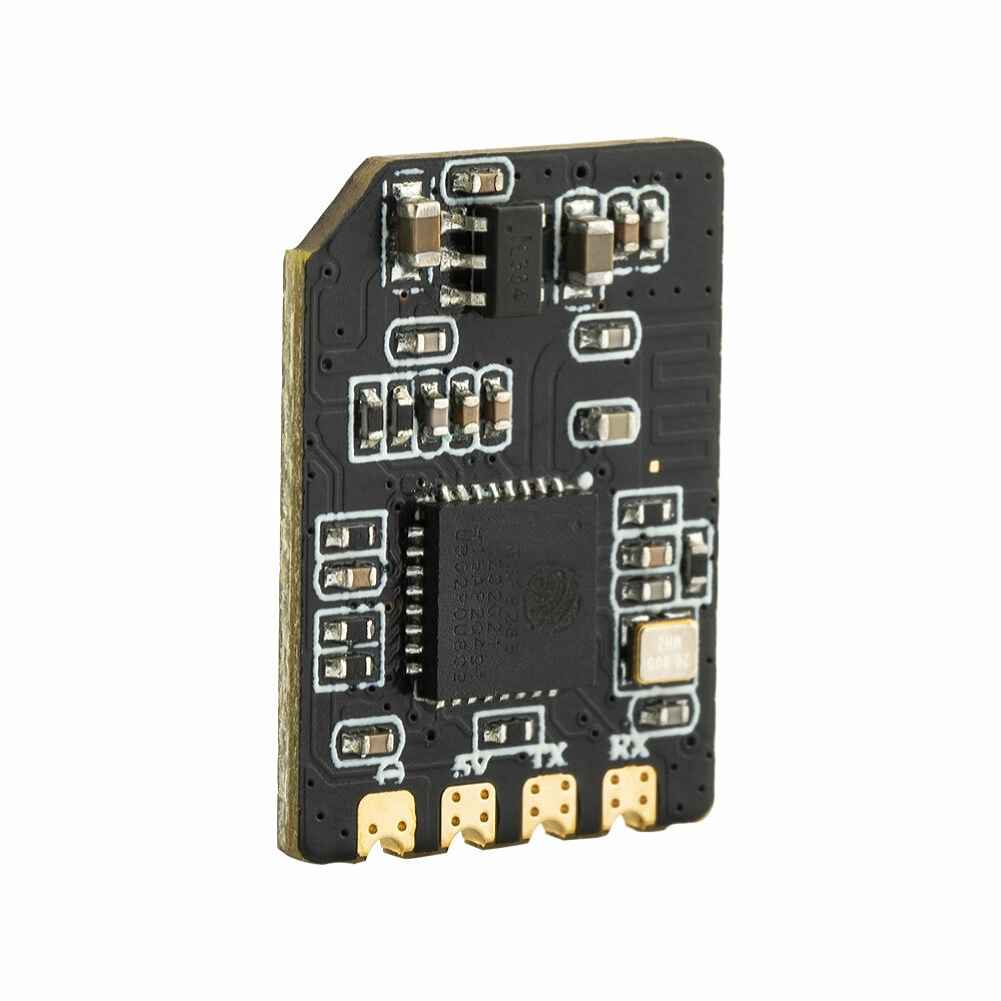

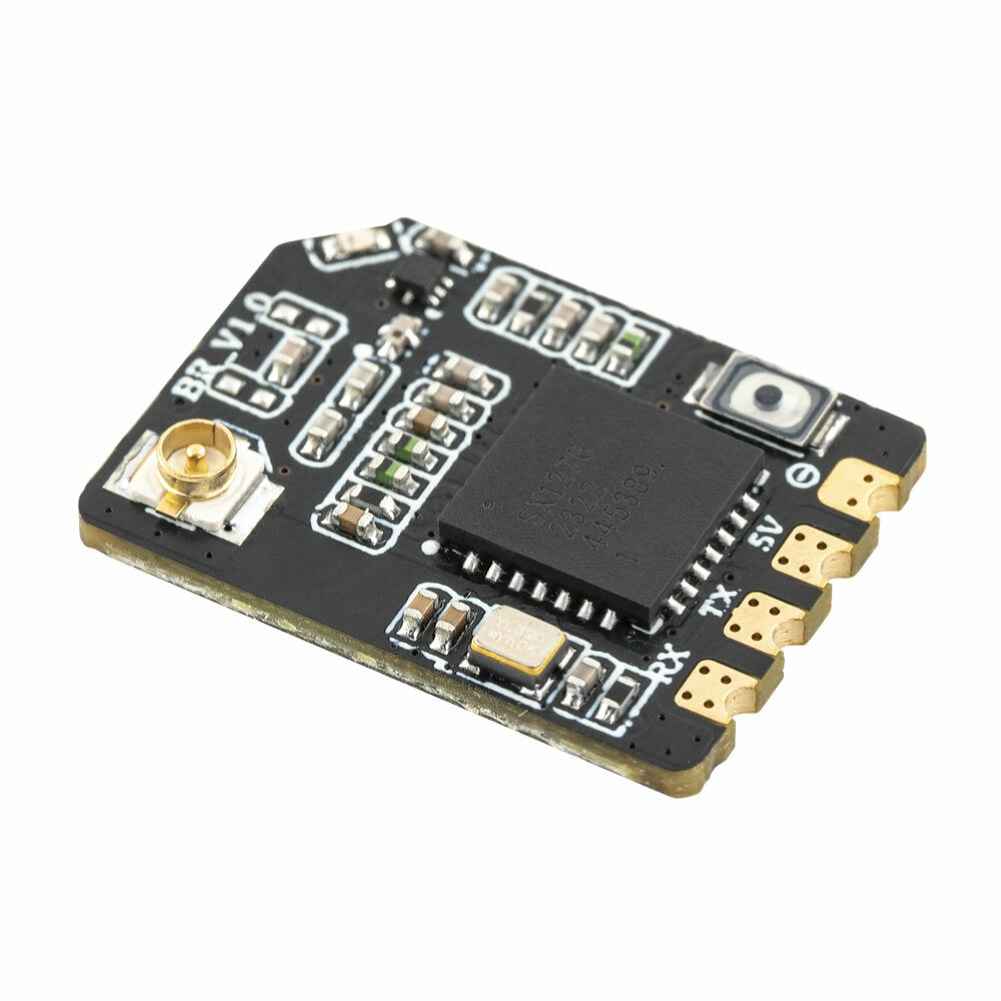

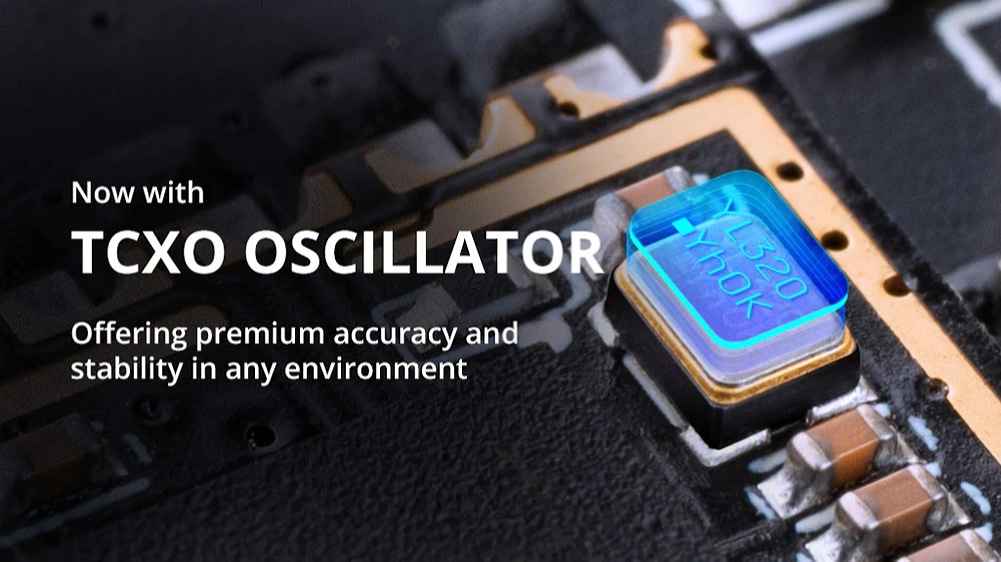

The RadioMaster Bandit BR1 Expresslrs Receiver features a built-in TCXO (temperature-compensated crystal oscillator) which ensures reliable, stable, and accurate signal reception for superior performance in demanding environments. Utilizing 0402 components, the BR1 ExpressLRS receiver also features superior resistance to vibration.
Bandit BR1 Expresslrs Receiver incorporates an ESP8285 MCU and SX1276 RF chip, renowned for its low latency, high sensitivity and exceptional long-range performance. The included T Antenna and Y Antenna designed with high-sensitivity are both lightweight and easy to install depending on your application.
Due to the low-latency and high-refresh-rate RF module, the Bandit BR1 Expresslrs Receiver is ideal for FPV freestyle or Long Range.
Features:
-Built-in TCXO oscillator

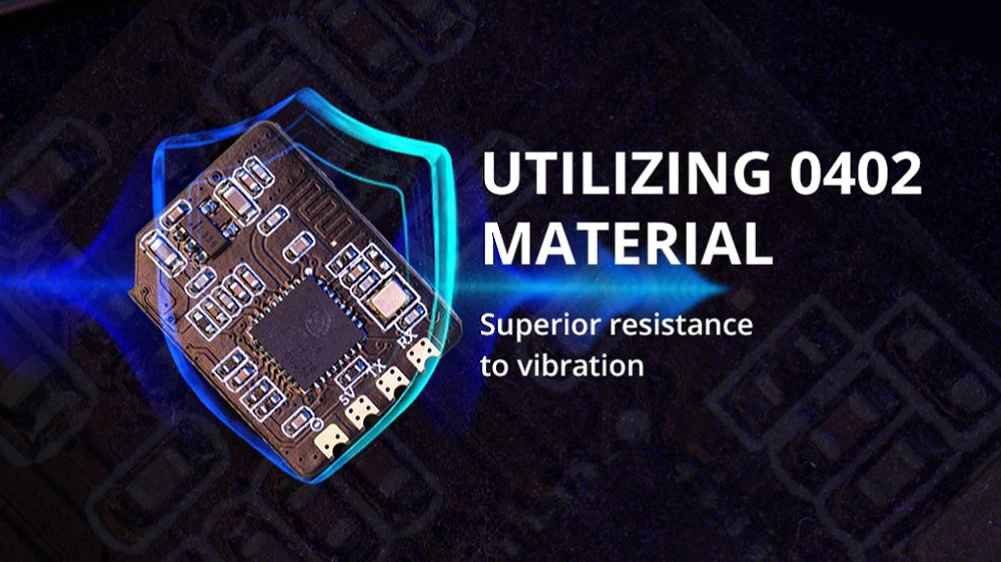

-Utilizing 0402 components, superior resistance to vibration

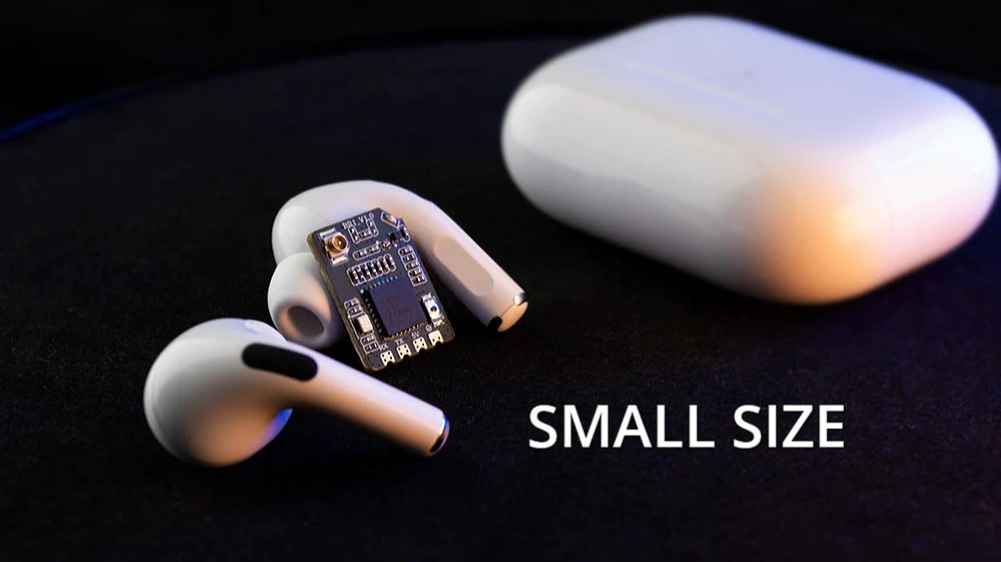

-Lightweight and compact design

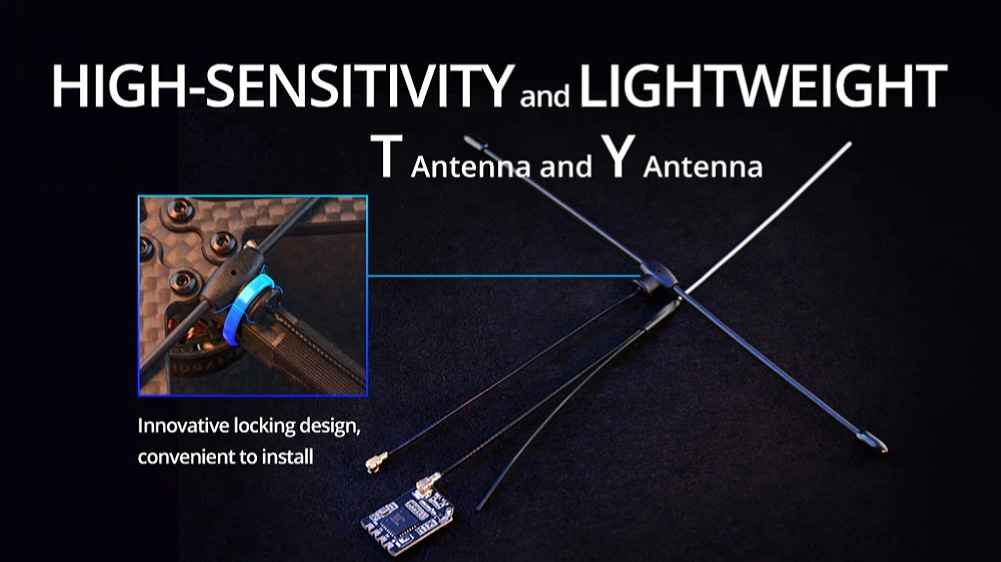

-High-sensitivity 915/868MHz T Antenna and Y Antenna included
Specifications:
Item Name: Bandit BR1 Expresslrs Receiver
Regulatory Domain: FCC915
MCU: ESP8285
RF Chip: SEMTECH SX1276

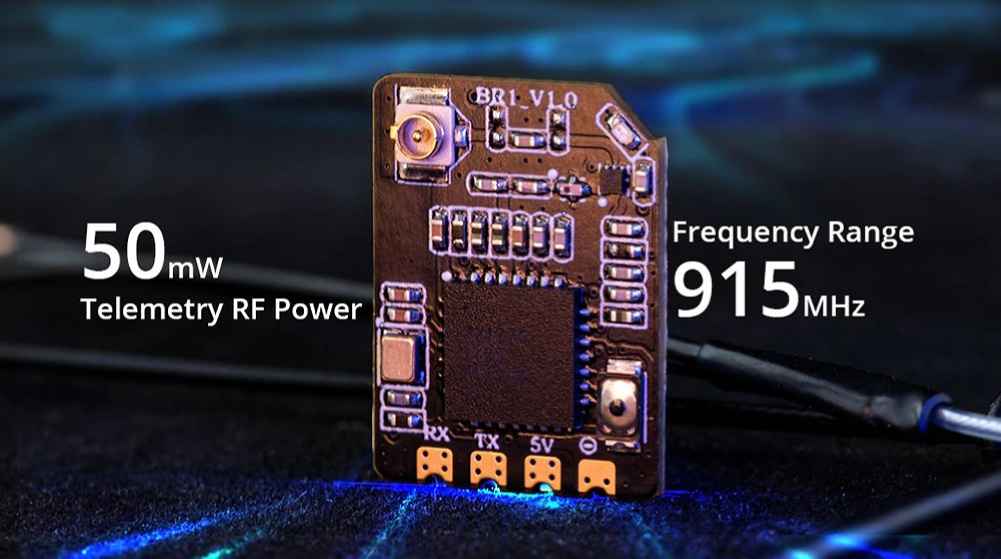

Telemetry RF Power: 50mw/17dbm
Antenna: 915/868MHz T Antenna & Y Antenna
Antenna Interface: IPEX1
Bus Interface: CRSF
Working Voltage: DC 5.0V
Dimension: 18*13.8mm
Weight: 1.7g (with Y antenna)/2.9g (with T antenna)

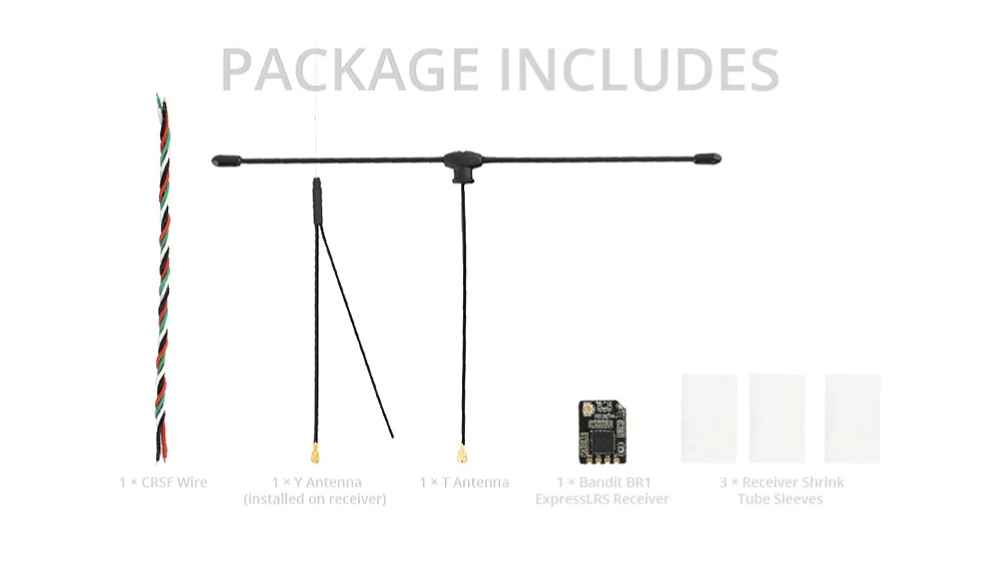

Package Included:

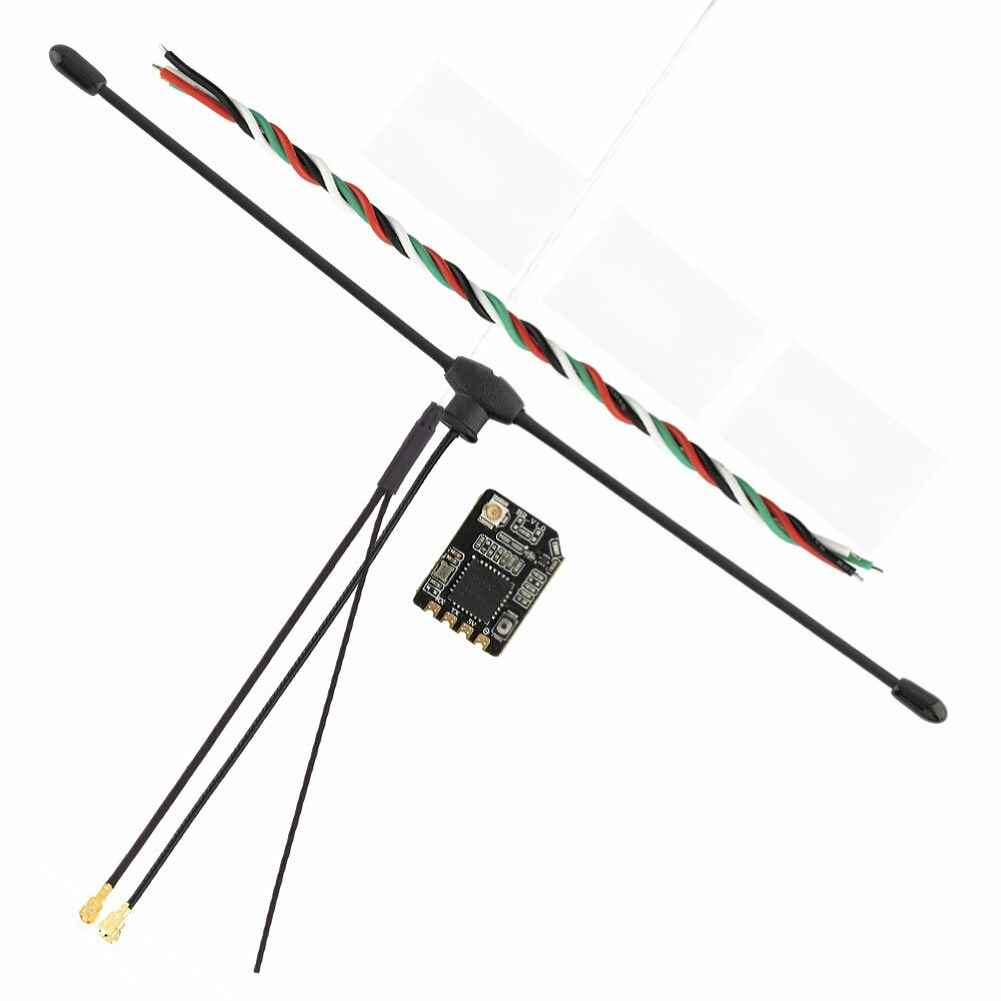

1 x Bandit BR1 ExpressLRS Receiver
3 x Receiver Shrink Tube Sleeves
1 x Y Antenna (Installed on Receiver)
1 x T Antenna
1 x CRSF Wire
1 x Manual
