Radiomaster ER5A V2 2.4GHz 5CH ELRS PWM Receiver for MT12, TX16S, Zorro Transmitters

Description

Radiomaster ER5A V2 2.4GHz 5CH ELRS PWM Receiver for MT12 Pocket Boxer TX16S Zorro ELRS Radio Transmitter

The Radiomaster ER5A V2 2.4GHz 5CH ELRS PWM Receiver is engineered for exceptional performance with the ExpressLRS system. This receiver supports up to 5 servos and features built-in voltage telemetry, automatically detecting the appropriate voltage input. It boasts high reliability, flexible configuration, ultra-fast response, and an extensive receiving range, making it ideal for aircraft applications. The compact design and high-sensitivity antenna ensure easy installation and stable performance. Pre-installed with ELRS 3.3.0, it supports Wi-Fi updates and WEBUI configuration, compatible with all 2.4GHz ExpressLRS modules and transmitters.

Radiomaster ER5A V2 2.4GHz 5CH ELRS PWM Receiver for MT12 Pocket Boxer TX16S Zorro ELRS Radio Transmitter
Description:
ER5A V2 receiver is based on the high-performance, revolutionary ExpressLRS system, featuring high reliability, highly flexible configuration, ultra-fast response speeds, and an ultra-long receiving range, bringing with it a brand-new usage experience.
The ER5A V2 ELRS receiver can drive up to 5 servos and has built-in receiver voltage telemetry and battery telemetry with the ability to automatically detect which voltage input to use. It is designed for aircraft applications.

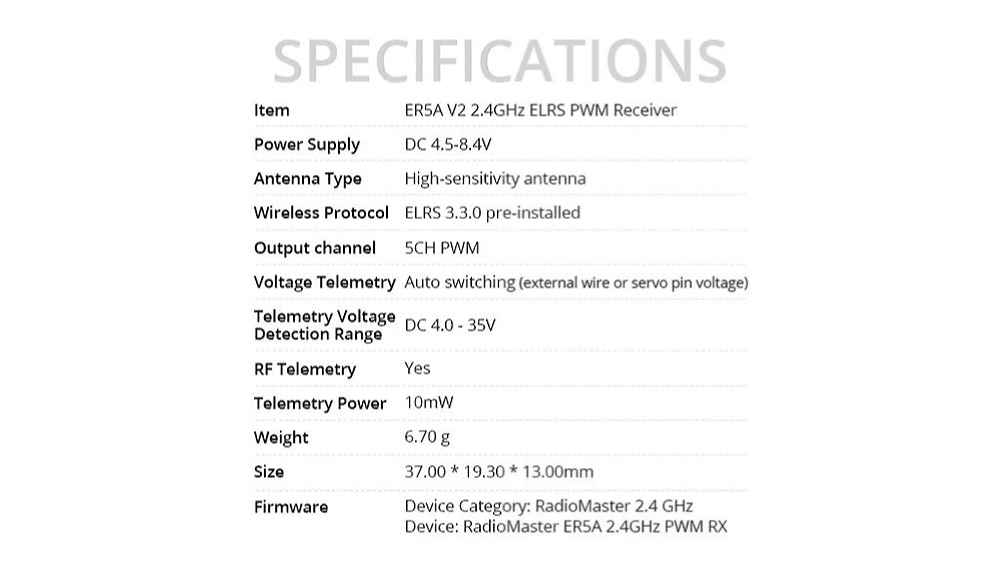

Specifications:
Item: ER5A V2 2.4GHz ELRS PWM Receiver
Power supply: DC 4.5-8.4V

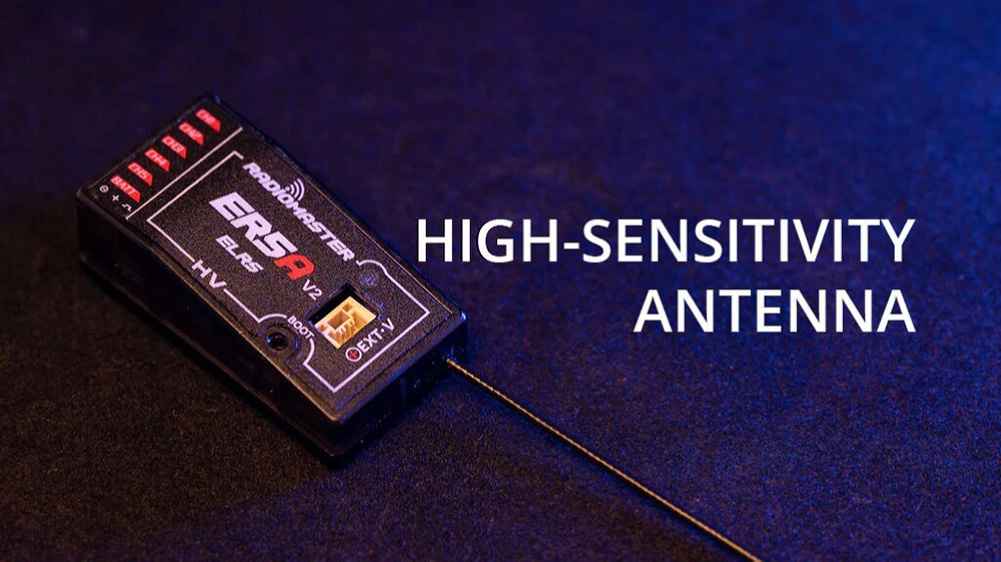

Antenna type: High-sensitivity antenna
Wireless Protocol: ELRS 3.3.0 pre-installed
Channels: 5
Telemetry Voltage Detection Range: DC 4.0 – 35V
RF Telemetry: Yes
Telemetry Power: 10mw
Weight: 6.7 grams

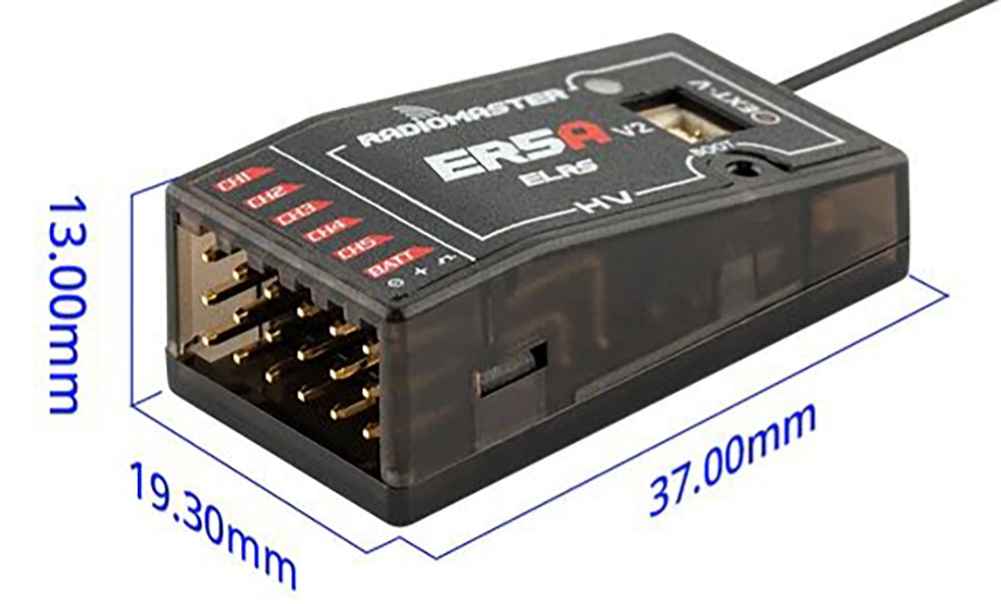

Size: 37.0 * 19.3 * 13.0mm
Firmware: Device Category: RadioMaster 2.4 GHz / Device: RadioMaster ER5A 2.4GHz PWM RX
Features:
* Based on the Revolutionary ExpressLRS System
* High performance, high reliability, flexible configuration, quick response speed and ultra-long range
* Support 5 PWM Channels

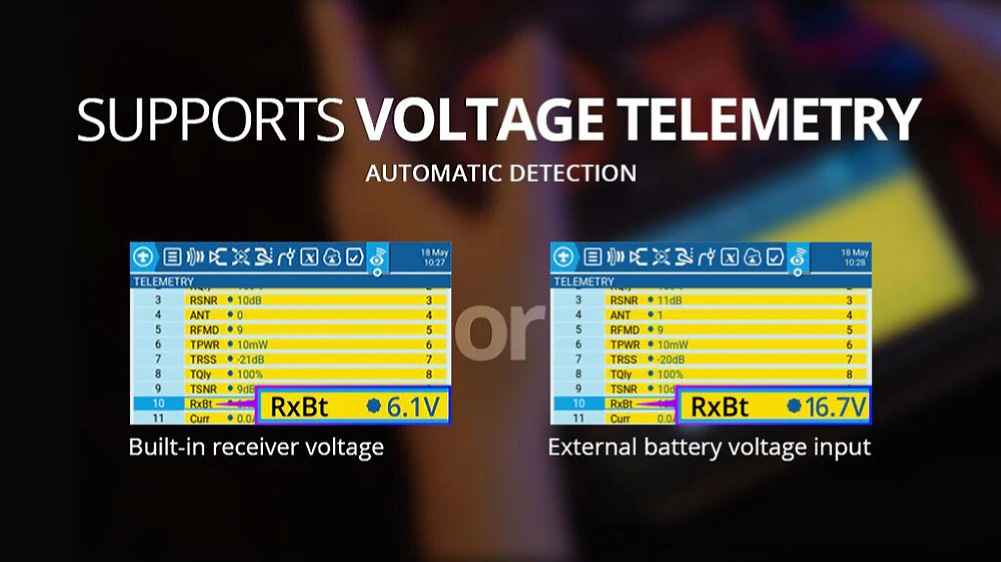

* Automatically detects voltage telemetry of external battery voltage or receiver battery / ESC BEC voltage

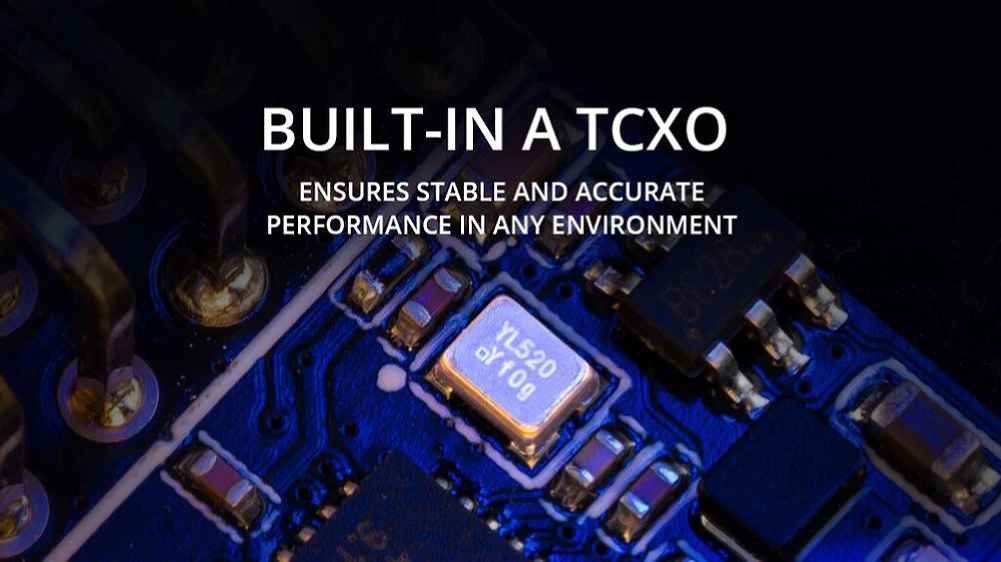

* Built-in a TCXO (temperature compensated crystal oscillator), ensures stable and accurate performance in any environment
* Optimized ground up PCB design
* Supports Wi-Fi updates and WEBUI configuration

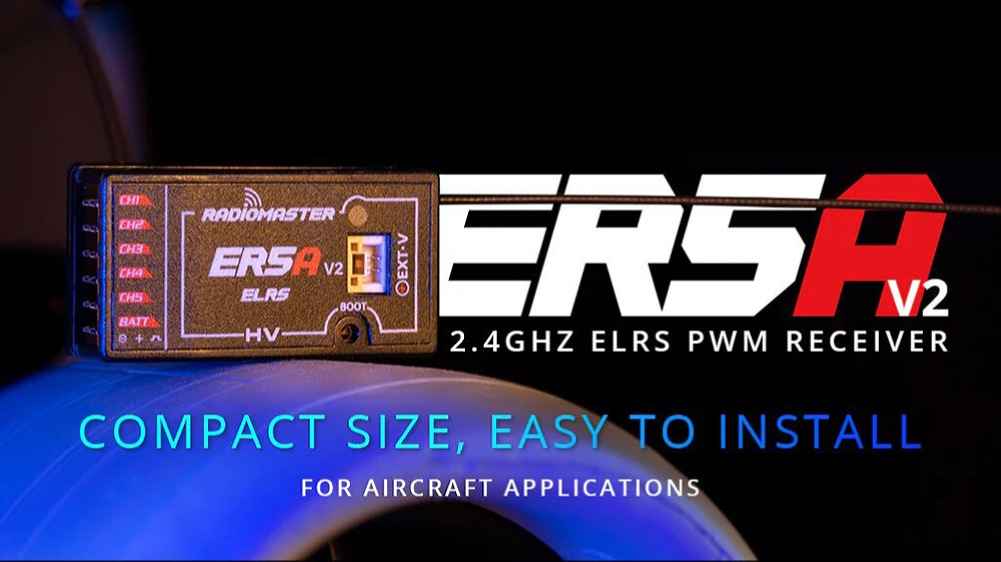

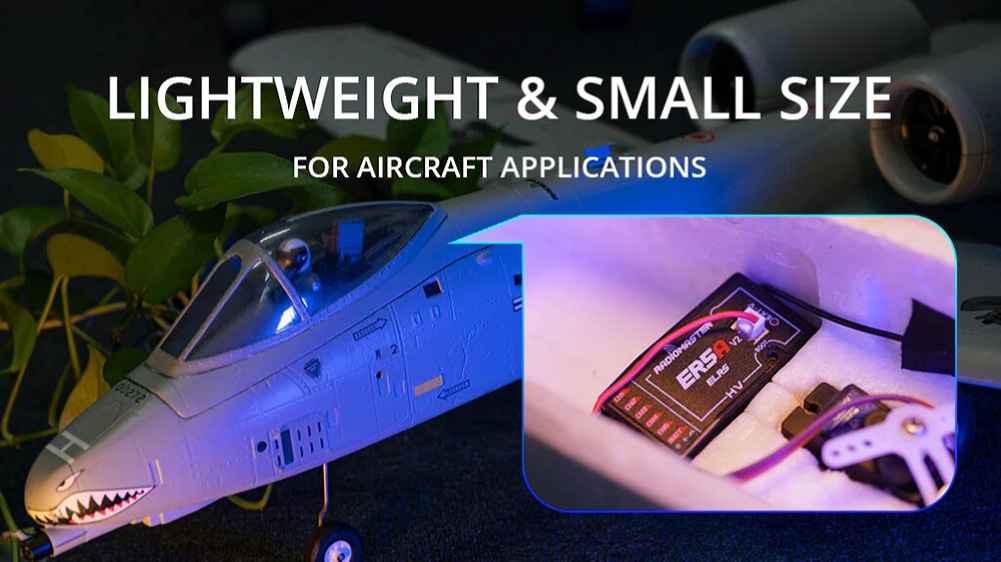

* Compact size, easy to install. Perfect for aircraft applications
* Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

Package Included:
1 x ER5A V2 2.4GHz ELRS PWM Receiver
1 x Voltage telemetry wire
1 x User Card
