RadioMaster XR1 Nano ExpressLRS Receiver 2.4GHz/900MHz Dual Band for Radiomaster Pocket Boxer TX16S

Description

RadioMaster XR1 Nano ExpressLRS ELRS Receiver 2.4GHz/900MHz/Dual Band Multi-Frequency Receiver for Radiomaster Pocket Boxer TX16S Radio

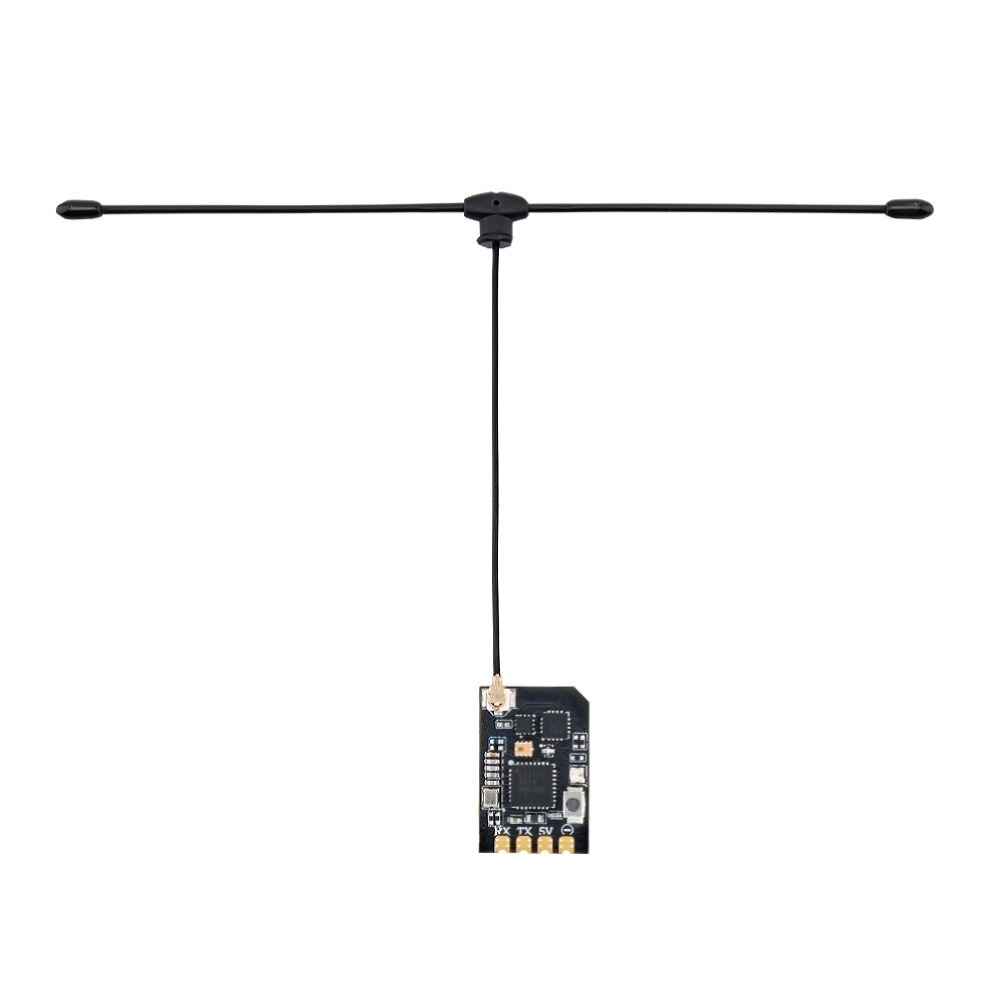

The RadioMaster XR1 Nano ExpressLRS Receiver is an ultra-compact and versatile device, measuring just 20 x 13mm. It features the advanced Semtech LR1121 transceiver and operates on both 2.4GHz and Sub-G 900MHz bands, offering exceptional range and sensitivity. With a lightweight design, it?? perfect for any build. The XR1 ensures reliable performance with ExpressLRS, allowing you to focus on flying without link quality concerns. It includes built-in Wi-Fi for easy configuration and firmware updates, accessible via an intuitive WebUI on PC or mobile devices. The receiver is available in three configurations, allowing for flexibility in frequency selection.

RadioMaster XR1 Nano ExpressLRS ELRS Receiver 2.4GHz/900MHz/Dual Band Multi-Frequency Receiver for Radiomaster Pocket Boxer TX16S Radio
The XR1 Receiver is a versatile, ultra-compact ExpressLRS receiver, measuring just 20 x 13mm. Powered by the advanced third-generation Semtech LR1121 transceiver, the XR1 operates seamlessly on 2.4GHz OR Sub-G 900MHz bands. Whether youã„™re flying on 2.4GHz or 900MHz, the XR1 delivers exceptional range and sensitivity in a small, lightweight package ? perfect for any build. With the reliability of ExpressLRS, you can focus on flying without worrying about link quality.Designed for convenience, the XR1 features built-in Wi-Fi for effortless configuration and firmware updates. Access and manage settings through an intuitive WebUI on your PC or mobile device with ease.
Specification券
Brand: RadioMaster
Item Name: XR1 Nano ExpressLRS Receiver
Type: ISM_2.4 or FCC_915
MCU: ESP32C3
RF Chip: Semtech LR1121
RF Connector: IPEX-1
Antenna: 1x T-Antenna (Either 2.4GHz, 900Mhz or Dual-band Depending on Selected Package)
Frequency Range: 2.4GHz or Sub-G 900MHz
Telemetry Power: 100mW
Maximum Packet rate: DK500Hz /K1000Hz
Minimum Packet Refresh Rate: 50Hz
Working Voltage: 5V
Weight: 1.0g (Without Antenna)
Dimension: 20mm*13mm*3mm
Firmware Version: ExpressLRS v3.5.1 Pre-installed
FW Target: RadioMaster XR1 2.4/900 RX
Bus Interface 1: CRSF
Bus Interface 2: UART
Feature券
* Telemetry RF power: 100mW
* ExpressLRS 2.4GHz or Sub-G 900MHz
* ESP32C3 high-performance MCU
* Semtech LR1121 2.4GHz & Sub-G 900MHz Transceiver
* Secondary UART port
* Castled pads for easy soldering
Tailored to Your NeedsThe XR1 Receiver is available in three configurations, ensuring you have the flexibility to meet your exact requirements: Choose between 2.4GHz, Sub-G 900MHz, or a Dual-Band antenna that allows switching between 2.4Ghz and 900Mhz without an antenna change! All antenna types are available as optional accessories so you can change frequency at a later stage without needing to purchase a new receiver!

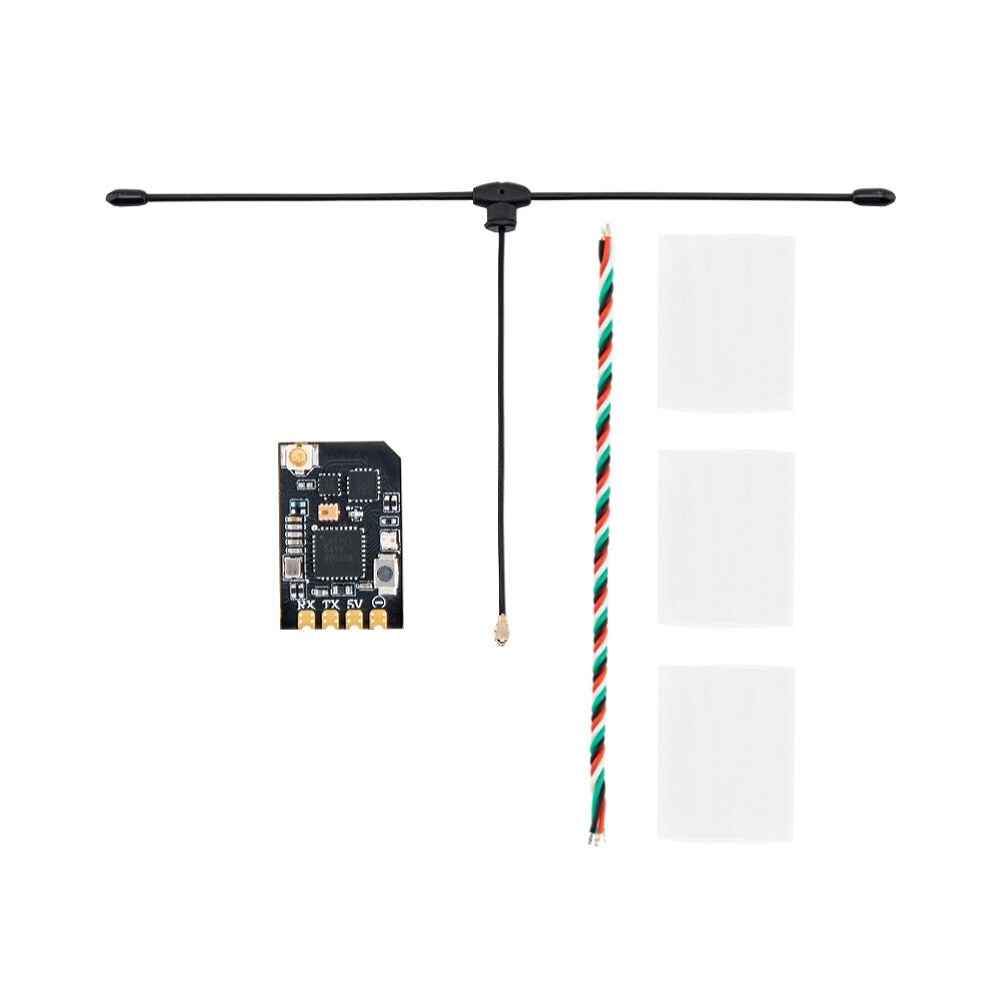

Package Included:
1 x XR1 Nano Multi-Frequency ExpressLRS Receiver
1 x T Antenna (Either 2.4GHz, 900MHz, or Dual-band depending on selected package)
1 x CRSF wire
3 x Heat-Shrinkable Tube
1 x Manual Card
