RadioMaster Zorro 2.4GHz 16CH Hall Sensor Gimbals Multi-Protocol Radio Transmitter for RC Drones, OpenTX/EdgeTX

Description

RadioMaster Zorro 2.4GHz 16CH Hall Sensor Gimbals CC2500/JP4IN1/ELRS Multi-protocol OpenTX/EdgeTX System Radio Transmitter for RC Drone

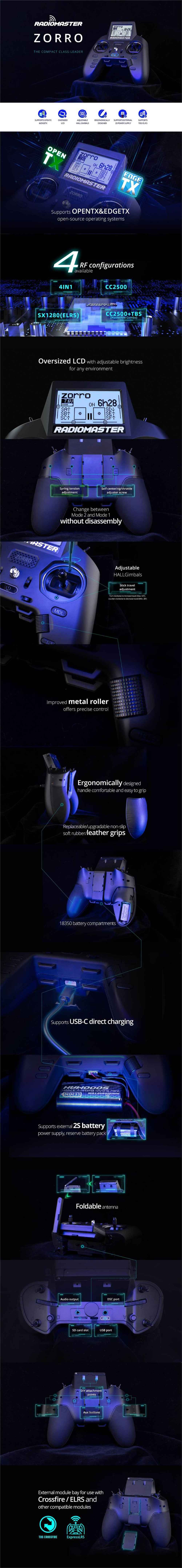

The RadioMaster Zorro 2.4GHz 16CH Radio Transmitter offers a revolutionary design for RC drone enthusiasts. It features travel-adjustable Hall sensor gimbals, a bright LCD screen, and a nano-sized external RF module bay. The transmitter supports multiple protocols, including CC2500, JP4IN1, and ELRS, and operates on OpenTX/EdgeTX systems. It includes built-in USB-C charging, a USB-C data port for updates and simulators, and assignable push buttons. With a control distance of over 2km and up to 16 control channels, the Zorro is designed for versatility and performance. The device is powered by two 18350 batteries (not included) and is compatible with various modules like TBS Nano Crossfires.

RadioMaster Zorro 2.4GHz 16CH Hall Sensor Gimbals CC2500/JP4IN1/ELRS Multi-protocol OpenTX/EdgeTX System Radio Transmitter for RC Drone
OVERVIEW:
Featuring an ergonomic design, large bright LCD screen in the perfect viewing position, travel adjustable HALL sensor gimbals, a nano size external RF module bay, built in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again.
Description:
Brand Name: RadioMaster
Item Name: Zorro Radio Transmitter
Weight: 350g
Size: 170*159*108 mm
Operating frequency: 2.400GHz-2.480GHz
Internal RF Options: CC2500 multi-protocol / 4-in-1 multi-protocol / ELRS 2.4GHz
Supported protocols: Module dependent
RF power: CC2500 and 4-in-1: 20dBm max. / ELRS: 22dBm max.
Antenna gain: Folding 2db
Operational current: 160mA@8.4V
Operational voltage: 6.6-8.4v DC
Control distance: > 2km @ 20dbm
Operating system: OpenTX / EdgeTX Compatible
Control channels: Maximum 16 (Rx dependent)
Display: 128*64 Monochrome LCD
Battery: 2 x 18350 (Not included)
Charging: Built in USB-C Charging
Gimbal: Hall-effect
Module bay: Nano size (Compatible with TBS Nano Crossfires / Nano Tracer / IRC Ghost)
Firmware Upgrade method: Via USB or SD card (SD Not included)
CC2500 Version:
Frsky, Futabas SFHSS. Hitec, RadioLink, Esky. Corona etc
4IN1 Version:
A7105 – Flysky, Hubsan, AFHDS2A etc
CC2500- Frsky, Futabas SFHSS. Hitec, RadioLink etc
CYRF6936 – DSM/DSMX, Walkera Devo, Wfiy etc
NRF24LO1 – Hisky, Syme. ASSAN etc
Radio Firmware:
https://www.open-tx.org/
http://edgetx.org/
RF Firmware:
CC2500 & 4-in-1 Multi-module: https://www.multi-module.org/basics/supported-protocols
ELRS: https://github.com/ExpressLRS/ExpressLRS

Package Included:
1 x Zorro Radio Transmitter (Optional Version)
1 x EP2 ELRS RC Receiver (Only ELRS Starter Set)
2 x EP1 ELRS RC Receiver (Only ELRS Starter Set)
1 x TBS Nano Crossfires TX Module (Only CC2500+Nano Crossfires/4IN1+Nano Crossfires)
