RC Car Parts Brushless ESC 80A with AM32 Firmware, Adjustable BEC 2-8S, USB Link for 1/8 Rock Crawler Vehicles

Description

RC Car Parts Brushless ESC 80A AM32 Firmware Adjustable BEC 2-8S USB Link for 1/8 Rock Crawler Climbing Truck Vehicles Models Spare Accessories

The RC Car Parts Brushless ESC 80A is pre-installed with AM32 custom firmware, making it ideal for crawler vehicles. It ensures smooth and quiet operation for 1/8 scale or smaller cars. This ESC features a built-in adjustable quad-group voltage BEC with a maximum current of 10A, suitable for high-torque applications. It includes an e-Switch to prevent failures in harsh environments. All wires are pre-soldered for ease of use. The ESC supports 2-8S Lipo batteries and has a continuous current of 80A. Note that while the ESC is not waterproof, the e-Switch is.

Description:
Introduction:
This ESC comes pre-installed with AM32 custom firmware. It is optimized for crawler vehicles, providing very smooth and quiet operation of your crawler, but it is also suitable for various 1/8 scale or smaller cars. It features a built-in adjustable quad-group voltage BEC, with a maximum current of 10A, for high-torque servo applications. Additionally, the included e-Switch helps avoid failures caused by harsh environments.
All wires are pre-soldered.
Specification:
Product Numer.:VE80A
Product Name:AM32 Crawler ESC 80A/USB Link
Battery:2~8S Lipo Current: 80A cont.
BEC:Max 10A, output
5.2~8.2V adjustable by DIP switch Waterproof:ESC not
Supported / e-switch supported
FAN:Not include,solder pads for power is reserved
Connectors:Not include
Wires:Battery 14AWGx150mm, output 14AWGx150mm, signal 250mm and e-switch 120mm
Dimensions:60x29x15mm (without wires)
Weight:58g
Features:
– AM32 custom firmware.
– Sine wave start allows the motor to operate smoothly at ultra-low speeds.
– Variable driving frequency.
– Low voltage, runaway, and rotor lock protection.
– High-performance 32-bit MCU.
– E-switch,enduring and waterproof.

Package Included:

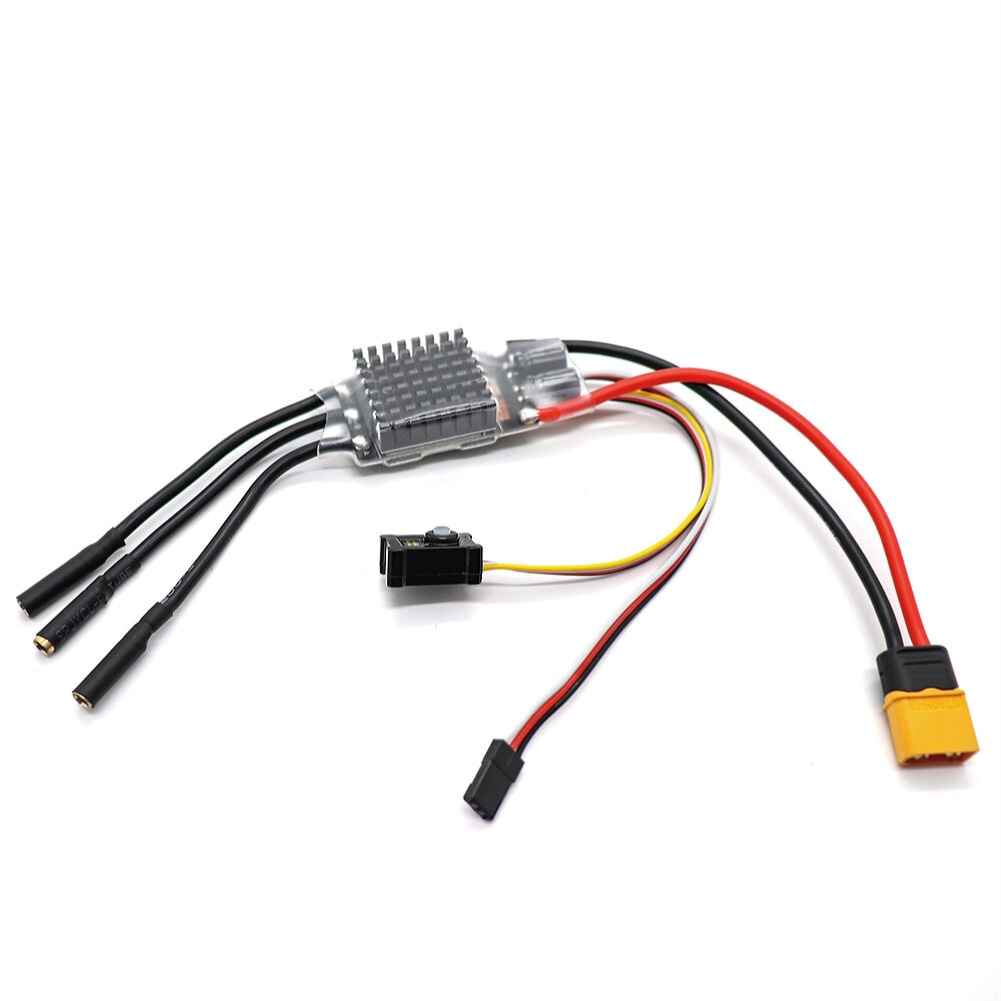

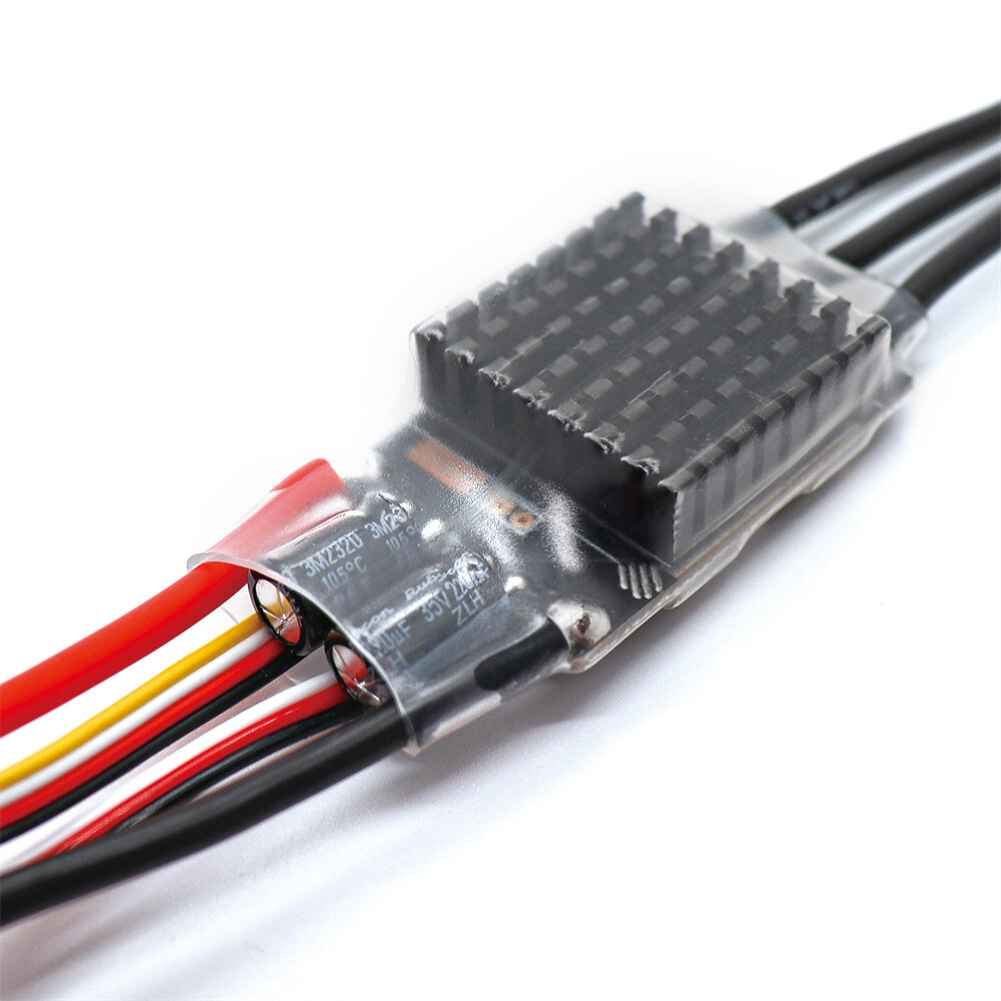

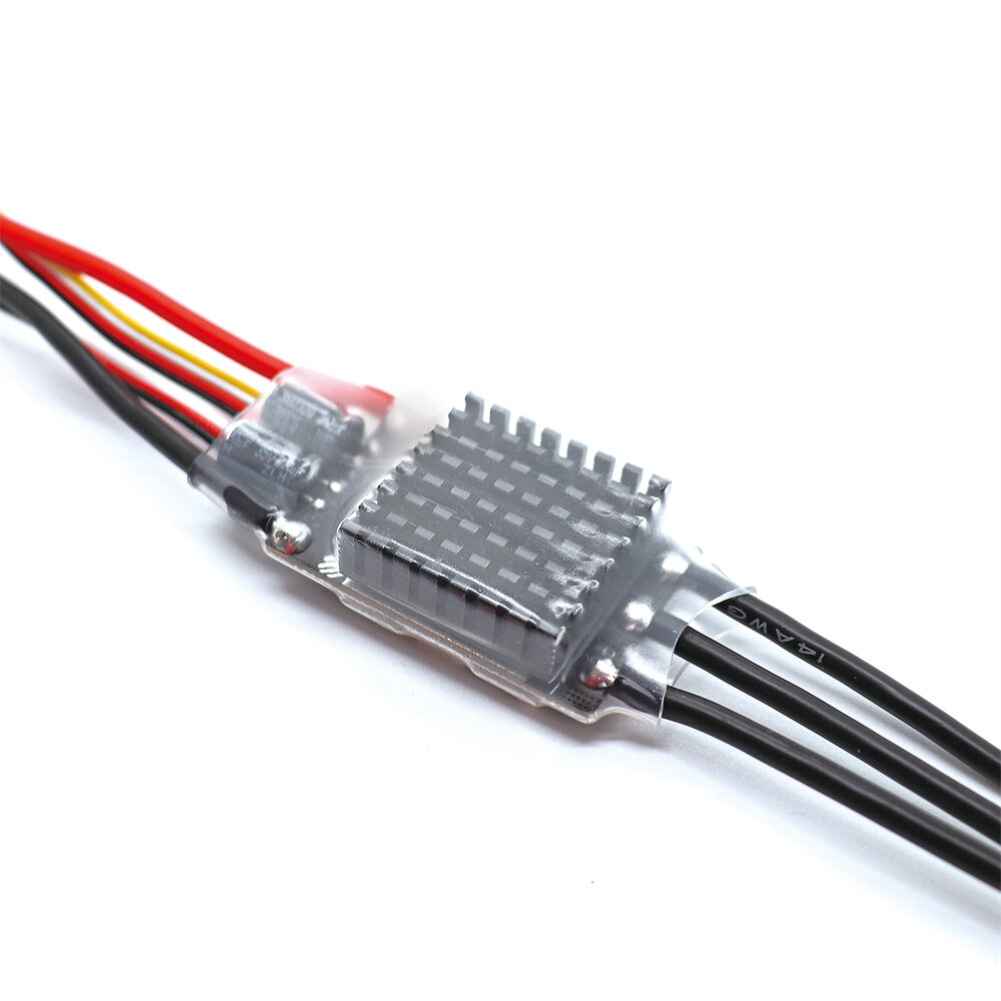

1 x AM32 Crawler ESC 80A

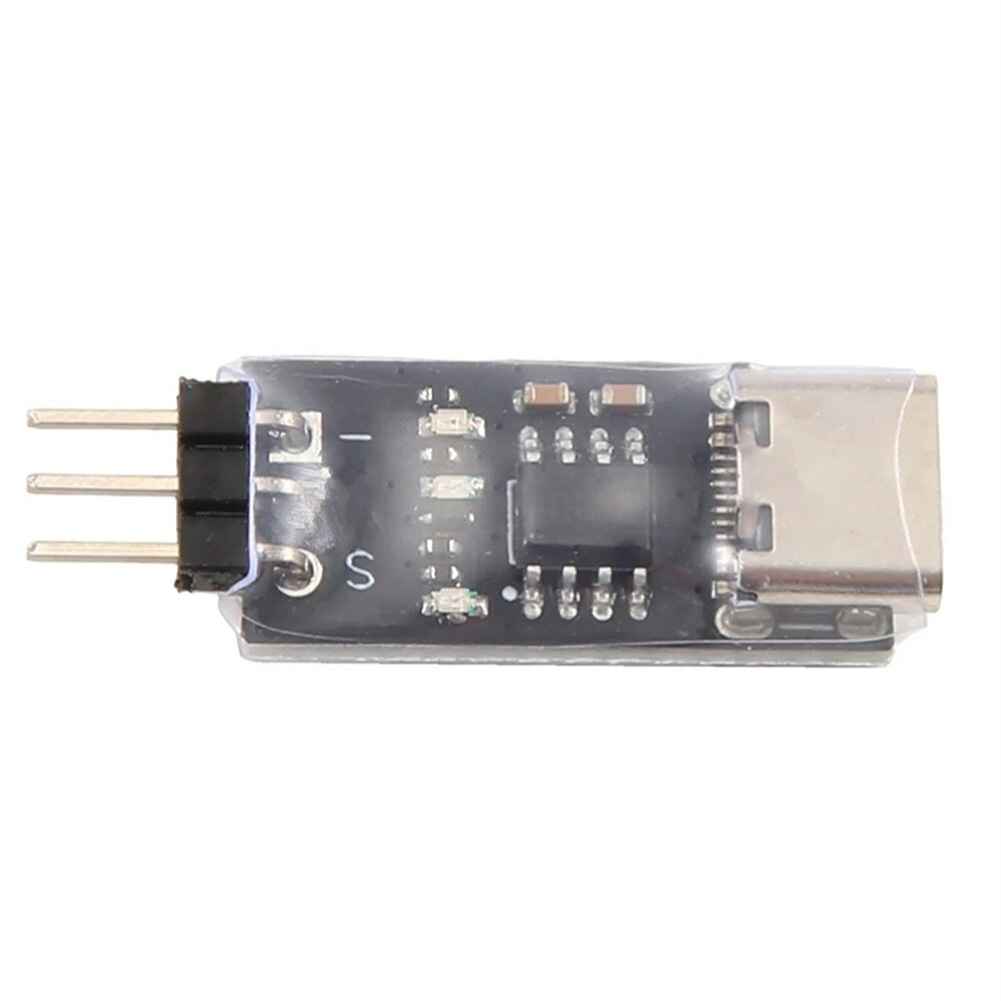

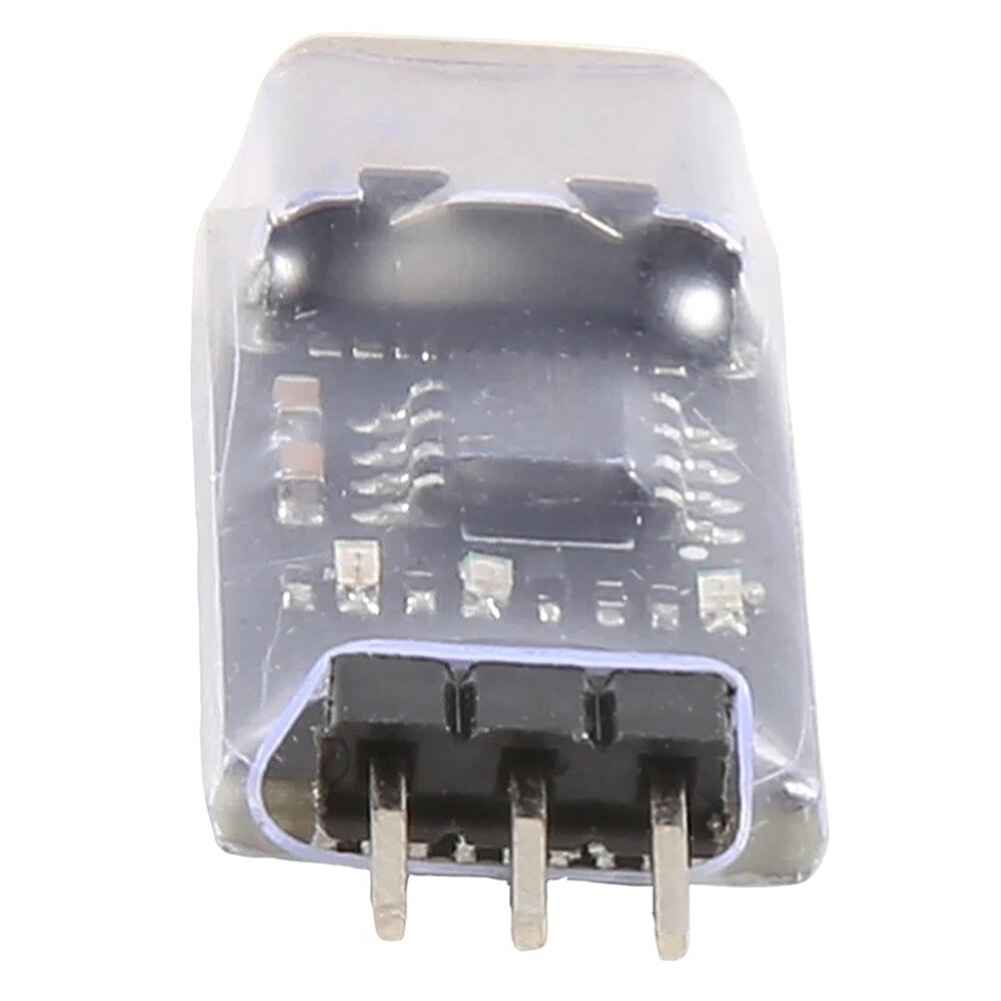

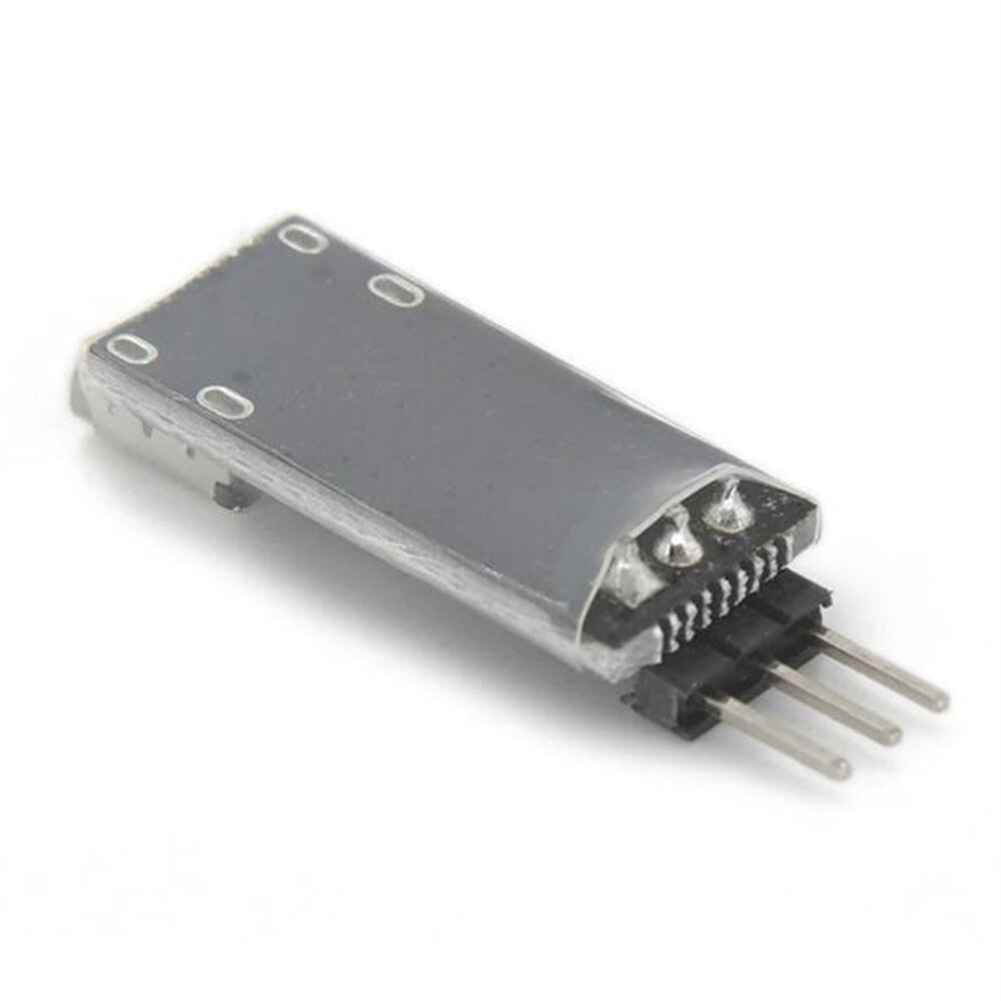

1 x USB Link (optional)
