Realacc Pagoda RHCP Antenna 5.8G 5dBi 50W 75mm Omni FPV with SMA/RP-SMA for RC Drones

Description

Realacc Pagoda Antenna RHCP Right Angle 5.8G 5dBi 50W 75mm Omni FPV Antenna SMA/RP-SMA For RC Drone

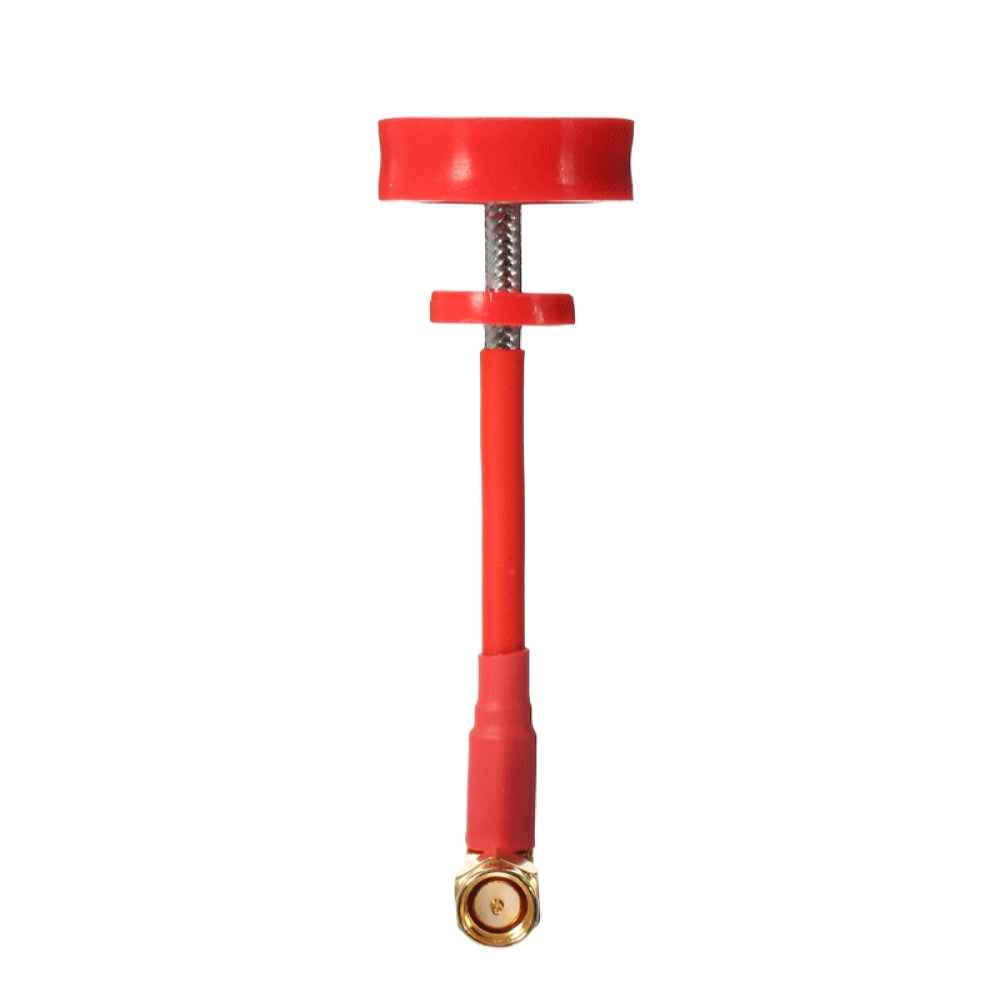

The Realacc Pagoda Antenna is designed for optimal performance in FPV systems, providing a 5dBi gain and a maximum power of 50W. This omnidirectional antenna ensures stable, high-gain signal reception with circular polarization and minimal signal loss. It features a compact design with a length of 78mm and a maximum diameter of 22.4mm, making it easy to integrate into your RC drone setup. Available in black, red, and white, it comes with both SMA and RP-SMA connectors for versatile compatibility. Weighing just 8.6g, this antenna is an ideal choice for enhancing your drone’s FPV experience.

Description :
Brand Name : Realacc
Item Name : Omnidirectional Antenna
Gain : 5dBi
Max. Power : 50w

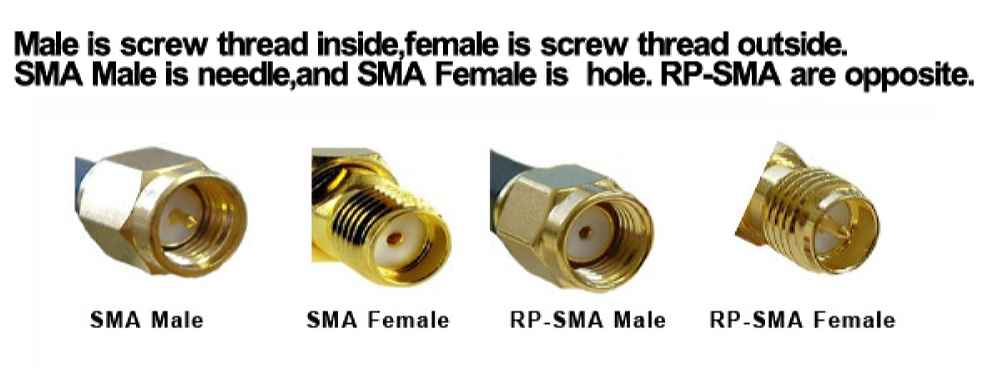

Connector : RP-SMA,SMA

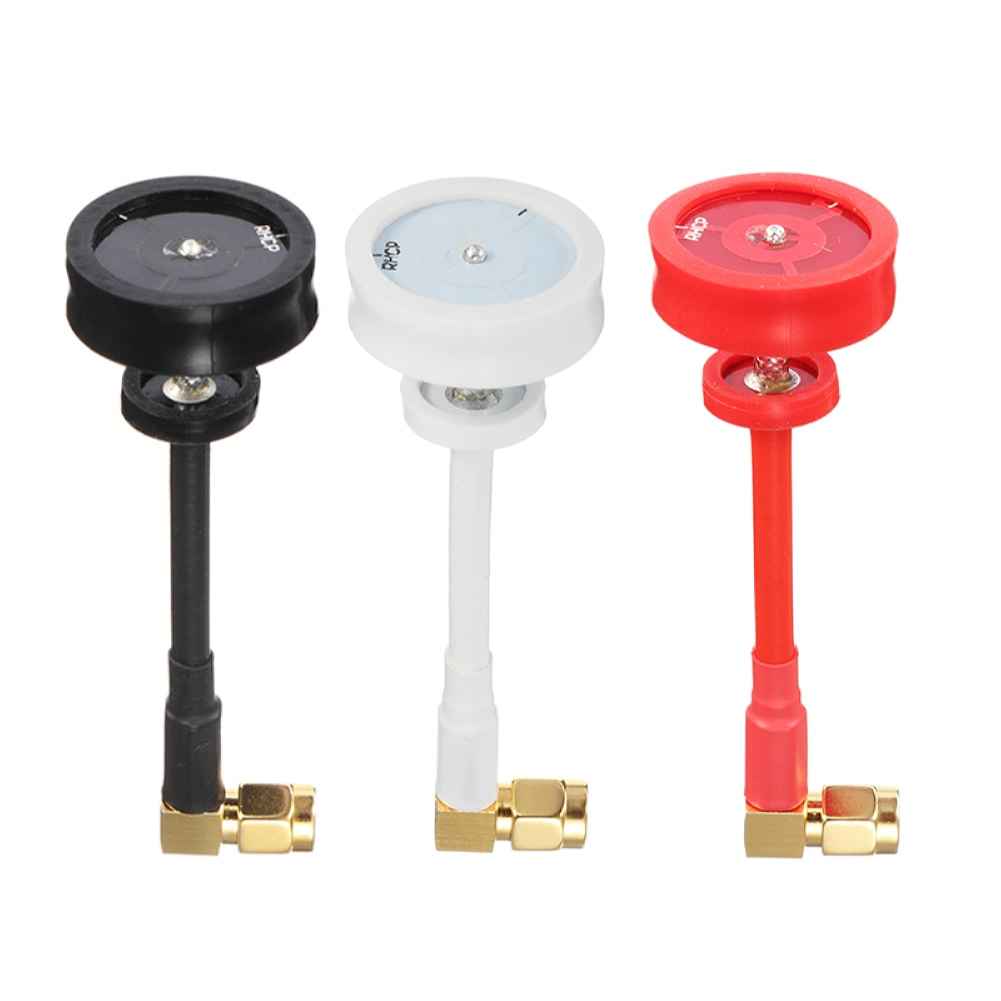

Color : Black, Red, White
Weight : 8.6g
Length : 78呼3mm
Max. Dia. : 22.4呼1mm
Min. Dia. : 11.8呼1mm
Specification :
Frequency : 5.8G
Impedance : 50棒
VSWR : <1.5:1
Polarization : Circular Polarized
Radiation : Omni
Features :
Omni-directional, no dead corner
High gain, more stable.
Less flash, stonger siginal

Package Included:
1 x Antenna
