Rex210 5 Inch Frame Kit for DJI 04 Pro / DJI O3 RC FPV Racing Drone, 210mm Wheelbase, 3D Printed TPU

Description

Rex210 210mm Wheelbase 5 Inch Frame Kit for DJI 04 Pro / DJI O3 DIY RC FPV Racing Drone

The Rex210 Frame Kit is designed for DIY RC FPV racing drones, offering a 210mm wheelbase and compatibility with DJI 04 Pro and DJI O3 systems. This lightweight frame, weighing approximately 85g, includes 3D printed TPU parts for enhanced durability. The frame features a bottom plate, upper plate, middle plate, reinforcing rod, and machine arm, all with specific thicknesses for optimal performance. It supports 5-inch propellers and offers versatile flight controller hole spacing options. The frame also accommodates various camera installation widths and motor installation holes. With its black TPU printed material, the Rex210 ensures reliable protection and stability for your racing drone build.

Specification:
Model: Rex210
Item Name: Frame Kit
Wheelbase: 210mm

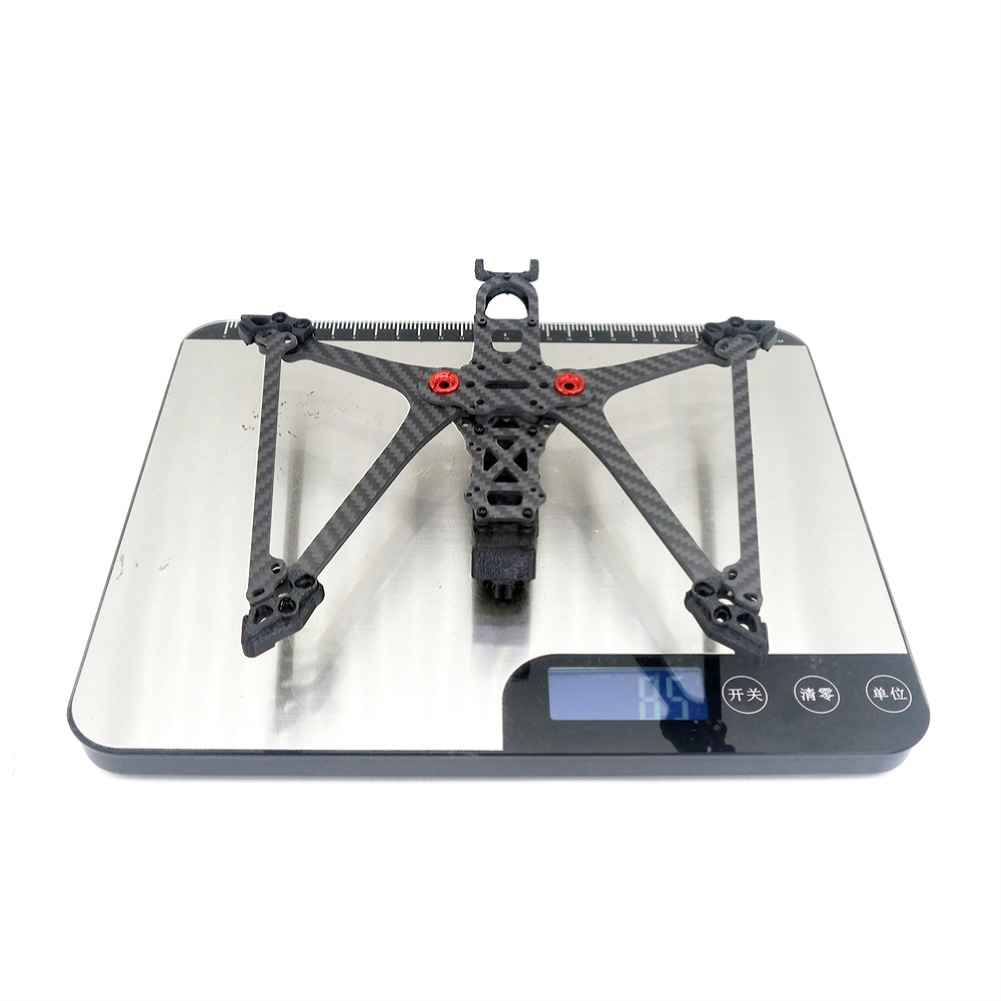

Weight: Approx. 85G (including printed parts)
Thickness: Bottom Plate 2.0mm, Upper Plate 2.0mm, Middle Plate 2.0mm, Reinforcing Rod 2.0mm, Machine Arm 4.0mm
Propeller: 5.0-inch propeller
Flight Controller Hole Spacing: 20*20mm (M3), 25.5*25.5mm (M2) (upright, not diamond-shaped), 30.5*30.5mm (M3) (need to remove the two middle aluminum columns)
Tail Image Transmission Hole Spacing: 20*20mm (M2), 25.5*25.5mm (M2)
Camera Installation Width: 20mm/19mm
Motor Installation Hole: 12*12mm (M2), 16*16mm (M3)
Printed Material: 3D printed tpu material
Printed Color: Black TPU
Internal Height: Approx.19mm
Printed Parts List: 4 motor protection seats, 1 head cover, 1 antenna seat (supports single antenna/dual antenna), 1 GPS seat
Recommend Parts: ( NOT Included)FC & ESC: 20x20mm SpeedyBee F405 Mini StackBrushless Motor: iFlight XING2 2306 1755KV 6S Brushless MotorPropeller: Gemfan 51366 MCK V3 5 Inch Tri-blade PC Props PropellerVTX & Camera: DJI O4 Pro / DJI O3 / VISTA/ 19mm & 20mm
GPS: BZ181 GPS

Package Included:
1 x Rex210 Frame Kit
