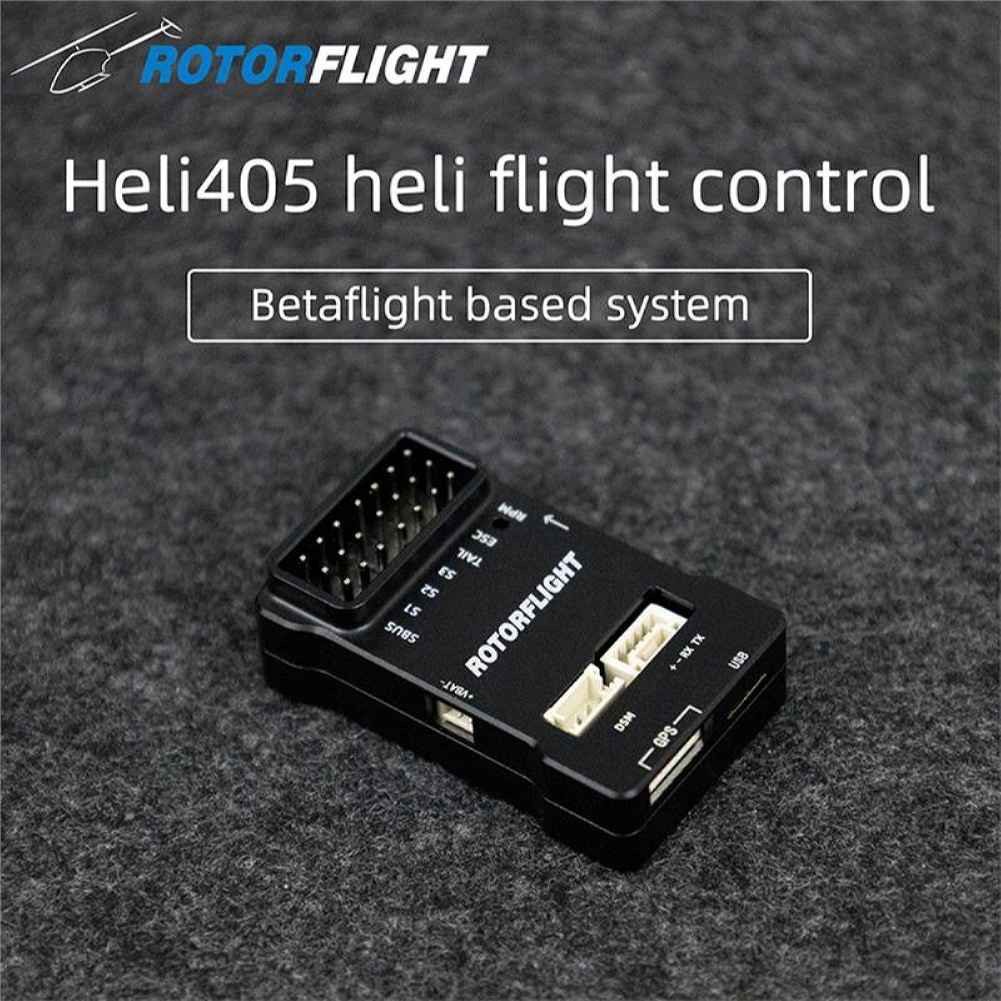

Rotorflight FLY WING Heli405 RF RC Helicopter Flight Control with 3D FBL Gyro

Description

Rotorflight FLY WING Heli405 RF RC Helicopter 3D Flight Control FBL Gyro

The Rotorflight FLY WING Heli405 RF is a sophisticated RC helicopter flight control system designed for optimal 3D flight performance. It features an STM32F405RGT6 CPU and an ICM-42688 gyro, ensuring precise control and stability. The system supports multiple receiver types including PPM, Spektrum, and FrSky, and offers telemetry options like FrSky and HoTT. With advanced PID control and a main rotor speed governor, this flight control is finely tuned for helicopters. It includes dynamic RPM-based notch filter banks and customizable servo/motor mixers, providing flexibility and precision. The Heli405 also supports multiple flight profiles and advanced gyro filtering, making it ideal for enthusiasts seeking high performance.

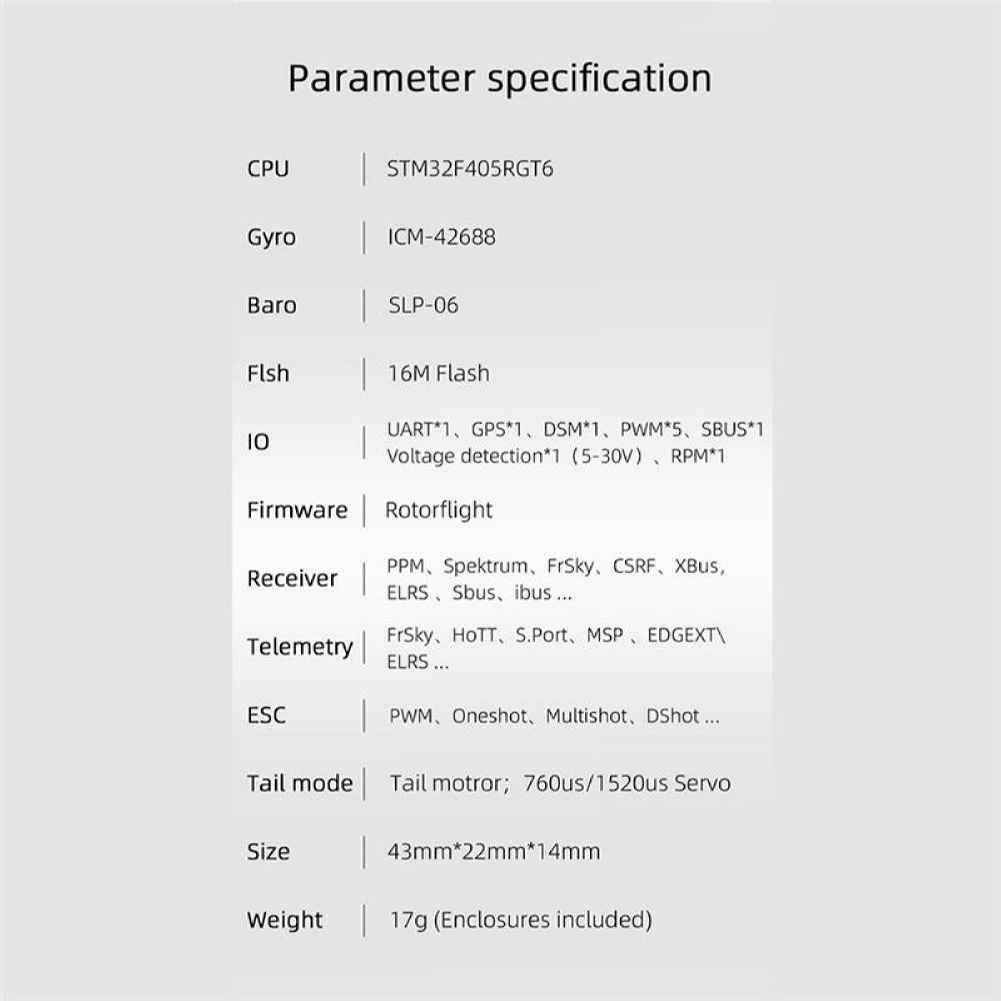

Parameter specification:
CPU: STM32F405RGT6
Gyro: ICM-42688
Baro: SLP-06

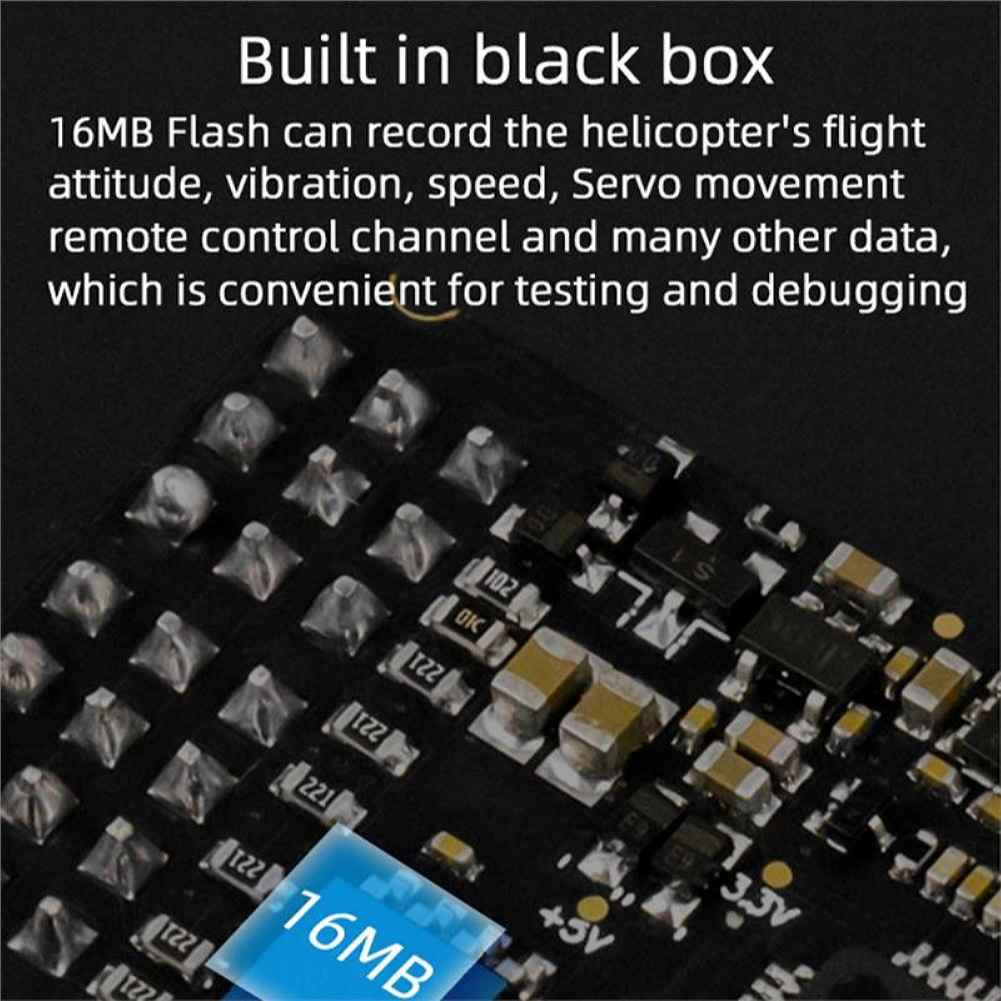

Flash: 16MFlash

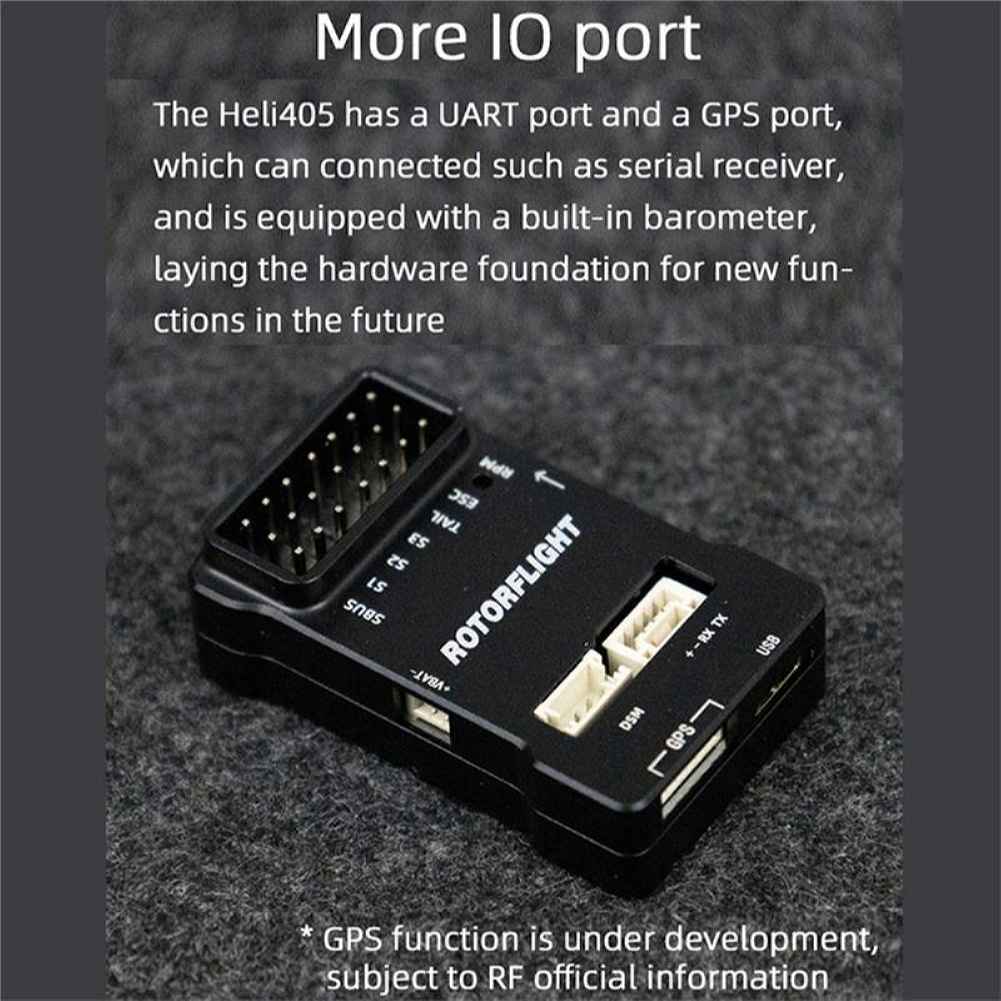

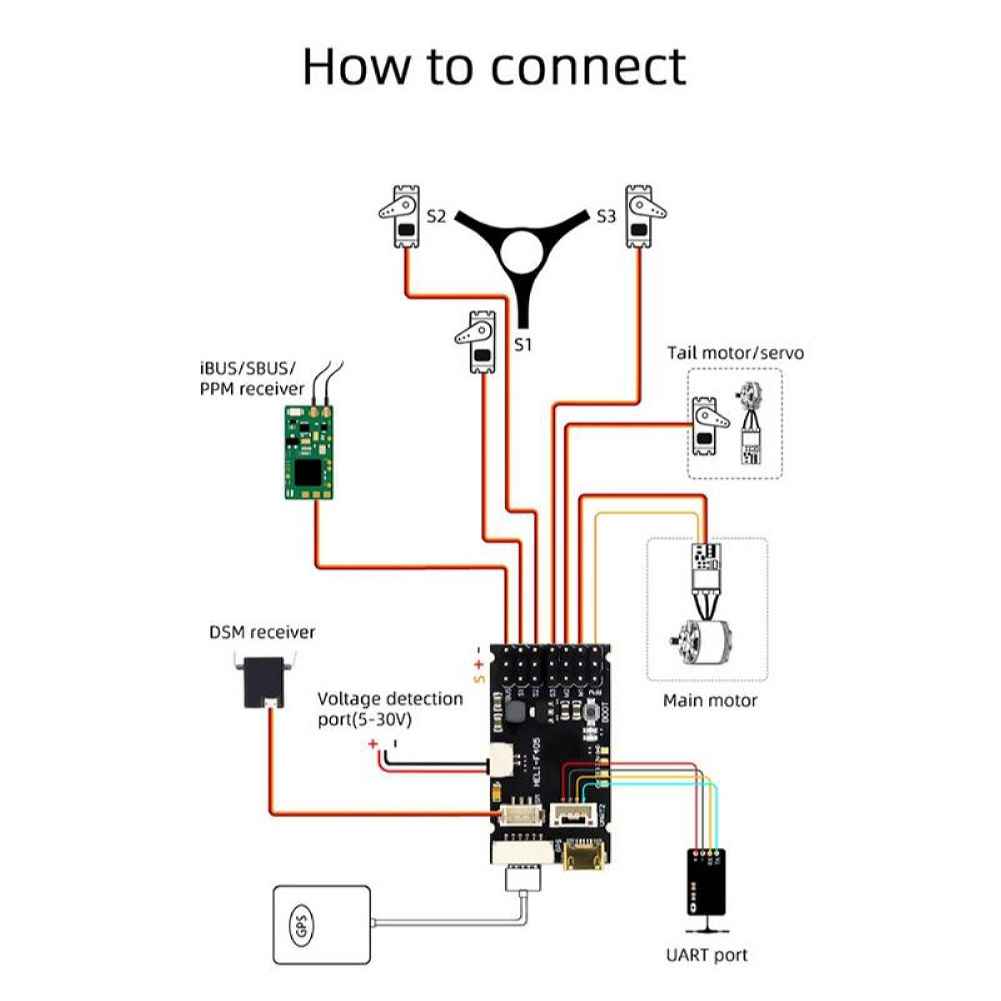

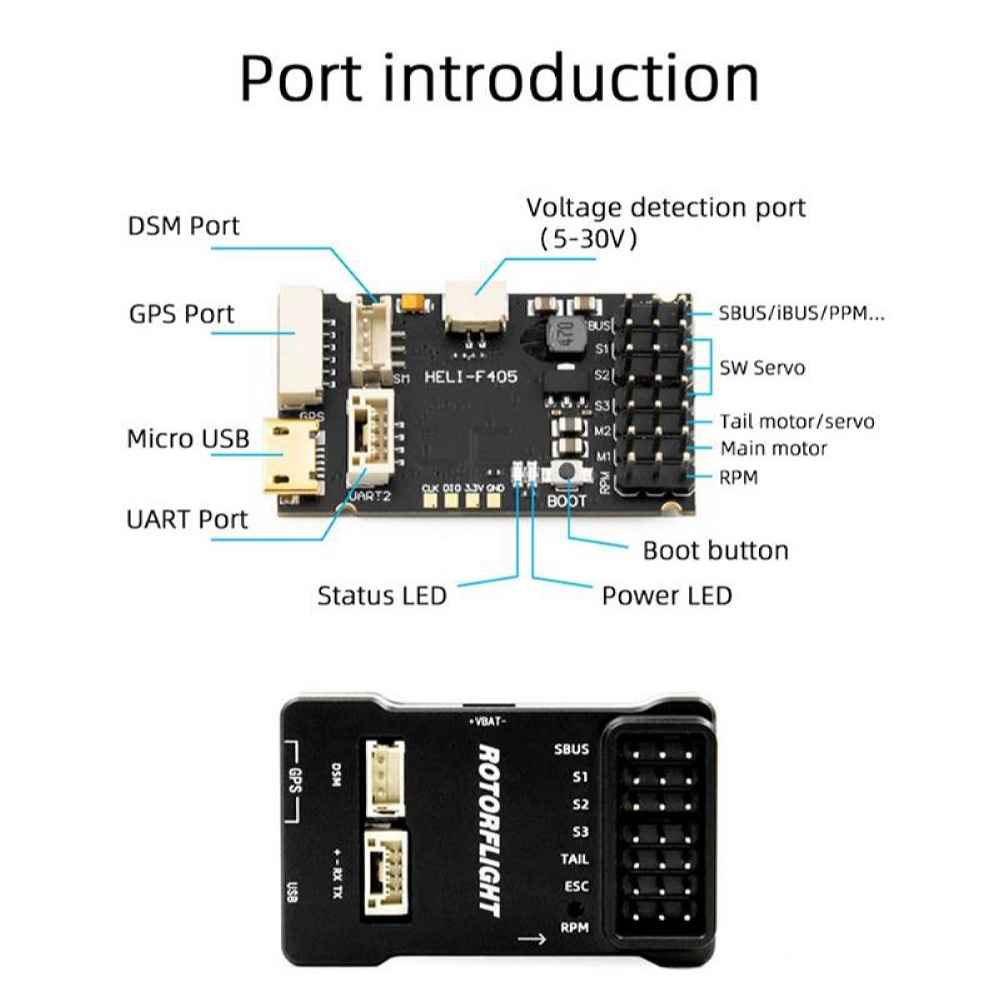

IO: URAT*1, GPS*1, DSM*1, PWM*5, SBUS*1, Voltage detection*1 (5-30V), RPM*1
Firmwarm: Rotorflight

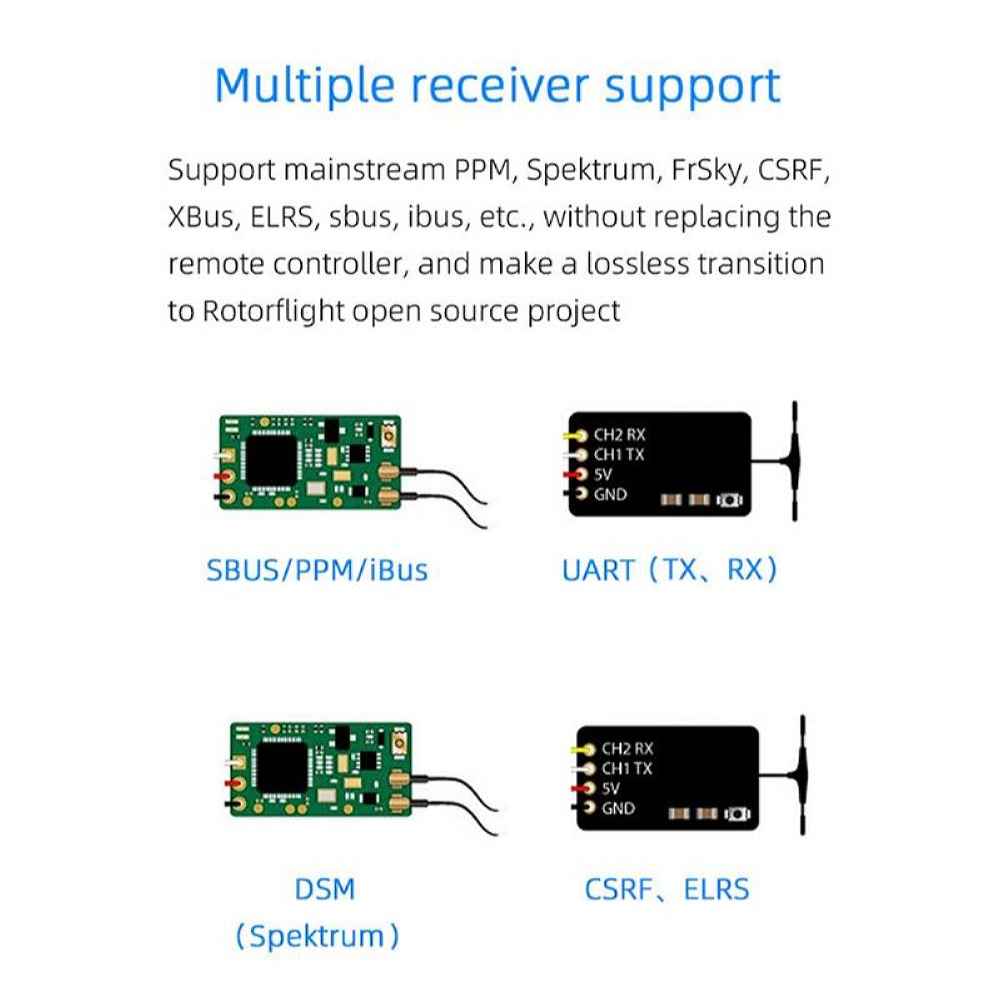

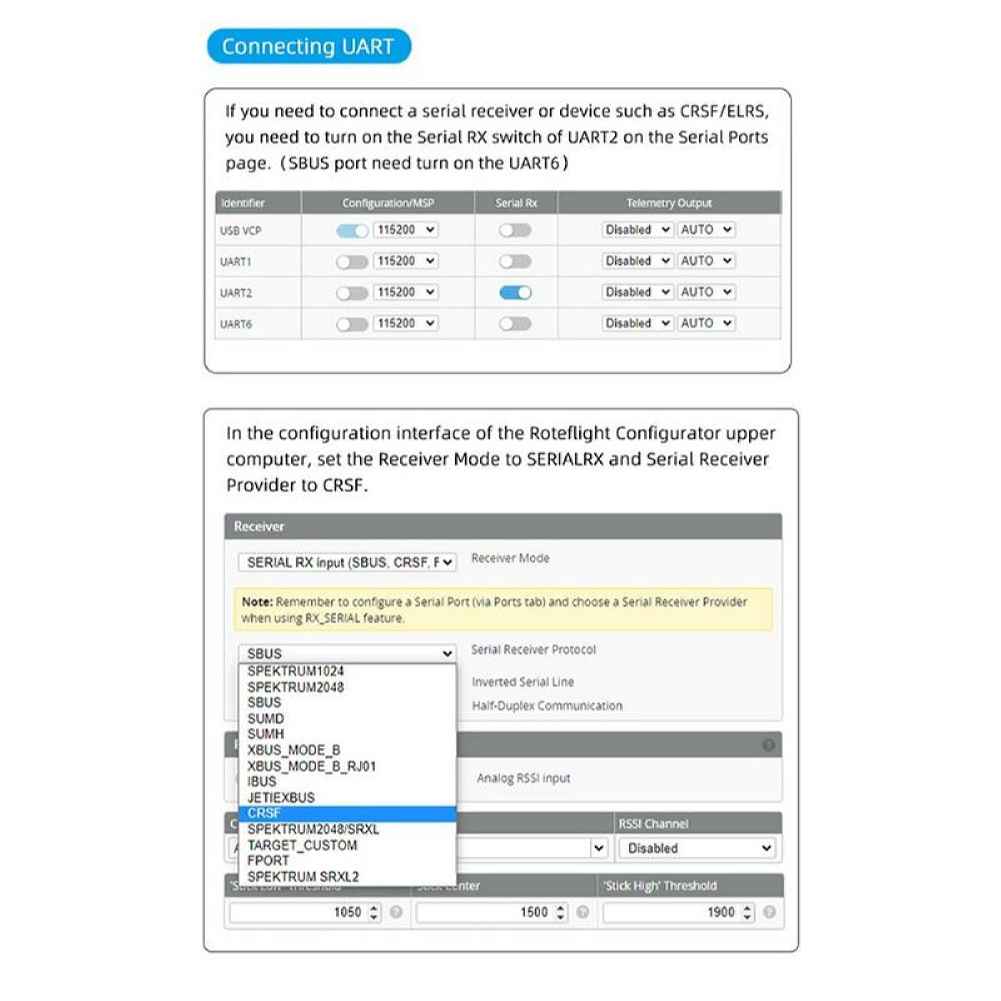

Receiver: PPM, Spektrum, FrSky, CSRF, XBus, ELRS, Sbus, ibus …

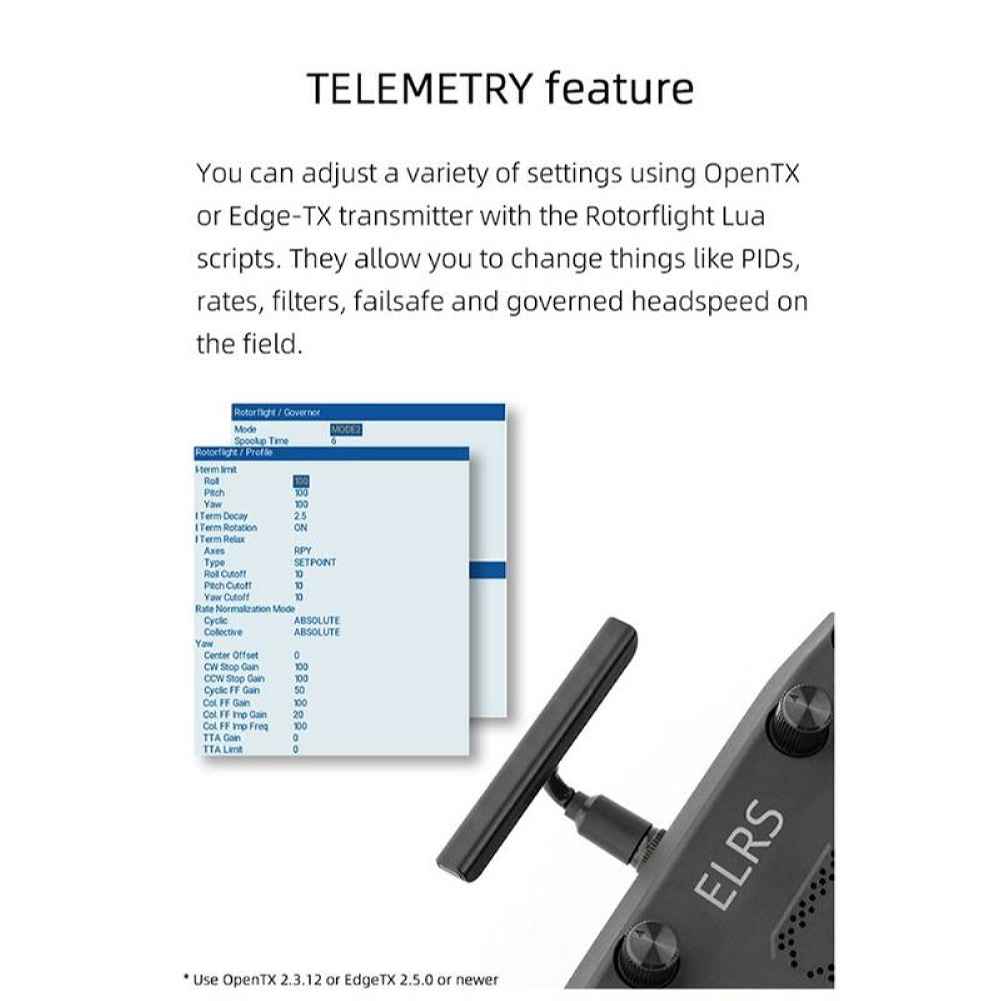

Telemetry: FrSky, HoTT, s.pORT, MSP, EDGEXTELRS …
ESC: PWM, Oneshot, Multishot, DShot …

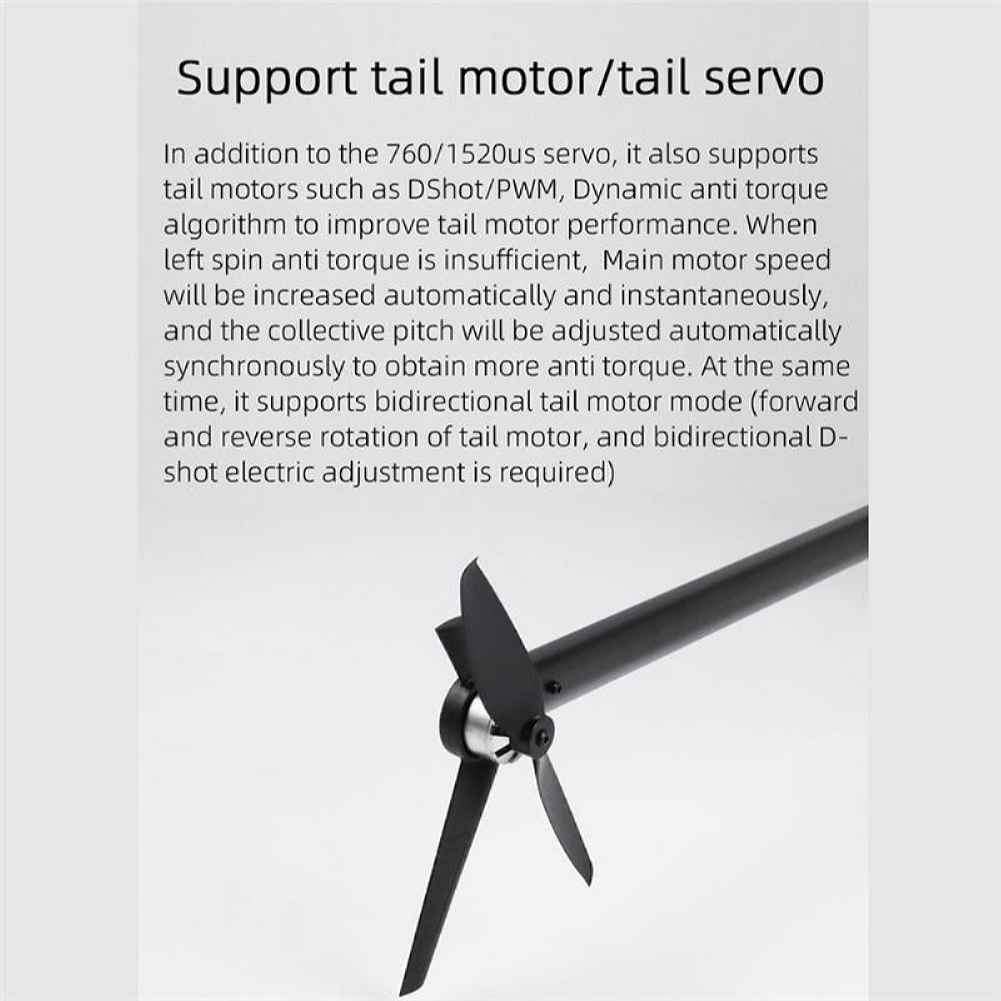

Tail mode: Tail motror; 760us/1520us Servo
Size: 43mm*22mm*14mm
Weight:17g (Enclosures included)
Features:
Rotorflight has many features:
Great GUI application for setting up and configuration.
Advanced PID control, tuned for helicopters.

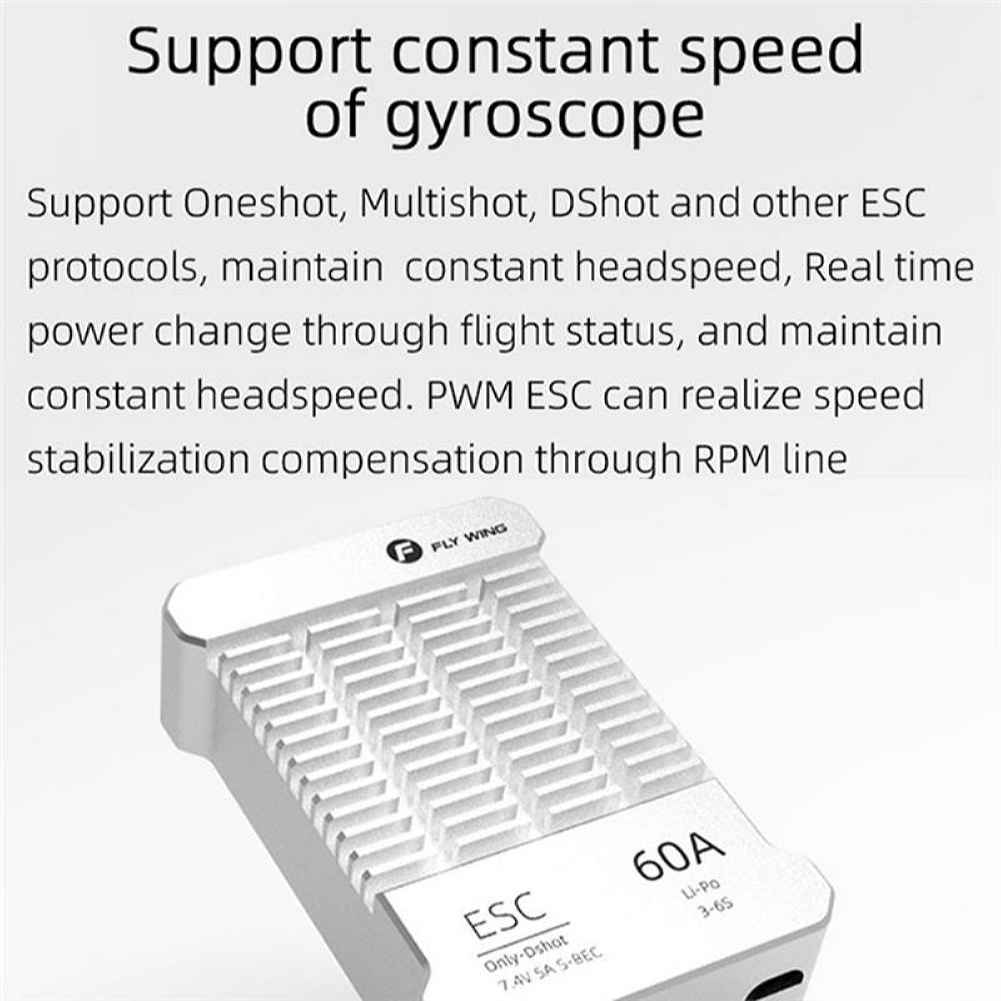

Main rotor speed governor.
Pre compensation between collective/cyclic/yaw.
Advanced gyro filtering for helicopters.
Dynamic RPM based notch filter banks.
Advanced dynamic LPF.
Fully customisable servo/motor mixer.
Flexible servo configuration.
Flight Profiles(Banks).

Package Included:
1 x Heli405 Heli Flight Control
