SEQURE ELRS 915MHz/868MHz Dual RX Receiver with True Diversity Dual Antenna for FPV Racing Drones, RC Airplanes, Helicopters

Description

SEQURE ELRS 915MHz/868MHz Dual RX True Diversity Dual Antenna Long Range High Refresh Rate Receiver for FPV Racing Drone RC Airplane Helicopter

The SEQURE ELRS 915MHz/868MHz Dual RX Receiver is designed for FPV racing drones, RC airplanes, and helicopters, offering a high refresh rate and long-range capabilities. It features a high-performance ESP32-PICO-D4 master control and a dual-frequency SX1276 chip for true diversity reception. This receiver operates at 915MHz and 868MHz, providing strong diffraction capability for extended flight range. It includes a temperature-compensated crystal oscillator to ensure stable operation in varying temperatures, enhancing flight safety. The receiver supports 50mW telemetry feedback for stable flight data transmission and features an RGB color indicator for easy status identification. It offers two connection methods via SH1.0-4P socket and 2.54-4P pad to suit different scenarios.

SEQURE ELRS 915MHz/868MHz Dual RX True Diversity Dual Antenna Long Range High Refresh Rate Receiver for FPV Racing Drone RC Airplane Helicopter
Feature:
(1) High-performance ESP32-PICO-D4 master control, dual-frequency SX1276 chip, true diversity dual antenna receiver.
(2) Operates at 915MHz & 868MHz frequency with strong diffraction capability and long flight range.
(3) Onboard temperature-compensated crystal oscillator (TCXO), refuses ambient temperature to affect flight, maintains stable operation in high or cold environments, making flight safer.
(4) Support 50mW (17dBm)*2 telemetry feedback, the return of flight data is more stable.
(5) Onboard RGB color indicator, quickly identify different working status.
(6) Support SH1.0-4P socket and 2.54-4P pad, two connection methods to meet various scenarios.
Specification:
Brand: SEQURE
Model: ELRS 915MHz/868MHz Dual RX
Factory Firmware: SEQURE 900MHz Dual RX_3.5.0

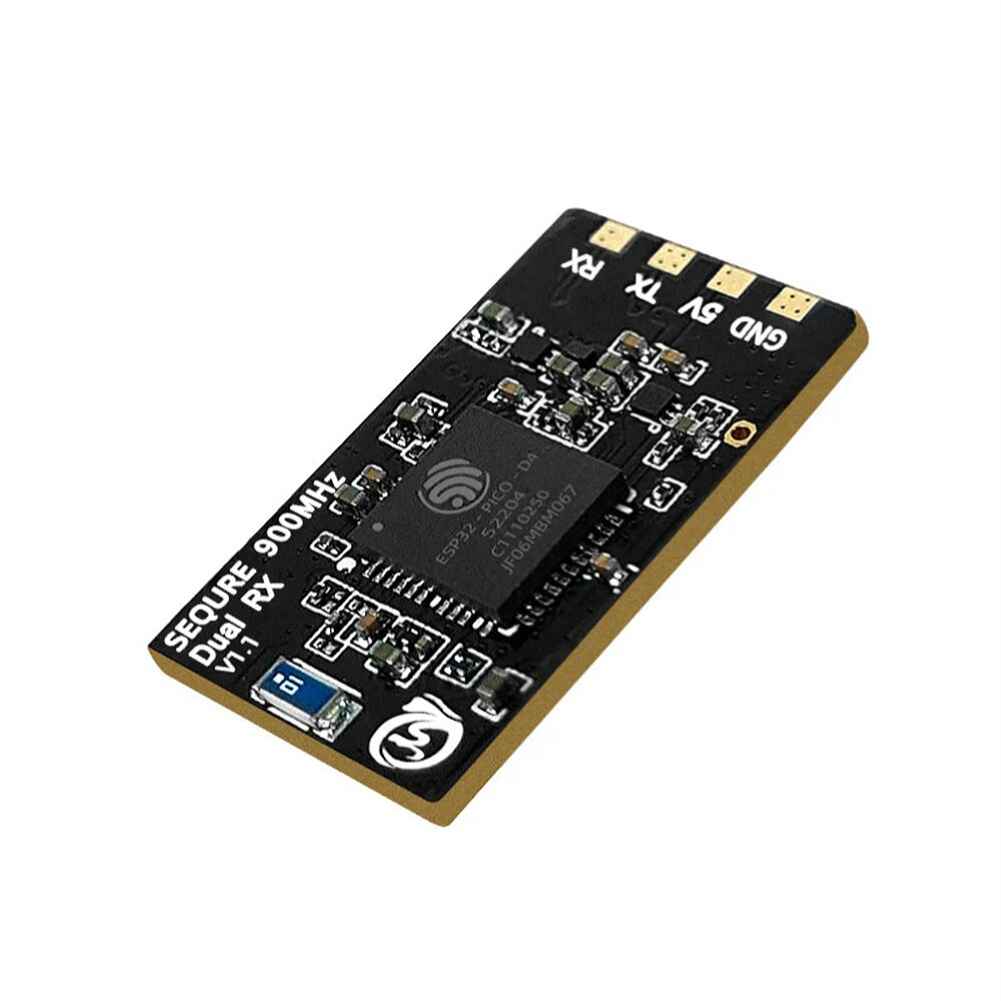

MCU: ESP32-PICO-D4

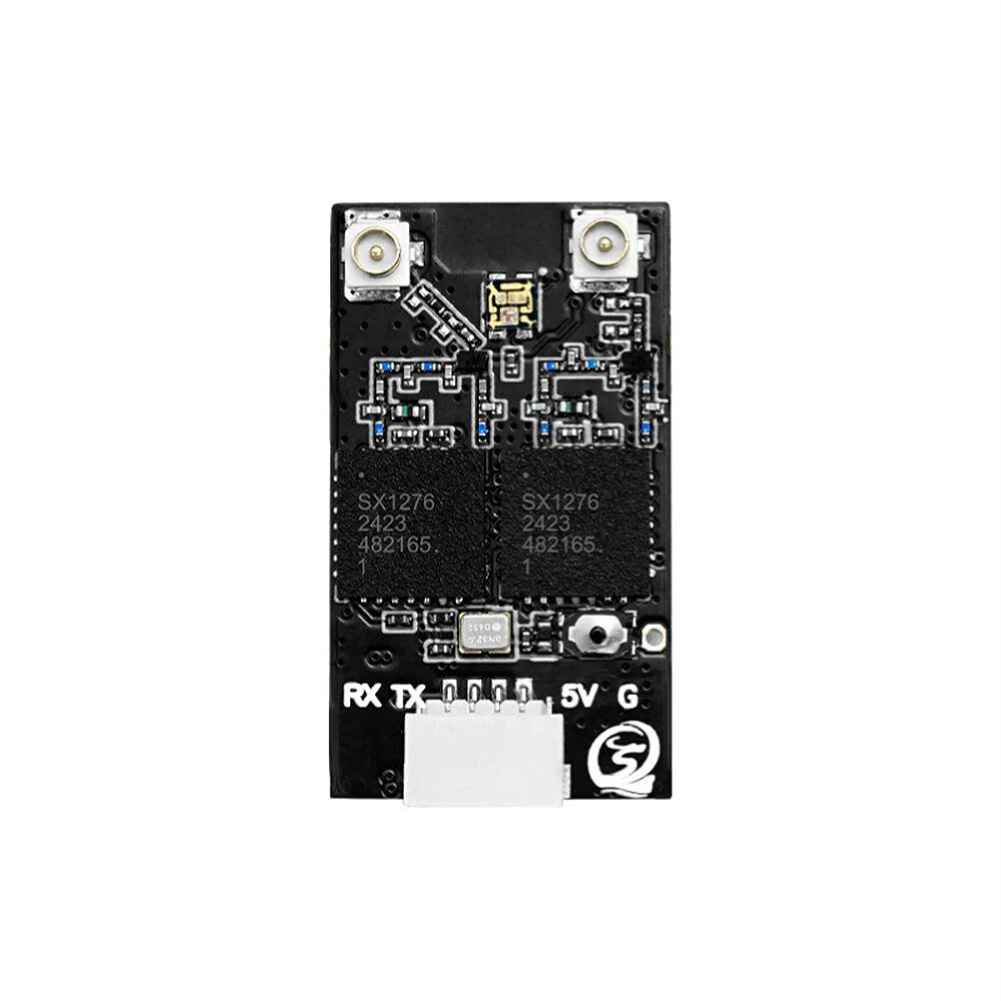

RF Chip: SX1276*2
Crystal Oscillator Type: Temperature Compensated Crystal Oscillator侈TCXO佩
Telemetry Power: 50mW侈17dBm佩* 2
Indicator Light: Colorful RGB Light
Frequency Band: 915MHz FCC / 868MHz EU
Protocol: CRSF
RF Mode: Dual /True Diversity/True diversity dual antenna
Antenna Interface: Ipex1*2
Receiver Interface: SH1.0-4P connector, 2.54-4P pad
Working voltage: 5V

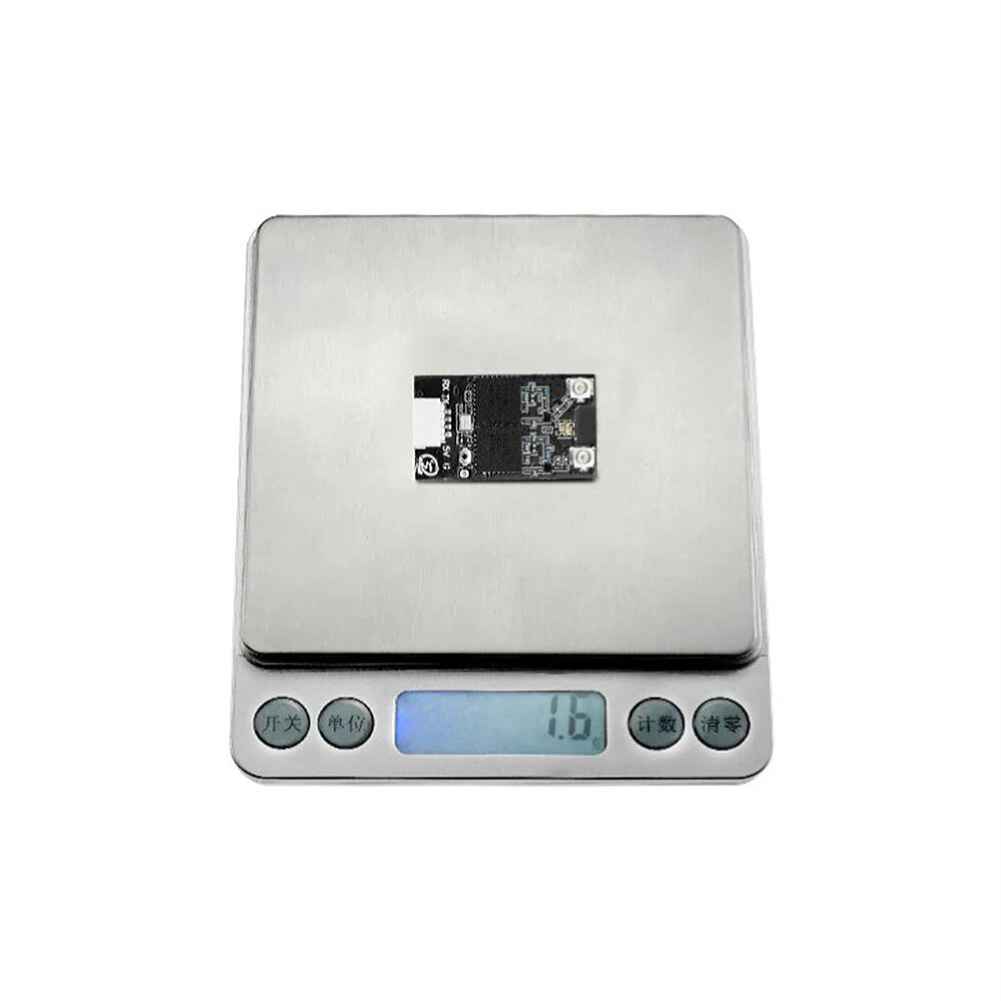

Weight: 1.6g

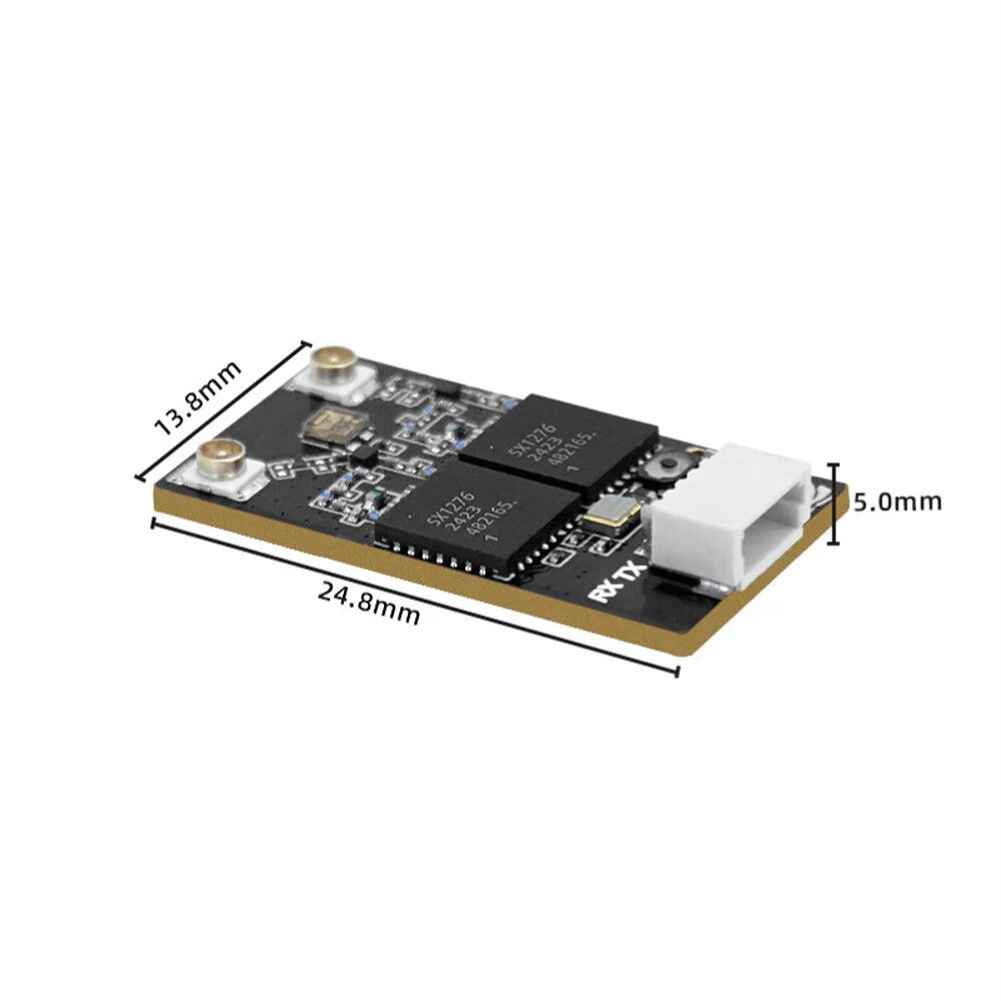

Size: 24.8*13.8*5mm

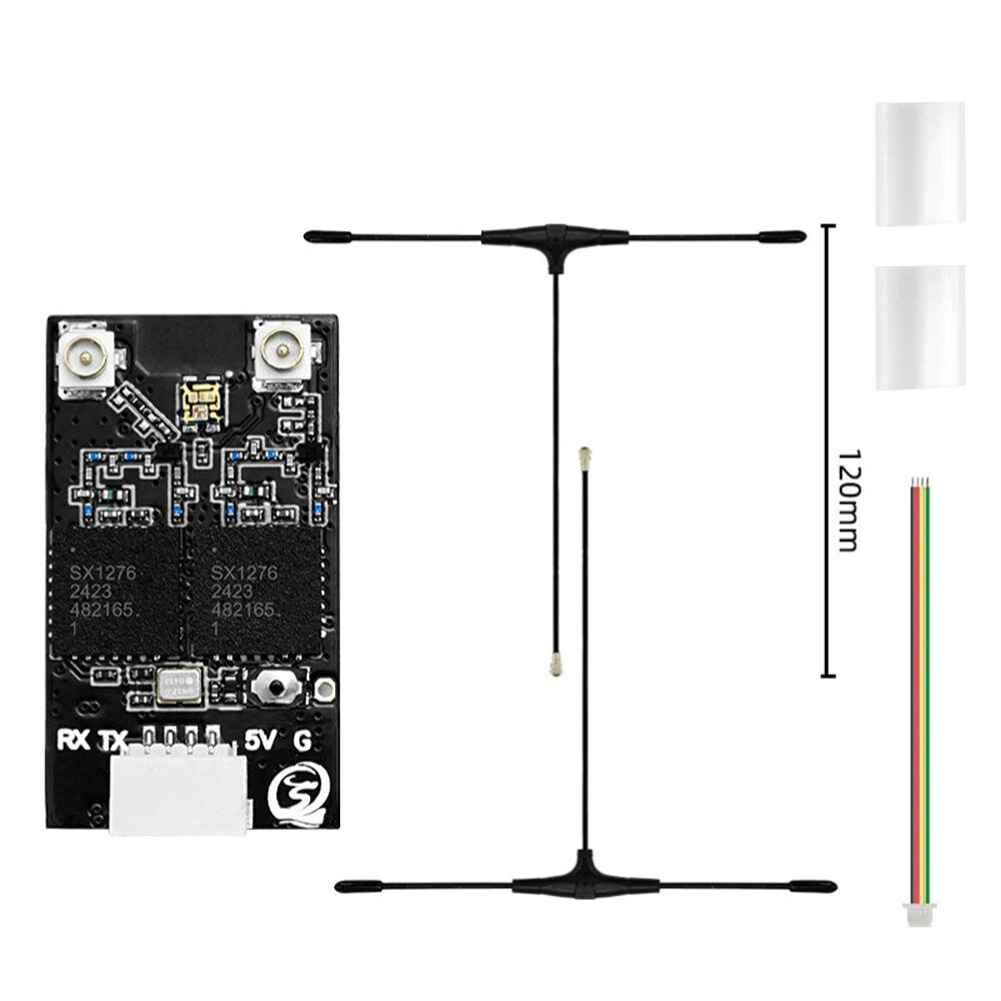

Package Included:
1 x SEQURE 915MHz/868MHz Dual RX
2 x 900M Antenna
1 x 30AWG 100mm Single-end SH1.0-4P Cable
2 x 12 30mm Heat Shrink Tube
