SG90 Mini Gear Micro Servo 9g for RC Airplane Helicopter, High Torque, Nylon Gears, 3 Sets of Servo Horns
Price range: $4.33 through $38.85
- High-quality and cost-effective mini servo
- Durable all-nylon gear construction
- Large stall torque of 1.6 kg
- Compact and lightweight design
- Includes 3 sets of servo horns and fittings
You May Also Like
Description

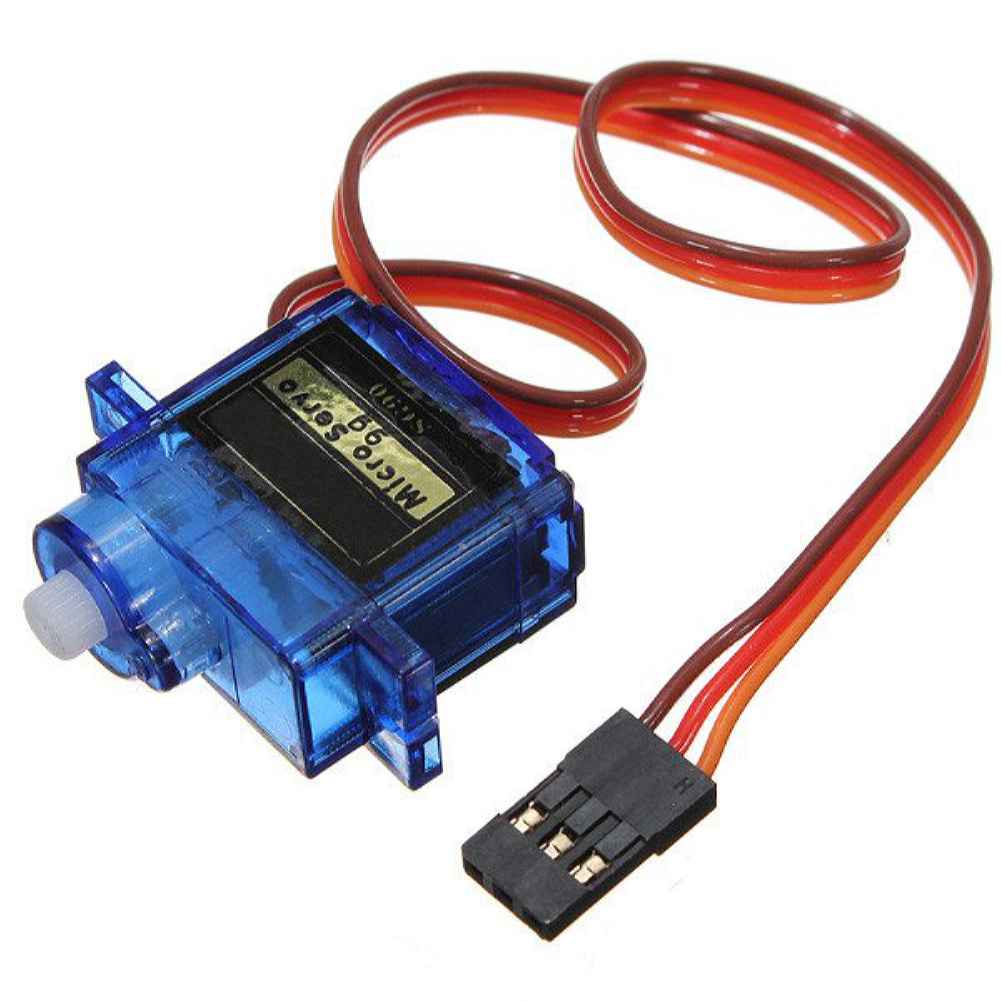

SG90 Mini Gear Micro Servo 9g For RC Airplane Helicopter
The SG90 Mini Analog Servo is a high-performance component designed for RC airplanes and helicopters. It operates efficiently with a speed of 0.12 sec/60 degrees at 4.8V and offers a substantial stall torque of 1.6 kg at 6.0V. Compatible with a wide voltage range of 3.0-7.2V, this servo is built to withstand temperatures from -30～C to 60～C. Weighing only 9g, its compact size of 3.2 x 3 x 1.2 cm ensures easy integration into your RC model. The servo features durable nylon gears and includes a 24.5cm connector wire. It comes with three sets of servo horns and fittings, enhancing its versatility and convenience for hobbyists.
Description:
Item Name: SG90 Mini Analog Servo
Operating Speed (4.8V no load): 0.12sec/60 degrees
Stall torque: 1.2kg / 42.3oz(4.8V);1.6 kg / 56.4oz (6.0V)
Operating voltage: 3.0-7.2V
Temperature range: -30ï¹ ~60ï¹
Dead band width: 7us
Item size: 3.2 x 3 x 1.2cm
Item weight: about 9g
Connector wire length: 24.5cm
Features:
– High quality and high cost performance.
– All Nylon Gear.
– 245mm connector wire.
– Large stall torgue of 1.6 Kg.
– Small size and light weight.
– With 3 sets of servo horns and fittings.
Package Included:
1 x SG90 Gear Micro Servo
1 x 25cm wire
3 x Servo Horns
3 x Screw
