SpeedyBee 2306.5 1880 KV Brushless Motor for Mario5 RC FPV Racing Drone, High Performance, 5-Inch Compatible

Description

SpeedyBee 2306.5 1880 KV Brushless Motor for Mario5 RC FPV Racing Drone

The SpeedyBee 2306.5 1880 KV Brushless Motor is engineered for the Mario5 RC FPV racing drone. With a configuration of 12N14P and motor dimensions of 29 x 31.55 mm, it ensures optimal performance. This motor includes a rotor dynamic balance test of approximately 5 mg and features an M5 nut thread mount position. The stator mount position is D:16 M x 4, with a shaft diameter of 4 mm. It delivers a maximum power of 775.7 W and a maximum thrust of 1.59 kg, making it ideal for 5-inch racing drones. The motor is equipped with 150 mm of 20 AWG silicone rubber wire for output and weighs 34.6 g with the cable.

Specification:
Brand: SpeedyBee
Motor Model: 2306.5
KV: 1880 KV
Configuration: 12N14P

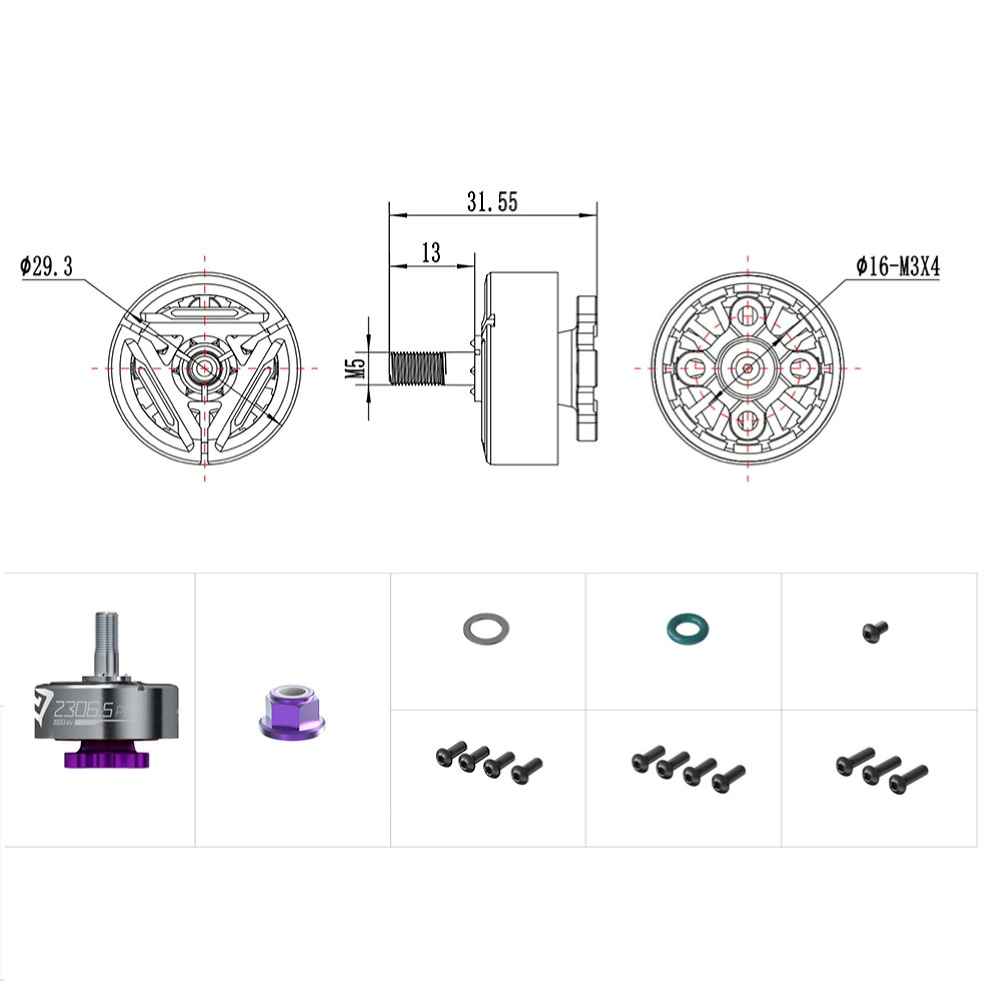

Motor Dimensions: D:29 沁 31.55 Mm
Rotor Dynamic Balance Test: 沌5 Mg
Thread Mount Position: M5 Nut
Stator Mount Position: D:16 M沁4
Shaft Diameter: In: 4 Mm
Output Specification: 150 Mm (20 Awg Silicone Rubber Wire)
KV Value: 1880 KV
Idle Current: 1.26A/10V
Maximum Current: 33.8A
Maximum Power: 775.7 W
Phase Resistance (With Cable): 66m
Maximum Thrust: 1.59 Kg
Total Weight (With Cable): 34.6 G
Applicable Model: 5-Inch Racing Drone

Package Included:
1 x 1880 KV Brushless Motor
1 x M5 Aluminum Alloy Locknut
1 x M3 x 6 Pan Head Screws
4 x M3 x 8 Pan Head Screws
4 x M3 x 9 Pan Head Screws
4 x M3 x 11 Pan Head Screws
1 x Pad
1 x Washer
