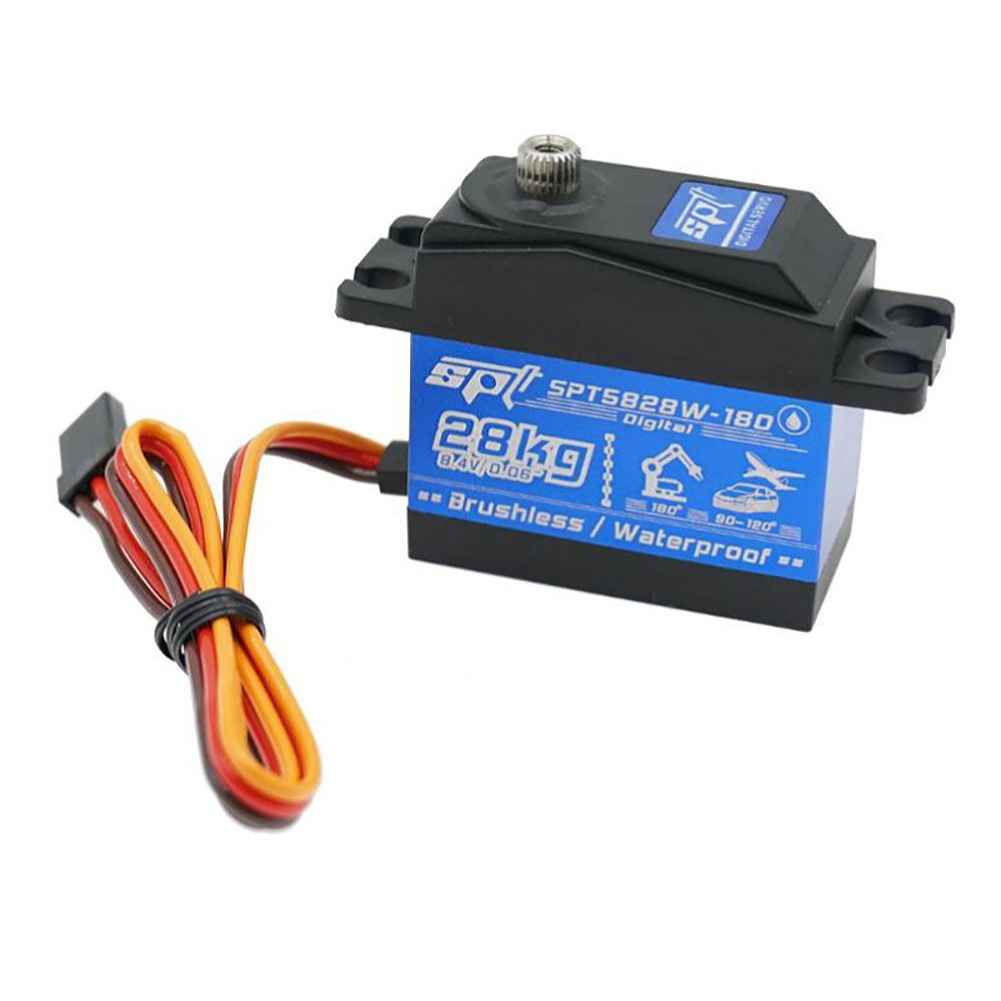

SPT 28kg Waterproof Brushless High-Speed Digital Servo for RC Cars and Robots, Model SPT5828W-180

Description

SPT5828W-180 Waterproof Brushless High-Speed Servo 28kg Torque Digital Servo for RC Cars and Robots

The SPT 28kg Waterproof Brushless High-Speed Digital Servo is engineered for superior performance in RC cars and robots. Featuring a powerful 28kg torque, this servo ensures strong and reliable operation. Its brushless motor design extends lifespan and minimizes maintenance needs, while the high-speed capability delivers quick and precise movements. Built to withstand outdoor conditions, the waterproof construction protects against water damage. The digital control system offers enhanced accuracy and responsiveness, optimizing the performance of your remote control vehicles. With an all-metal gear and half aluminum shell, this servo is both durable and efficient.

Specification:
Brand: SPT Servo
Potentiometer: Mechanics
Motor: Brushless
Voltage Range: 4.8V/6.0V/8.4V
Neutral Point: 1500ç±³s
Signal Frequency: 330Hz
PWM Voltage: 3.3V-5.0V
PWM Voltage: 3.3V-5.0V
Feedback Angle: No
Operating Temperature: -10⊥-50⊥
Cycle: 20ms
Dead band:2ç±³s
Default Direction: CCW
Yes / no Lock: Lock
Remote control Angle: 90～
500-2500米s Angle: 180～ / PWM
Quiescent Current: 10mAh
Rated Current: 1.4A
Blocking Current: 2.5A

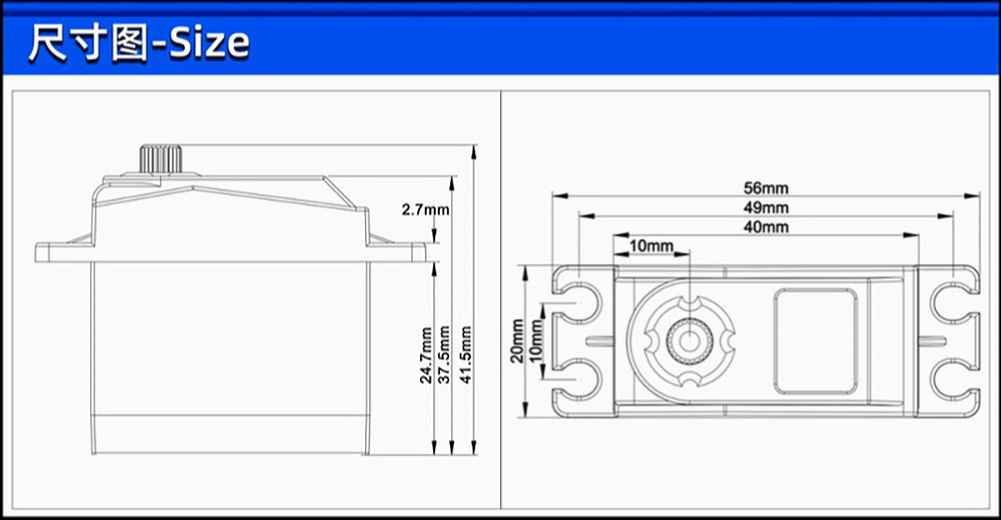

Weight / Dimensions: 67g / 40.5*20*37.5mm
Output Gear: Futabas 25T

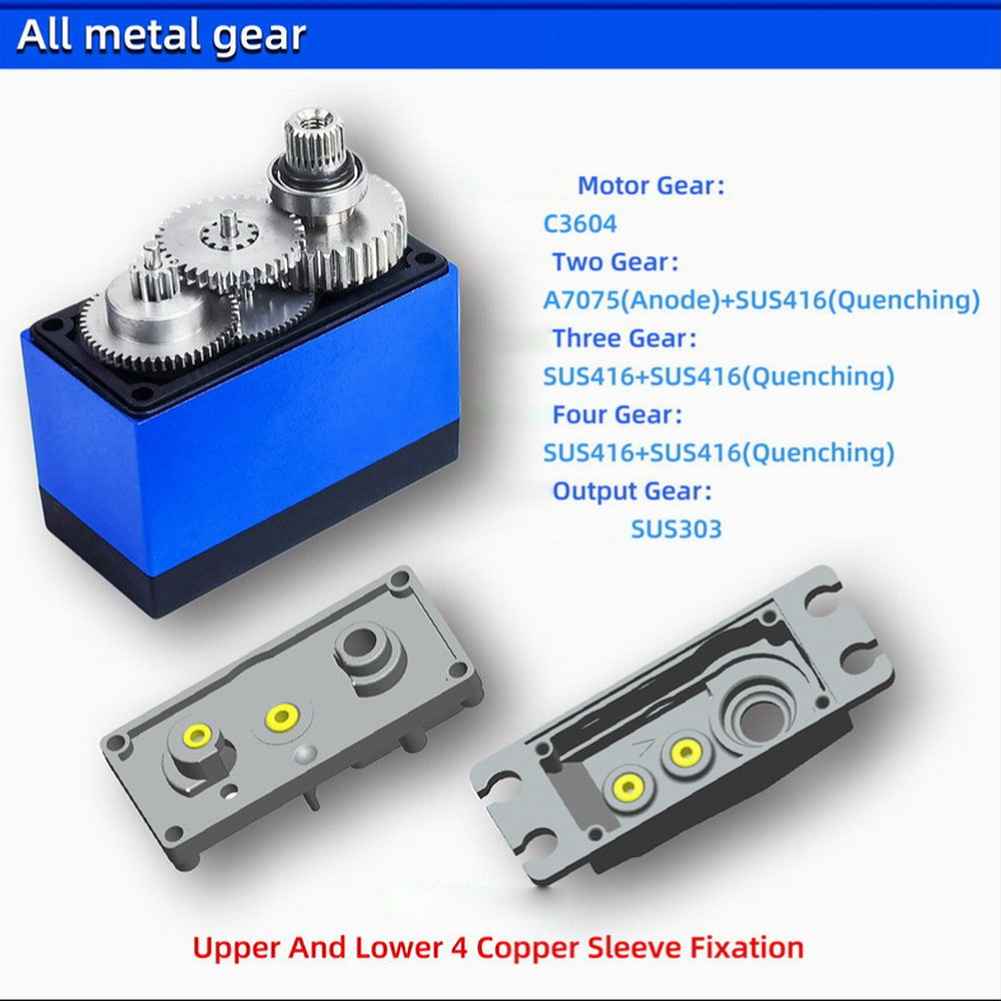

Gear Material: All Metal Gear
Shell Material: Half Aluminum Shell
Bearing: 2BB
Connector Wire Length: 260MM
line Definition: Brown-/Red+/Oranges
Operating Speed:
4.8V/ ”/60～ 6.0V/ ”/60～ 8.4V/ ”/60～
Stall Torque:
4.8V/ kg.cm 6.0V/ kg.cm 8.4V/ kg.cm
Features:
1. Powerful Torque: With a torque of 28kg, this servo motor provides strong and reliable performance for your remote control cars and robots.
2. Brushless Design: The brushless technology ensures a longer lifespan and reduces the need for maintenance.
3. High-Speed Performance: This servo motor is designed for high-speed applications, allowing for quick and precise movements.

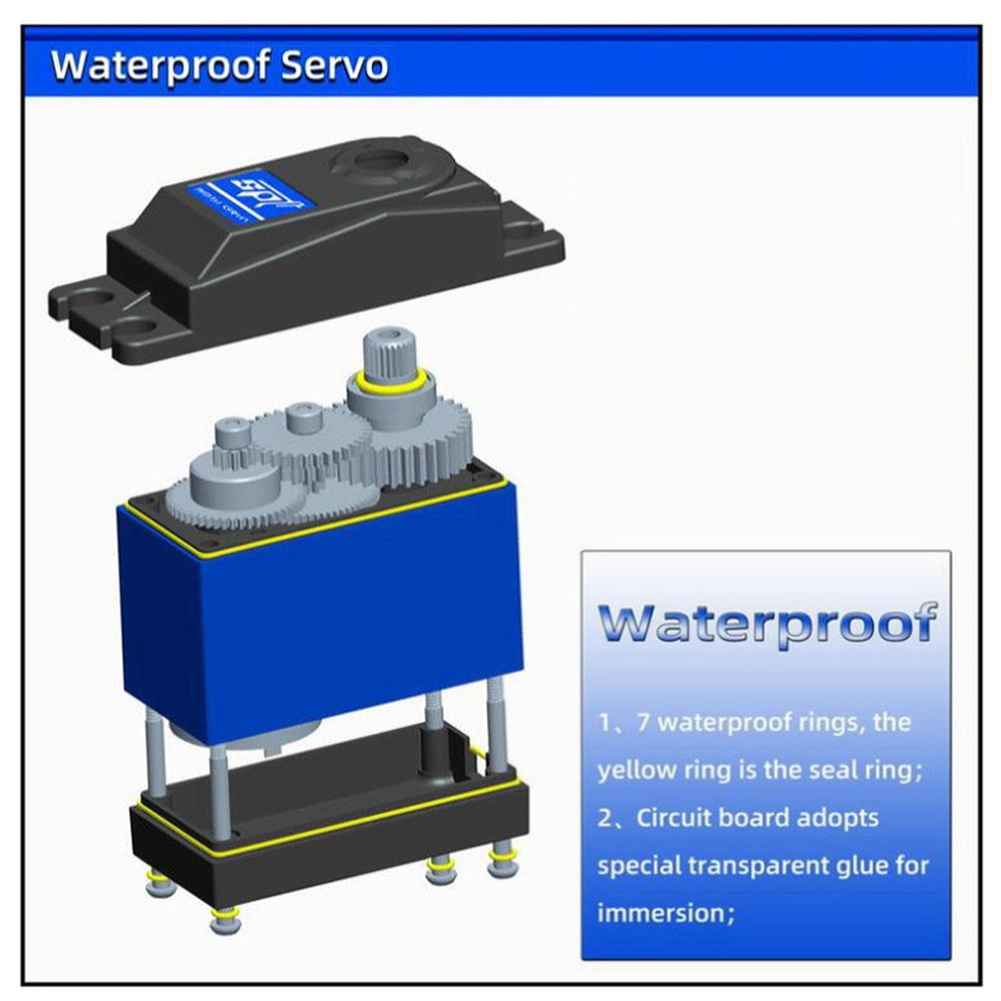

4. Waterproof: The waterproof feature protects the servo motor from water damage, making it suitable for outdoor use.
5. Digital Control: The digital servo provides more accurate and responsive control, enhancing the overall performance of your vehicles.

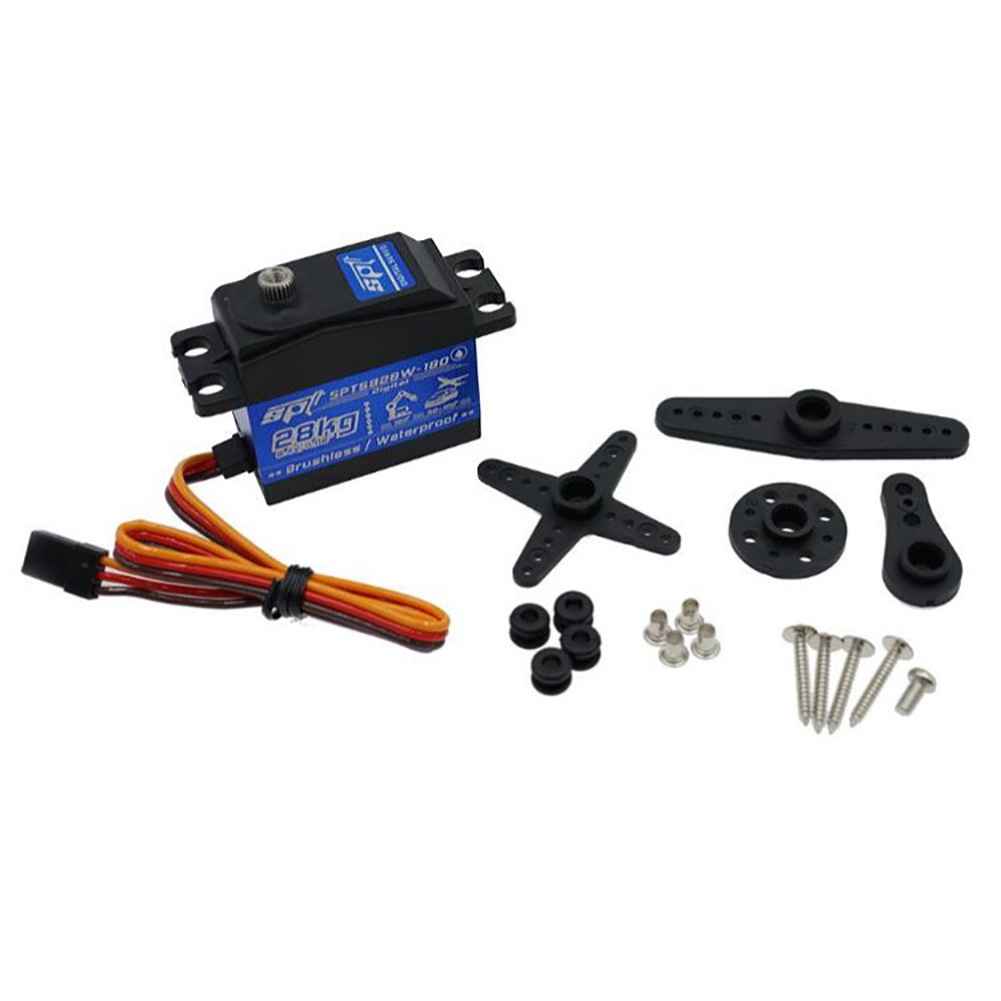

Package Included:
1 x Servo

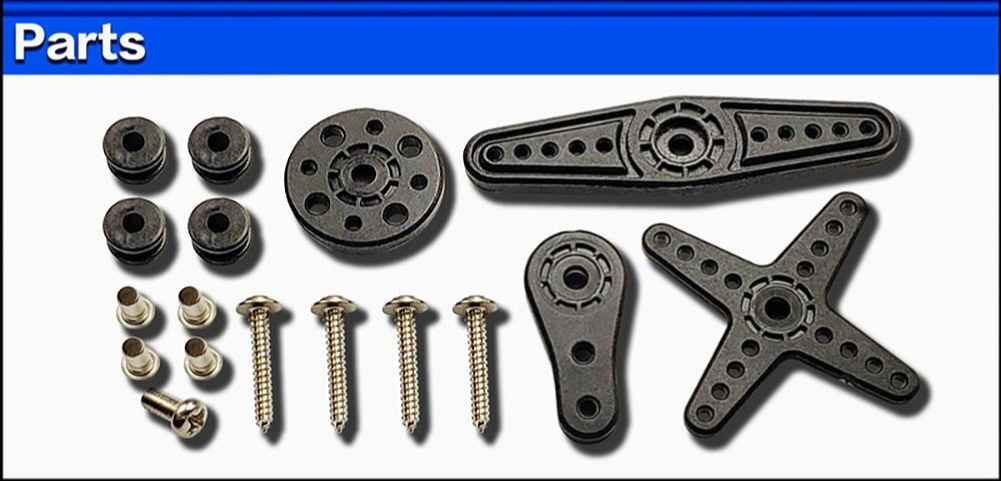

1 set x Accessories
