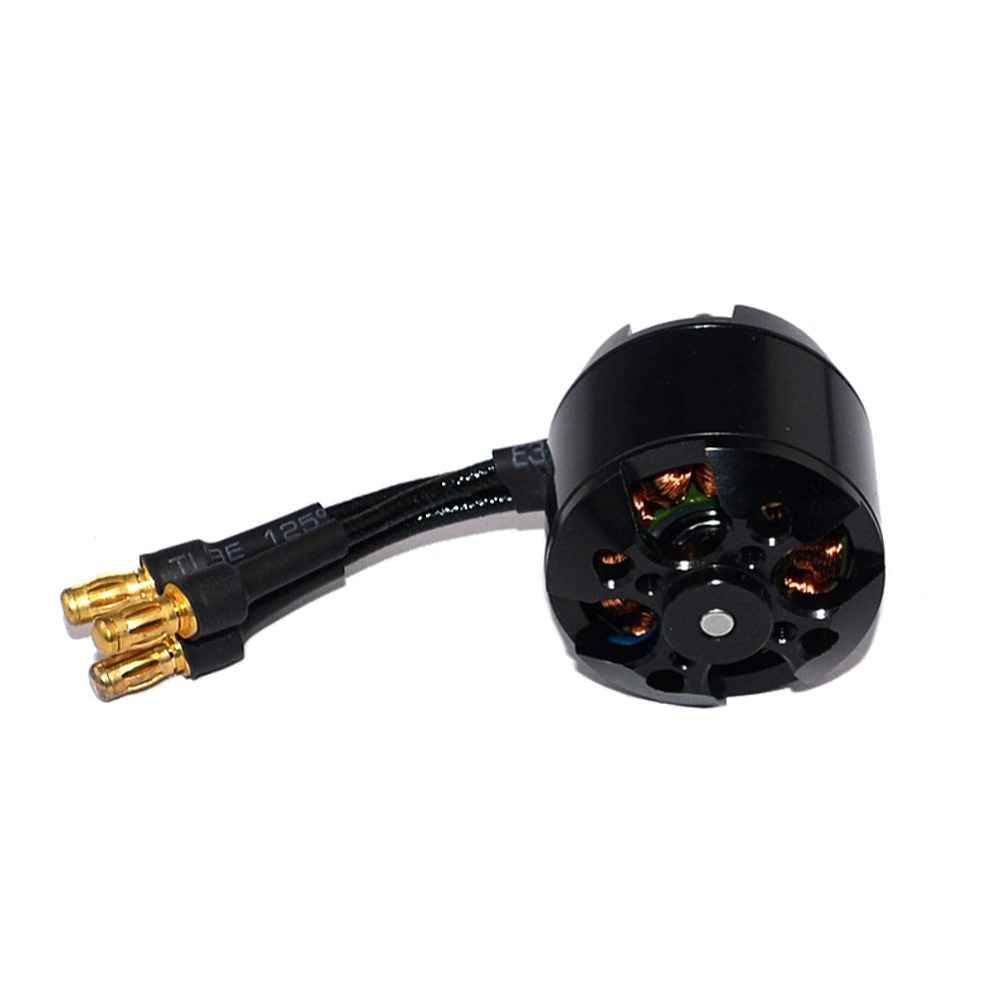

SURPASS Hobby C2830 Outrunner Brushless Motor for RC Airplane, 750KV/850KV/1000KV/1300KV, EDF Ducted Fan Unit

Description

SURPASS Hobby C2830 750KV/850KV/1000KV/1300KV Outrunner Brushless Motor for RC Airplane Fixed-wing EDF Ducted Fan Unit

The SURPASS Hobby C2830 Outrunner Brushless Motor is designed for RC airplane enthusiasts seeking high performance and reliability. Available in 750KV, 850KV, 1000KV, and 1300KV options, this motor is crafted from CNC machined 6061 T6 billet aluminum, ensuring durability and efficient heat dissipation. Its high-purity copper windings and high RPM ABEC5 oversized bearings maximize efficiency and reliability. The motor features a 14-pole, 12-slot hi-torque design, providing smooth operation with precision balanced rotors. Additionally, it includes waterproof technology for enhanced corrosion resistance, allowing it to perform in various weather conditions.

Description:
Brand Name: SURPASS Hobby
Item Name: C2830 Motor
KV: 750KV, 850KV, 1000KV, 1300KV (optional)

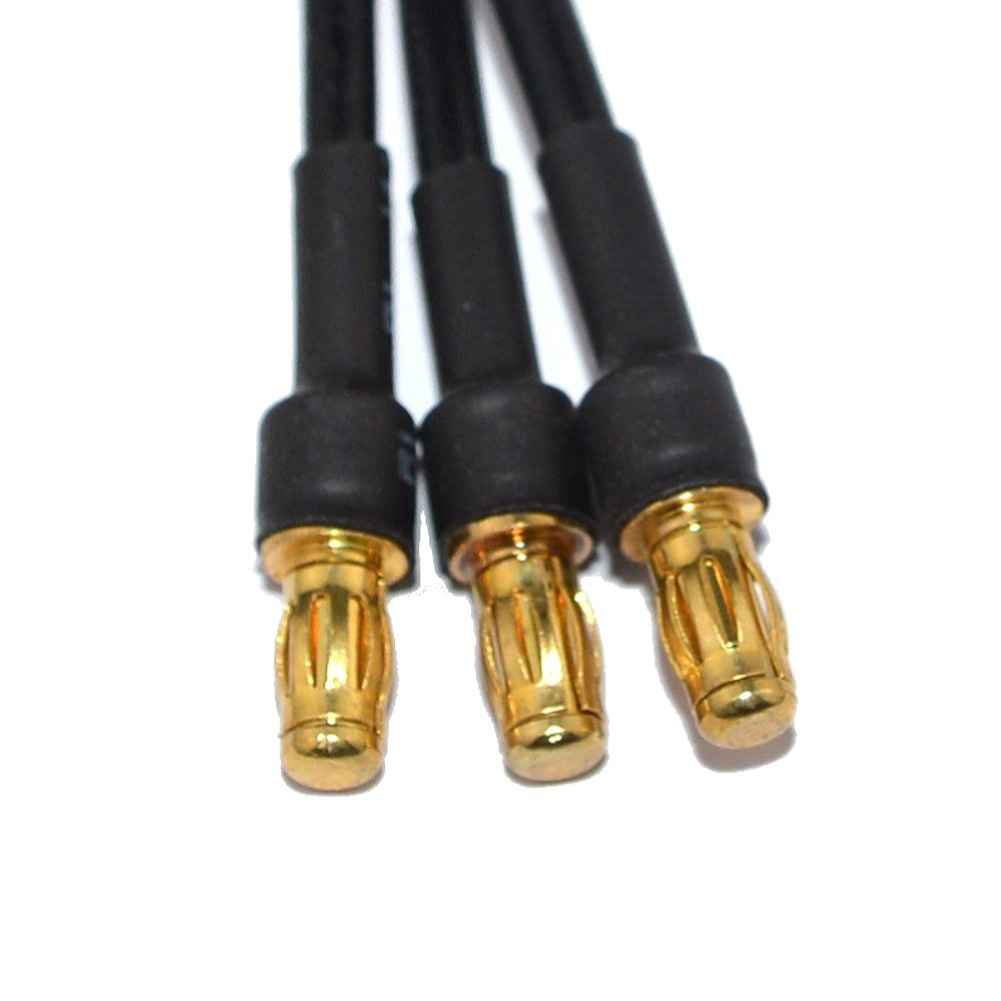

Color: BlackConnector: 3.5mm
Application: Suitable for RC Airplane Fixed-wing EDF Ducted Fan Unit
Specifications:

Model

KV

Max Watts(W)

Voltage Range(V)

Max Current(A)

Rotor
Poles

No load Current(A)

Resistance(Ω)

Motor Size(mm)

Stator Size(mm)

Weight(g)

Prop(Inch)

C2830-09

1300

300

7~12

25

14

1.2

0.085

æ²’28×30

æ²’22×12

57

9*6/10*5/10*6

C2830-12

1000

260

7~15

21

14

0.9

0.152

æ²’28×30

æ²’22×12

57

9*4.5/10*6/10*5

C2830-14

850

240

7~15

19

14

0.6

0.189

æ²’28×30

æ²’22×12

57

11*5.5/9*6/10*4

C2830-15

750

230

7~15

18

14

0.6

0.221

æ²’28×30

æ²’22×12

57

11*5.5/10*7

Features:
– 14Pole 12Slot Hi-torque Motor Design.
– CNC Machined 6061 T6 Billet Aluminum Heatsink Can.
– High Purity Copper Windings Maximizes Efficiency.
– High RPM ABEC5 Oversized Bearings.
– Precision balanced rotor, smoothness for best reliability and maximum RPM.
– Stator – Super Thin (0.2mm) Laminations.
– Precision Engineered for Maximum Energy Conversion.
– The outer rotor dynamic balance is controlled within 10mg, ensuring no abnormal noise, no jitter, and smooth running.
– The motor adopts waterproof design and related waterproof technology, which has a certain anti-corrosion function, and runs normally in the rain.

Package Included:
1 x SURPASS Hobby C2830 Outrunner Brushless Motor

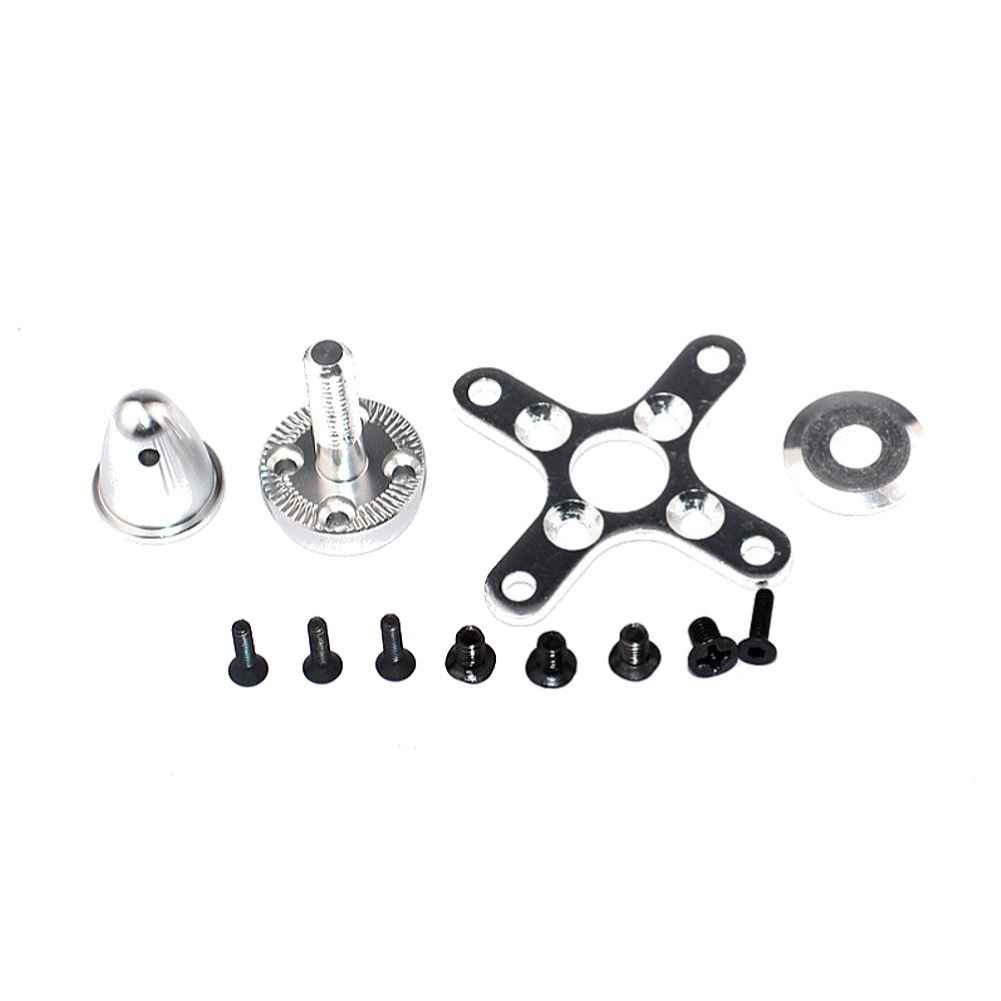

1 x Accessories
