Sale!

SURPASS HOBBY M3650 M3660 Waterproof Brushless Motor, 3.175mm Shaft, 4.0mm Connectors for 1/10 RC Cars

SKU: RC2020527Brand: SURPASS-HOBBY

Price range: $32.99 through $39.58

  • Waterproof brushless motor for 1/10 RC cars
  • 3.175mm shaft and 4.0mm gold-plated connectors
  • Multiple KV ratings: 5700KV, 4500KV, 3100KV, 4200KV
  • Supports up to 50,000 RPM and 16V
  • Durable construction with 36mm stator size

You May Also Like

Description

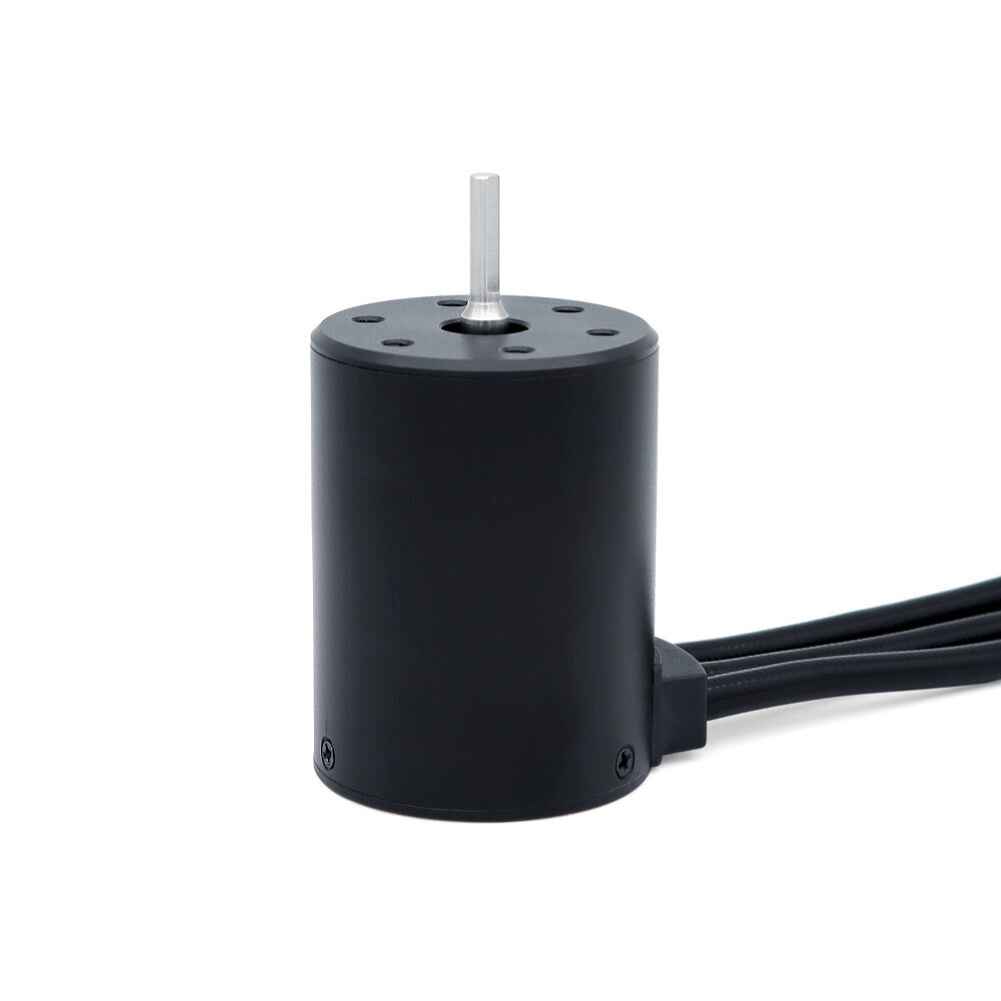

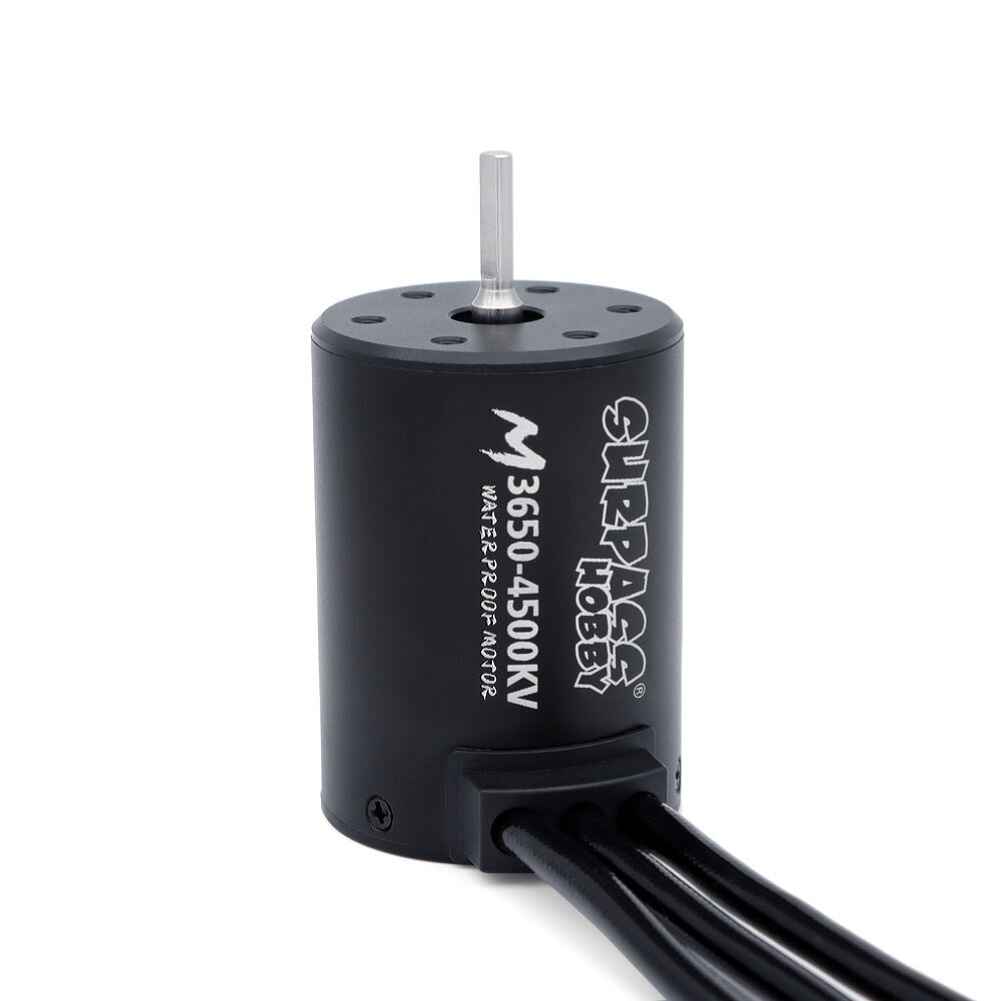

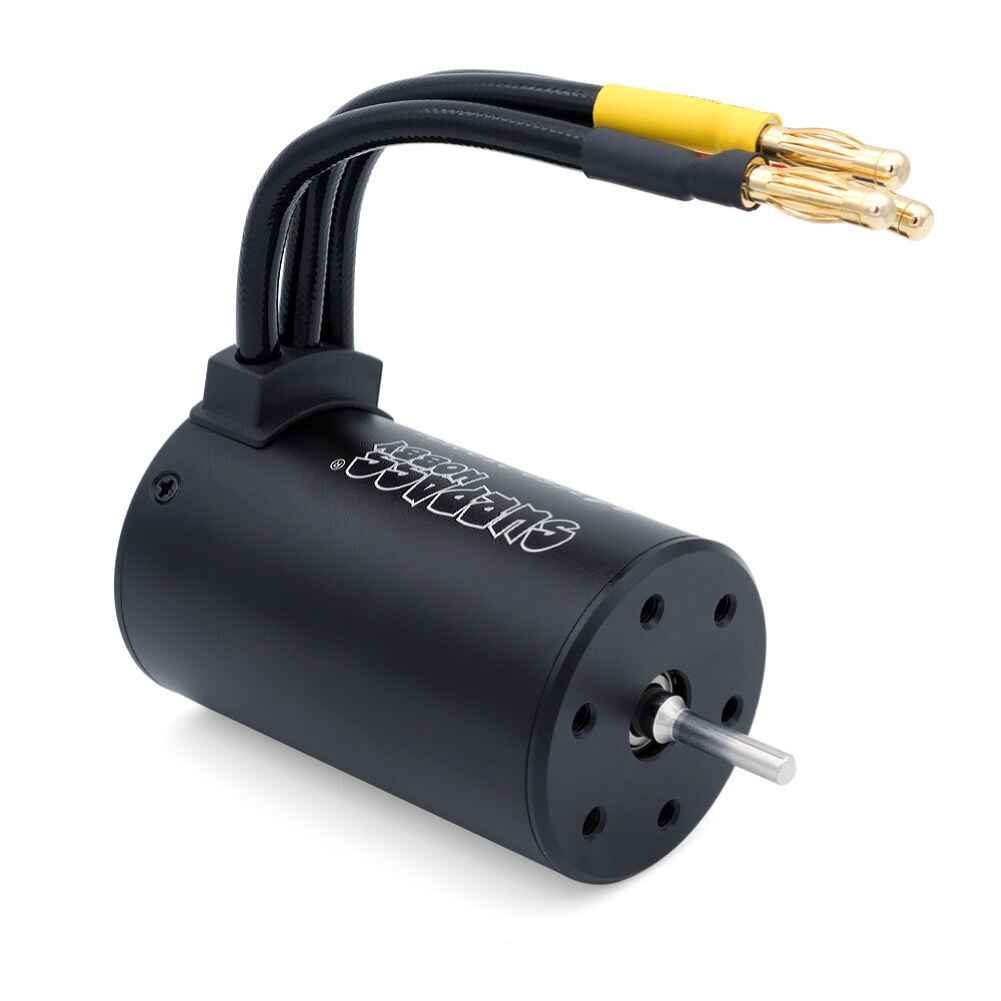

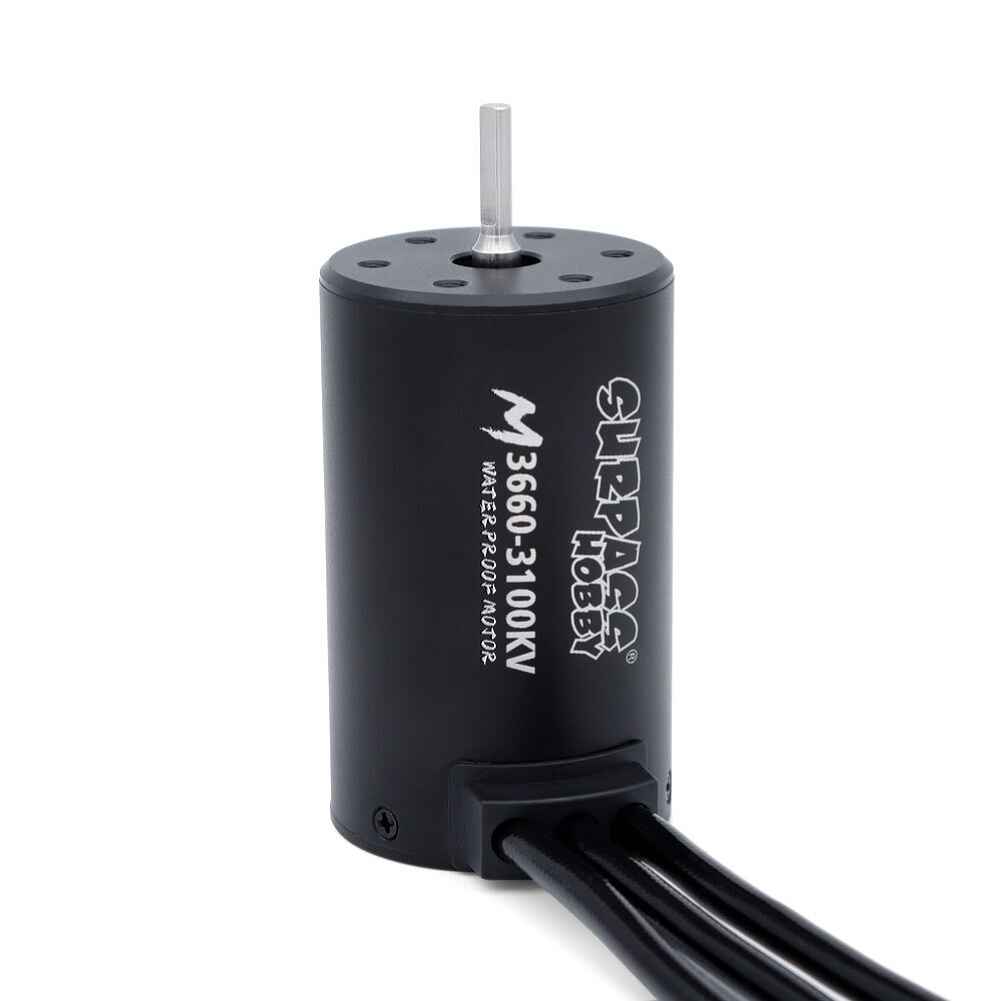

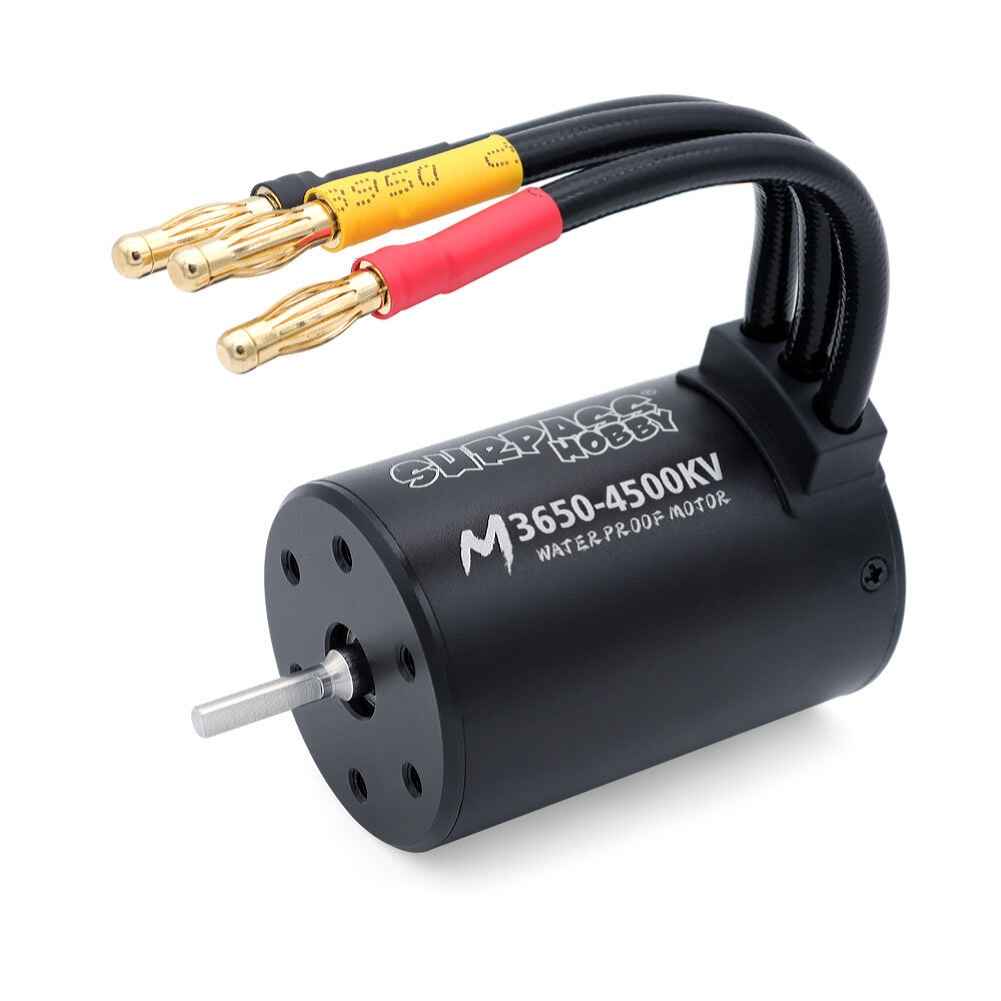

SURPASS HOBBY M3650 M3660 3.175mm Shaft 4.0mm Gold-Plated Connectors All-Black Waterproof Brushless Motor for 1/10 RC Car Models

The SURPASS HOBBY M3650 and M3660 series motors are designed for 1/10 RC car models, offering exceptional performance with their waterproof brushless design. These motors feature a 3.175mm shaft and 4.0mm gold-plated connectors for reliable connectivity. With multiple KV ratings available, including 5700KV, 4500KV, 3100KV, and 4200KV, they deliver power ranging from 900 to 1200 watts. Each motor supports a maximum voltage of up to 16V and achieves up to 50,000 RPM, ensuring high-speed performance. The robust construction includes a 36mm stator size and a 15mm extended shaft length, making them suitable for various RC car applications.

The Specification of the Motor:
M3650 5700KV
KV:5700
Watts:900
Max Voltage:<8.7V
Max Amps:103A
Rotor Poles:4
IO:6.0A
Resistance:0.006
Max RPM:50000
Stator Size:嫉36*50mm
Weight:175g
Shaft:嫉3.175mm
Length of extend shaft:15mm
Connector:4.0mm gold
M3650 4500KV
KV:4500
Watts:900
Max Voltage:<11.1V
Max Amps:81A
Rotor Poles:4
IO:5.5A
Resistance:0.0075
Max RPM:50000
Stator Size:嫉36*50mm
Weight:185g
Shaft:嫉3.175mm
Length of extend shaft:15mm
Connector:4.0mm gold
M3650 3100KV
KV:3100
Watts:900
Max Voltage:<16V
Max Amps:56A
Rotor Poles:4
IO:3.9A
Resistance:0.0123
Max RPM:50000
Stator Size:嫉36*50mm
Weight:185g
Shaft:嫉3.175mm
Length of extend shaft:15mm
Connector:4.0mm gold
M3660 4200KV:
KV:4200
Watts:1200
Max Voltage:<11.9V
Max Amps:101A
Rotor Poles:4
IO:6.7A
Resistance:0.0mso-hansi-font-family:Calibri;mso-bidi-font-fam

Package Included:
1 x SURPASS HOBBY M3650 M3660 Brushless Motor
