Surpass Hobby Rocket V2 LED Program Card for 45A 60A 80A Brushless Waterproof Electronic Speed Controller 1/10 RC Car Vehicles Parts
The Surpass Hobby Rocket V2 LED Program Card is designed for use with 45A to 150A brushless waterproof electronic speed controllers, making it an essential component for 1/10 RC car enthusiasts. With a compact size of 70 x 43 x 13mm and a lightweight design, it offers easy connectivity and setup. The program card facilitates adjustments such as low voltage cut-off, start modes, maximum brake and reverse force, and motor and ESC overheat protection. It ensures optimal performance and safety for your RC car by allowing precise control over settings. Troubleshooting features assist in resolving common issues, enhancing your RC experience.
Description:
Brand:Surpass Hobby
Item Name:Rocket V2 LED Program Card
Product Size:70*43*13mm
Net Weight:24G
Gross Weight:28G
For 45A/60A/80A/120A/150A
Instuctions
1. Connect BEC wires with the receiver
2. Connect motor wires with ESC
3. Turn on the transmitter
4. Connect battery pack with ESC then switch on the ESC.
5. When the connection of motor and battery is finished, the motor emits 閳ョ眳eep-Beep鎼 tone.
6. When the throttle stick is in the neutral position, the motor re-emits 閳ョ眳eep-Beep鎼 tone.
7. The ESC is workable.
Troubleshooting
1. If after power on, motor can閿涘 work, no sound is emitted, please check the connections between battery pack and motor.
2. If after power on, LED flashes,please check the voltage of battery pack,which should be from 5V-13V
3. If the motor emits a 閳ョ眳eep-Beep鎼 tone Only, please check all the connections: BEC wires, transmitter and receiver, throttle signal wires, etc. please check the transmitter TH.TRIM and adjust it to the motor re-emits 閳ョ眳eep-Beep鎼 tone.
4. If the car can閿涘 be speed up, please check either voltage of the battery pack is too low or the temperature of ESC is too high. If the voltage of the battery pack is too low, please replace the battery pack. If the temperature of ESC is too high, please check all connections. If not, please push the button EPA on your remote control.
5. If the car stops suddenly while in working state, please check the motor閿涘 connections, and the barrier.
5. If the car runs in the opposite direction, which the transmitter is available, please swap two wire connections between the ESC and the motor.

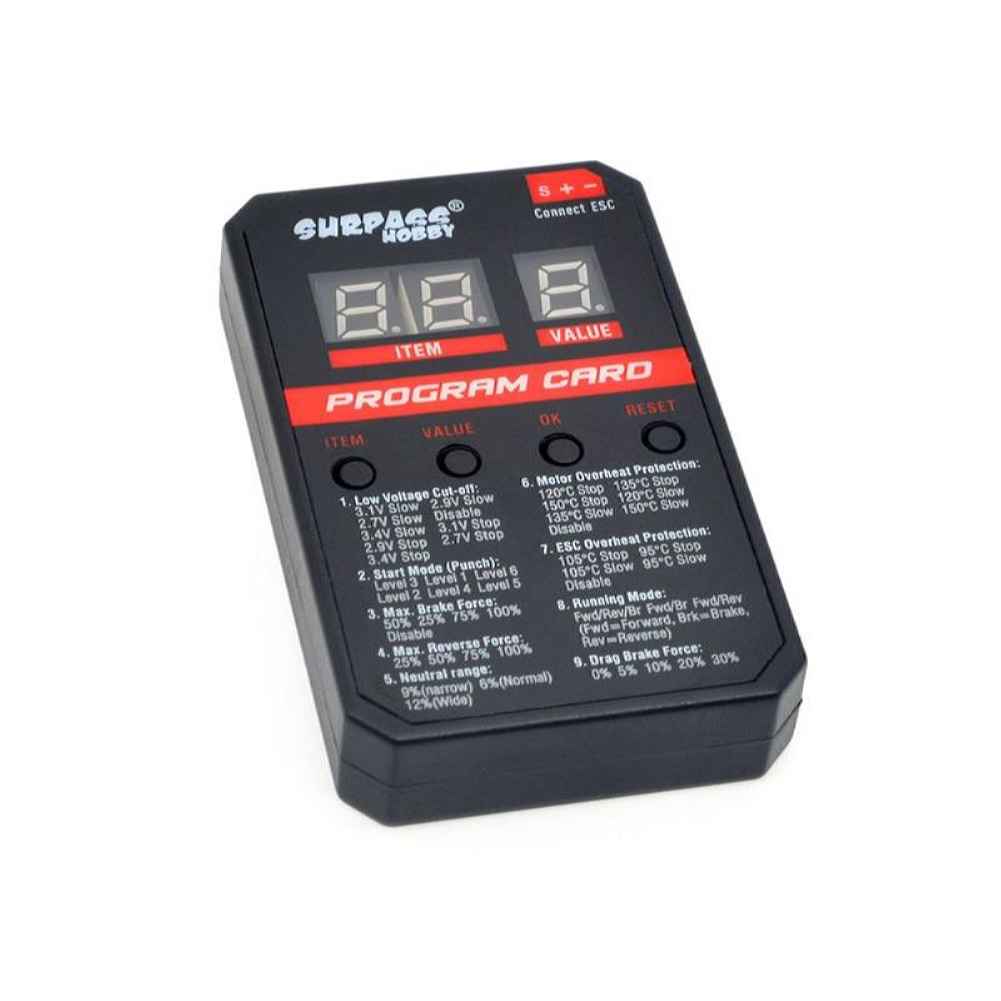

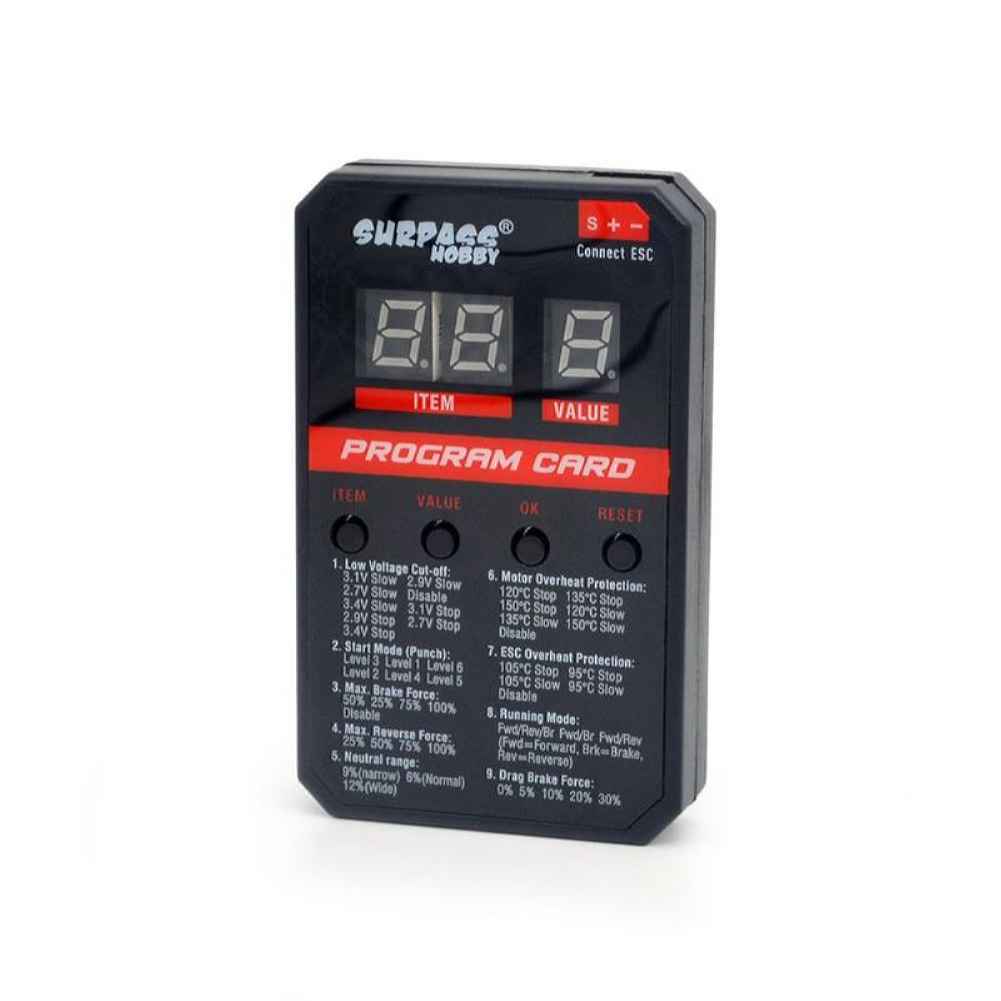

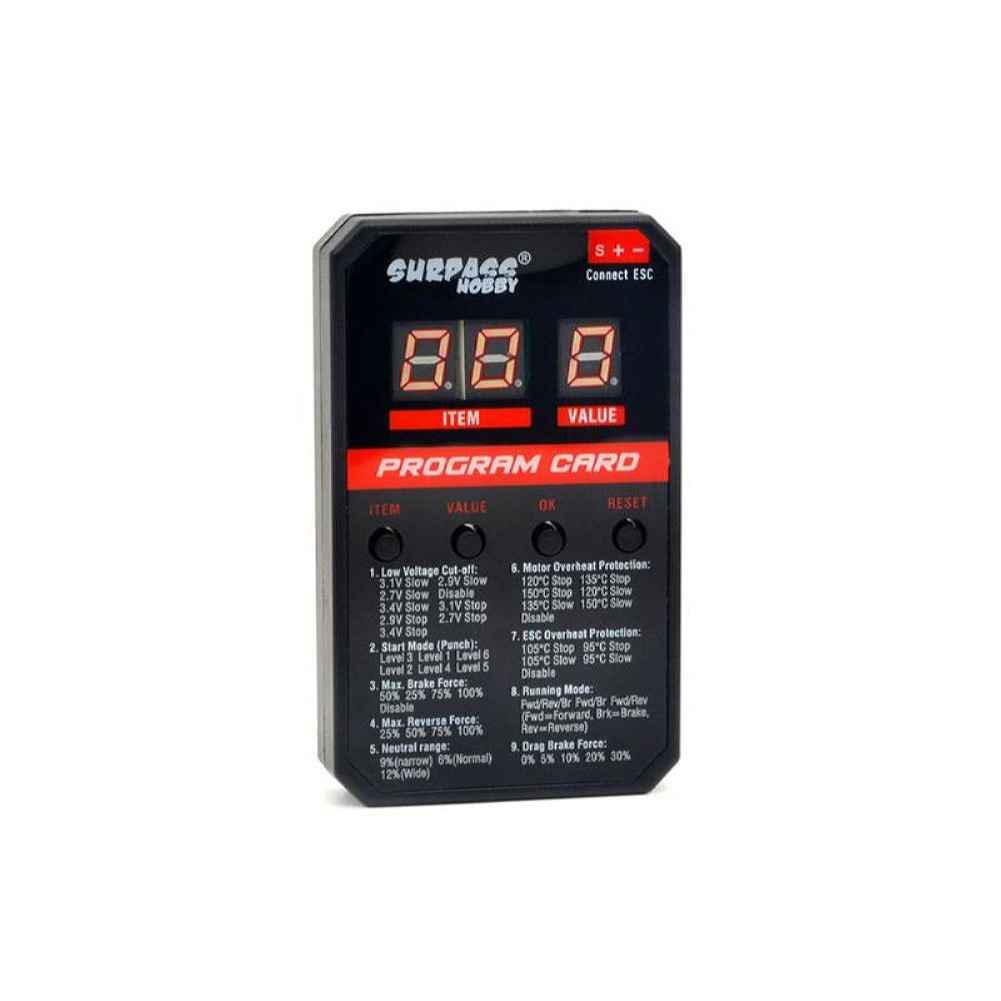

Programme card Appearance description:
1: Low Voltage Cut-Off: The function is mainly to prevent the lithium battery pack from over discharging. When using lithium battery pack,
please set the suitable value for low-voltage protection as your like.WARNING: Never use the default value閳ョ睊on- protection’ for
lithium battery! 3.1V Slow閿?.9V Slow閿?.7V Slow閿曟窉isable閿?3.4V Slow閿?.1V Stop閿?.9V Stop閿?.7V Stop閿?.4V Stop(default value 3. 1V Slow).
2: 3 start modes (Also called閳ョ睌unch’) Level3閿曟窡evel1閿?Level6閿?Level2閿曟窡evel4閿曟窡evel5閿?(default value Level3)
3: Maximum brake force: 50%閿?5%閿?5%閿?00%閿曟窉isable(default value 50%)
4: Maximum reverse force: 25%閿?0%閿?75%閿?00%(default value 25%)
5: Neutral range: 9%(narrow),6%(Normal), 12%(Wide) (default value 9%)
6: Motor Overheat Protection: 120閿濇咯 Stop閿?35閿濇咯 Stop閿?50閿濇咯 Stop閿?20閿濇咯 Slow閿?135閿濇咯 Slow閿?1 50閿濇咯 Slow閿?Disable(default value ,
120閿濇咯 Stop)
7: ESC Overheat Protection: 105閿濇咯 Stop閿?5閿濇咯 Stop閿?05閿濇咯 Stop.95閿濇咯 Stop閿曟窉isable(default 105閿濇咯 Stop)
8: Running Mode: Fwd/Rev/Br閿?Fwd /Br閿曟窋wd/Rev(default value Fwd/Rev/Br)(Fwd=Forward閿曟窂rk=Brake閿?Rev=Reverse)
9: Drag Brake Force: 0%閿?%閿?0%閿?0%閿?0%(default value 0%)
Programme card Method:
1. Connect BEC wires with the program car then turn on the ESC.
2. The programme card display ITEM form 1 to 15 corresponding VALUE
3. Please press the Key ‘IETM鎼倀o select different programs
4. Please press the Key閳ョ睔ALUE’ to select different value of the current program
5. Please press the Key閳ョ睋K’ to confirm above selections
6. Please press the Key閳ョ睎ESET’ to reset the factory setting.
Package Included:
1 x Rocket V2 LED Program Card
