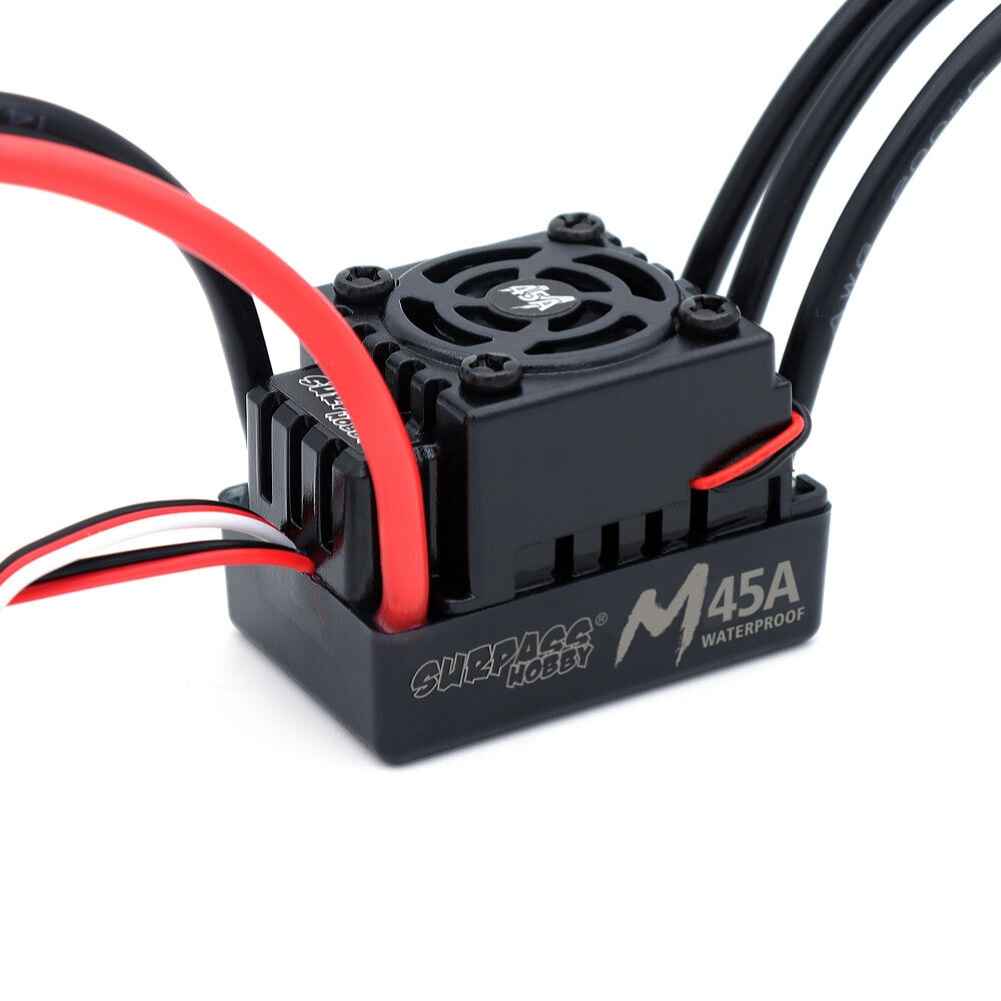

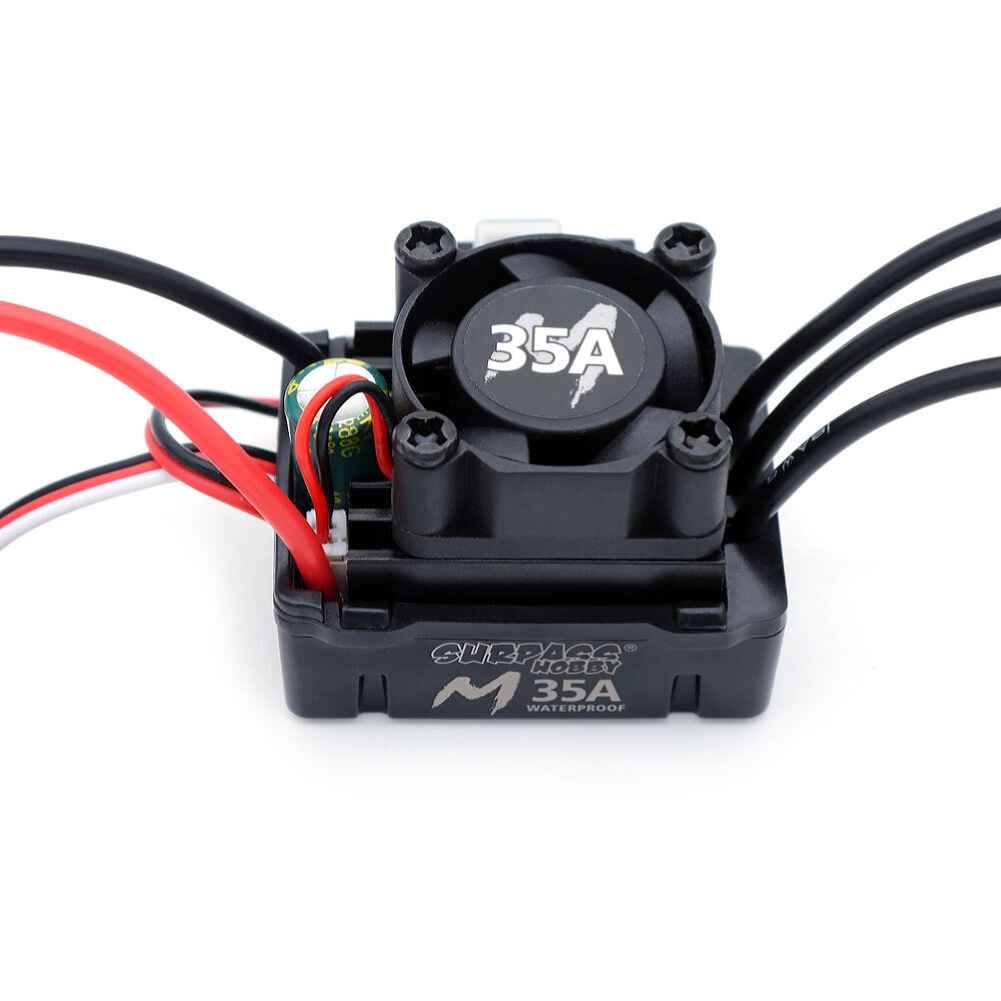

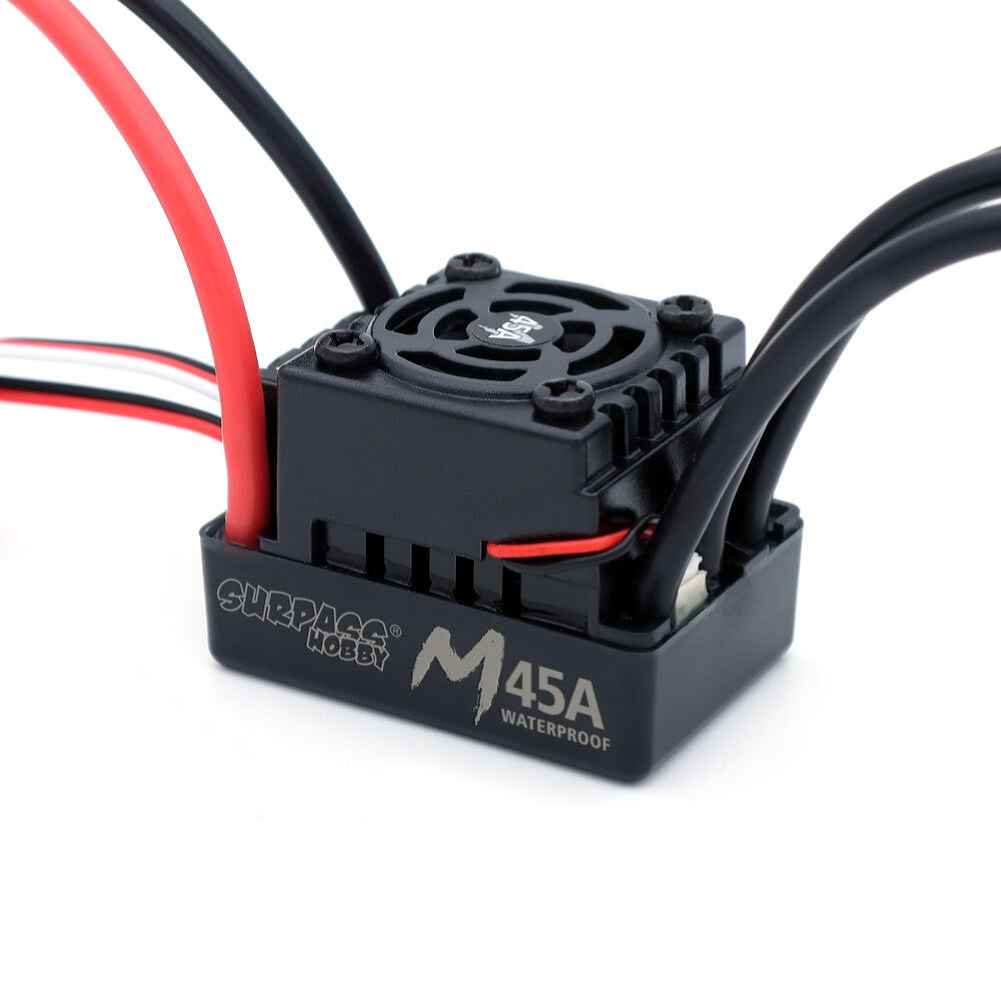

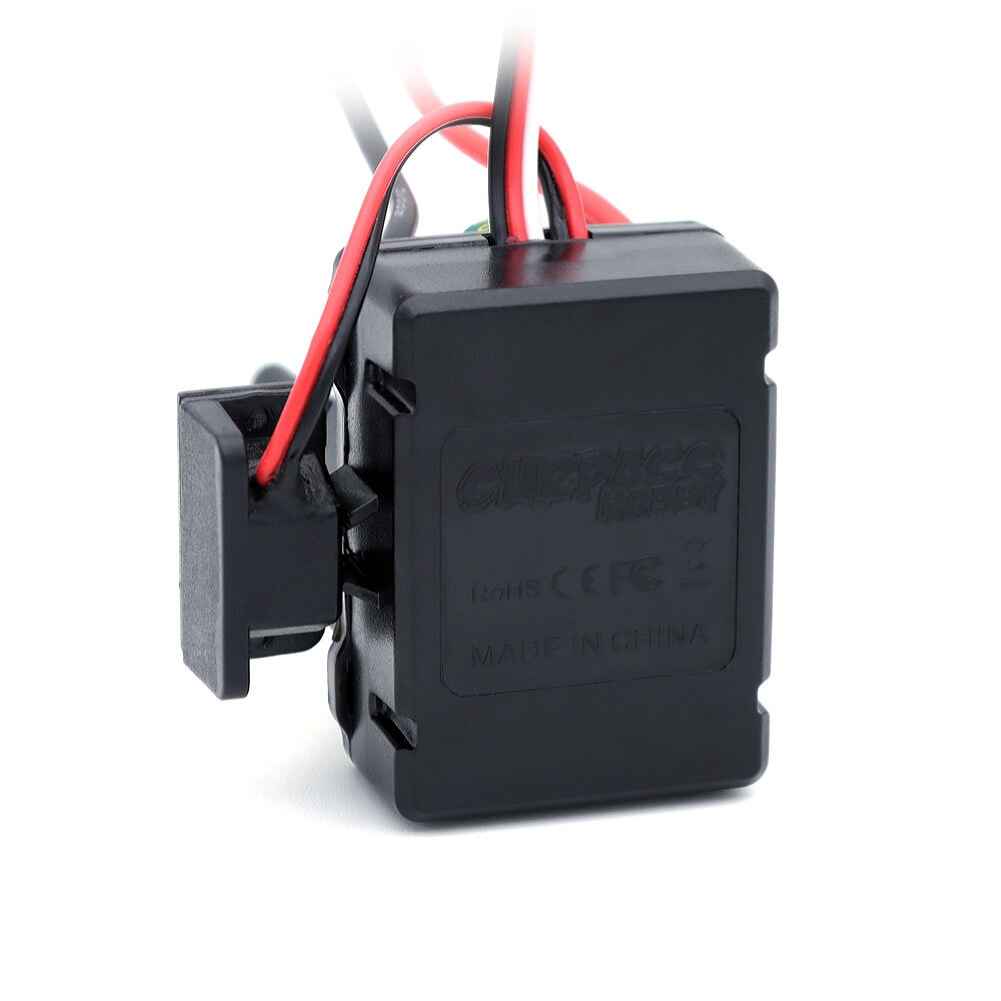

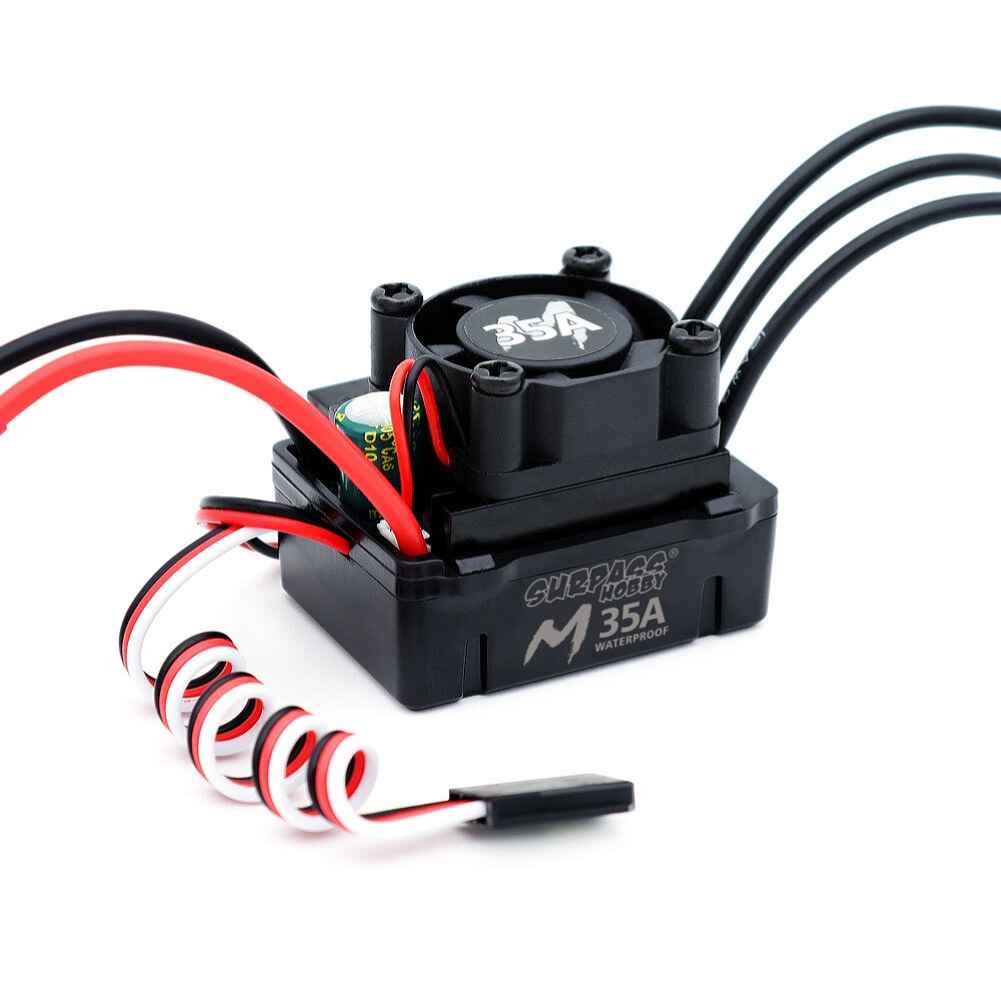

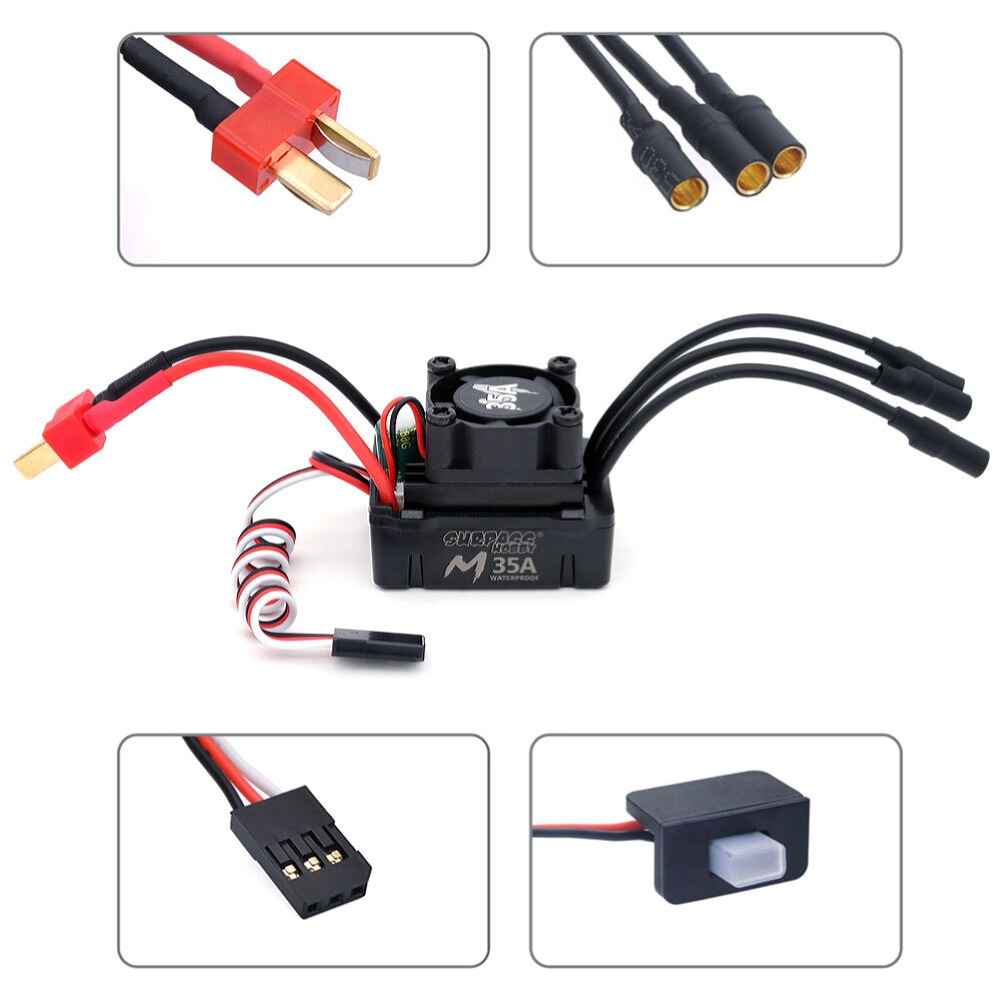

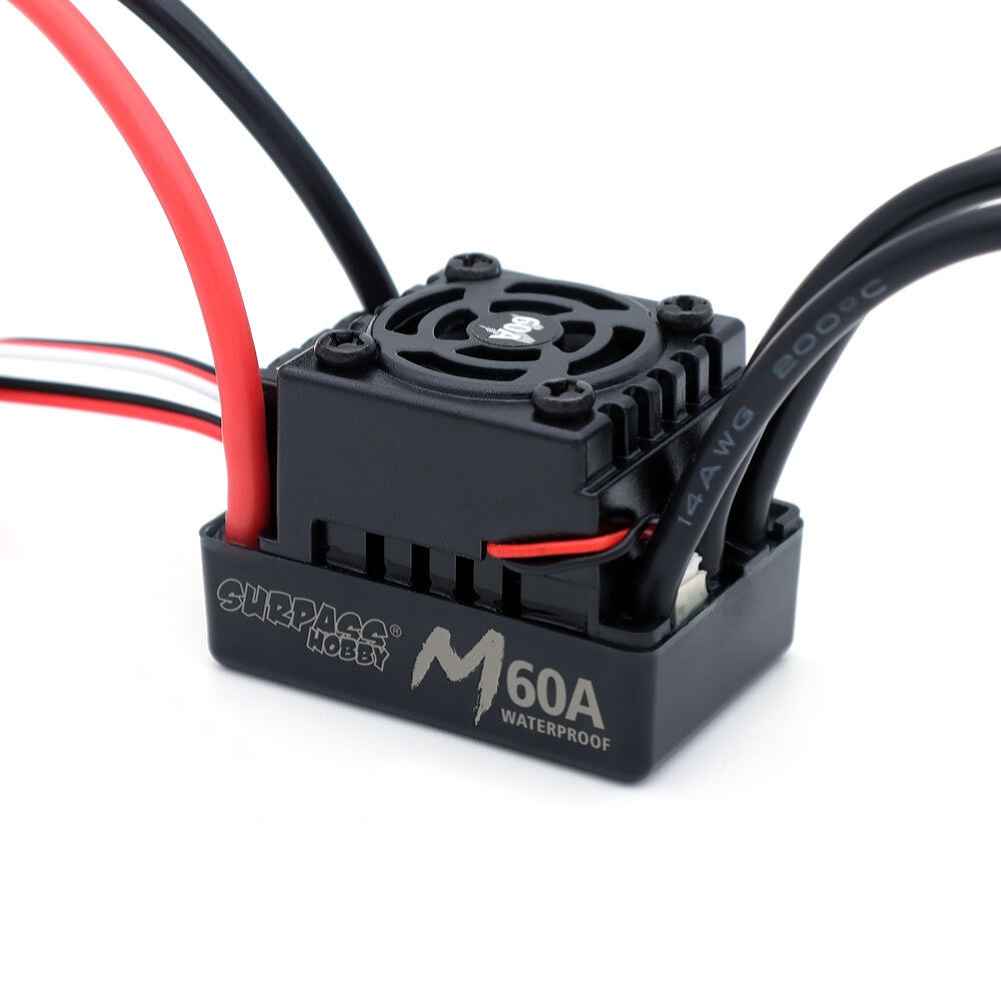

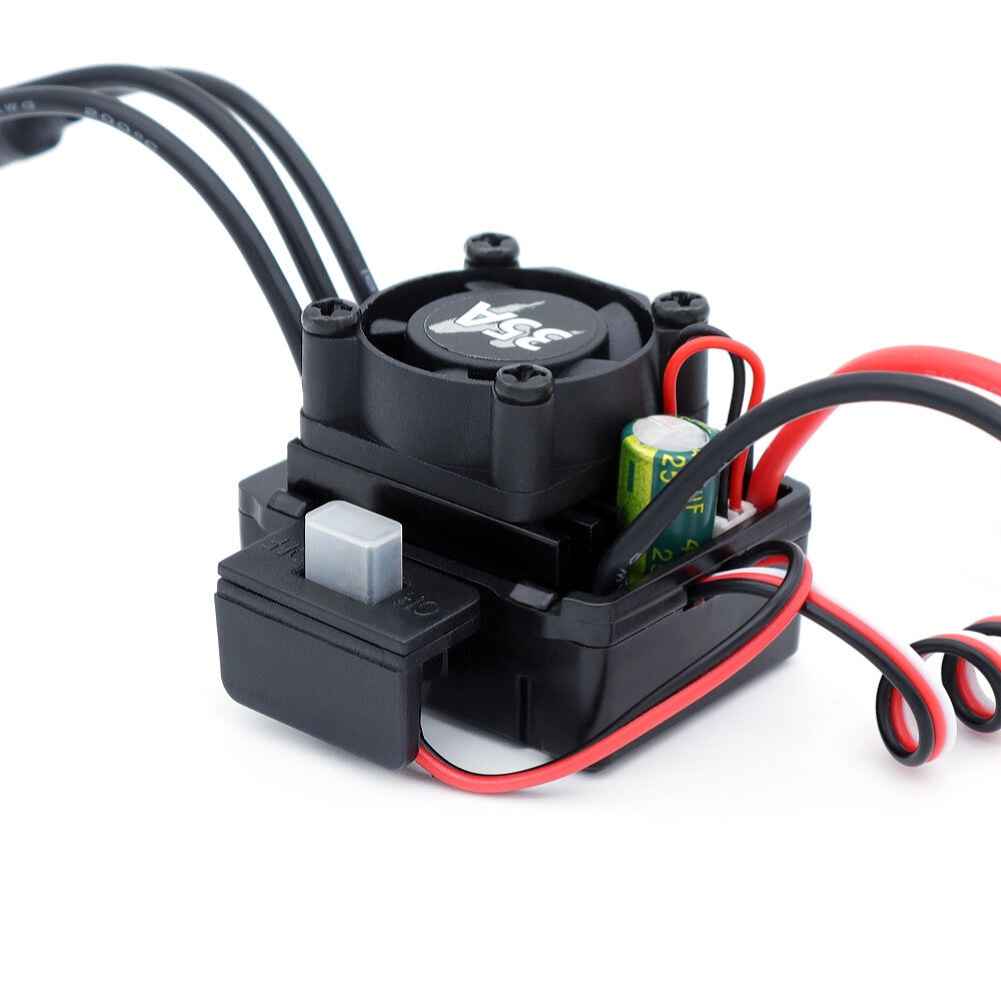

SURPASS-HOBBY Waterproof Brushless ESC M35A/M45A/M60A for 1/10 1/14 1/16 RC Cars

Description

SURPASS-HOBBY M35A/M45A/M60A Waterproof Brushless ESC RTR Version Standard ESC For 1/10 1/14 1/16 RC Car Parts

The SURPASS-HOBBY Waterproof Brushless ESC is designed for RC car enthusiasts, offering robust performance for 1/10, 1/14, and 1/16 scale vehicles. It features continuous and burst current options with sensorless brushless motors, suitable for both on-road and off-road use. Compatible with 2S Lipo or 6 cells NiMH batteries, it supports various motor sizes and KV ratings. The ESC provides a BEC output of 5V/2A in analog mode and 5.3V/2A in switch mode, ensuring reliable power delivery. With its compact dimensions and lightweight design, this ESC is a versatile choice for enhancing your RC car’s performance.

Specifications:
Cont.Current/ Burst Current:35A/120A
Sensorless Brushless Motor For 2S Lipo or 6 cells NiMH:
On-road:28XX-size or smaller motor with the KV<6000
Off-road 28XX-size or smaller motor with the KV<4000
For 3S Lipo or 9 cells NiMH:
On-road:28XX-size or smaller motor with the KV<4000
Off-road 28XX-size or smaller motor with the KV<3000.
Suitable Car:1/16, 1/14 car
Resistance:0.0021ohm
Battery:2~3 cells Lipo / 4~9 cells NiMH
BEC Output:5V/2A(Analog mode)
Dimensions/Weight:40沁29沁29.2mm /47g
Cont.Current/ Burst Current:45A/200A
Sensorless Brushless Motor For 2S Lipo or 6 cells NiMH:
On-road:F540 or smaller motor with the KV<6500
Off-road F540 or smaller motor with the KV<4500
For 3S Lipo or 6 cells NiMH:
On-road:F540 or smaller motor with the KV<4000
Off-road :F540 or smaller motor with the KV<3000.
Suitable Car:1/16, 1/14 car,1/10car
Resistance:0.0014ohm
Battery:2 cells Lipo / 4~6 cells NiMH
BEC Output:5.3V/2A(Switch mode)
Dimensions/Weight:42.5沁29沁30mm /56g
Cont.Current/ Burst Current:60A/320A
Sensorless Brushless Motor For 2S Lipo or 6 cells NiMH:
On-road:3650 or smaller motor with the KV<6000
Off-road :3650 or smaller motor with the KV<4000
For 3S Lipo or 9 cells NiMH:
On-road:28XX-size or smaller motor with the KV<4000
Off-road 28XX-size or smaller motor with the KV<3000.
Suitable Car:1/16, 1/14 car,1/10car
Resistance:0.0007ohm
Battery:2~3 cells Lipo / 4~9 cells NiMH
BEC Output:5.3V/2A(Switch mode)
Dimensions/Weight:42.5沁29沁30 1 x SURPASS-HOBBY Waterproof Brushless ESC
