SX1280 ELRS MINI 2.4GHz RX ExpressLRS Nano Receiver for FPV RC Drones and Airplanes
Price range: $15.06 through $15.17
- 2.4GHz RX ExpressLRS Nano Receiver for FPV RC
- ISM ESP8285 processor with 2.4GHz omnidirectional T antenna
- Frequency range: 2400 MHz to 2500 MHz
- Refresh rate: 25Hz to 500Hz
- Compact and lightweight design
You May Also Like
Description
SX1280 ELRS MINI 2.4GHz RX ExpressLRS Long Range High Reflash Rate Nano Receiver for FPV RC Racer Drone Airplane Parts
The SX1280 ELRS MINI 2.4GHz RX is a high-performance receiver designed for FPV RC racers and airplane enthusiasts. Featuring an ISM ESP8285 processor and a 2.4GHz omnidirectional T antenna, this nano receiver supports a frequency range of 2400 MHz to 2500 MHz with a refresh rate from 25Hz to 500Hz. It operates at a working voltage of 5V and weighs just 0.42g without the antenna. The compact size of 10mm x 10mm x 3mm ensures easy integration into your setup. The receiver is based on the ExpressLRS open-source architecture, allowing firmware upgrades via WiFi for enhanced user convenience.
SX1280 ELRS MINI 2.4GHz RX ExpressLRS Long Range High Reflash Rate Nano Receiver for FPV RC Racer Drone Airplane Parts
Description:
Item: SX1280 ELRS MINI Receiver
ELRS MINI 1:
Type: ISM
ESP8285 processor
2.4GHz Omnidirectional T Antenna
Frequency range: 2400 MHz to 2500 MHz
Receiving refresh rate: 500Hz_upper limit
Receiving refresh rate: 25Hz lower limit
Working voltage: 5V
Weight: 0.42g (without antenna)
Size: 10mm*10mm*3mm Working Agreement: CRSF(Betaflight)
ELRS MINI 2
Type: ISM
ESP8285 processor

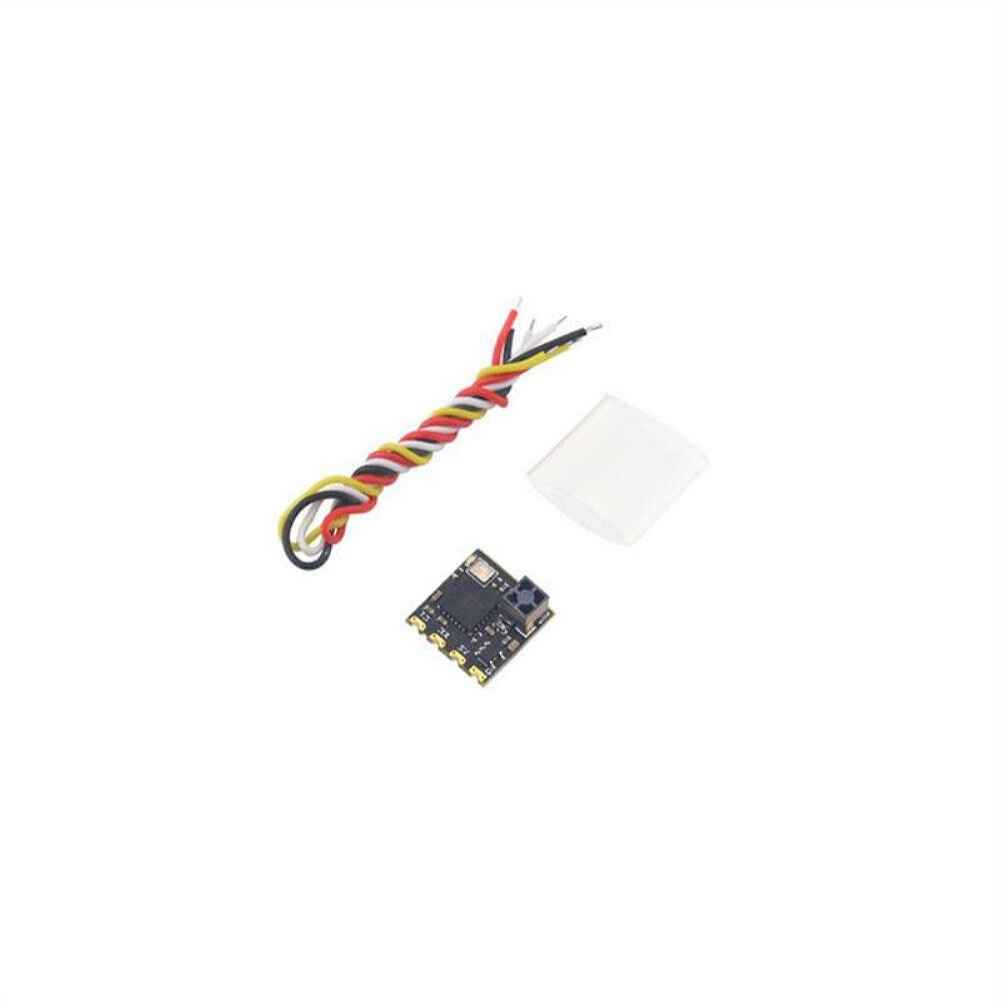

SMD 2.4GHz Chip Ceramic Antenna
Frequency Range: 2400 MHz to 2500 MHz
Receiving refresh rate: 500Hz. Upper limit
Receiving refresh rate: 25Hz lower limit
Working voltage: 5V
Weight: 0.44g

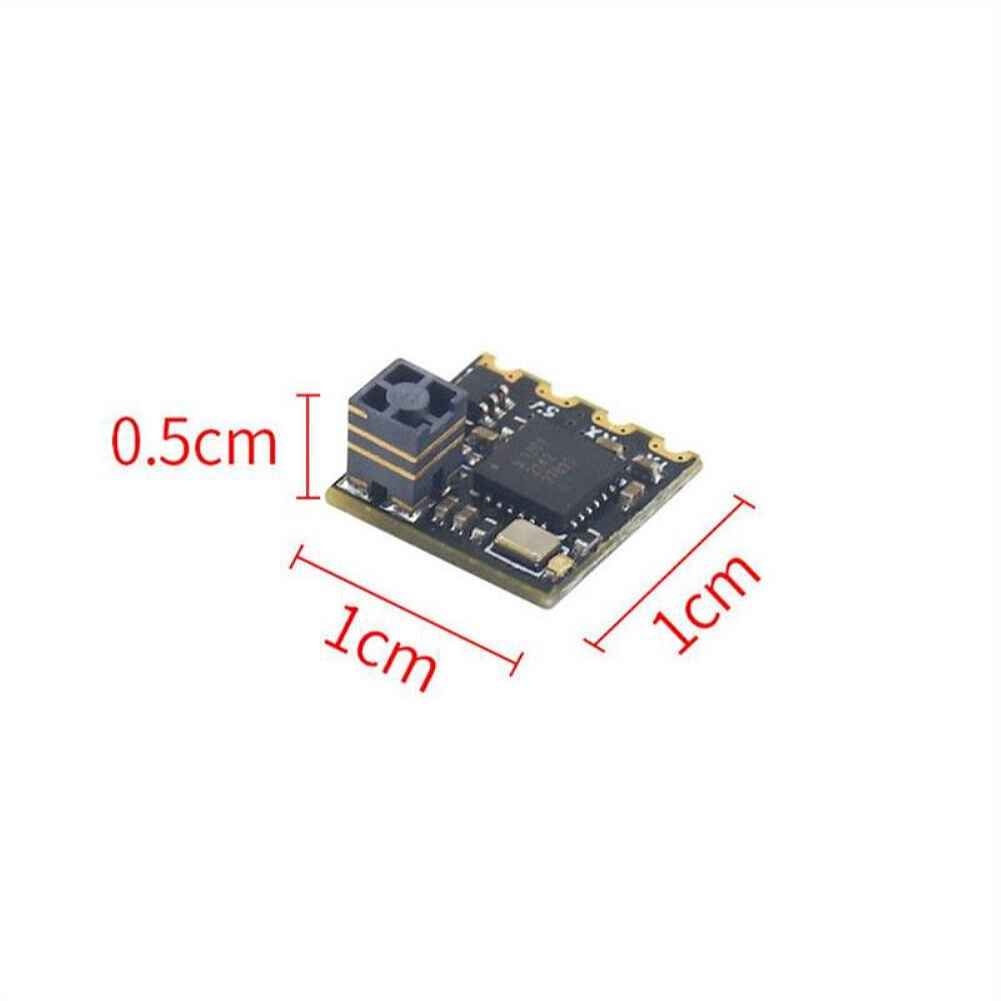

Size: 10mm*10mm*5mm Working Agreement: CRSF(Betaflight)
Features:
* CYCLONE series receivers are based on ExpressLRS open source architecture and programs, we
* 3 Types of RX receiver modules are released.Both use ESP8285 MCU.you
* Firmware can be upgraded via WIFI,which is very friendly.Usually you just give the receiver
* After the power is supplied and the remote control is turned off,the ExpressLRS can be found hot after 60s by default.
* Click,connect to this hotspot through a computer or mobile phone,the password is expresslrs,then
* Then you can visit 10.0.0.1 to upload the receiver firmware.
Package Included:

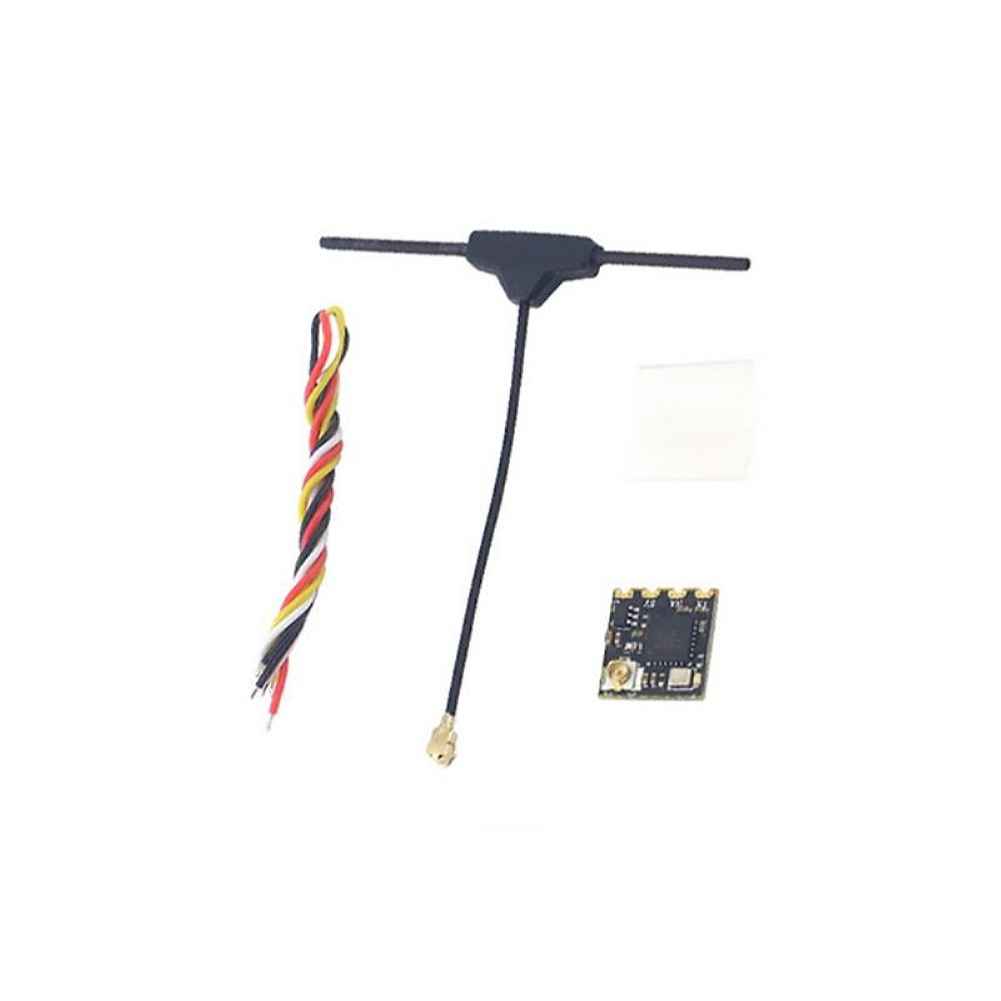

1 x SX1280 ELRS MINI Receiver
