TMOTOR AM116A 116A ESC with 15A UBEC for 60-67 Inch 3D Aerobatics RC Airplane

Description

TMOTOR AM116A 116A ESC With 5.8V/7.4V/8.2V 15A UBEC Support Program for 60-67 Inch 3D Aerobatics RC Airplane

The TMOTOR AM116A ESC is expertly designed for 60-67 inch 3D aerobatic RC airplanes. It features a zero-delay precision tracking system and provides preset alarm and flight data feedback, ensuring you are always aware of your flight status. The hidden strap design facilitates active heat dissipation, while the high-efficiency UBEC offers adjustable output voltages of 5.8V, 7.4V, and 8.2V, with a continuous output current of 15A and peak support of 25A. The ESC is compatible with 3-8S Lipo batteries and includes AM LINK ESC programming software for Windows and Android, allowing for seamless integration and performance optimization.

Specifications:
Brand Name: TMOTOR
Item Name: AM116A

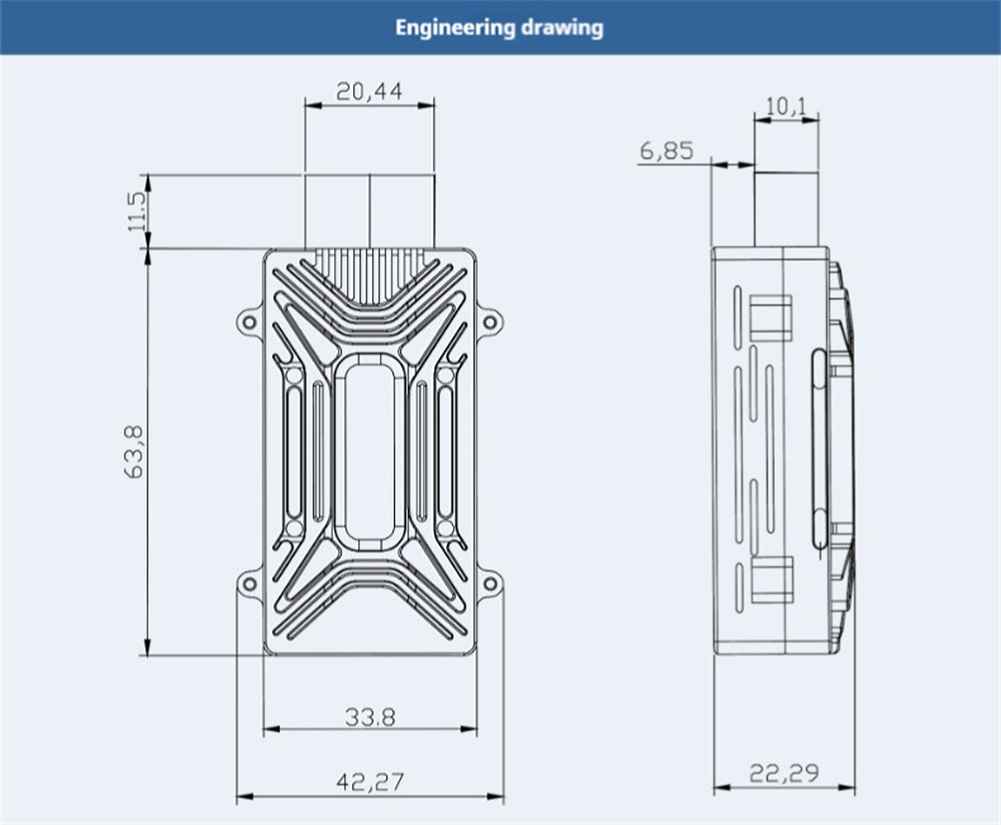

ESC Dimensions: 75.1*42.2*21.8mm
ESC Weight: 113g
Power Wire: 200mm-12AWG
Power Plug:Without plug
Output Wire: 90mm-12AWG
Output Plug: 4.0 gold plugs (female)
Signal Wire: 400mm (black, red and white)
Signal-return Wire: 410mm (brown, red and orange)
Battery: 3-8S Lipo
Rated Current: 116A
Peak Current: 136A
UBEC Output Voltage: 5.8V-7.4-8.2V
UBEC Output Current: 15A
Data Transmission Card: AM LINK
ESC Programming Card: AM LINK
ESC Programming Software: Windows, Android
Note: All the wire length above is the original length not the length you see from the outside.
Features:
1. AM116 zero-delay precision tracking

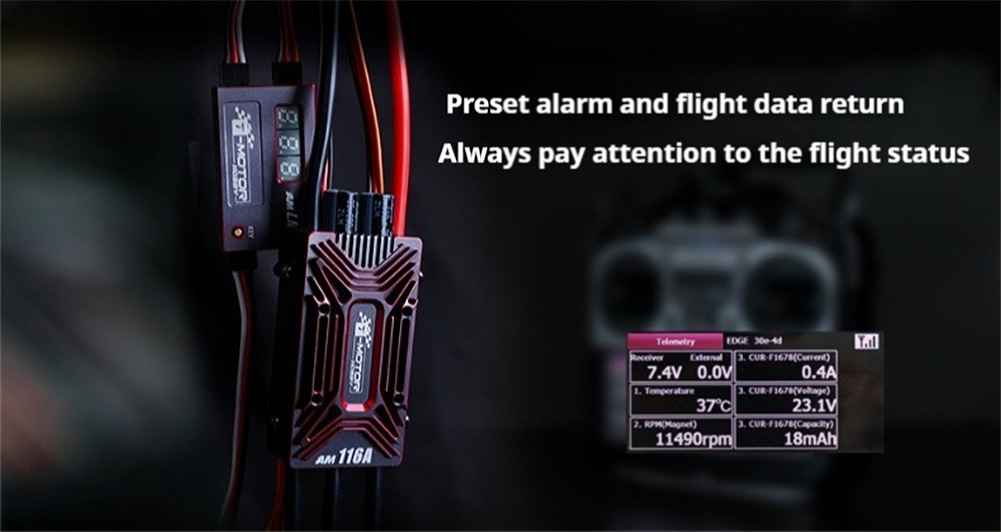

2. Preset alarm and flight data feedback to always pay attention to the flight status

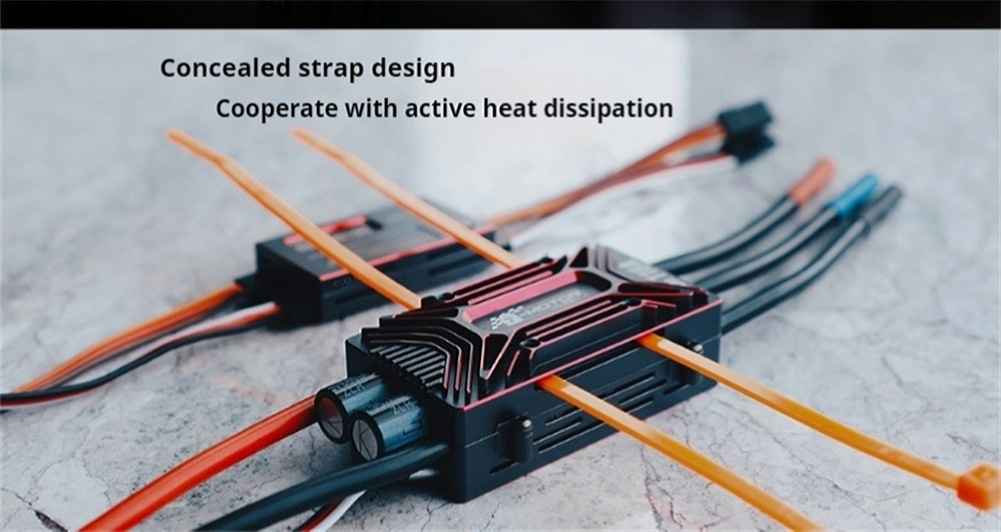

3. Hidden strap design, with active heat dissipation
4. High-efficiency high-power UBEC, the output voltage can be switched between 5.8V / 7.4V / 8.2V through software, continuous output current 15A, instant support 25A

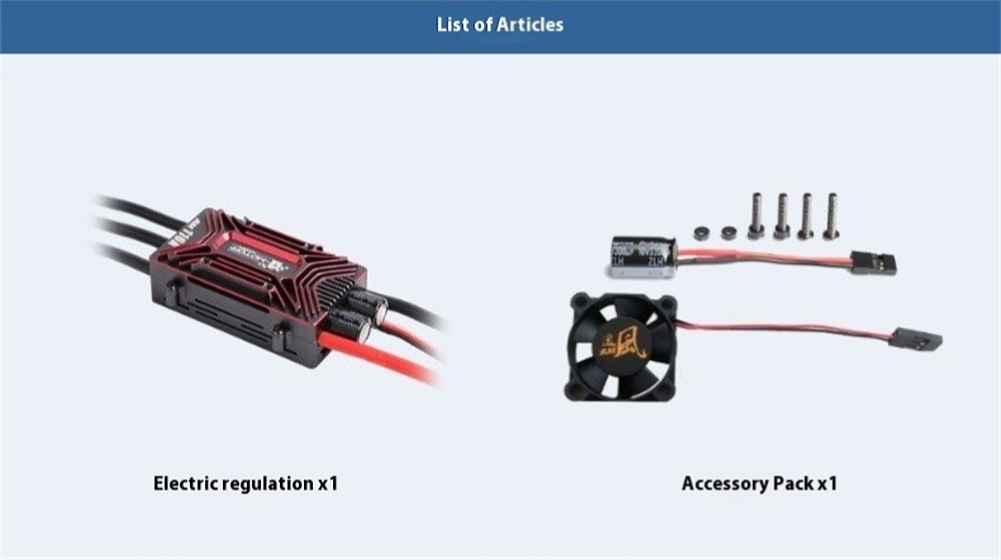

Package Included:
1 x TMOTOR AM116A ESC
1 x Accessory Pack
