WalleFPV Eagle2 91mm Carbon Fiber Frame Kit with 2.4G/915MHz Antenna for DJI O4 Pro FPV Racing Drone
Price range: $86.38 through $92.32
- 91mm wheelbase for agile maneuverability
- Durable carbon fiber construction
- Compatible with DJI O4 Pro FPV Racing Drone
- Includes 2.4G or 915MHz antenna
- Lightweight design at 13.3g
You May Also Like
Description
WalleFPV Eagle2 91mm Wheelbase Frame Kit Carbon Fiber with 2.4G / 915MHz Antenna for DJI O4 Pro RC FPV Racing Drone

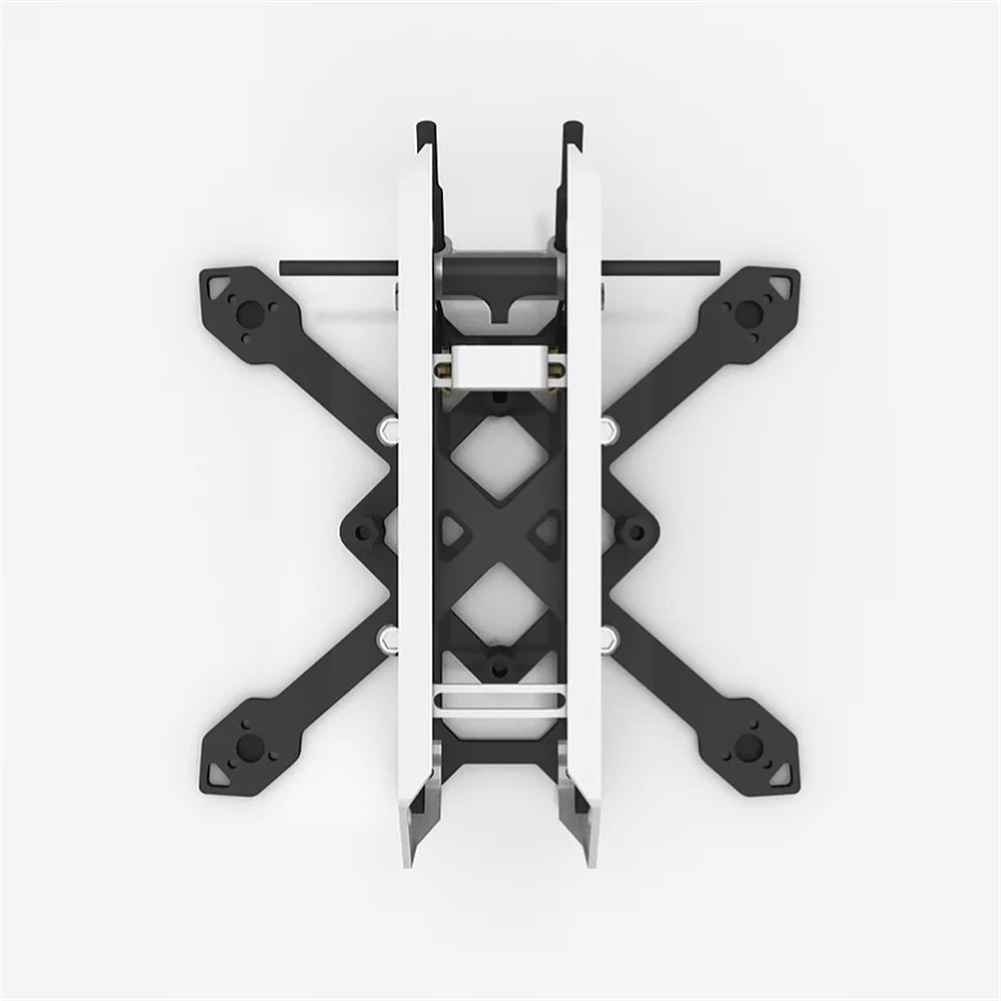

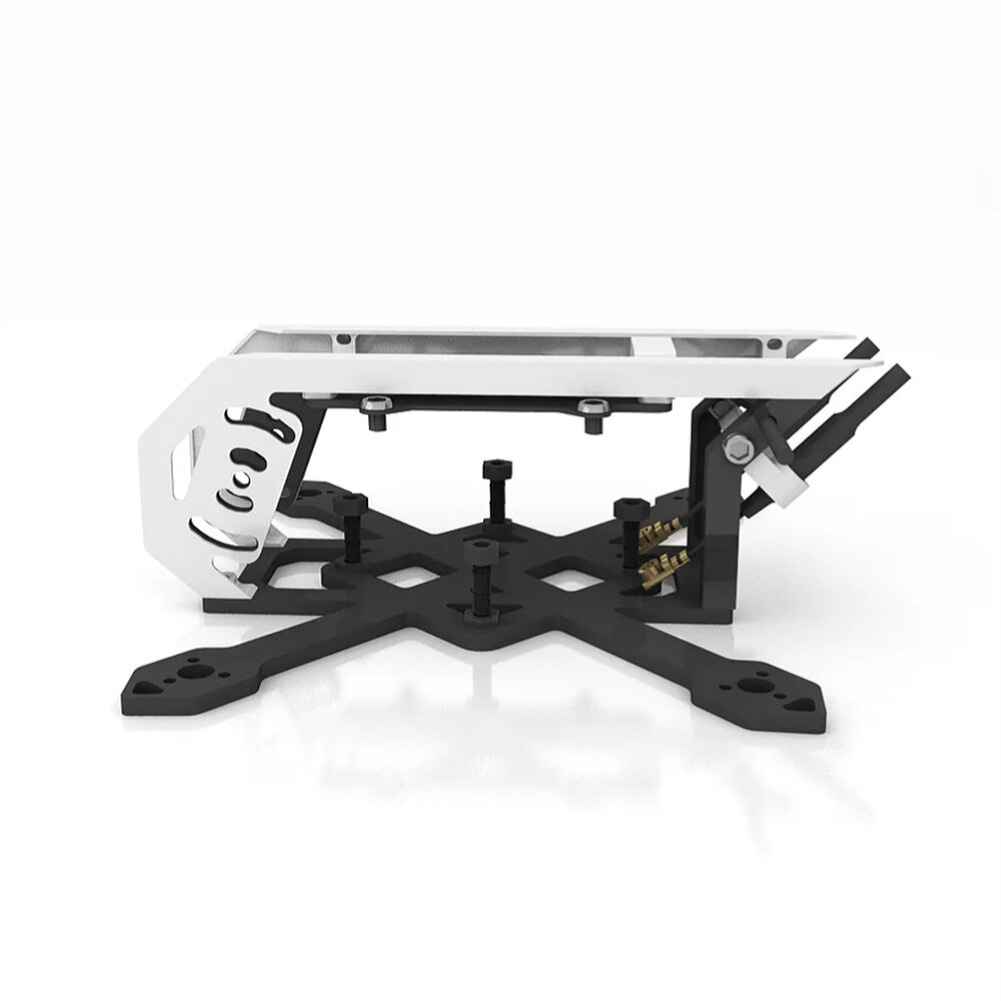

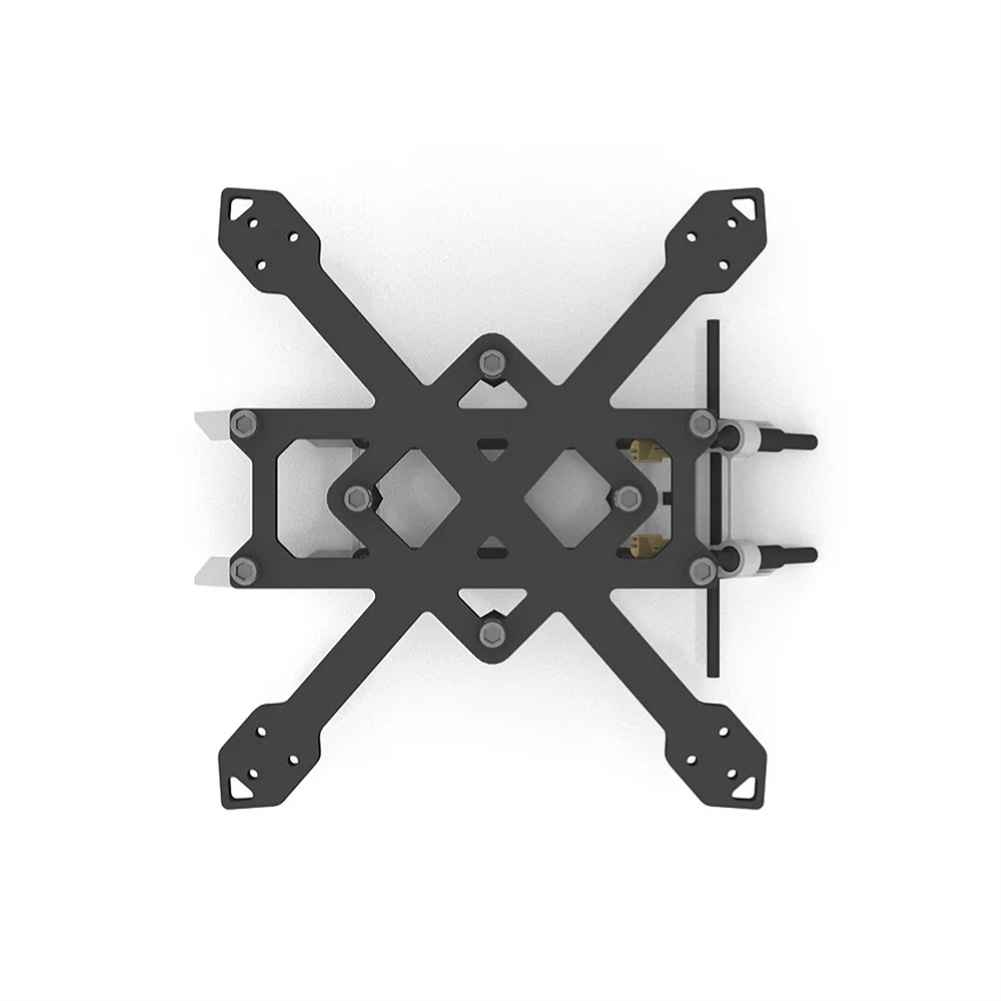

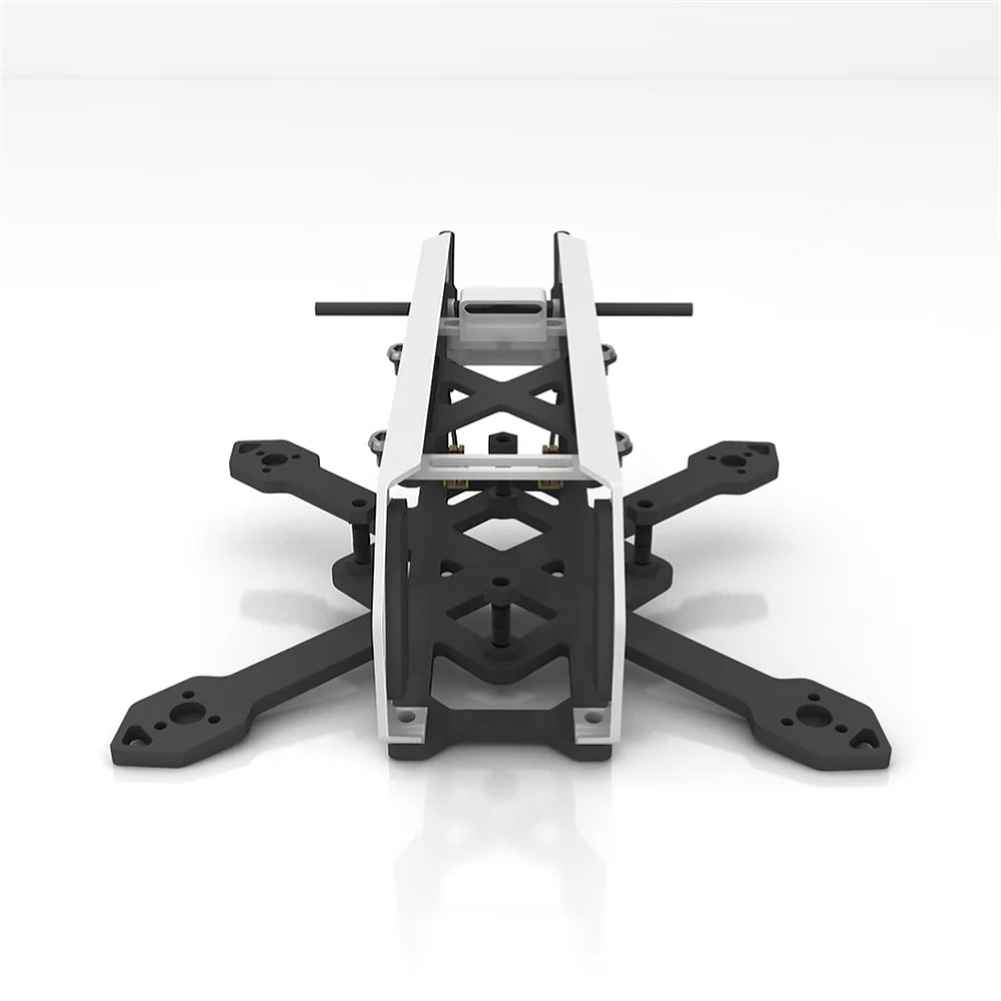

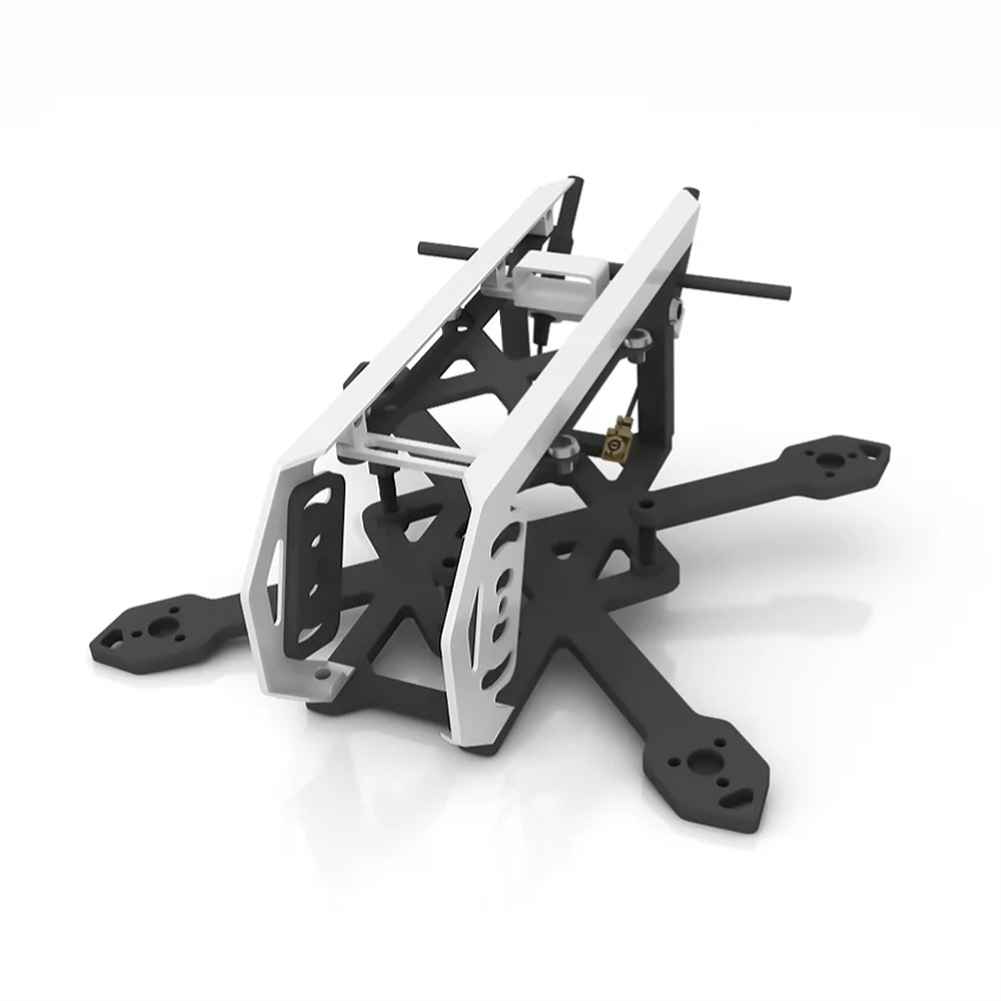

The WalleFPV Eagle2 Frame Kit is designed for the DJI O4 Pro RC FPV Racing Drone, featuring a 91mm wheelbase and robust carbon fiber construction. This frame kit includes a bottom plate with a 2.0mm thickness, providing durability and stability during high-speed flights. The mounting holes for the flight controller and VTX measure 25.5 x 25.5mm (M2), with additional VTX options of 20 x 20mm (M2). The camera mounting width is 20mm (M2), and motor mounting holes are 3-M1.4-EQS-6.6, ideal for propeller sizes of 35mm and 40mm. Weighing just 13.3g, this compact frame measures 84 x 83 x 32 mm, ensuring a lightweight yet robust build for enhanced racing performance.
Specification:
Brand: WalleFPV
Item Name: Eagle2 Frame Kit
Frame: YMZFPV E2F
Wheelbase: 91mm
Bottom Plate Thickness: 2.0mm
FC Mounting Holes: 25.5 x 25.5mm ( M2 )
VTX Mounting Holes: 25.5 x 25.5mm ( M2 ) / 20 x 20mm(M2)
Camera Mounting Width: 20mm (M2)
Motor Mounting Holes: 3-M1.4-EQS-6.6
Propeller Size: 35mm/40mm
Material: Carbon Fiber
Dimension: 84 x 83 x 32 mm

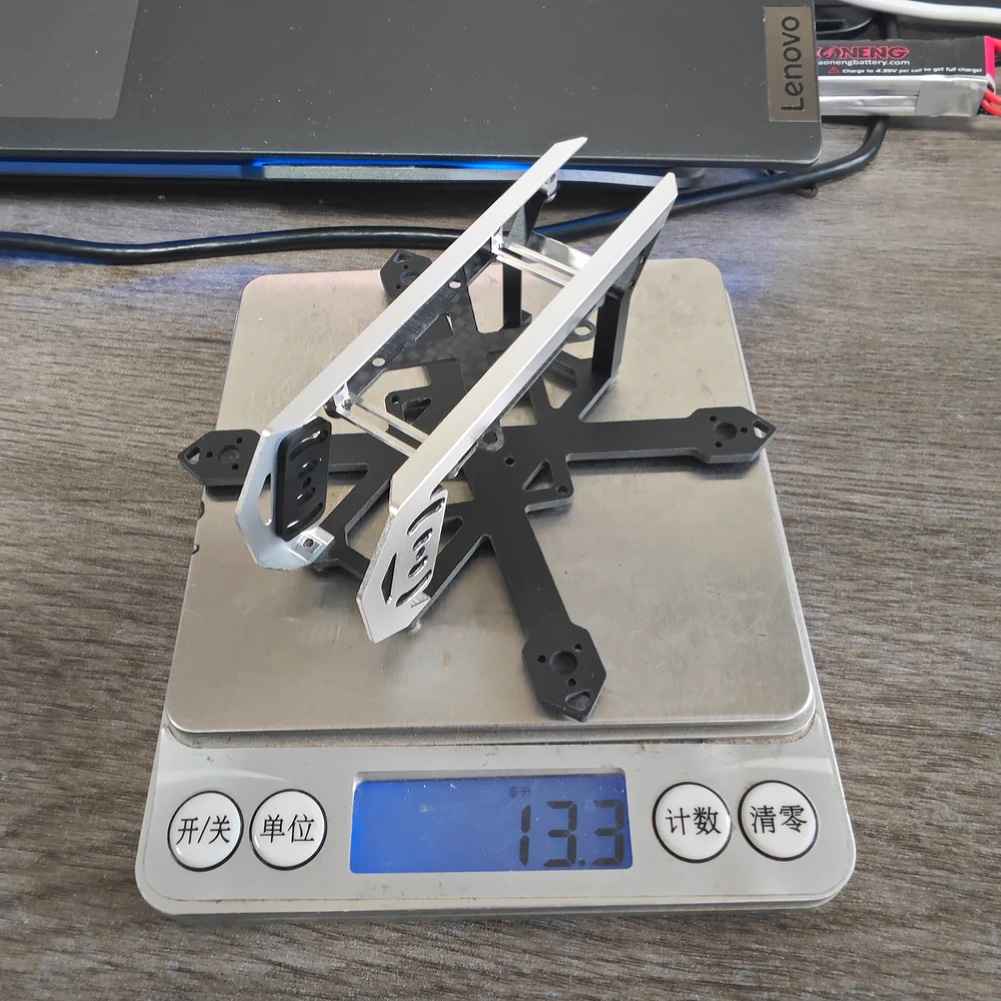

Weight: 13.3g
Package Included:
1 x WalleFPV Eagle2 Frame Kit + 2.4G Antenna or 1 x WalleFPV Eagle2 Frame Kit + 915MHz Antenna
