Waterproof Brushed ESC 60A/80A for RC Climbing Car and Boat, Tamiya Plug, 103BK 108BK Compatible

Description

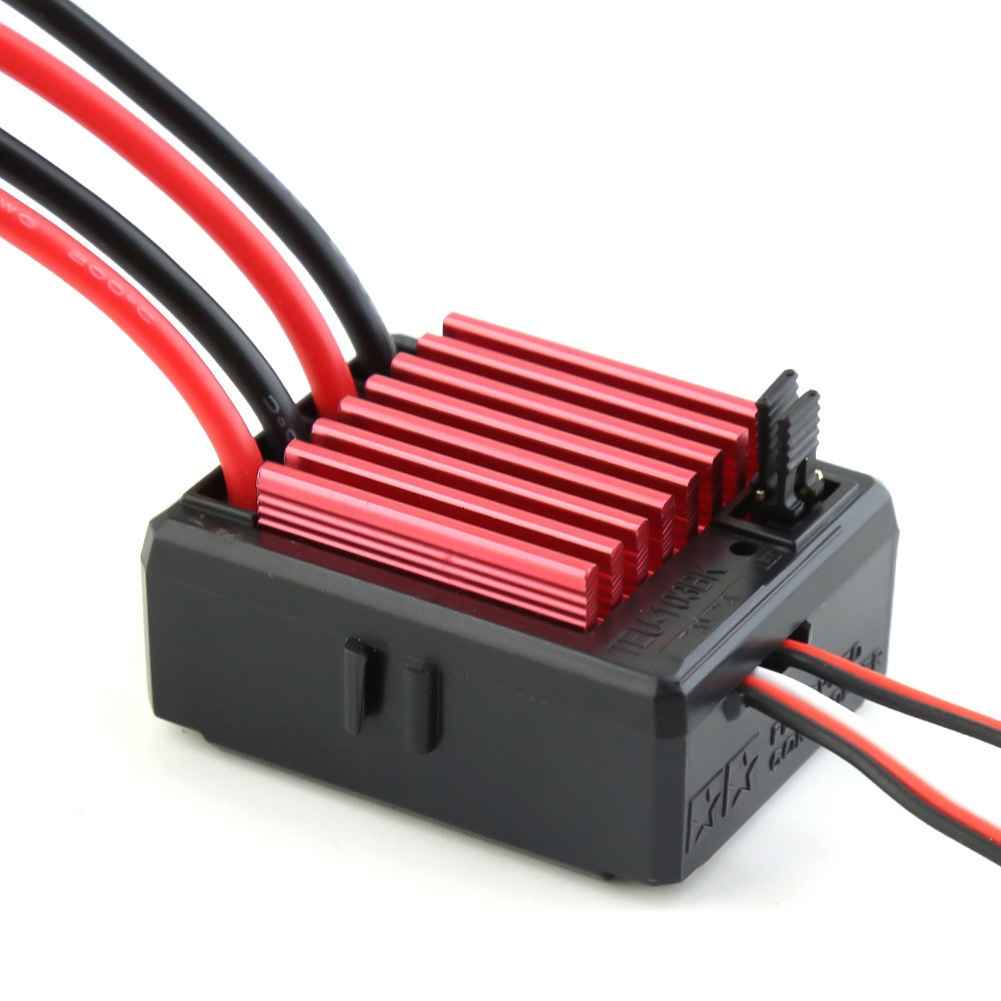

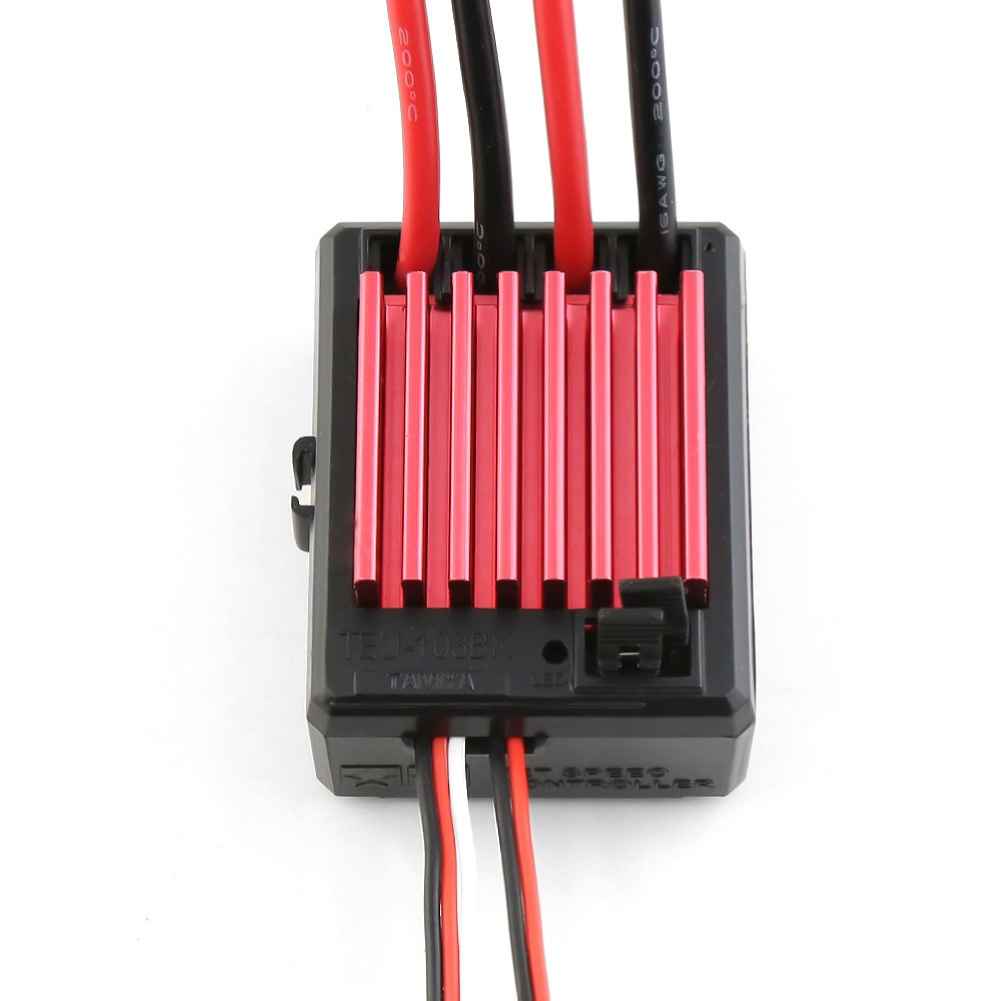

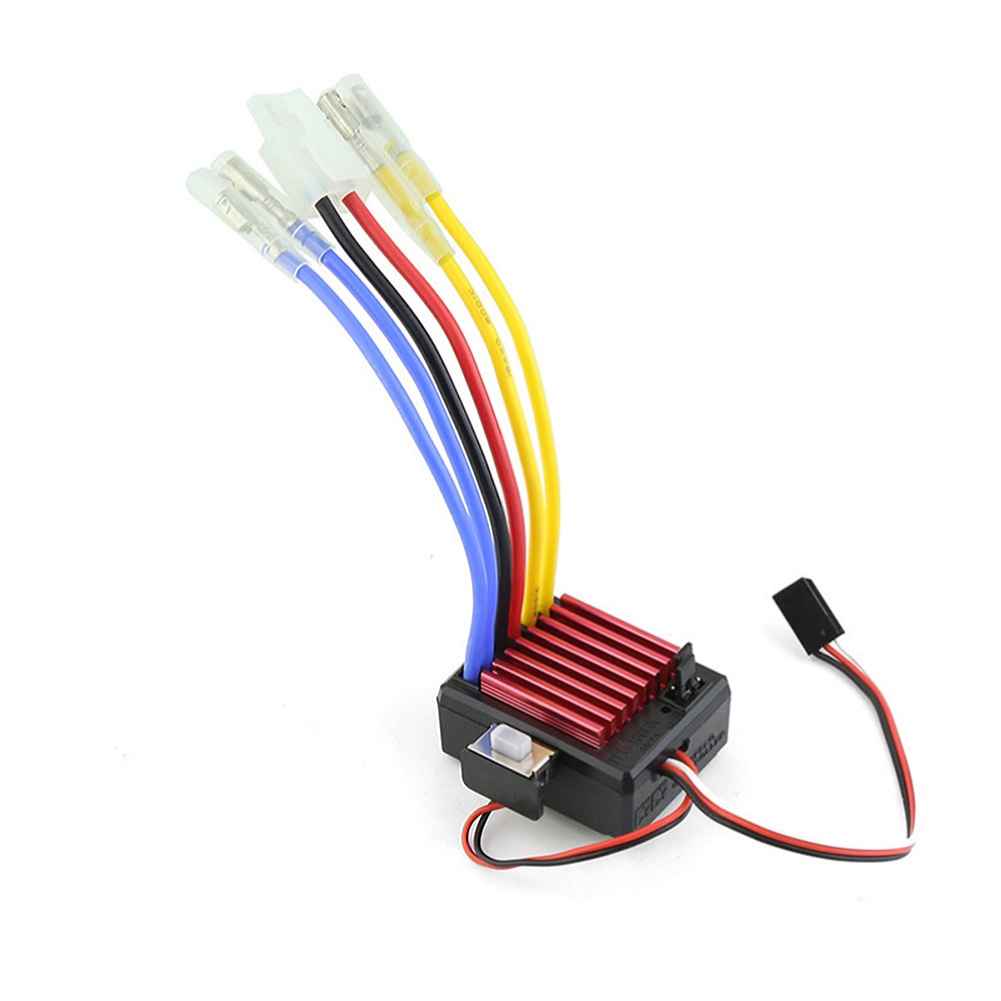

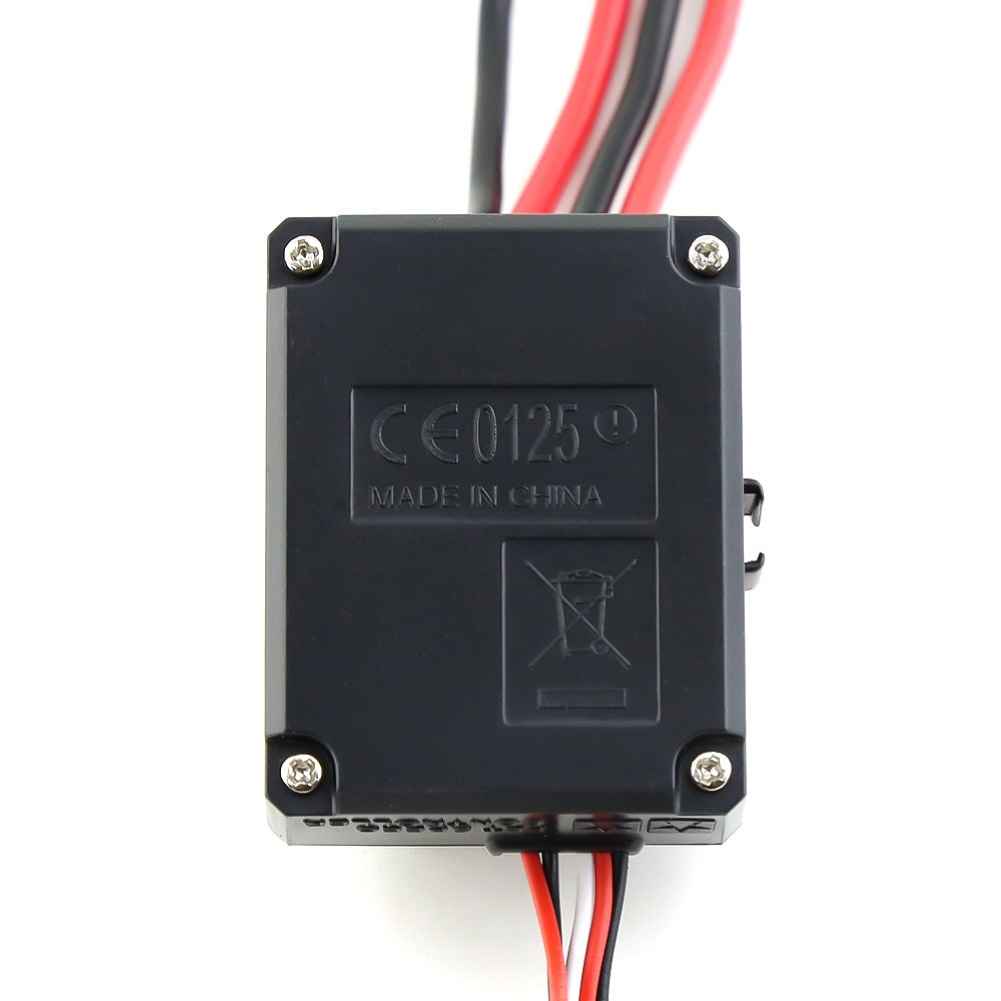

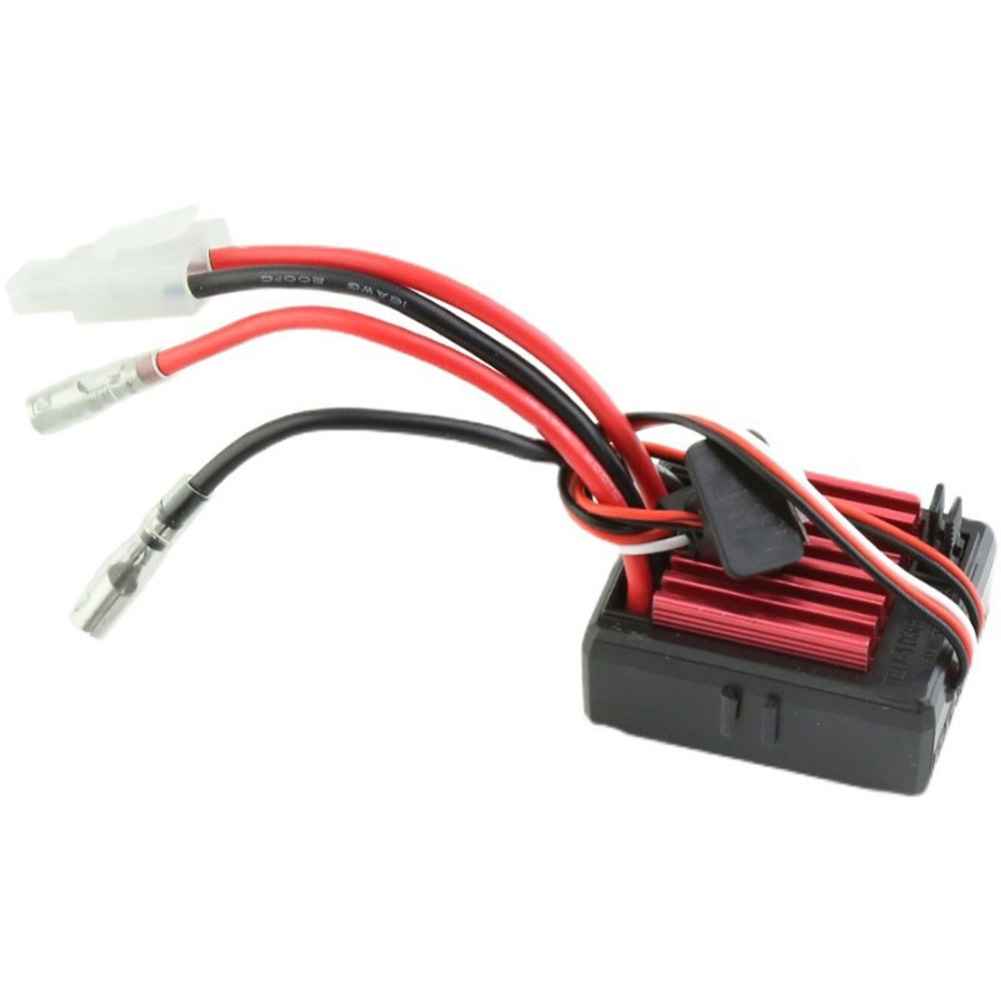

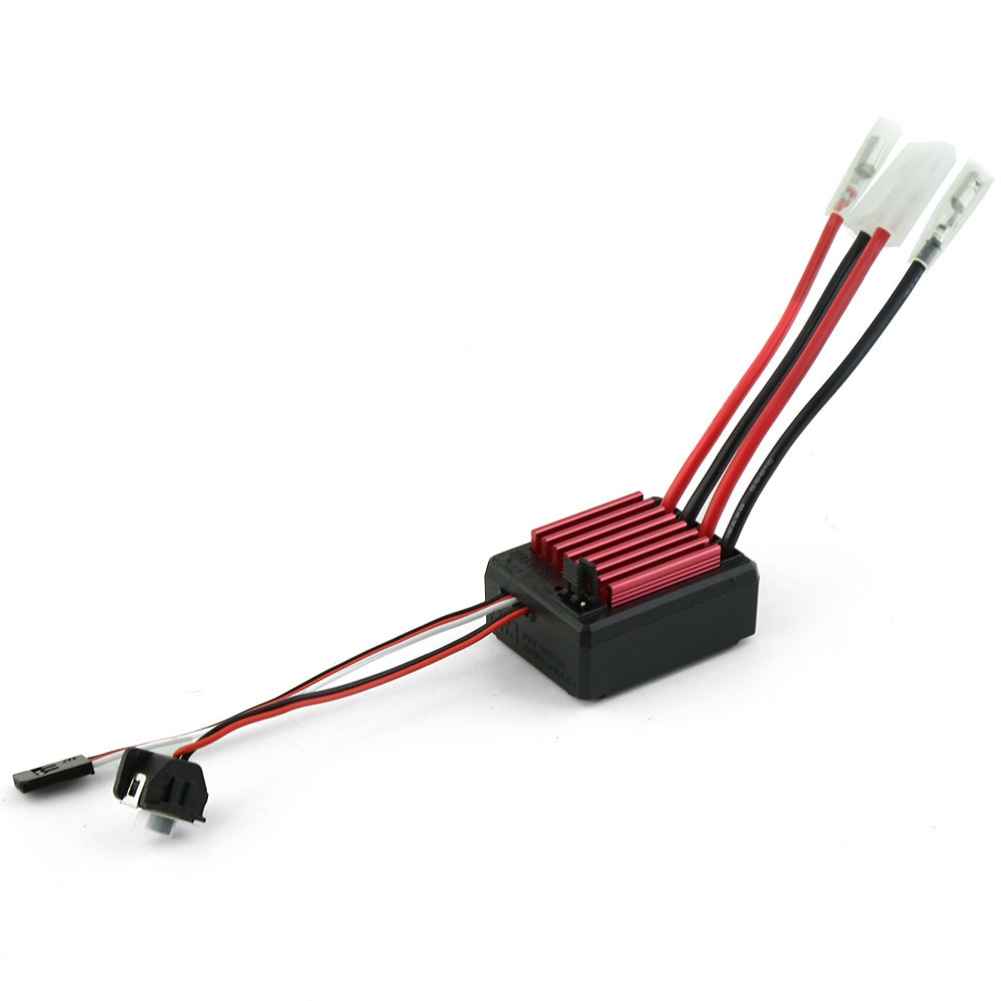

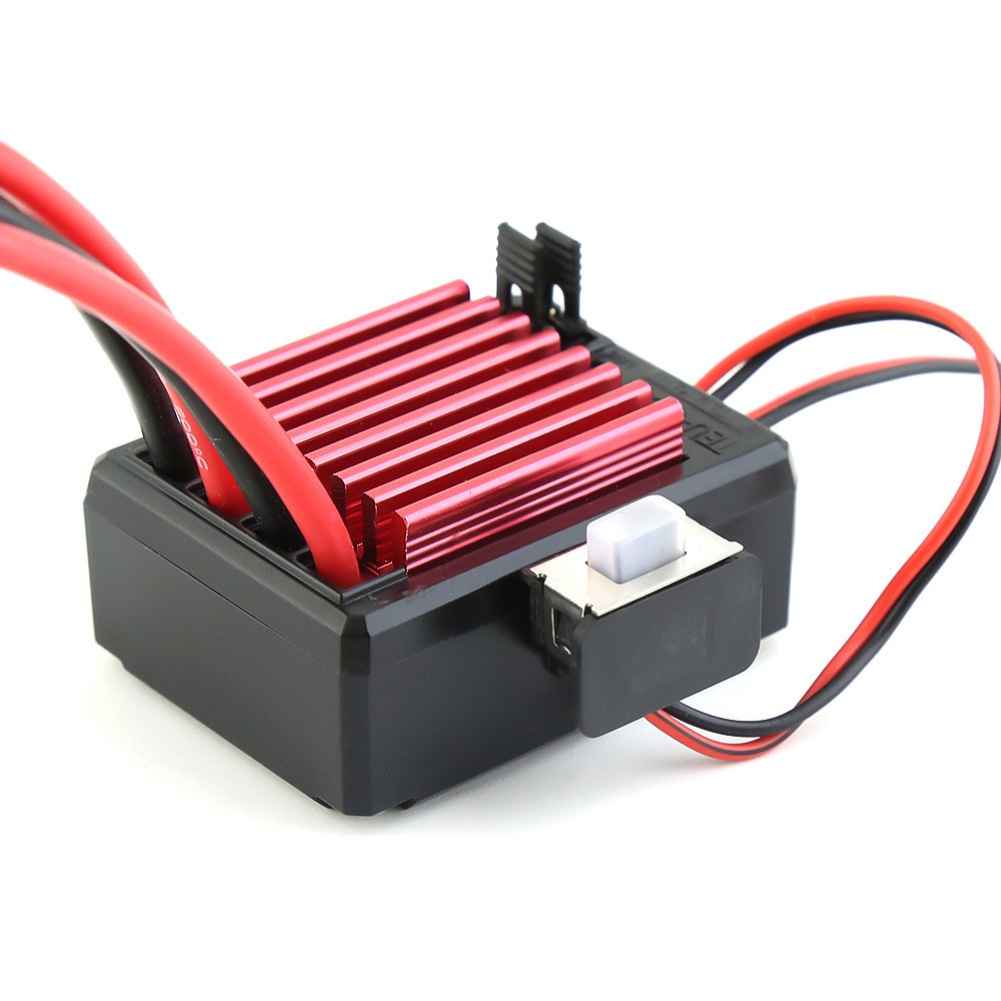

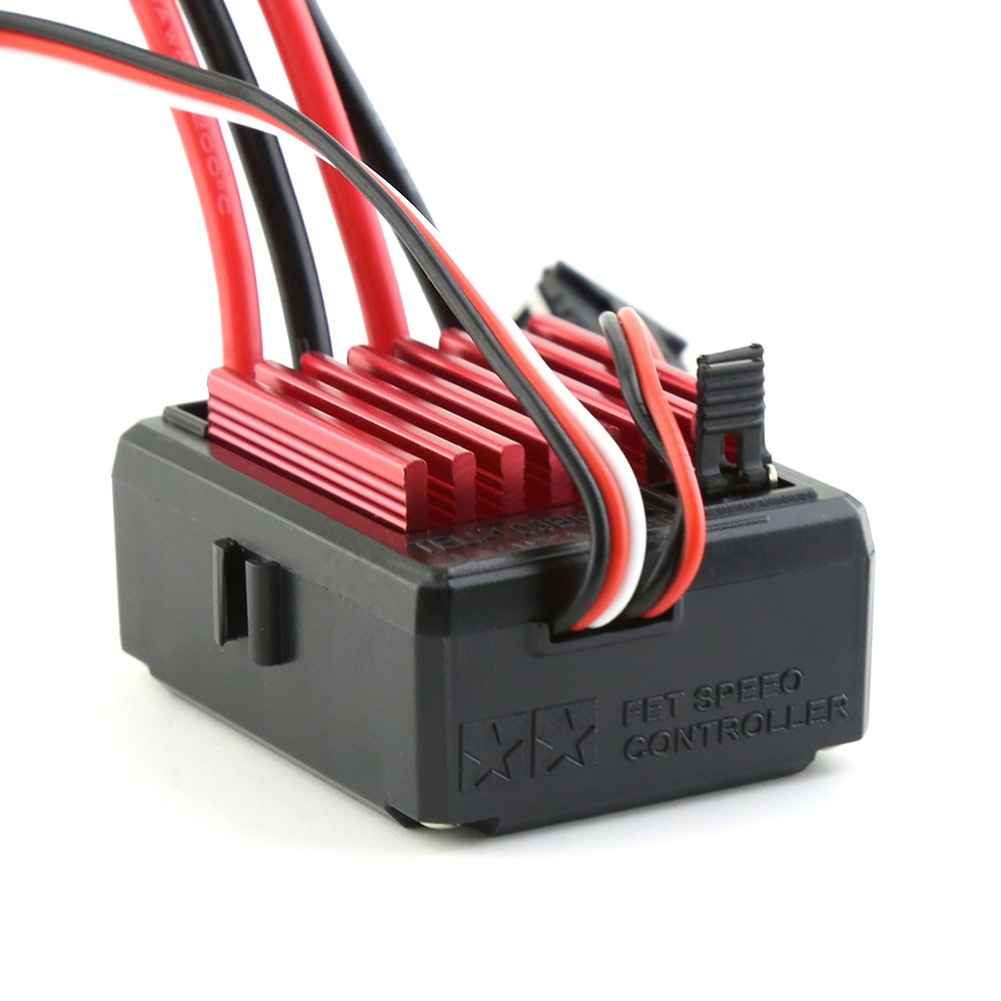

Waterproof Brushed ESC 60A/80A for 103BK 108BK RC Climbing Car and Boat Model ESC Tamiya Plug

This Waterproof Brushed ESC is designed for RC climbing cars and boat models, offering a continuous current of 80A and a peak current of 400A. It is compatible with brushed motors, specifically 540, 550, and 775 class motors. The ESC supports 2-3 S Lipo or 5-9 Cell NiMH batteries, with a BEC output of 6V/74V at 3A in switching regulator mode. The input is equipped with an XT60 plug. Ideal for 1:10 scale models, it accommodates motors with a T number of ??0T or ??6T, depending on the battery setup. The compact design, with dimensions of 36.2×31.6×17.0mm, ensures easy integration into your model.

Specification:
Continuous/Peak Current: 80A/400A
Supported motor type: brushed motor (540/550/775 class motor)
Mainly applicable models: 1:10 climbing car
Supported motor T number:
2 cells Li-ion or 6 cells NiMH: √10T or RPM less than 30000@7.4V 540 or 550 size motor
3 cells Li-ion or 9 cells NiMH: √16T or RPM less than 20000@7.4V
540 or 550 size motor
Cells: 2-3 S Lipo or 5-9 Cell NIMH
BEC output: 6V/74V@3A (switching regulator mode)
Plug: Input: XT60 Output: None
Dimensions/weight with wire: 36.2×31.6×17.0mm/58.5g
Parameter setting interface: independent programming port

Package Included:
1 x Waterproof Brushed ESC
