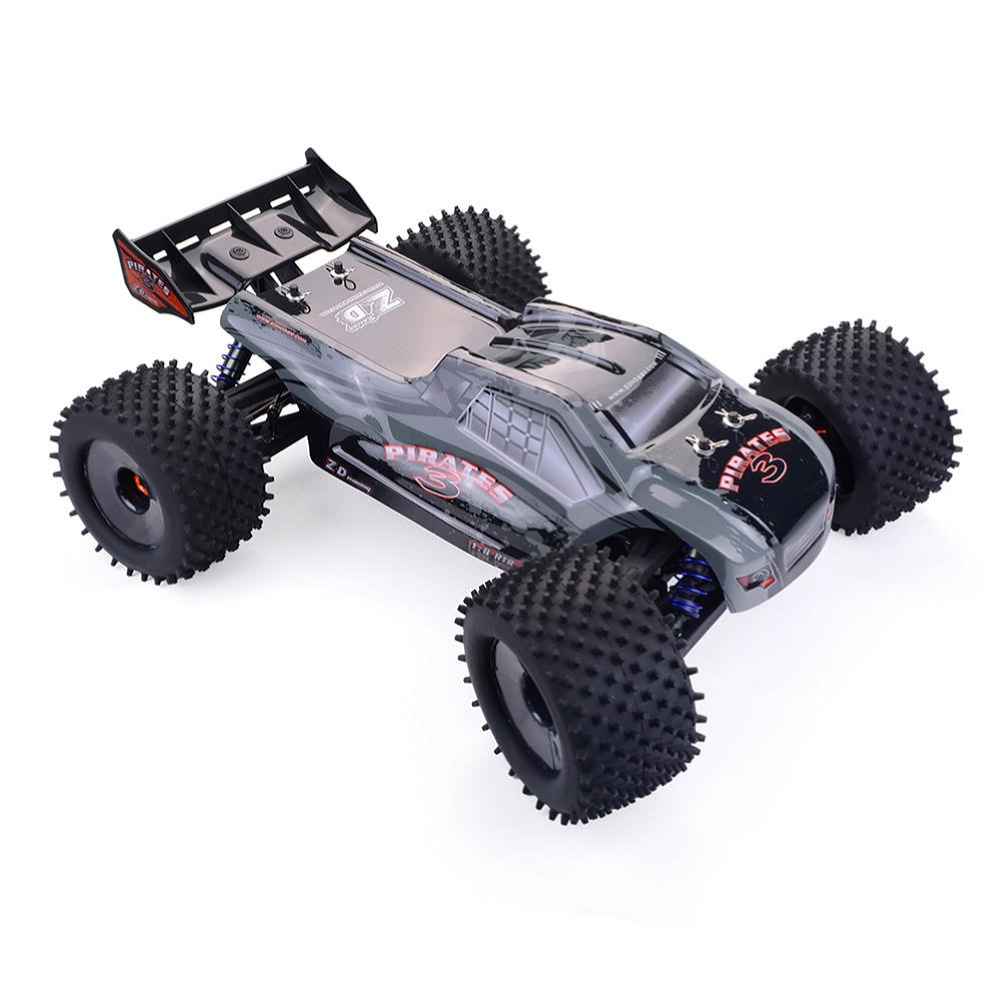

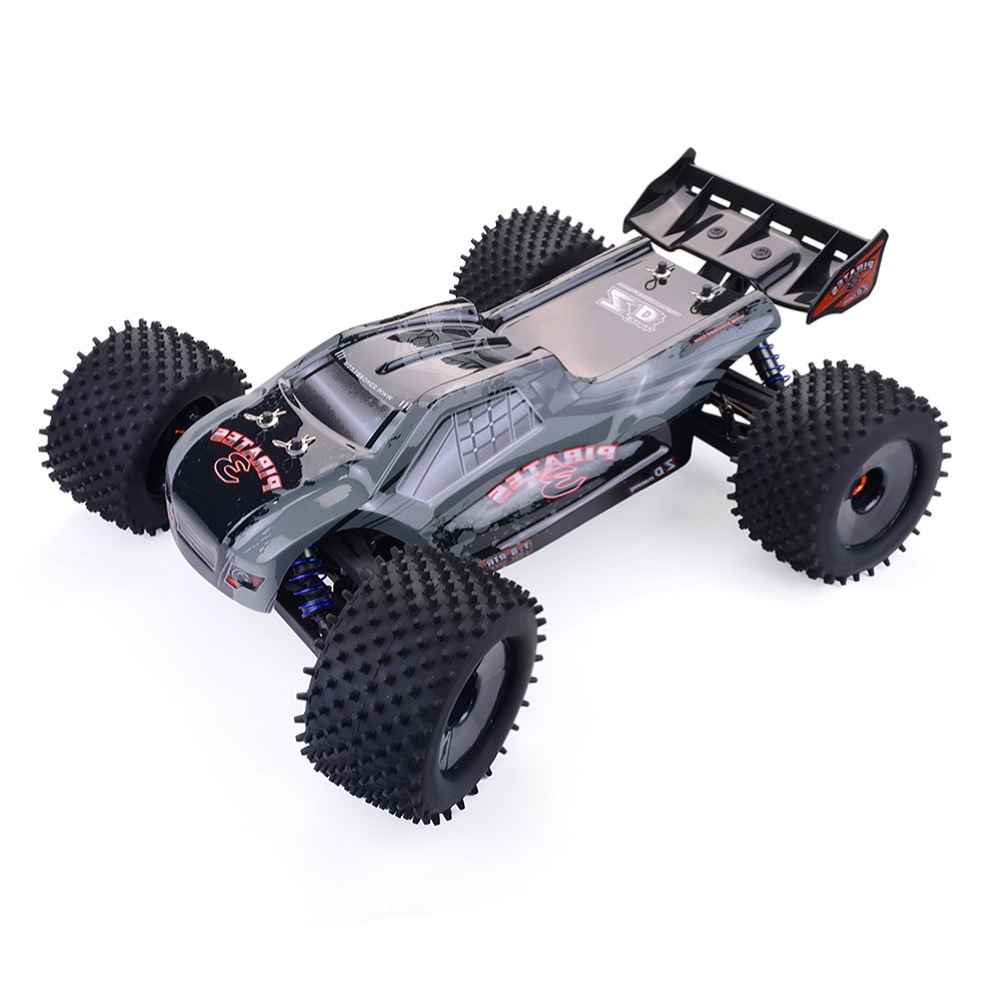

ZD Racing 9021-V3 1/8 4WD 80km/h Brushless RC Truggy, 120A ESC, RTR Electric Car

Description

ZD Racing 9021-V3 1/8 2.4G 4WD 80km/h 120A ESC Brushless RC Car Full Scale Electric Truggy RTR Toys

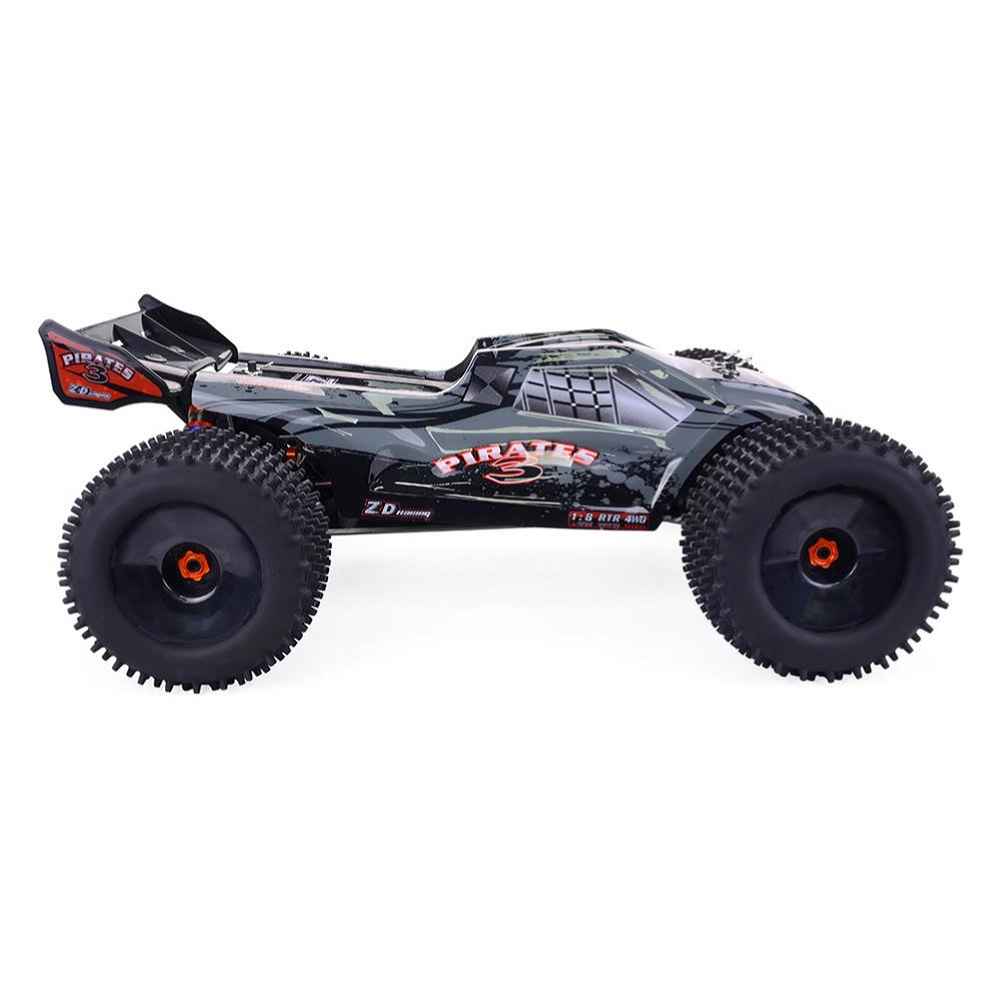

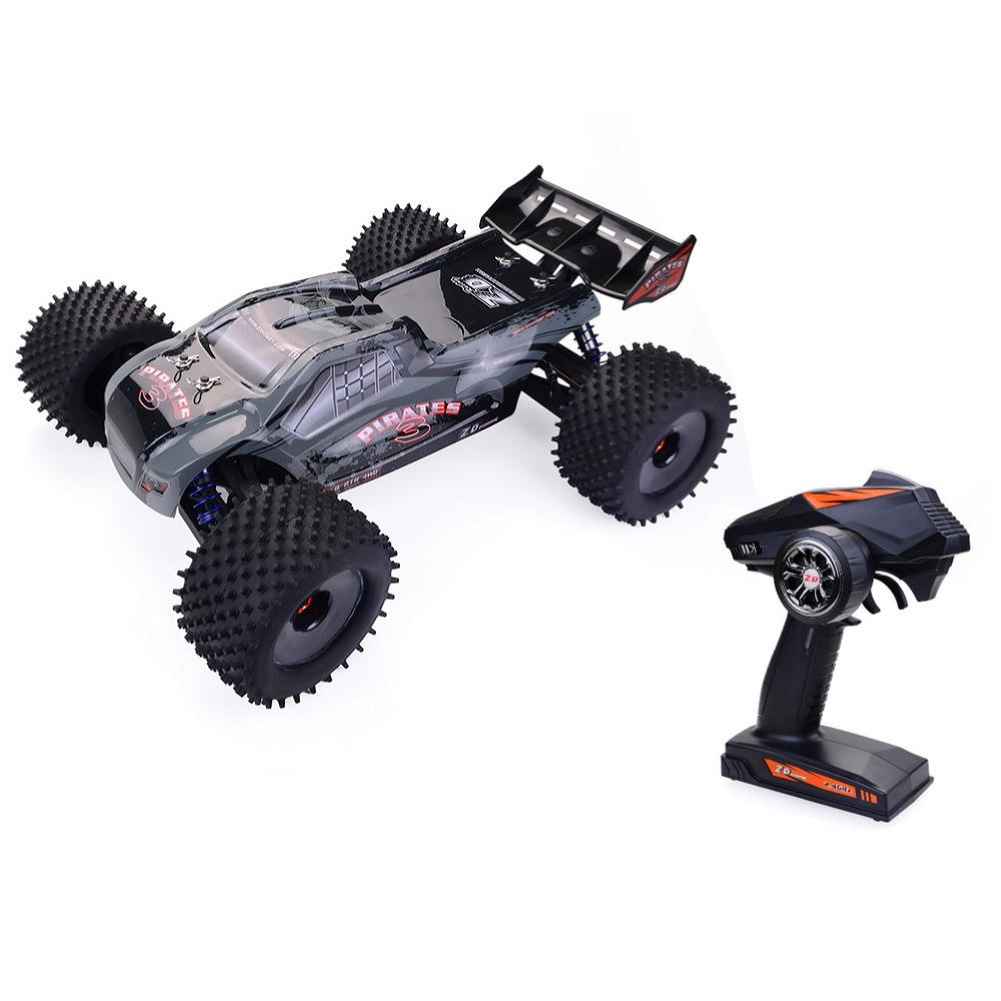

The ZD Racing 9021-V3 is a 1/8 scale, 4WD brushless RC truggy designed for high-speed racing, reaching speeds over 80km/h. Equipped with a 120A brushless sensorless ESC and a KB4068 2000KV motor, this RC car provides a robust power system. It includes a 9kg torque servo and a 2.4G 4-channel transmitter, ensuring precise control up to 400 meters. The truggy features a durable CNC-machined chassis and oil-filled shock dampers for superior shock absorption. Its open battery compartment is compatible with most battery sizes, and it comes with a 3S 11.1V 5000mAh Li-Po battery. The sturdy design and advanced features make it perfect for conquering all terrains.

Description:

Basic information

Brand:ZD Racing
Item No:9021-V3
Scale: 1/8
Color:As the picture shown
Designed Speed:80+km/h

Power System

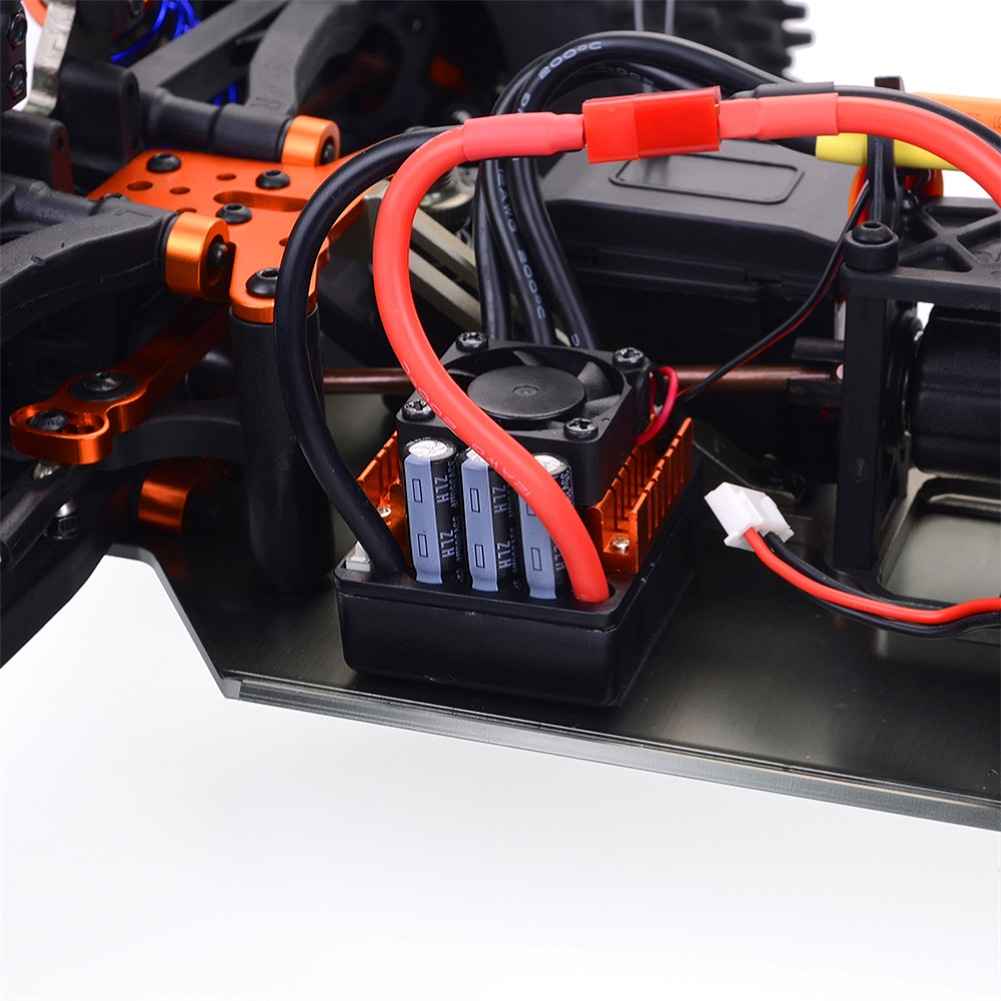

ESC:120A Brushless Sensorless esc

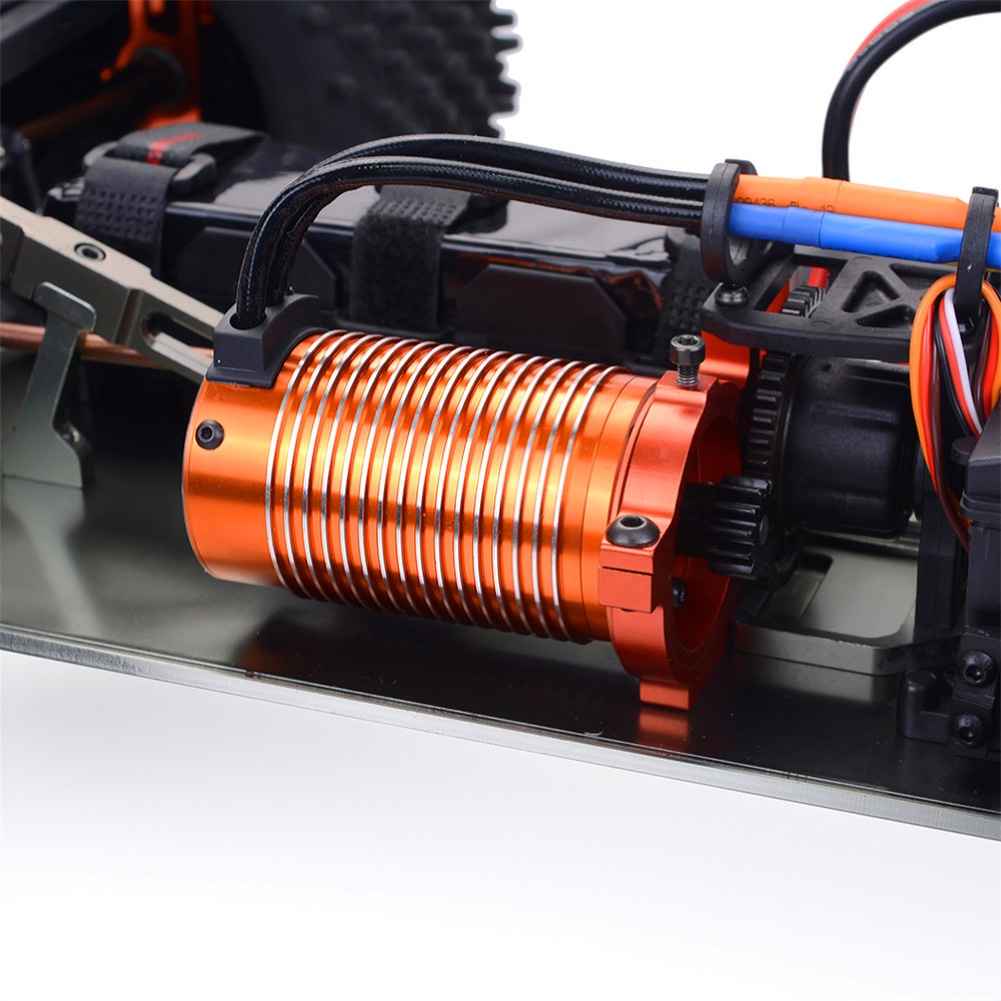

Motor:KB4068 2000KV Brushless Sensorless motor

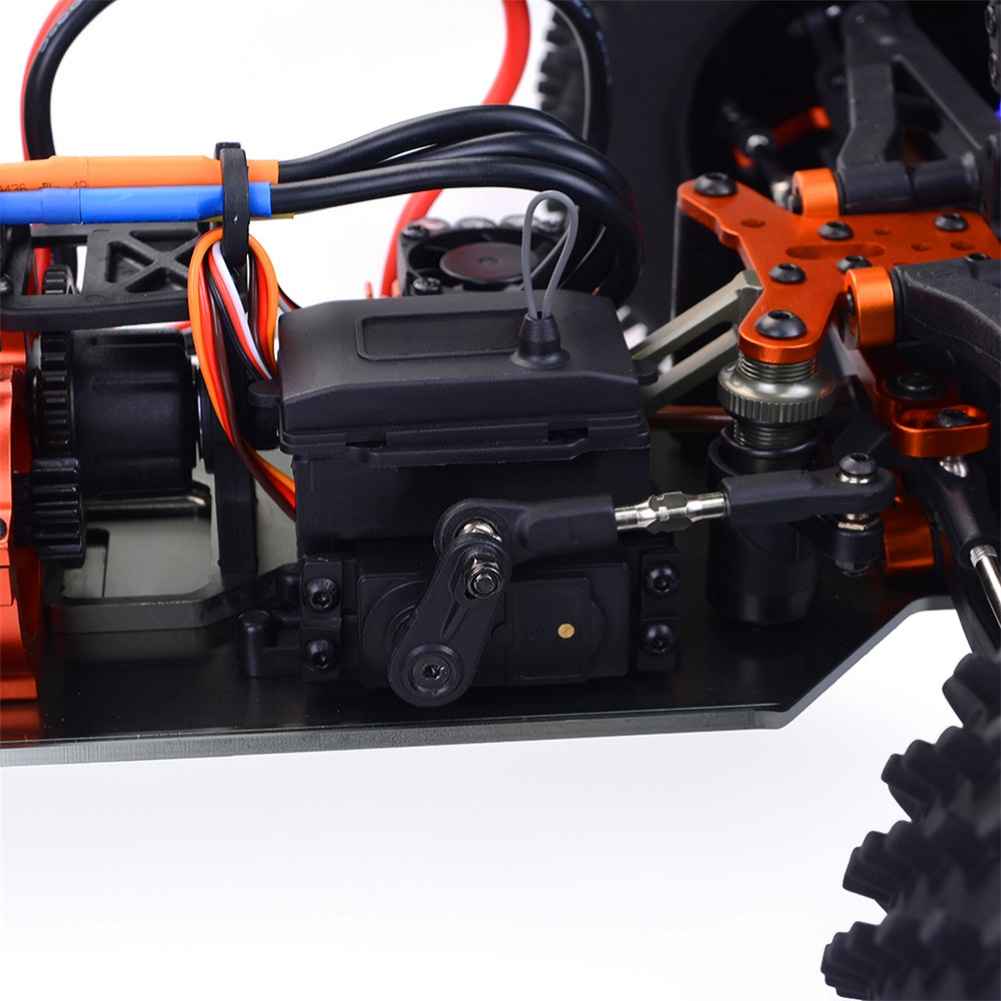

Servo:9kg large torque servo

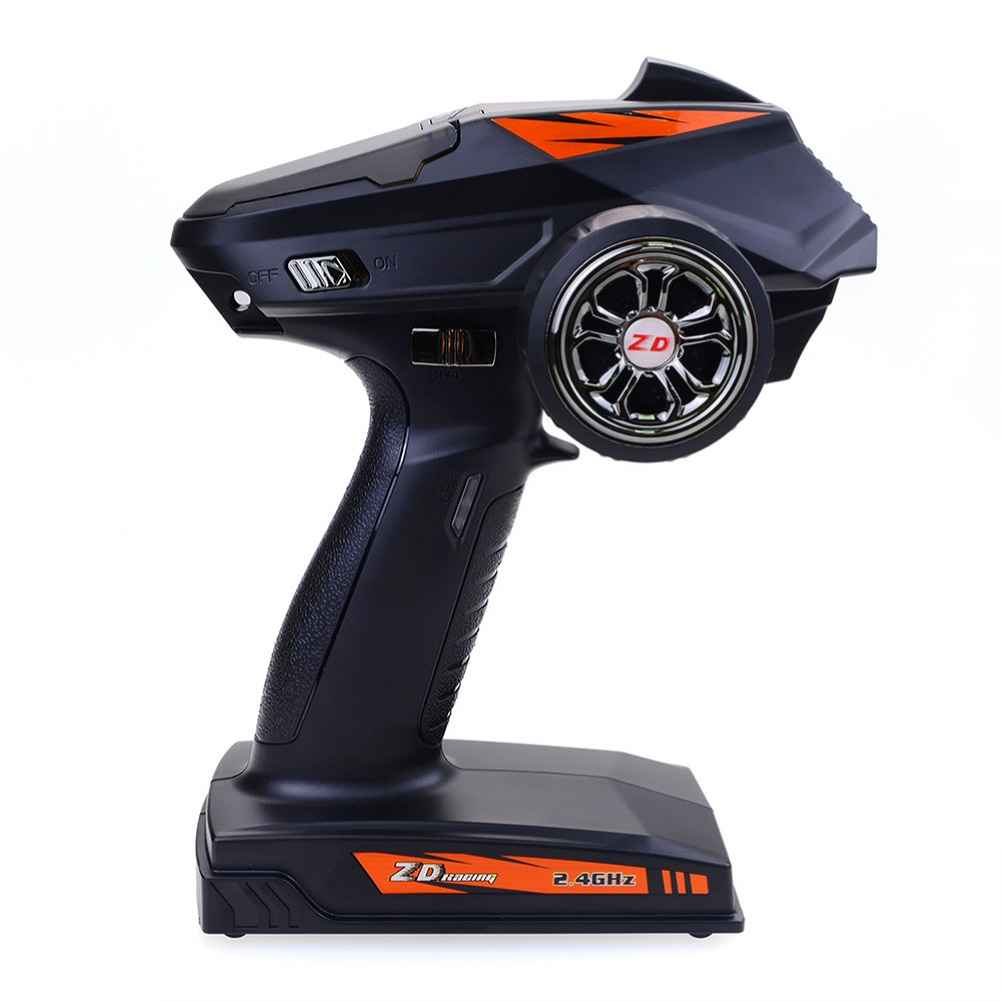

Transmitter

Frequency: 2.4G
Channel: 4CH
Control Distance:≡400m

Battery

Car Battery: 11.1v 5000mAh 3S lipo Battery(included)

Other

About the speed,you need to upgrade 150a and then you can upgrade the car battery to 6s,then it can up to 110km/h

Dimension

Car Size:550*430*205mm
Box Size:55*43*21cm
Wheelbase:370mm
Tread:270mm
Ground Clearance:80mm
Total Gear Ratio: 12.95:1
Tires:
Diameter:145mm
Width:69mm
Hub Inner Diameter 87mm
Wheel Adapter:17mm

Features:
1:8 full-scale simulation design 4WD Truggy just like a tiny real racing car! Conquer all terrain.

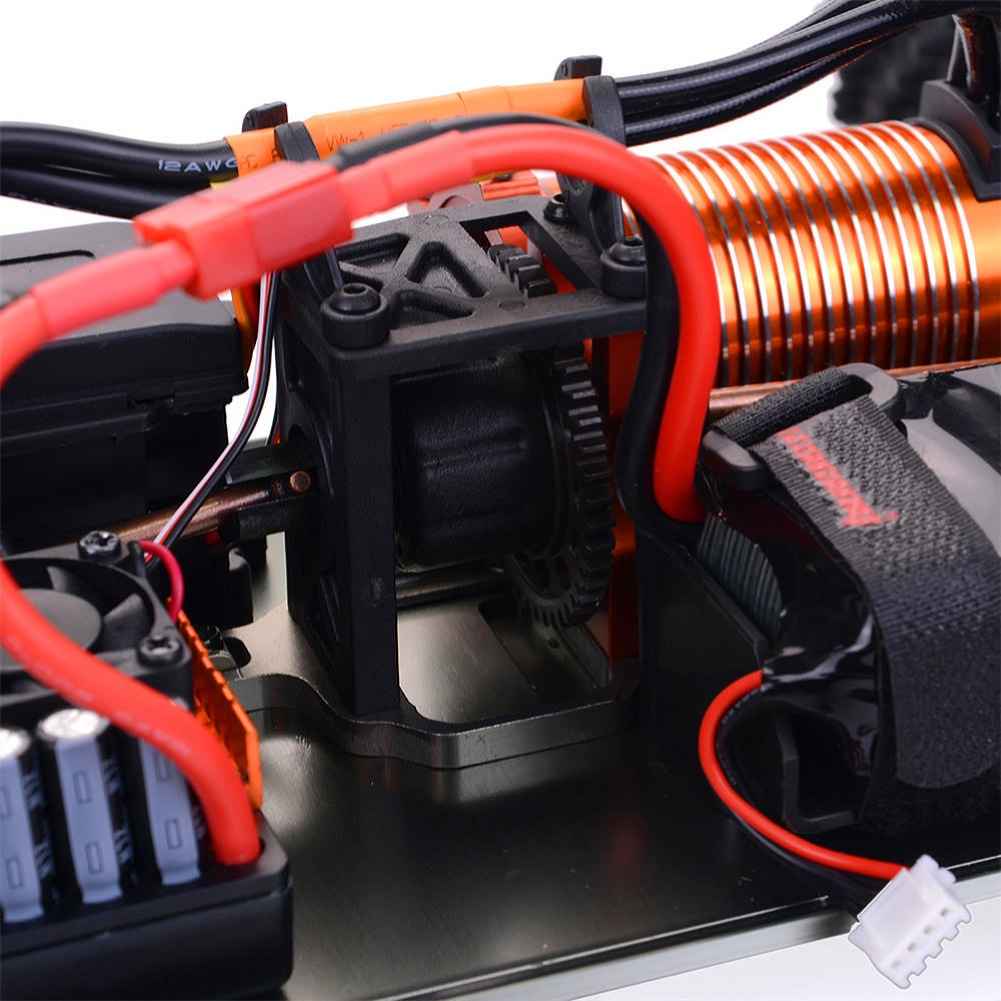

Configured with 3S 11.1V 5000mAh Li-Po battery; 120A brushless waterproof ESC, 1800KV 4068 brushless waterproof motor, 9kg standard Servo! Provide a powerful power system for the car
The sturdy body structure design and CNC machining chassis ensure that the car can withstand higher speeds and greater impact

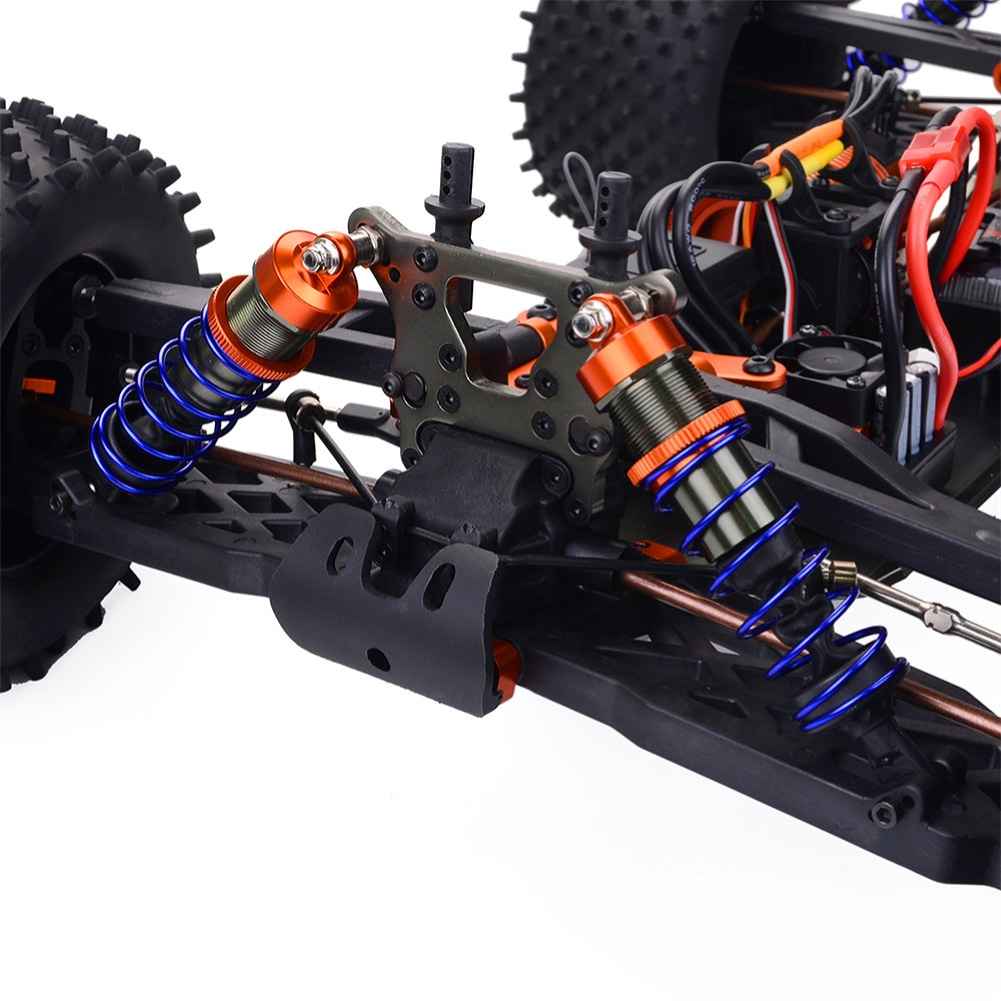

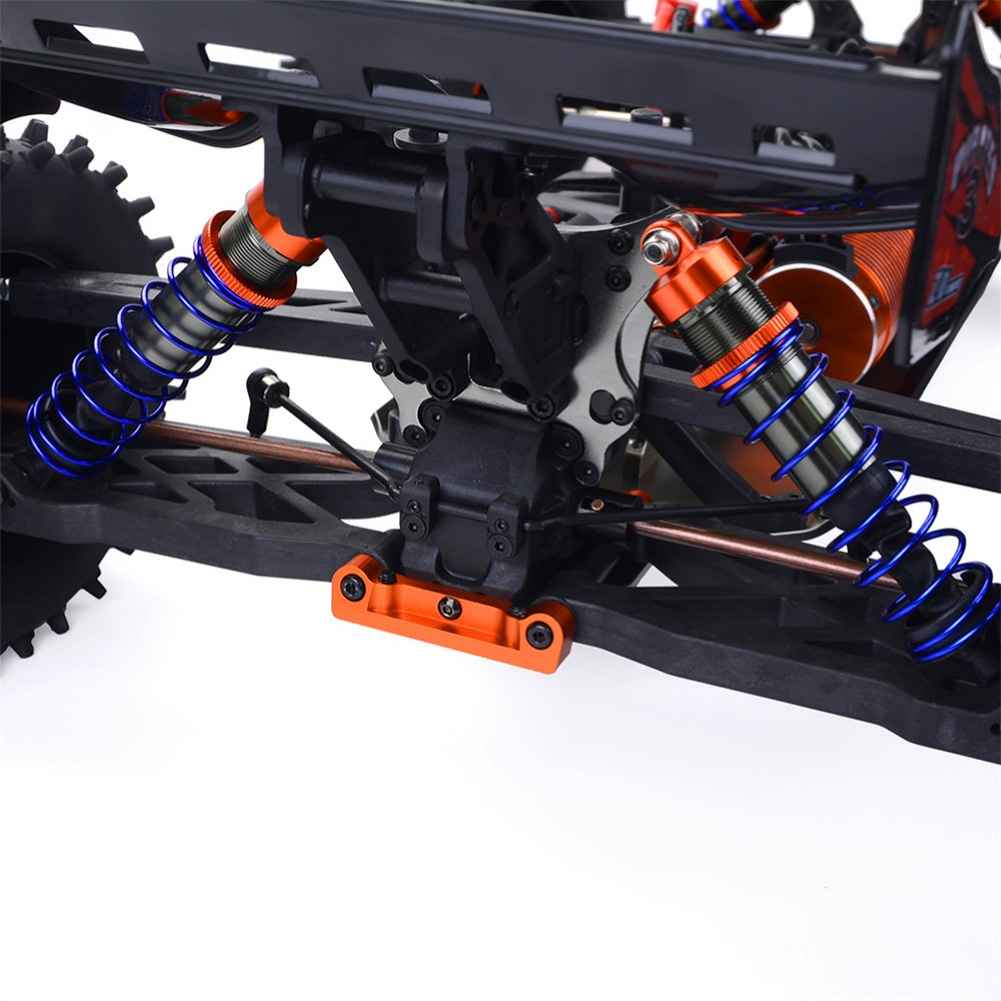

Strong oil filled shock damper with spring elastic adjustment ring for superior shock absorption
Configured 46T 25P steel medium differential gear to provide a stable guarantee for the car powertrain
New upgraded aluminum alloy C-Mounts and steering cup
With an open battery compartment design, it is compatible with most sizes of batteries on the market! The battery compartment can accommodate a max battery size of 138mm. It is recommended to configure 4S 6000mAh 14.8V Li-Po battery
Recommendation(the kit version of this car and it is not included in the package):
ZD Racing 9021-V3 Brushless Truggy Frame DIY Rc Car KIT,product id is 1575827
Online Manual Download:Please Click Here

Package Included:
1 x RC Car (included the car battery)
1 x Transmitter
1 x EU Charger
