Description
SURPASS HOBBY Rocket-Rc Shrimp Boat Mono1 Mini-Mono Eco Marine Racing 2430KV 2650KV 2950KV 3300KV 4250KV Motor 2955 Standard Version 1530 Rotor + Water Cooling Jacket
Specification:
Name:POWERFUL 29 / F29 Series Brushless Motor
Max Power:630W
Model:2955 7T / 2955 9T / 2955 10T / 2955 11T / 2955 12T
KV:4250KV / 3300KV / 2950KV / 2650KV / 2430KV
Max Voltage:4V , 8V , 0V , 3V , 5V
Max Amps:45A , 35A , 31A , 28A , 26A
NO Load Current:2.7A , 1.4A , 1.3A , 1.2A , 1.1A
Resistance(m??):0.0078 , 0.0126 , 0.0159 , 0.0192 , 0.0225
Weight:165g
Motor Size:??29.3x55x61mm(Fan version)
Rotor Size:??15x30mm
Max RPM:60K
Timing:0??-15??
Shaft:??3.175/??4
Rotor Poles:2

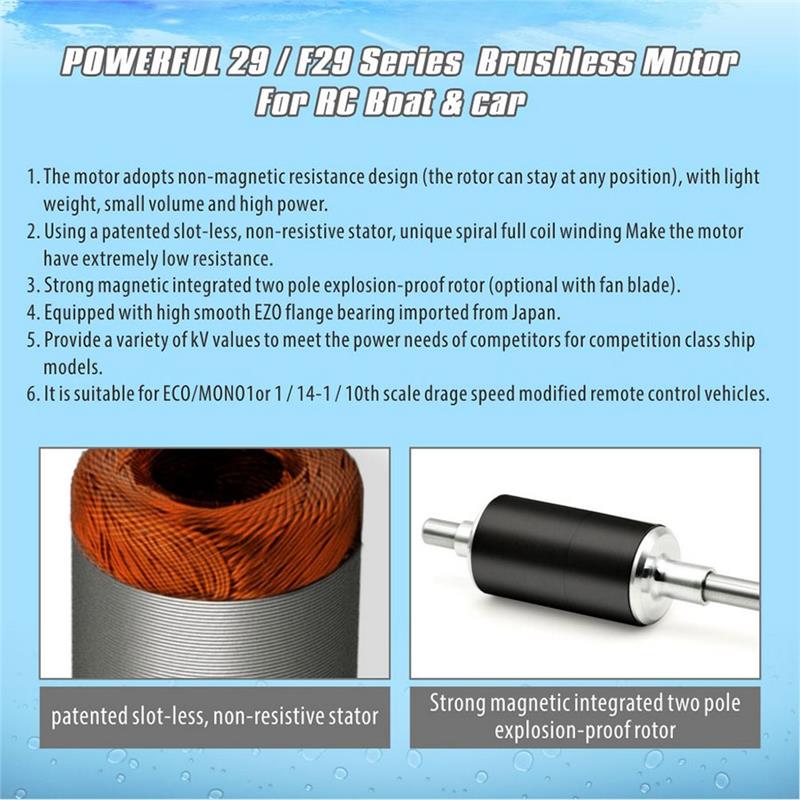

Features:
1.The motor adopts non-magnetic resistance design (the rotor can stay at any position), with light weight, small volume and high power.
2. Using a patented slot-less, non-resistive stator, unique spiral full coil winding Make the motor have extremely low resistance.
3. Strong magnetic integrated two pole explosion-proof rotor (optional with fan blade).
4. Equipped with high smooth EZ0 flange bearing imported from Japan.
5. Provide a variety of KV values to meet the power needs of competitors for competition class ship models.
6. It is suitable for ECO/MON01or 1 /14-1/10th scale drage speed modified remote control vehicles.
Package Included:
1 x Motor
1 x Water Cooling Kit
