Description
Surpass Hobby Rocket-Rc Shrimp Boat Mono1 Mini-Mono Eco Marine Racing Motor 2960 Motor 3650KV 3100KV 2800KV 2550KV 2150KV Standard Version 1535 Rotor+ Water Cooling Jacket
Specification:

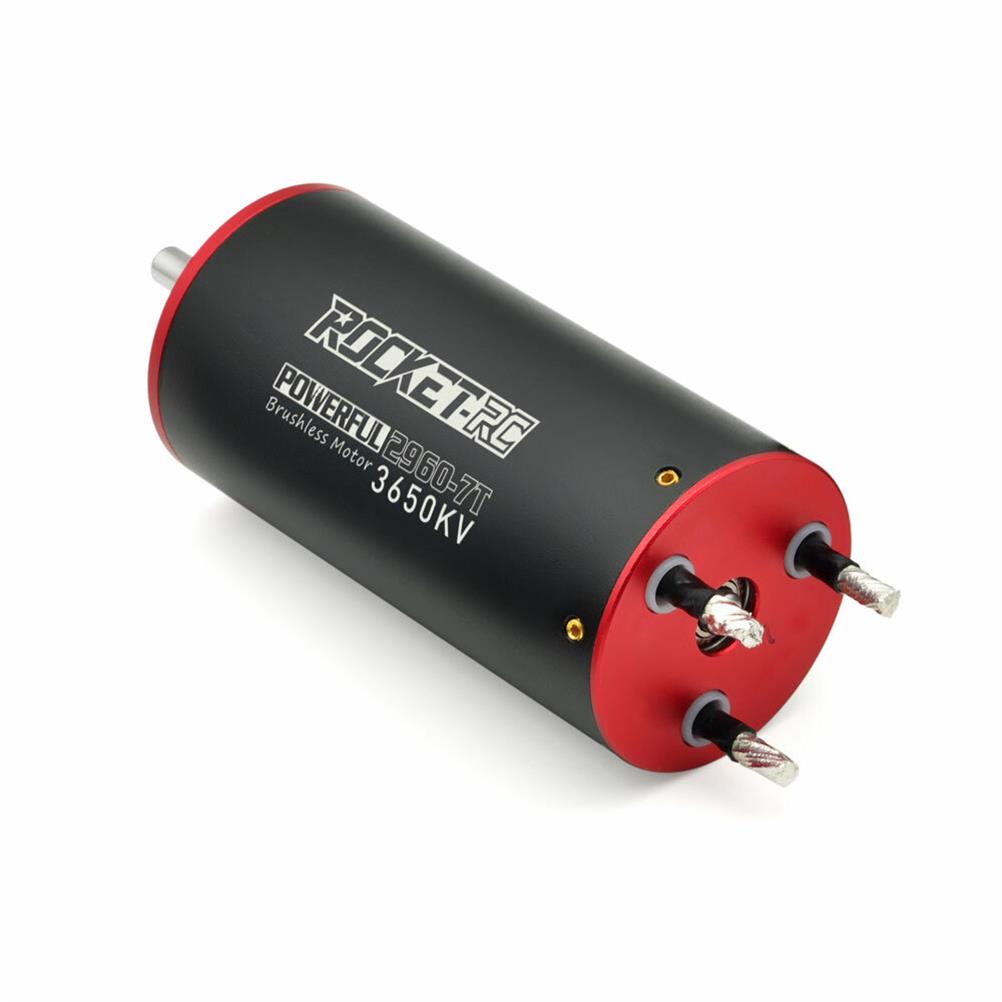

Name:POWERFUL 29 / F29 Series Brushless Motor
Max Power:735W
Model:2960 7T / 2960 8T / 2960 9T / 2960 10T / 2960 12T
KV:3650KV / 3100KV / 2800KV / 2550KV / 2150KV
Max Voltage:6V , 9V , 1V , 3V , 8V
Max Amps:45A , 38A , 34A , 31A , 26A
NO Load Current:2.6A , 2.3A , 2.1A , 1.7A , 1.2A
Resistance(m??):0.0086 , 0.0111 , 0.0136 , 0.0174 , 0.0251
Weight:185g

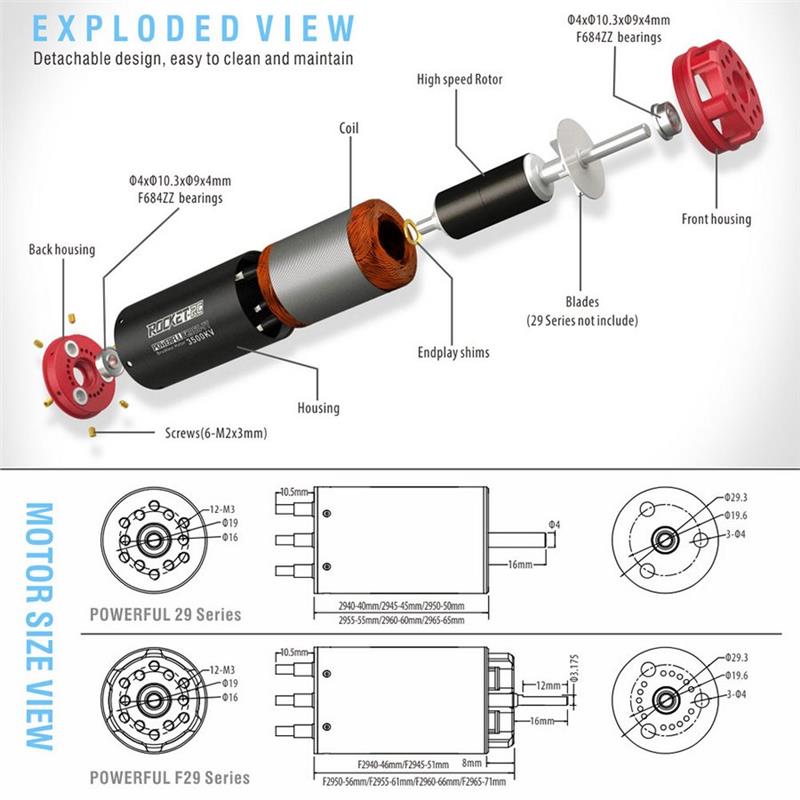

Motor Size:??29.3x60x66mm(Fan version)
Rotor Size:??15x35mm
Max RPM:60K
Timing:0??-15??
Shaft:??3.175/??4
Rotor Poles:2
Features:

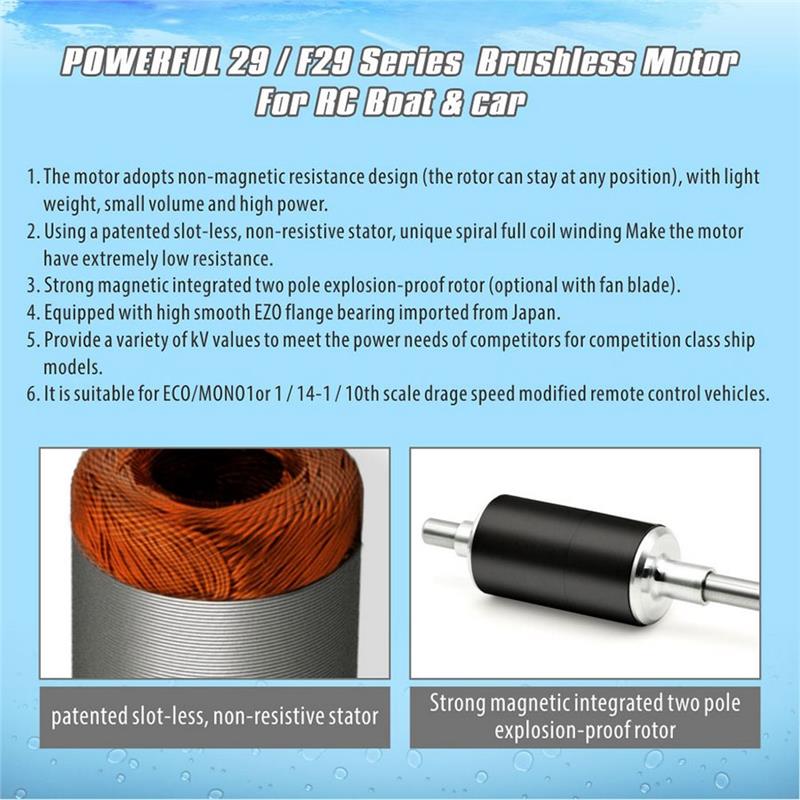

1.The motor adopts non-magnetic resistance design (the rotor can stay at any position), with light weight, small volume and high power.
2. Using a patented slot-less, non-resistive stator, unique spiral full coil winding Make the motor have extremely low resistance.
3. Strong magnetic integrated two pole explosion-proof rotor (optional with fan blade).
4. Equipped with high smooth EZ0 flange bearing imported from Japan.
5. Provide a variety of KV values to meet the power needs of competitors for competition class ship models.
6. It is suitable for ECO/MON01or 1 /14-1/10th scale drage speed modified remote control vehicles.
Package Included:
1 x Motor
1 x Water Cooling Kit
