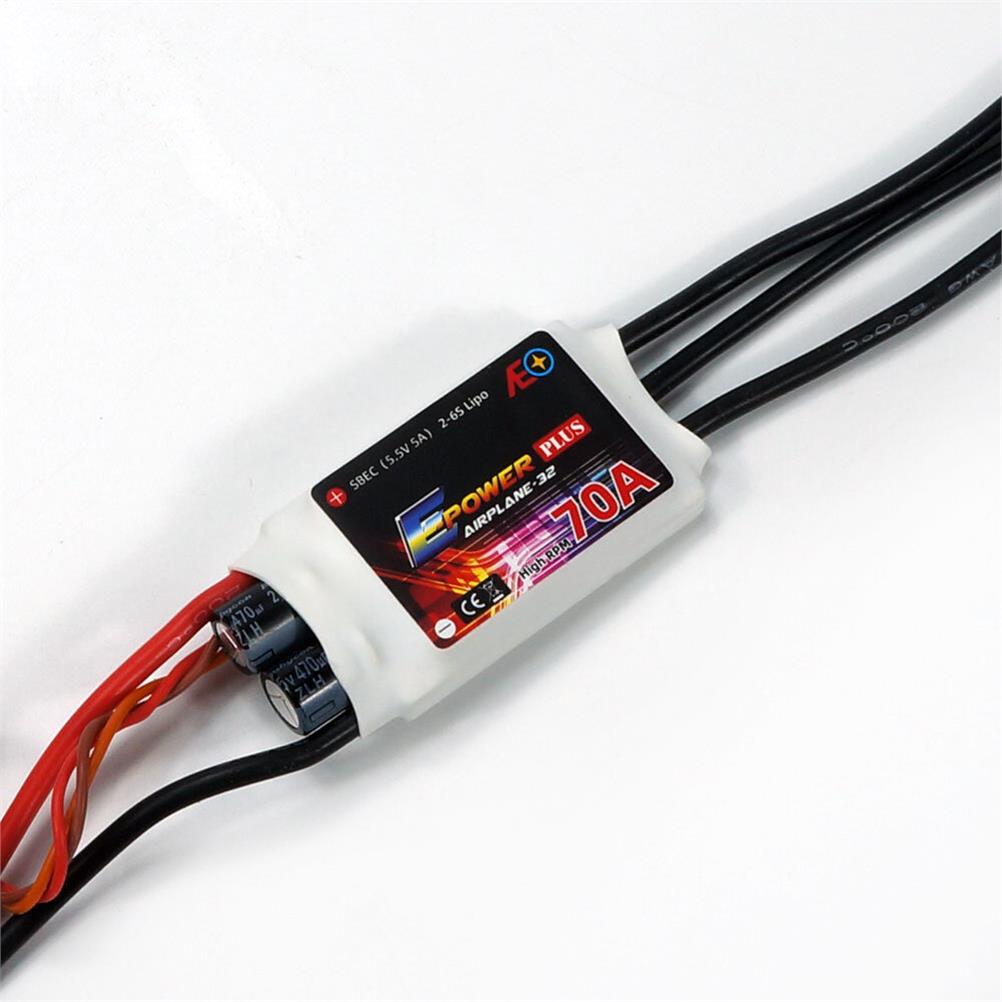

AEORC E-Power Plus Version High RPM Brushless ESC 25A/50A/70A/90A Speed Controller With 32bit MCU S-BEC For RC Airplanes Jet Plane Helicopter EDF

Price range: $16.74 through $38.76

SKU: RC1973844 Category:

Description

AEORC E-Power Plus Version High RPM Brushless ESC 25A/50A/70A/90A Speed Controller With 32bit MCU S-BEC For RC Airplanes Jet Plane Helicopter EDF

Specifications:
Brand Name: AEORC
Item Name: E-Power Plus ESC
Version: 25A, 50A, 70A, 90A, Programming Card (optional)
Specifications:

Continuous Current 25A 50A 70A 90A
Peak Current 30A/10s 55A/10s 80A/5s 100A/5s
BEC Output 5.5V/4A 5.5V/5A 5.5V/5A 5.5V/5A
Power Wire 18AWG 14AWG 14AWG 14AWG
Output Wire 18AWG 16AWG 14AWG 14AWG
Power Plug XT60 XT60 XT60 XT90
Output Plug 3.0mm 3.0mm 3.0mm 4.0mm
Signal Wire 15cm 30AWG 30cm 30AWG 30cm 30AWG 30cm 30AWG
Program Card Support Support Support Support
Size 40*18*7mm 60*25*13mm 63*33*14mm 65*33*14mm
Weight(w/o wire) 12g 45g 59g 64g

Features:
1. This ESC is designed for superior functionality and performance, primarily in all kinds of airplanes, with small size and light weight.
2. Extremely smooth, responsive and powerful.
3. Run with 32bit MCU and premium MOS tube, make sure to satisfy any of your flying operations and performance with low temperature.
4. Fine throttle and linear.
5. Support PPM and throttle calibration.
6. Compatible with most of the motors in the market.
7. Automatically detection with battery cells and voltage, protect your battery from over discharge.
8. ECO technology, save power and increase battery life.
Generally:
1. Support 1S-24S LIPO, power from 0.5A-200A continuous.
2. 500,000RPM for two poles; 250,000 RPM for 4 poles, 125,000RPM for 8 poles.
3. 60A and above supports adjustable temperature protection.
4. Plenty of parameters can be set for different kinds of applications.
5. BEC voltage can be adjustable(optional and customizable)
25A Version Included:
1x 25A ESC
50A Version Included:
1x 50A ESC
70A Version Included:
1x 70A ESC
90A Version Included:
1x 90A ESC
Programming Card Version Included:

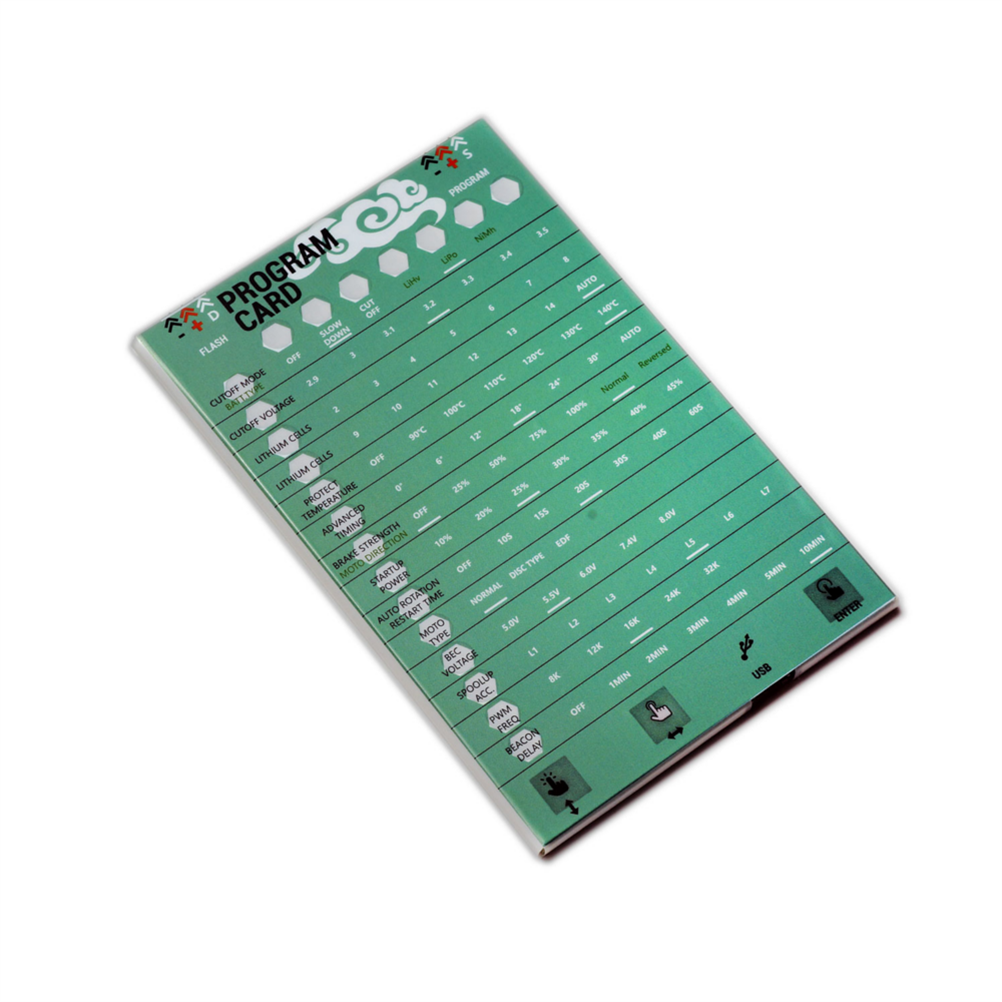

1x Programming Card









Additional information

Weight 0.022 kg
Version

25A, 50A, 70A, 90A, Programming Card
