EWRF TX663 5.8G 1.6W FPV Transmitter with MMCX RP-SMA Connectors, CNC Shell for FPV RC Drones

Description

EWRF TX663 5.8G 1.6W FPV Transmitter 25mW 200mW 800mW 1000mW 1600mW MMCX RP-SMA VTX CNC Shell for FPV RC Drones

The EWRF TX663 5.8G 1.6W FPV Transmitter is engineered for FPV RC drone enthusiasts, offering a high power output of 1.6W for long-range and stable signal transmission. Its compact design, measuring 36 x 36 x 10mm and weighing just 18g, makes it suitable for versatile applications. The device supports a wide voltage input range of 7-28V, ensuring compatibility with various power systems. It features robust MMCX and RP-SMA connectors, facilitating secure antenna connections. Additionally, the transmitter is compatible with IRC Tramp Smart Audio, allowing for in-flight parameter adjustments. Ensure proper installation of the antenna and maintain airflow to prevent overheating.

WARNING:
1. Install antenna before use.
2.To prevent overheating, provide constant airfiow and a well ventilated environment. Install a cooling fan if operating in confined conditions.

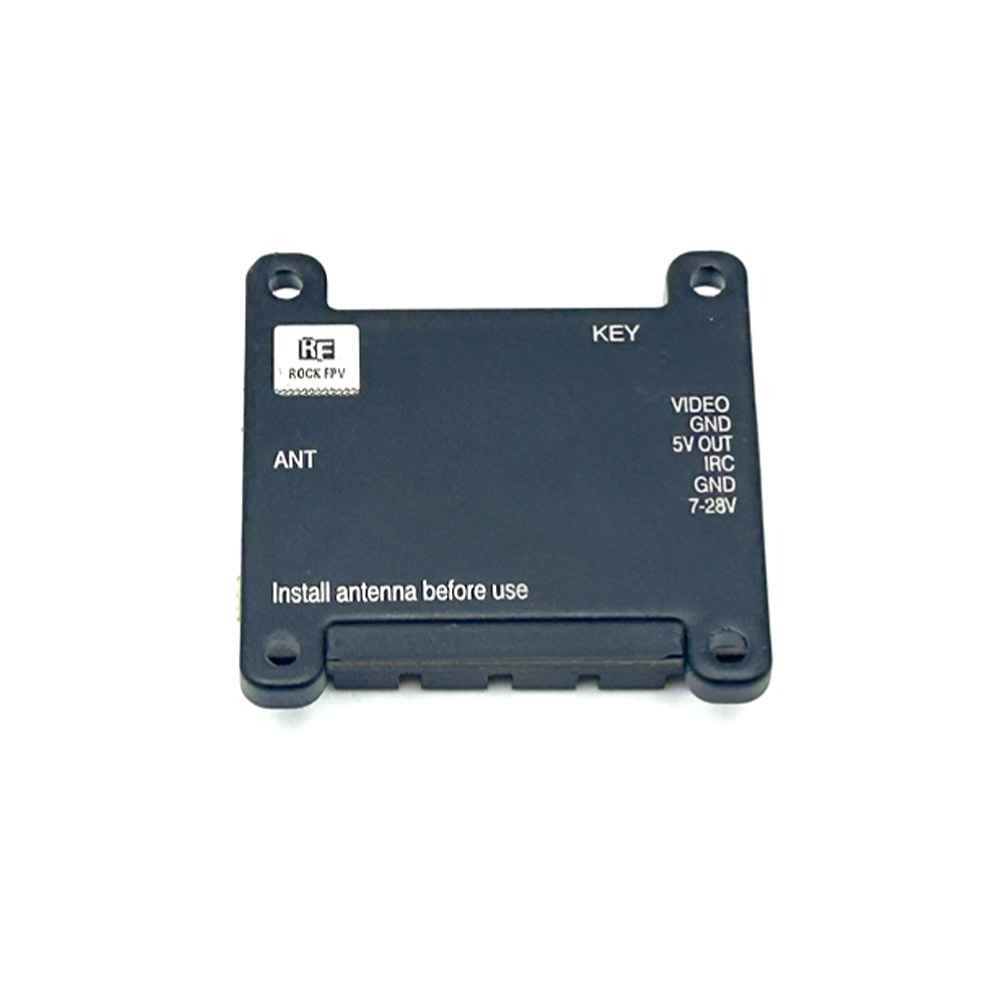

3.The 5V Output is just used for a Camera/Cooling Fan! Don’t connect Power Input / Battery to 5V Output port. Otherwise the VTX will be damaged.
Specifications:

Frequency:

5.8G

Power Output:

1.6W

Voltage Input:

7-28V

Size:

36*36*10mm

Weight:

18g

Connectors:

MMCX, RP-SMA

Smart Audio:

IRC Tramp

Feature:
1.High Power Output: 1.6W power output ensures long-range FPV transmission with stable signal quality.
2.Compact Design: Measuring only 363610mm and weighing 18g, this lightweight transmitter is ideal for various applications.
3.Smart Audio Support: Compatible with IRC Tramp Smart Audio, allowing for in-flight parameter adjustments.
4.Wide Voltage Input: Supports a broad voltage range of 7-28V, flexible for different power systems.
5.Robust Connectors: Equipped with MMCX and RP-SMA connectors for easy and secure antenna connections.

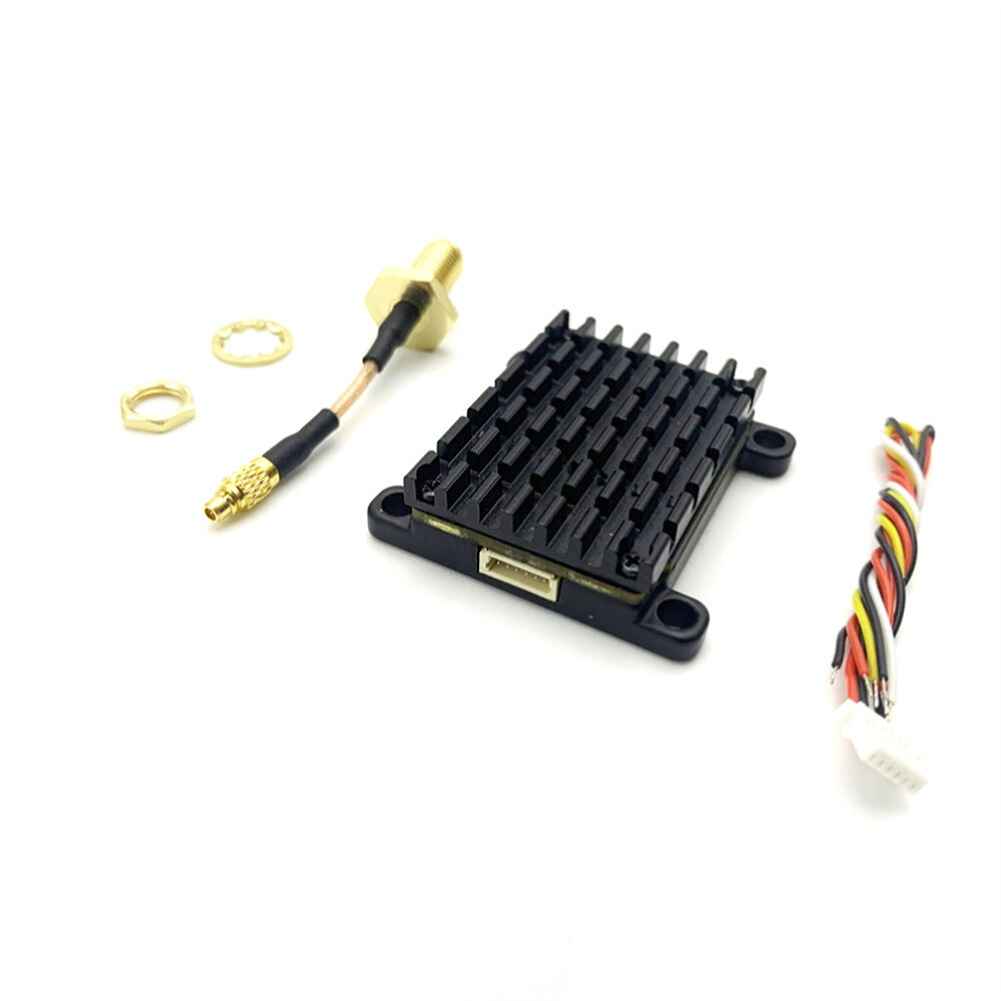

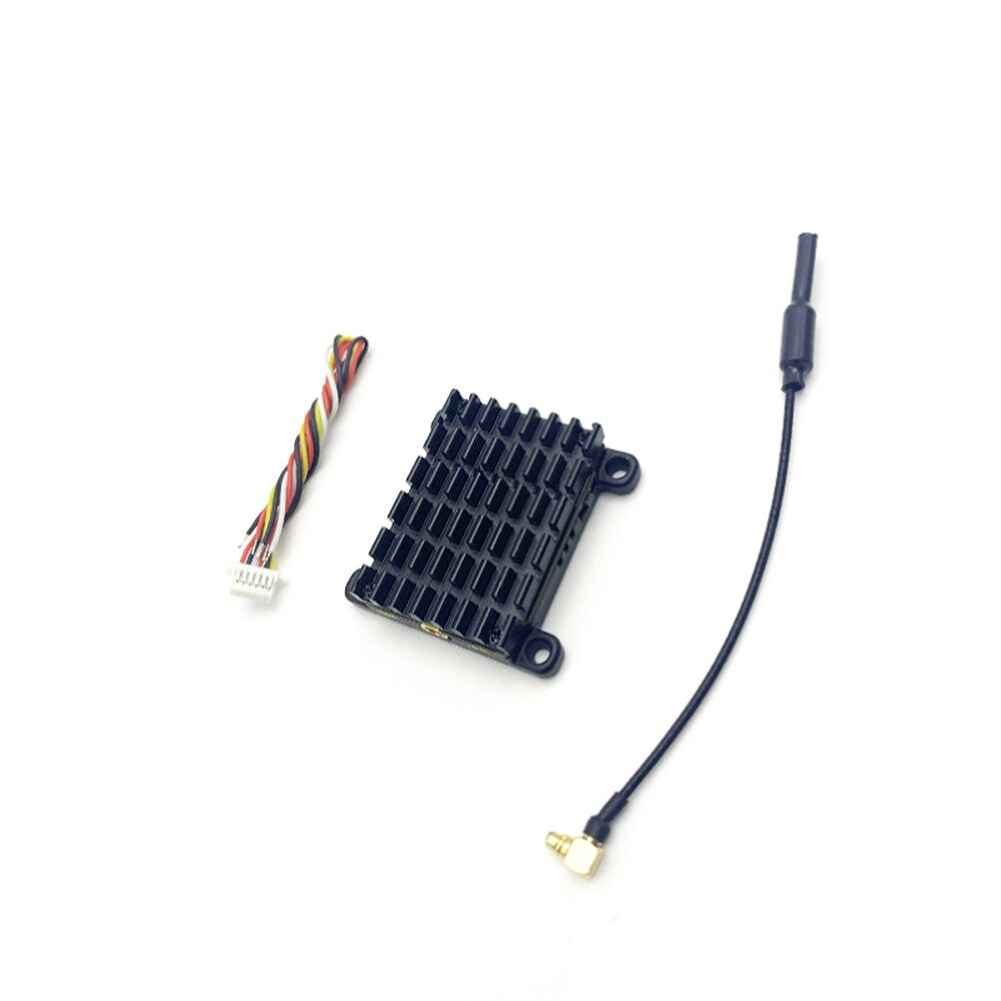

Package Included:
1 x TX663 5.8G 1.6W Transmitter VTX Camera
1 x Soft Antenna OR MMCX Adapter Cable
