Description
SJ RC832 Mini Wireless 4.9G-5.8G 56CH 5dB Two-Way Video/Audio High Sensitivity Receiver for RC Drones
The SJ RC832 Mini Wireless Receiver is designed for RC drone enthusiasts looking for high sensitivity and reliable performance. This receiver supports 56 channels across 7 frequency bands, offering flexibility and ease of use. With two buttons for seamless channel and band switching, and a dual-number display for quick frequency identification, it ensures smooth operation. The device remembers the last used channel and frequency upon powering on, enhancing user convenience. It provides two-way video and audio outputs compatible with PAL, NTSC, and CECAM video standards, and a 5dB sensitivity gain for improved reception. The compact design, with dimensions of 50x50x15 mm and a weight of just 42.5g, makes it a portable and efficient choice for your FPV system needs.
Basic function:
1) 56 channels,7 frequency band wireless receiving.
2) Two buttons for channel and band exchange individually.
3) Two number display, timely locate the current receiving frequency and band
4) When power on, storage memory shows channel and frequency of the last time.
5) Two-way video and audio signal output ( video: PAL, NTSC,CECAM ; Audio: 6.5MHz)
6) 5dB sensitivity gain more than normal receivers
7) Wide dynami power supply ( 12v)
Specifications:
Supply current: 130mA
RF input matching: 50ohm SMA
Video output voltag: 1.0Vp_p75次
Audio output voltag: 1.0Vp_p 10K次
Dimension: 50℅50℅15 mm
Weight: 42.5g

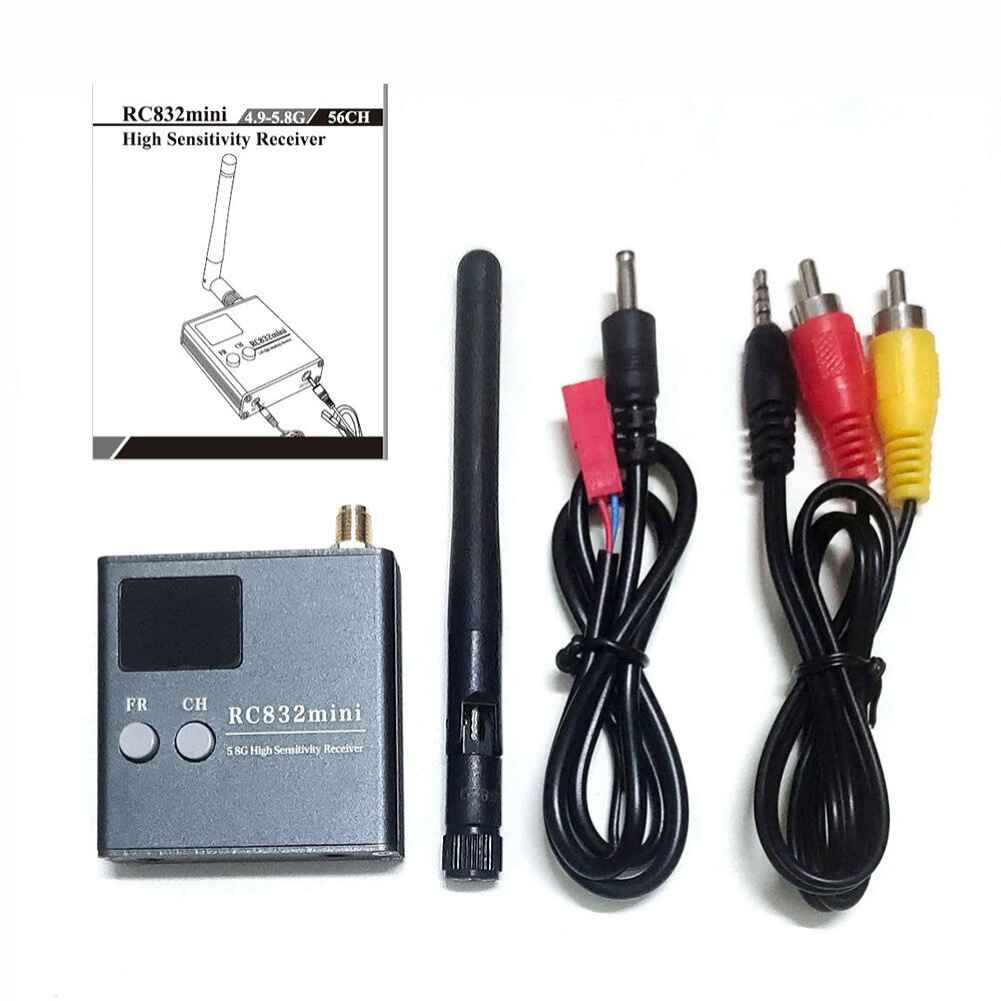

Package Included:
1 Kit x RC832mini 4.9G-5.8G 56CH high Sensitivity Receiver
