HEQ G-PORT 3-Axis Gimbal Stabilizer for DJI O4/O4 Pro Air Unit, Lightweight Quick-Release, Compatible with FPV Drones and Fixed Wing Airplanes

Description

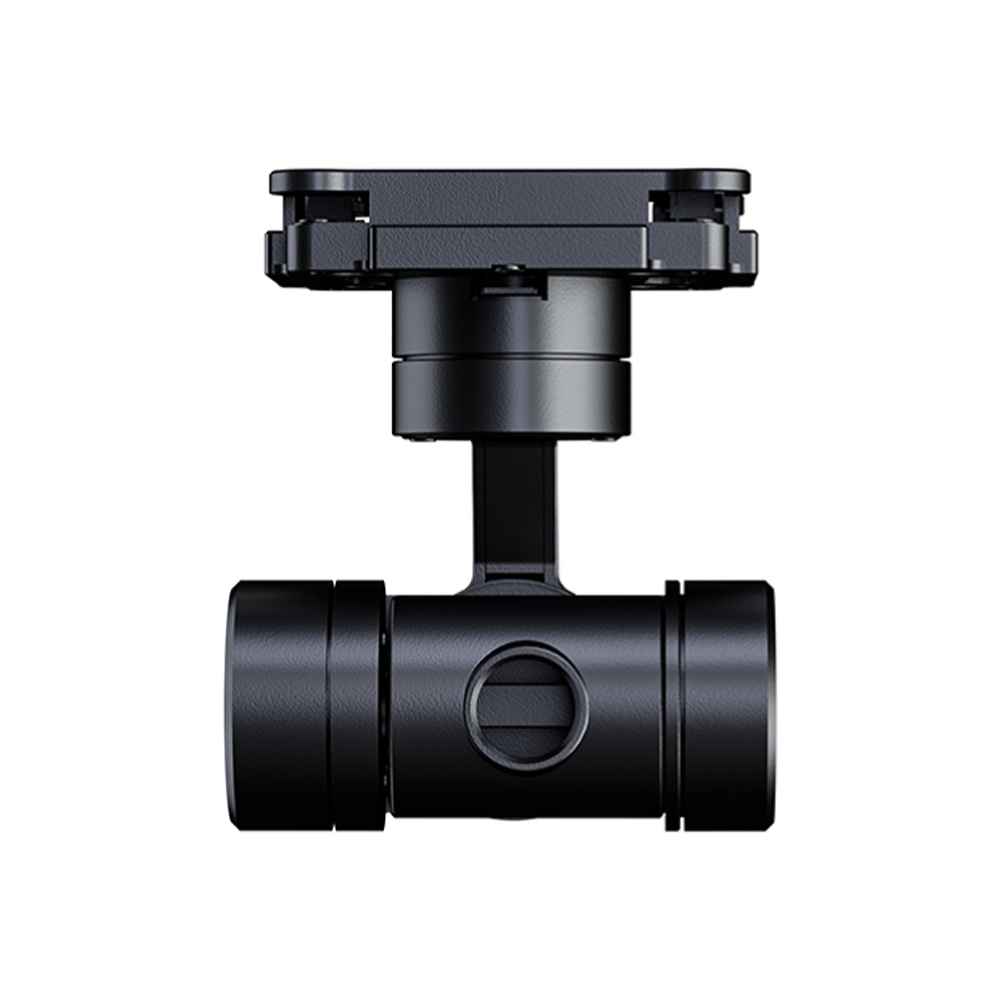

HEQ G-PORT 3-Axis Gimbal Stabilizer Lightweight Quick-Release Design for DJI O4/ O4 Pro Air Unit FPV Drones Fixed Wing Airplane

The HEQ G-PORT 3-Axis Gimbal Stabilizer is designed for fixed-wing FPV and drone enthusiasts seeking high stability and versatile installation options. This lightweight gimbal supports both upright and inverted setups, exclusively accommodating the DJI O4 series. It offers seamless control through sbus, pwm, and mavlink inputs, making it adaptable to various flight platforms. This allows users to quickly customize their gimbal cameras. The gimbal’s mechanical range includes pitch, yaw, and roll adjustments, providing smooth and precise movements. Note: Camera not included and must be purchased separately. The latest firmware can be downloaded from the HEQ AVTech Download Center for improved functionality.

Note:This product does not include a camera, which needs to be purchased separately.
Description:G-port is a three-axis gimbal component developed by HEQ for fixed-wing FPV and drone enthusiasts. G-port has high stability and supports upright and inverted installation. It can be installed with O4 series only, supports sbus, pwm, mavlink input, and is compatible with a variety of flight platforms, allowing players to quickly build their own personalized gimbal camera.
Specification:

Brand:

HEQ

Model:

G-PORT 3-axis Mechanical Gimbal DJI O4/O4 PRO Air Unit

Gimbal Angle:

Pitch: -135‵ to 45‵Yaw: -135‵ to 135‵Roll: -45‵ to 45‵

Support Control Methods:

sbus, pwm, mavlink

Support Camera Types:

DJI O4/ O4 Pro Only

Power Supply Range:

12v~18v

Weight:

DJI O4 Air Unit: 75gDJI O4 Air Unit Pro: 71g

Download

G-Port Gimbal serial communication protocol

The serial communication protocol of G-Port and G12 is the same

G-Port Manual

Please download according to your needs

If you need to know more about gimbal head tracking for DJI O3, please click Here to learn more.
Firmware Version 202506 Update Details:
Resolved the issue where the gimbal would freeze when the control was limited to the left/right in lock-head mode.
Corrected the inversion of control direction when the camera is mounted in an upward position under lock-head mode.
Fixed the gimbal jittering that occurred at certain positions during directional control.
Rectified the sudden return-to-center issue during gimbal operation.
Firmware Download Instructions:
The latest firmware is now available for download on HEQ official website: HEQ AVTech Download Center.
Navigate to the download path: HEQ AVTech Download Center 汪 Micro Cloud Cameras 汪 G-Port 3-Axis Gimbal Assembly, and select the most recent firmware for download.
Please review the update notes carefully and follow the provided guidelines to ensure a smooth update process. Should you encounter1 any issues during the update, please don’t hesitate to reach out to our technical support team for assistance.

Package Included:
1 x G-port Gimbal Assembly
3 x G-port Cable
1 x Bracket Carbon Plate
4 x Shock-absorbing Ball
6 x Matching Screws
1 x Certificate of Conformity
1 x Instruction Manual
