GEPRC MATEN 5.8G VTX Transmitter with Microphone, 2500mW Power, 72CH, IRC Tramp Protocol for FPV RC Drones

Description

GEPRC MATEN 5.8G 25mW/200mW/600mW/1600mW/2500mW/Pit Mode 72CH VTX Long Range High Power Built in Microphone Transmitter for FPV RC Drone

The GEPRC MATEN 5.8G VTX is a high-power image transmission system designed for FPV RC drones. It offers five adjustable power levels, reaching up to 2500mW, ensuring stable signals and excellent penetration for long-range flights. Constructed with a high-strength aluminum alloy CNC shell, it provides superior heat dissipation and impact resistance. The VTX supports the IRC Tramp protocol, allowing quick parameter adjustments via OSD, and features a wide voltage input range of 7-36V. With a built-in microphone for real-time audio transmission and temperature control protection, this VTX is both versatile and reliable. It accommodates a 30.5mm x 30.5mm (M3) installation hole position.

Summary:
The MATEN 5.8G 2.5W VTX high-power image transmission newly developed by the GEPRC team is now officially released. Its performance is very powerful, with 5 adjustable power levels and a maximum power of up to 2500mW.The transmission signal is very stable and the penetration ability is excellent.

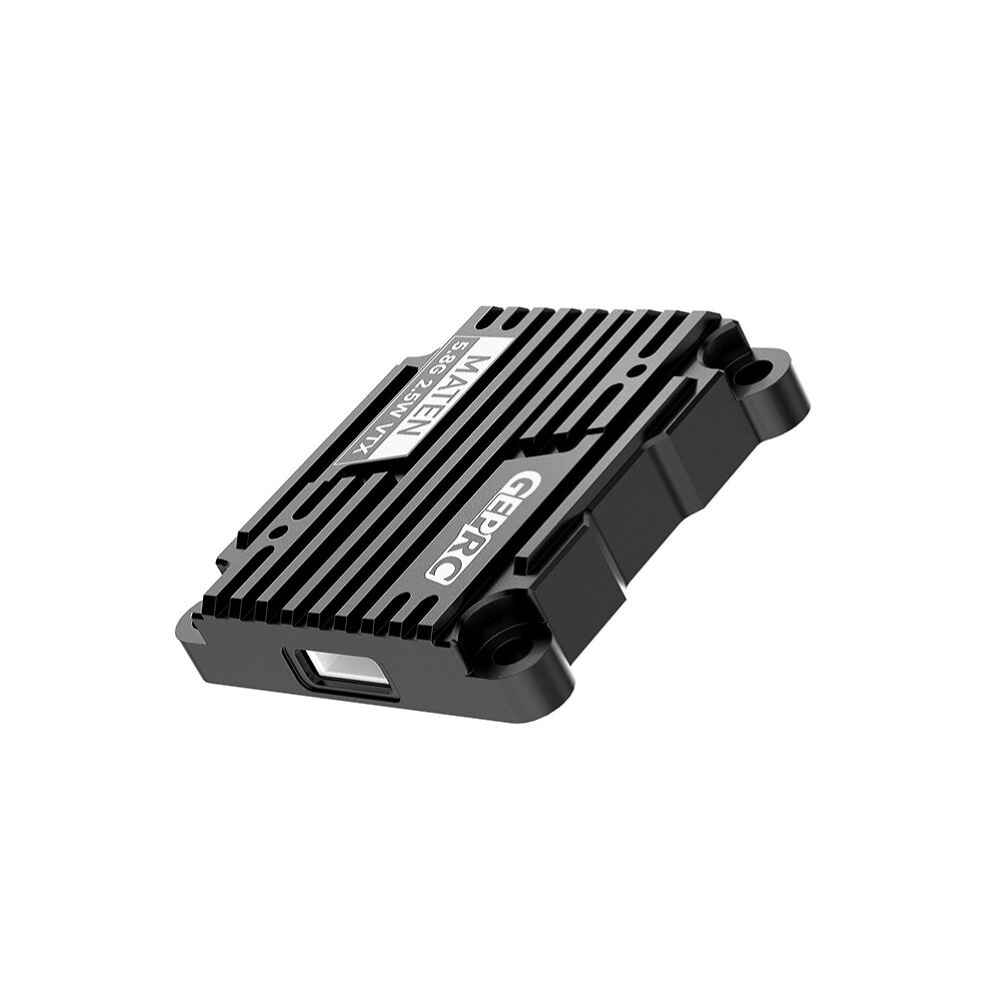

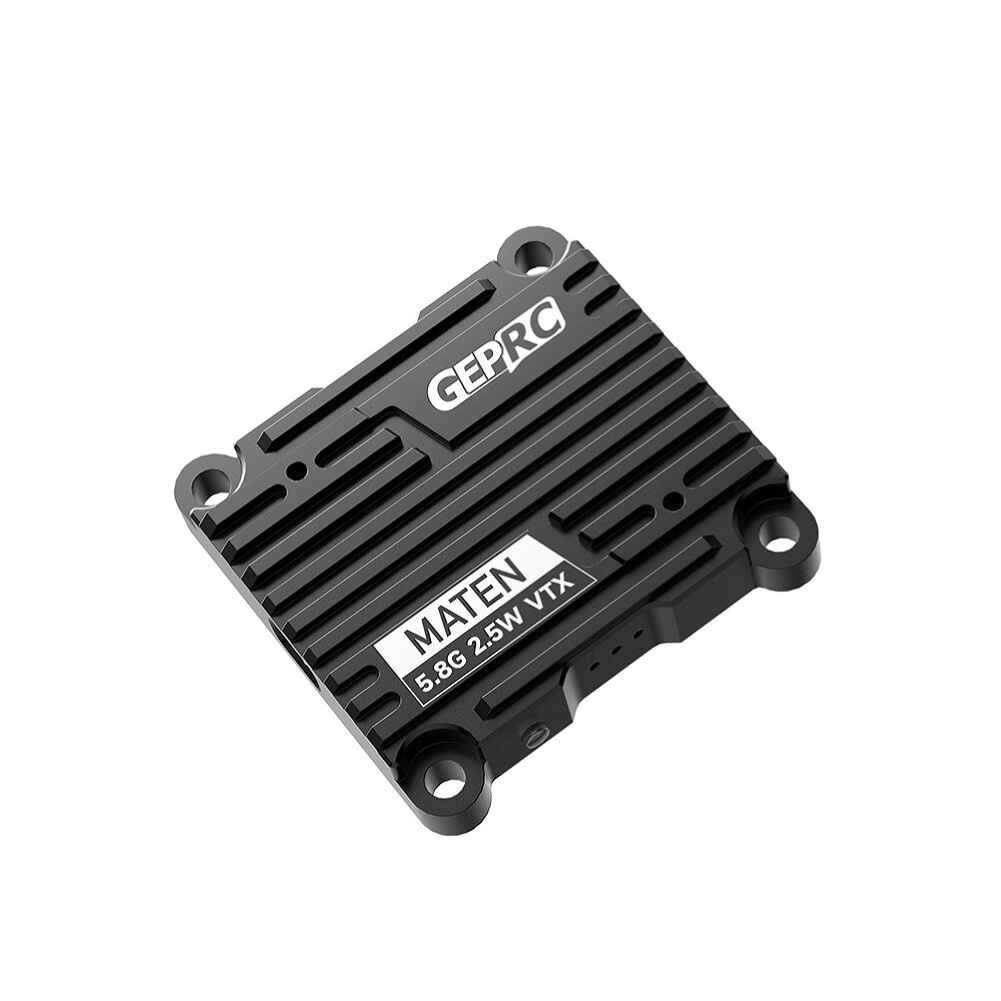

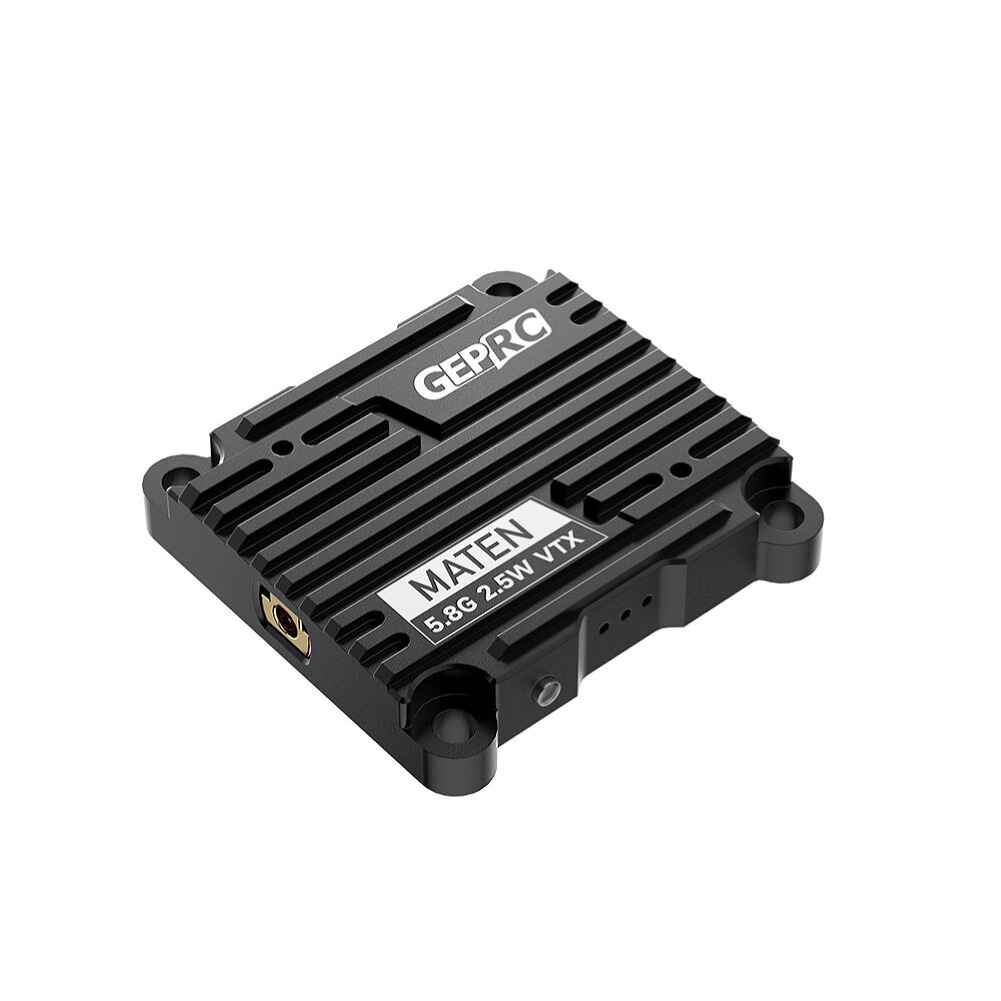

MATEN 5.8G 2.5W VTX uses high-strength aluminum alloy CNC shell to assist heat dissipation.The unique appearance design stronger impact resistance and better heat dissipation performance.
It supports the IRC Tramp protocol and can use the OSD to quickly adjust parameters.
It has a wide voltage input of 7-36V and temperature control protection function to prevent overheating and burning.Support 30.5沁30.5mm(M3) installation hole position.
Specifications:
Model券MATEN 5.8G 2.5W VTX
Dimension券36.4沁36.4沁7.9mm
Mounting hole券30.5沁30.5mm(M3)
Output power券25mW/200mW/600mW/1600mW/2500mW/Pit mode
Frequency券5.8G
Channel券72CH
Input voltage券DC7-36V侈2-8S Battery佩
Output voltage券5V@600mA
Protocol券IRC Tramp
Antenna interface券MMCX
Cable interface券SH1.0 6pin
Video format券PAL/NTSC
Microphone: Built in microphone
Weight券18g
Feature:
1.Five levels of adjustable power, up to 2500mW, suitable for long distance flight.
2.Selected high strength aluminum alloy CNC shell, auxiliary heat dissipation.
3.Wide voltage input, supports 7V-36V voltage input.

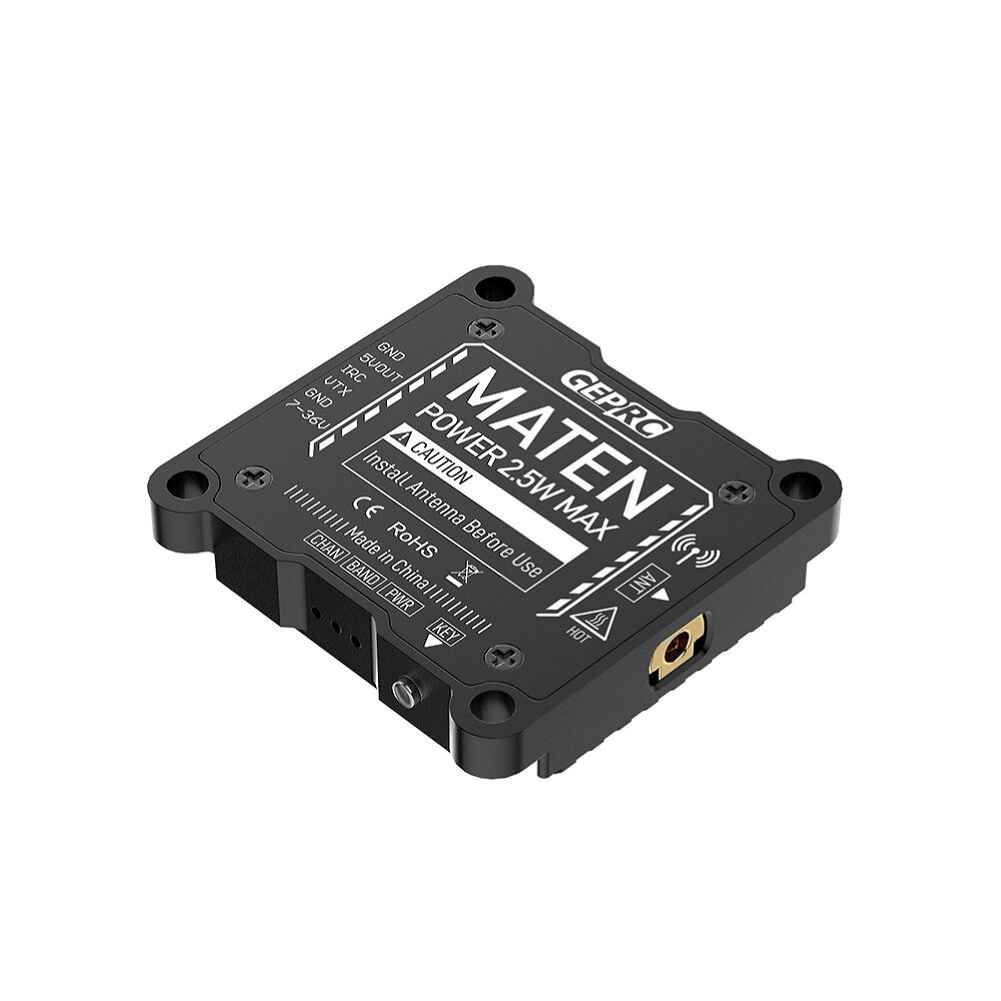

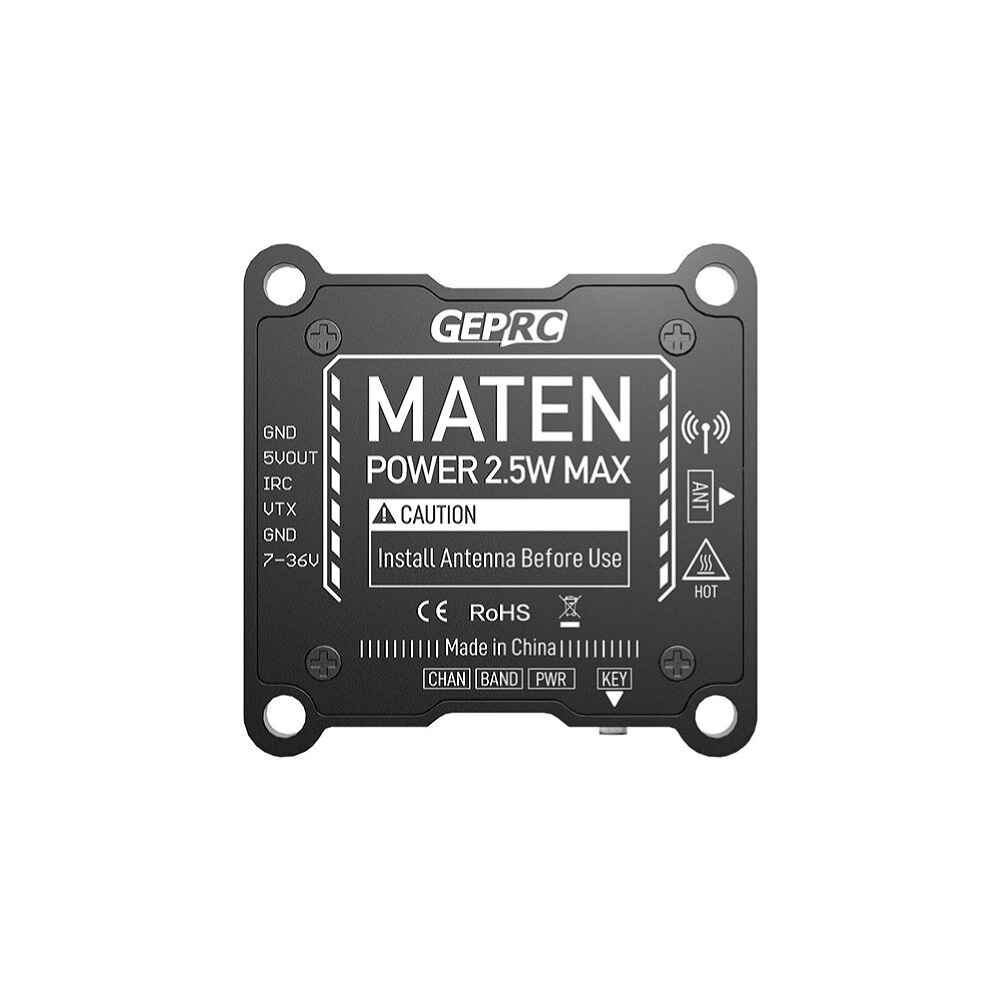

4.One function buttons, three indicator lights, easy to control.
5.VTX control protocol is IRC Tramp,supports OSD parameter adjustment.
6.Temperature control protection function that can prevent high temperature burning.
7.VTX built in microphone,real-time transmission of Droneㄙs sounds.
8.Supports 72 transmission channels.
9.Support 30.5沁30.5mm(M3) installation hole position.
Notes:
1.Install Antenna before use.
To prevent overheating,provide constant airflow and a well ventilated environment.Install a cooling fan if operating in confined conditions.
The 5V Output is for a Camera/Cooling Fan use only!Do not connect Power Input/Battery to 5V Out. Serious damage will occur to VTX.
Includes:
1 x MATEN 5.8G 2.5W VTX
1 x MMCX Copper tube antenna
1 x MMCX to SMA connector
1 x sh1.0 6P Connecting cable
5 x M3*7 screws
5 x M3*8 screws
5 x M3 x 10 hexagon
5 x M3*5 isolation column
5 x M3 nylon nut
1 x product description

Package Included:
1 x MATEN 5.8G 2.5W VTX
1 x MMCX Copper tube antenna
1 x MMCX to SMA connector
1 x SH1.0 6P Connecting cable
5 x M3 7 screws
5 x M3 8 screws
5 x M3 x 10 hexagon
5 x M3 5 isolation column
5 x M3 nylon nut
1 x Product description
