Description
Foxeer Reaper Infinite 5.8GHz 40CH 5W Pit Mode/25mW/500mW/1500mW/3000mW/5000mW FPV Transmitter VTX For RC Drone Airplane Long Range

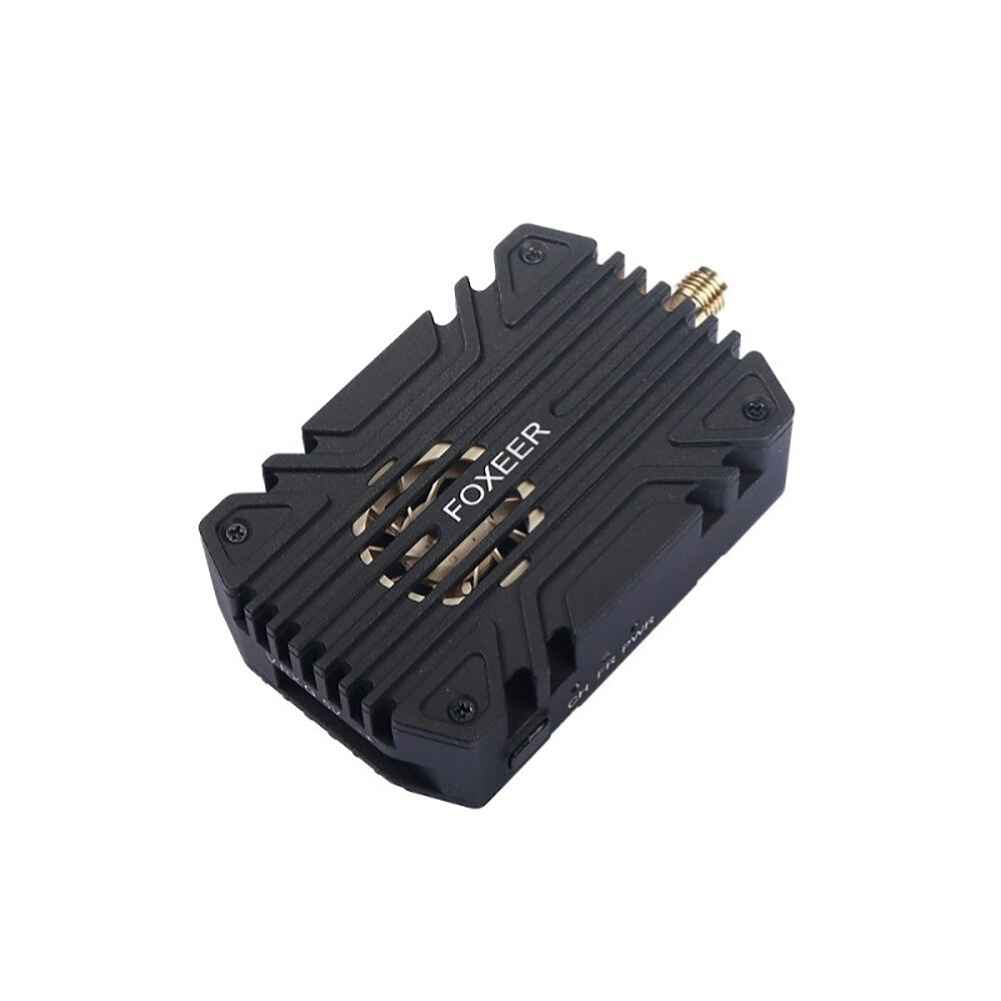

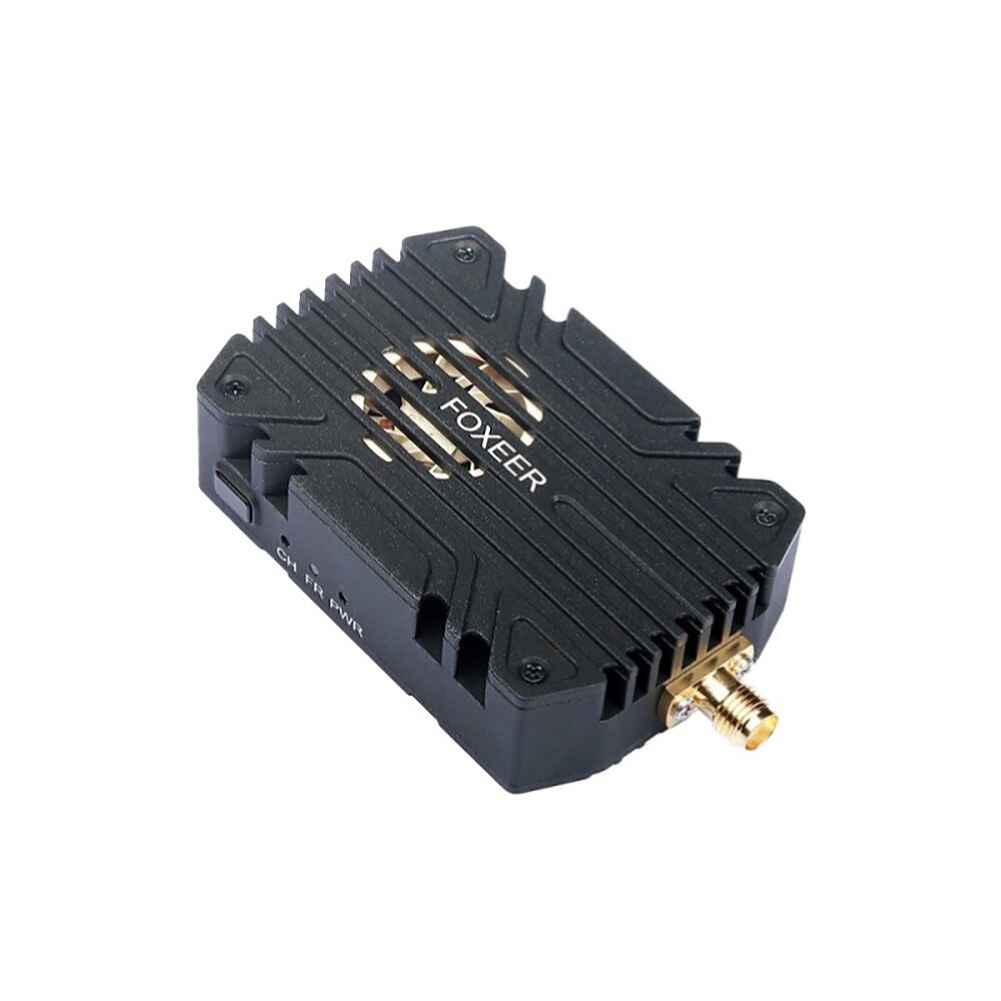

The Foxeer Reaper Infinite FPV Transmitter VTX is designed for RC drones and airplanes, offering exceptional long-range capabilities with power options from 25mW to 5000mW. It features a wide input voltage range of 9-36V and provides an output voltage of 5V. With 40 channels and a user-friendly pit mode accessed by a simple double-click, this transmitter ensures ease of use. Weighing just 58g, it has a compact design with a 20mm x 20mm M2 mounting hole, allowing for easy installation in tight spaces. The transmitter is equipped with an SMA connector and demonstrates efficient power consumption, making it an ideal choice for various operational conditions.
Specifications
Name: Reaper Infinite Transmitter VTX
Input Voltage: 9-36V
Output Voltage: 5V
Channels: 40CH
Power: 25mW/500mW/1500mW/3000mW/5000mW (red light flash 1/2/3/4/5 times correspondingly)
Pit Mode: Double click to enter
Weight: 58g
Mounting Hole: 20*20mm M2
Size: 41*20*17mm
Connector: SMA
Consumption: 9V/3A; 36V/0.8A
Features:
High Power Output: The Reaper Infinite offers multiple power options, reaching up to 5000mW for unparalleled transmission distance.
Wide Voltage Range: With an input voltage range of 9-36V, this device can accommodate a diverse array of power supply conditions.
Easy Pit Mode Access: Entering pit mode is as simple as a double-click, making the device highly user-friendly.
Durable and Compact: Despite its lightweight at 58g, the Reaper Infinite’s size and M2 20*20mm mounting hole ensure easy installation in tight spaces.
Power Consumption Efficiency: Optimal power consumption rates of 9V/3A; 36V/0.8A for maximum efficiency in various operation conditions.
Package Included:
1 x Reaper Infinite Transmitter VTX
