Description
BLUEARROW D30T MG HV Digital High Precision Ultra-Micro Servo
The BLUEARROW D30T MG HV Digital Ultra-Micro Servo is engineered for precision and durability, making it ideal for ultra-micro remote-controlled vehicles. This servo features a PWM pulse control system and a high precision potentiometer for accurate rotation angles. With a compact design, it offers a full digital circuit and chrome-titanium alloy gears, ensuring superior performance and longevity. It operates efficiently across a voltage range of 3.5V to 7.4V and maintains a fast response time, with speeds as quick as 0.04 seconds per 60 degrees at 6.0V. Lightweight at just 4.60g, this servo is built with an ABS shell and features a durable hollow cup motor.
Specifications:
Control System: PWM Pulse Control
Processor: Integration Digital Circuit Processor
Required Pulse: 3 to 5V peak square waves
Operating Frequency: 1520米s/333Hz
Rotation Angle Sensor: High Precision Potentiometer
Rotation Angle: Left: 60~, Right: 60~
Voltage (DC): 3.5V to 7.4V
Temperature Range: -20⊥ to 70⊥
Operational Angle: 60 degrees at 600米s
Running Direction: Clockwise/900米s-2100米s
Pulse Width Range: 900-2100米s
Midpoint Pulse: 1500米s
Speed (No Load): 0.06sec/60~@4.2V, 0.04sec/ 60~ @ 6.0V
Torque (Stall full): 1.02 kg.cm@4.2V, 1.35 kg.cm @ 6.0V
Standby Current/Ampere: 0.300A/4.2V, 0.300A/6.0V
Operating Current/Ampere: 0.300A/4.2V, 0.300A/6.0V
Stall Current/Ampere: 0.300 A/4.2V, 0.300 A/6.0V
Dead Width: 1米s
Bearing: Center Oily Bearing
Bearing Specification: 1.5mm℅4mm℅1.5mm
Gear Material: Chrome-Titanium Alloy (7075+6061)
Shell Material: ABS
Plug Specification: 120.00mm
Weight: 4.60g
Cable specifications: OD0.6/11×0.08mm 3p x120mm (JST-1.50mm) or (JR) Weight: 4.60g
Dimensions (Length x Width x Height): 19.60*8.00*17.40mm
Features:

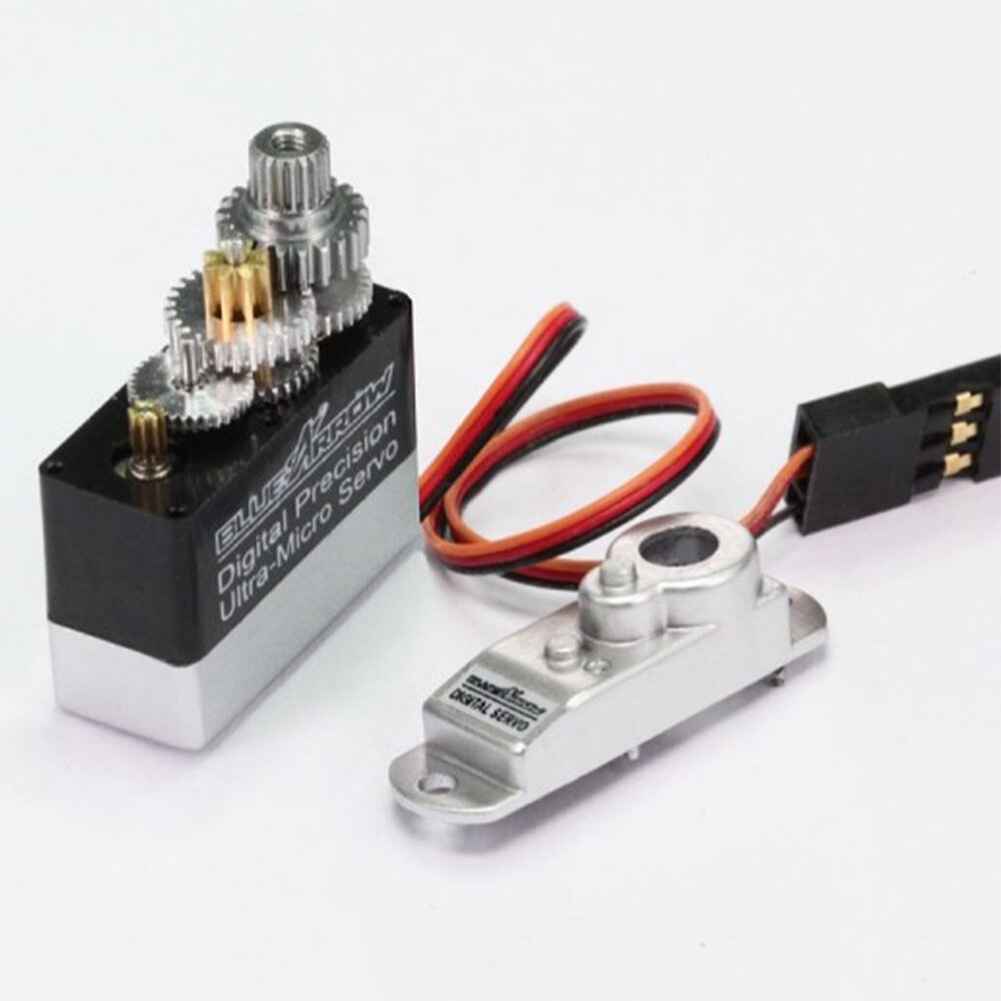

This ultra-micro servo, while retaining its compact size of a 2.5g/3.6g, upgrades to a full digital circuit and metal gears for superior durability and control.
Provides precise control and is ideal for a variety of ultra-micro remote-controlled unmanned vehicles.
Lightweight and reliable with durable and smooth gearing.
High precision with excellent centering and smoothness, comes with digital circuit.

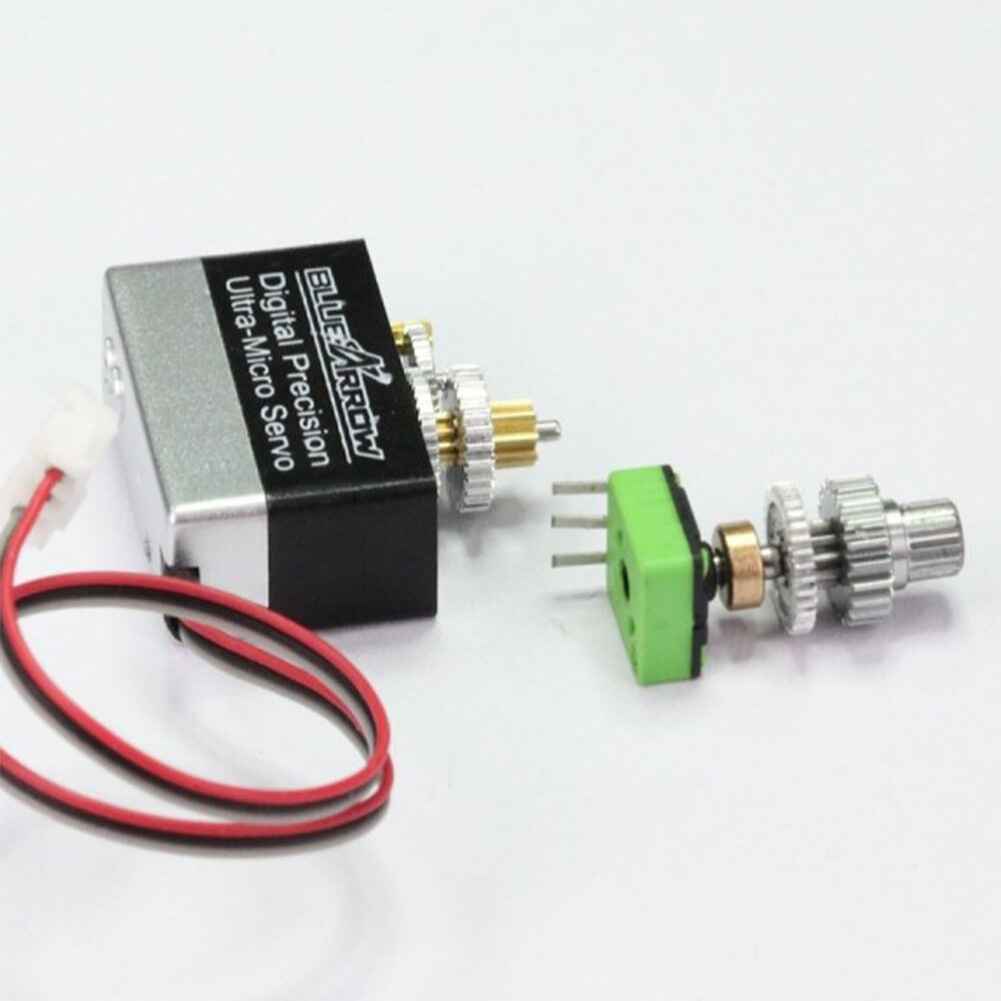

Features long-life potentiometer and hollow cup motor for greater durability and performance.
Package Included:
1 x Digital High Precision Ultra-Micro Servo
