Description
DSSERVO DS5160 HV 60kg 180/270 18T Metal Gear Digital Servo For 1/5 Redcat HPI Baja 5B SS RC Car Compatible SAVOX-0236 LOSI XL 5T
The DSSERVO DS5160 HV Digital Servo is engineered for high performance in RC cars, offering impressive torque of up to 70kg.cm at 8.4V. This servo features durable metal gears and a dual ball bearing system for smooth operation. It is programmable with a digital amplifier and MOSFET drive, ensuring precise control. The servo supports a wide operating voltage range from 6.0 to 8.4 volts and provides a speed of 0.13sec/60簞 at 8.4V. It includes a long and short aluminum holder, as well as 18T and orientation angle circle holders. The DSSERVO DS5160 is compatible with popular models like Redcat, HPI Baja 5B, SAVOX-0236, and LOSI XL 5T.
Description:
Brand: DSSERVO
Item: DS5160 60KG Digital Servo
Operating Voltage: 6.0-8.4 DC Volts
Torque: 58kg.cm(6V), 65kg.cm(7.4V), 70kg.cm(8.4V)
Speed: 0.17sec/60‵(6V), 0.15sec/60‵(6.4V), 0.13sec/60‵(8.4v)
Dead Brand: 3譙s
Gear: 18T
Pulse: PWM500us-2500us
Wire: 320mm
Weight: 162g
Size: 65*30*48mm
Features:
– Durable Metal Gear
– Dual Ball Bearing
– Programmable Digital Amplifier with Mosft Drive
– Bottom Side Axial Mount Hole
– Original factory product
– Less Noise

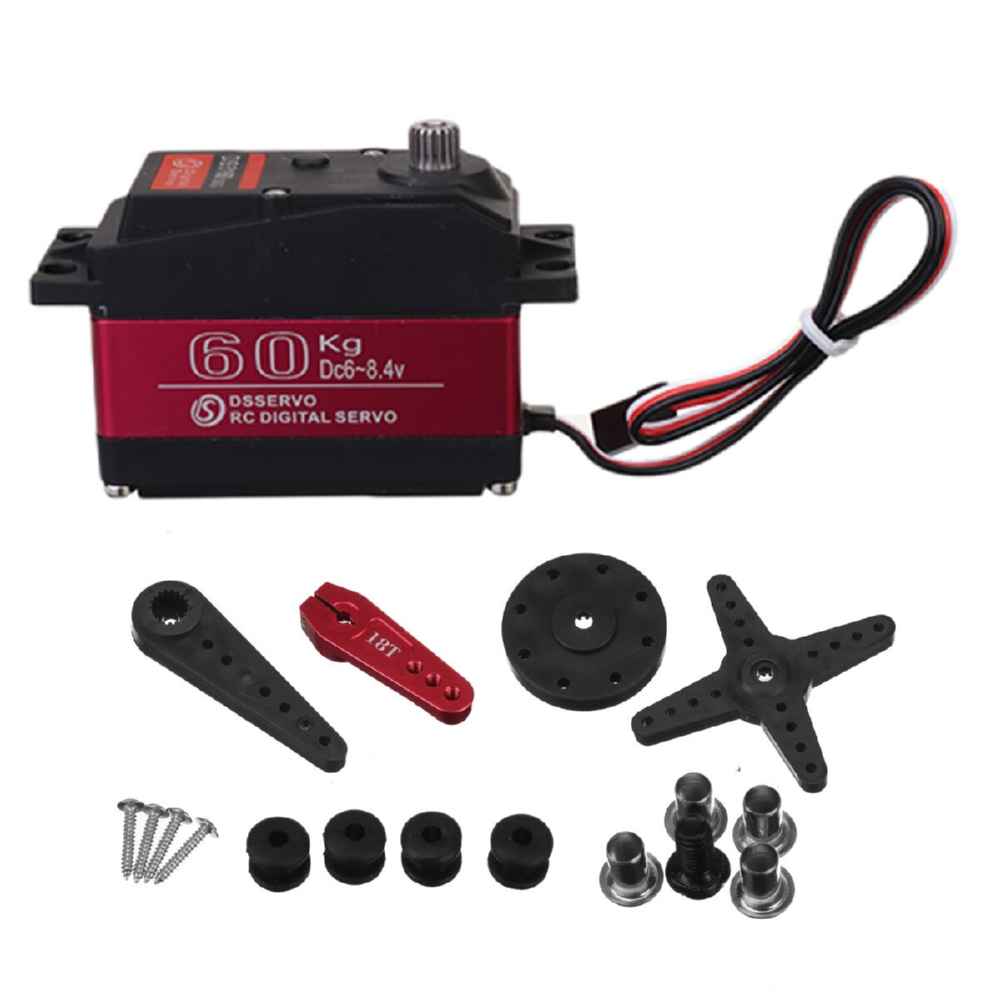

– Contains: Long Holder Aluminum & Short Holder Aluminum & Circle Holder-18T & Circle Holder -Orientation Angle:maximum 180 or 270 deg
-Mechanical Angle: 360 deg

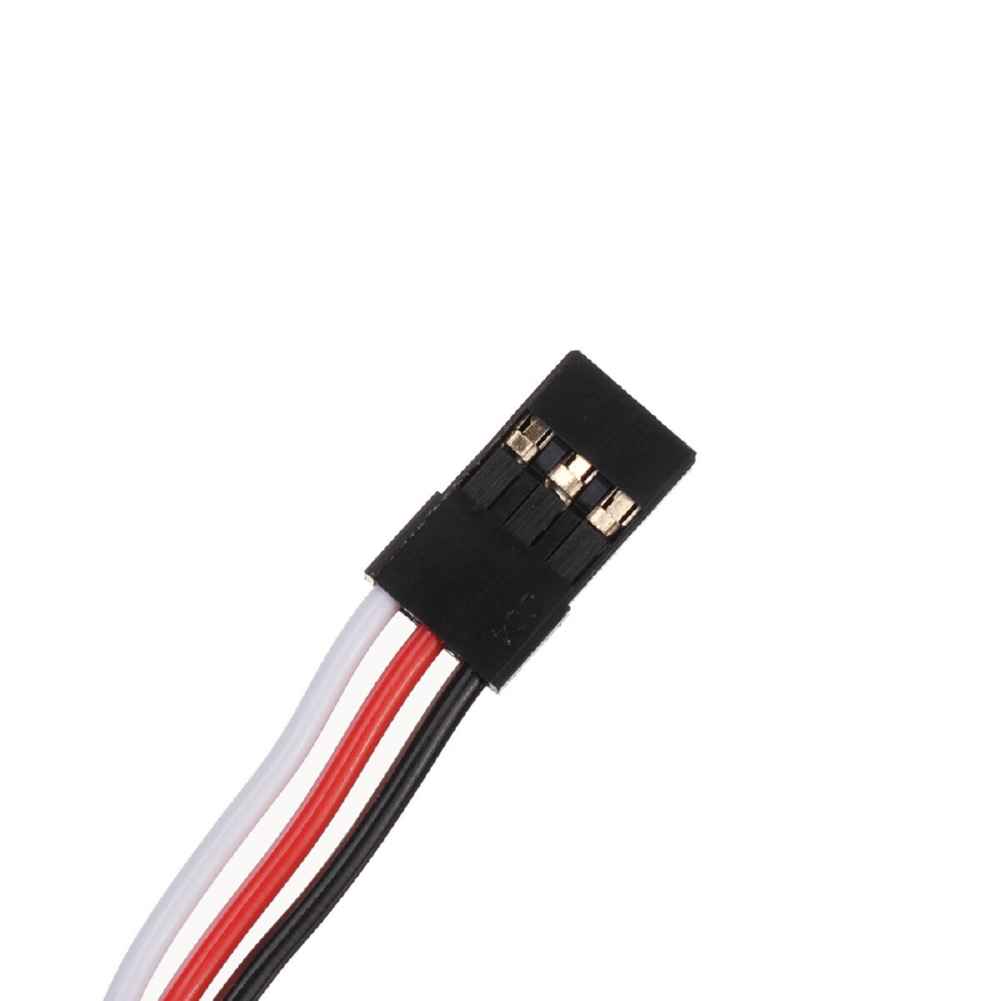

(Plug/Output wheel/Radio control system compatible with Futaba’ JR Hitec)
Package Included:
1 x DSSERVO DS5160 Digital Servo (include 3 plastic arms)
