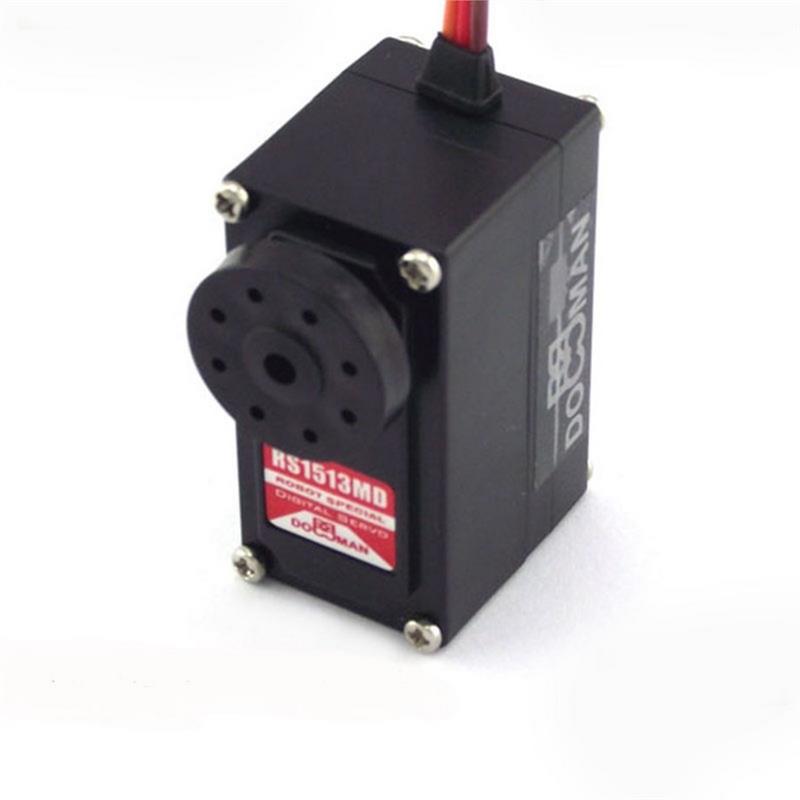

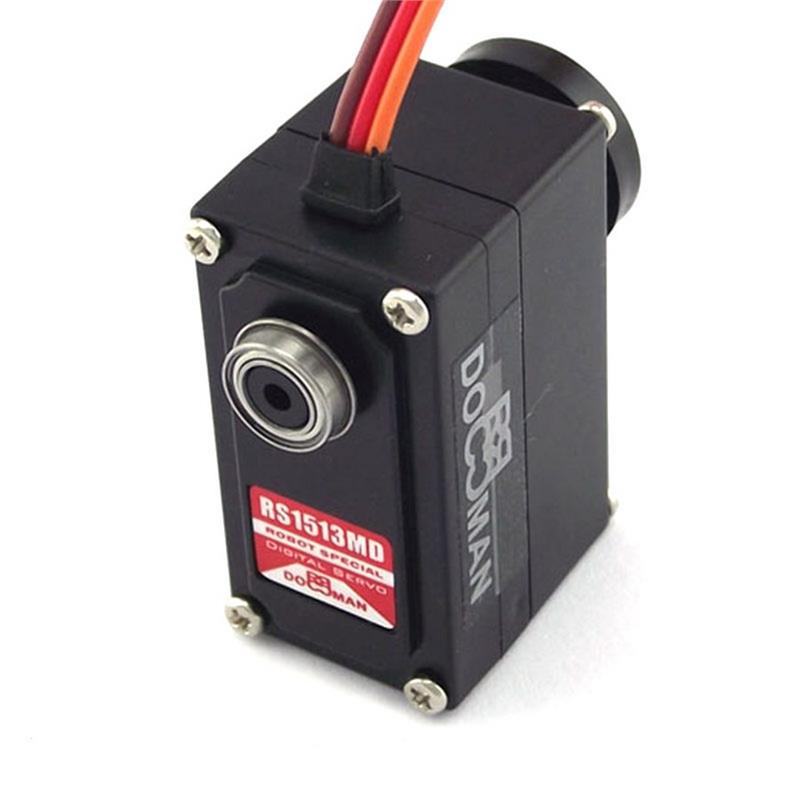

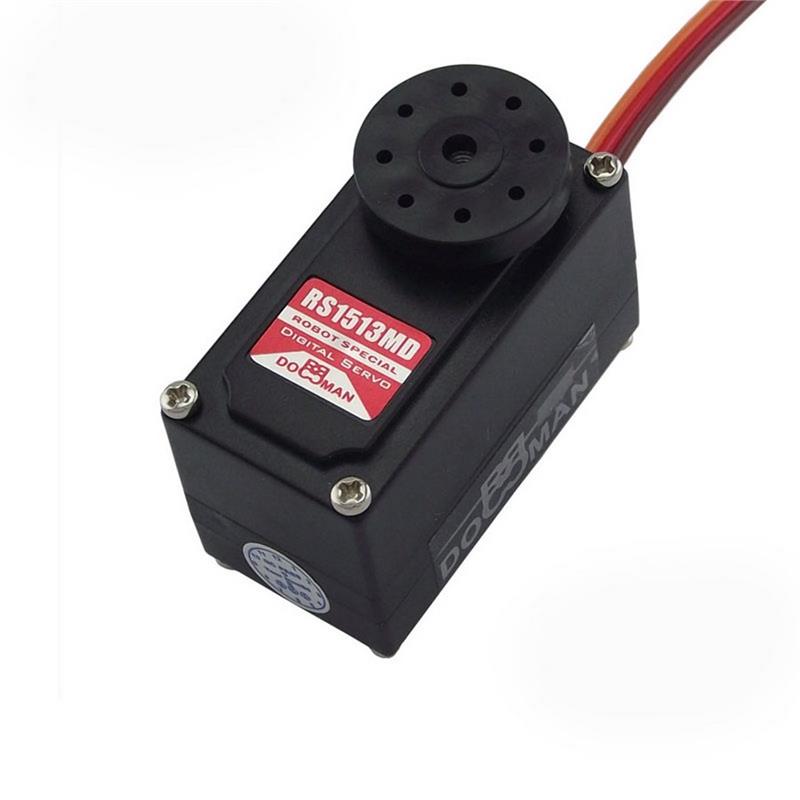

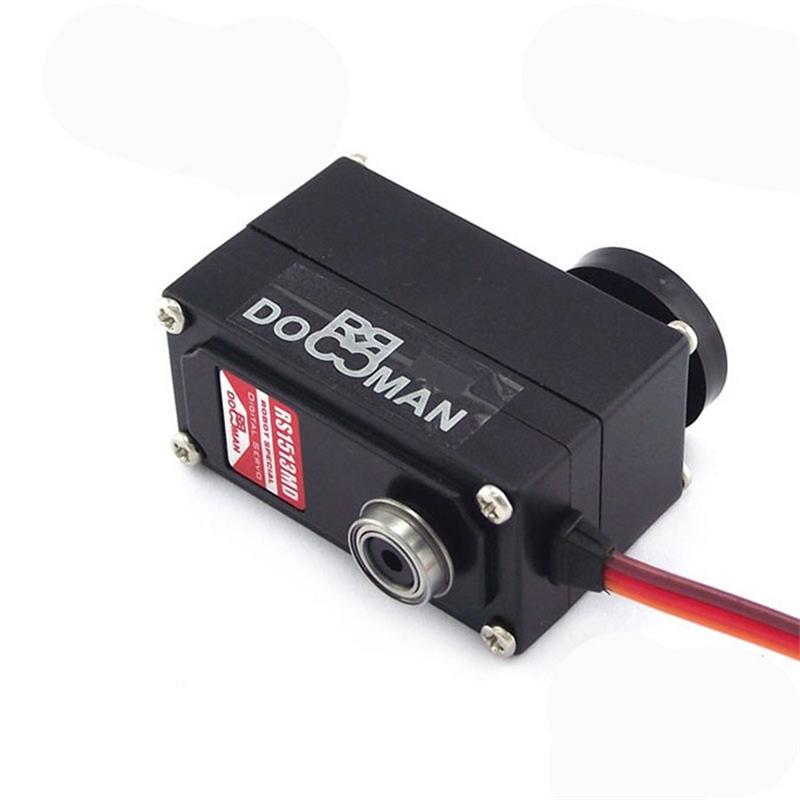

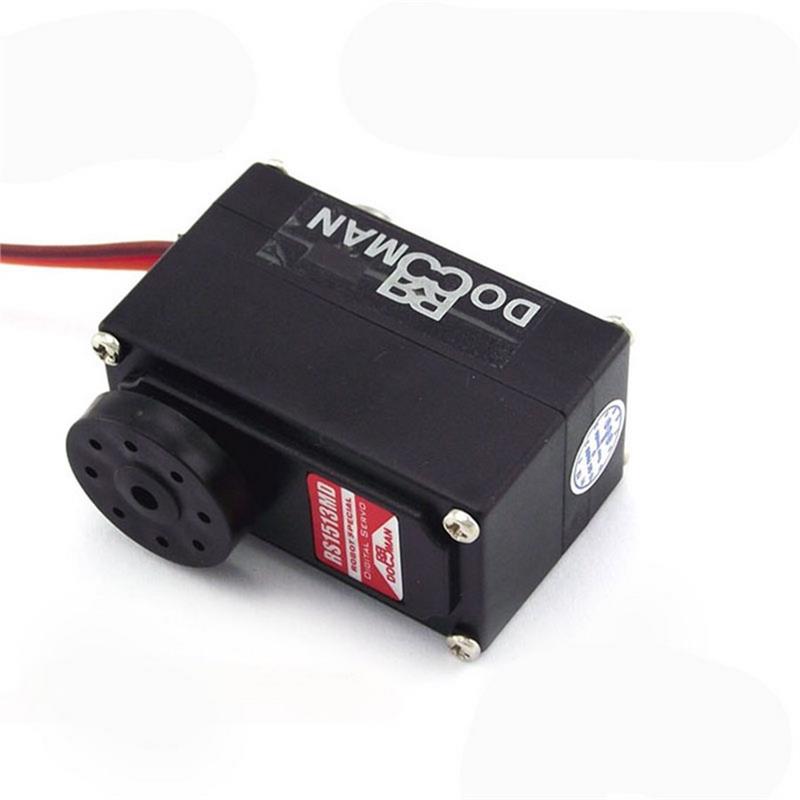

Doman DM-RS1513MD 15KG 270 Degree Dual Axis Metal Digital Servo for RC Robot

Doman DM-RS1513MD 15KG 270 Degree Dual Axis Metal Digital Servo for RC Robot

Specification:
Model: DM-RS1513MD
Weight: 42g
Cable Length: 25cm
Size: 44X23X26.5mm
Speed: 0.25sec/60deg (6v) 0.23sec/60deg (7.4v)
Locked-rotor Torque: 14.4kg.cm (6v) 16.5kg.cm (7.4v)
Working Voltage: 6-7.4V (input voltage must be higher than or equal to 6V, use 2s lithium battery needs to use UBEC voltage regulation, because the full charge can reach 8.4V, it will burn out the servo, and the unstable voltage will also affect the operation of the servo)
Features:
– Futabas standard 25T tooth key.
– Long-life high-quality potentiometer.
– High-quality motor, high torque, low energy consumption and high efficiency.
– Dual bearing design, dual-axis design for robots.
– Pulse width PWM500-2500us, operating angle of 270 degrees
– 3 outlets for easy wiring, serial interface can be used.
– Precision machining of metal gears, with high precision and small gaps in the virtual position.
– Digital circuit, fast react speed, low failure rate and high precision.
– Compatible with well-known remote control systems such as Futabas, JR, SANWA, Hitec, etc.
– The short body design of the short shell, the overall line of the robot is beautiful, and the humanoid degree is higher.
– DOMAN RC digital steering gear 270 degrees metal teeth 15kg short shell short body dual axis 17 DOF humanoid robot steering gear.
– Mature digital circuit board, using mos-FET drive, and digital processor to make it fast and control in good condition.
– With flexible start function and position feedback function, and in the position feedback state, the servo can be moved by hand, so that the player can adjust the position of the servo by hand according to the action, and then read the position, so that the action editing is more Convenient and efficient, surpassing opponents in minutes.
Note:
Does not contain U-shaped parts and flange bearings.

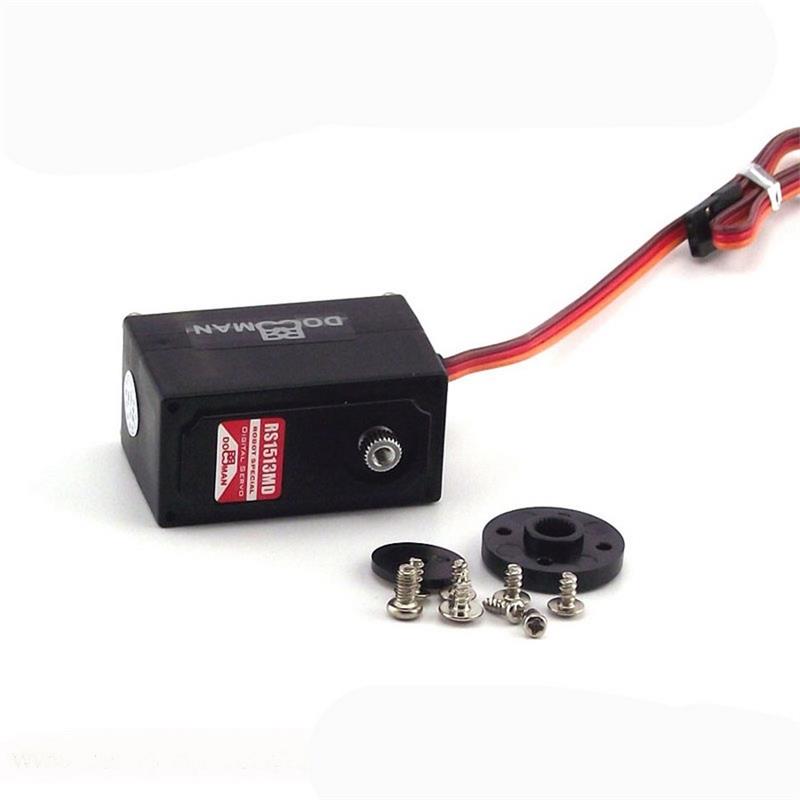

Package Included:
1 x DM-RS1513MD Metal Digital Servo
1 x Round Rudder
1 x Plastic Gasket
7 x Mounting Screws (2.6×4 4 pcs, 2×6 2 pcs, 2.6×6 1 pcs,)
1 x Steering Wheel Mounting Screw (M3 x 8)
