Description
DS S003M Power 5G Metal Gear PWM Digital Servo High Precision Control for Mini RC Car Drone Aircraft Accessories
The DS Power DS-S003M Metal Gear PWM Digital Servo offers high precision control for mini RC cars, drones, and aircraft. Operating at 4.8V to 6.0V DC, this servo features a no-load current of approximately 60mA at 4.8V and 70mA at 6.0V. With a stall current of around 900mA at 4.8V and 1A at 6V, it delivers a rated torque of 0.5kgf儮?m at 4.8V and 0.6kgf儮?m at 6.0V. The servo rotates counterclockwise with a pulse width of 1000~2000繕s and has an operating travel angle of 90簞. It features a mechanical limit angle of 360簞 and a return angle deviation of approximately 1簞. Weighing just 7.8g, it includes a PWM communication interface and a 28T output shaft specification.
Specifications:
Brand: DS Power
Model: DS-S003M
Operating Voltage: 4.8V – 6.0V DC
No Load Current: 沌60mA (4.8V), 沌70mA (6.0V)
Stall Current: 沌900mA (4.8V), 沌1A (6V)
Rated Torque: √0.5kgf宛cm (4.8V), √0.6kgf宛cm (6.0V)
Rotating Direction: CCW, pulse width 1000~2000譙s
Operating Travel Angle: 90‵呼10‵
Mechanical Limit Angle: 360‵
Return Angle Deviation: 沌1‵
Weight: 7.8g 呼0.5g
Communication Interface: PWM
Output Shaft Specification: 28T/?3.90mm
Cable Length: JR Connector/200呼5mm

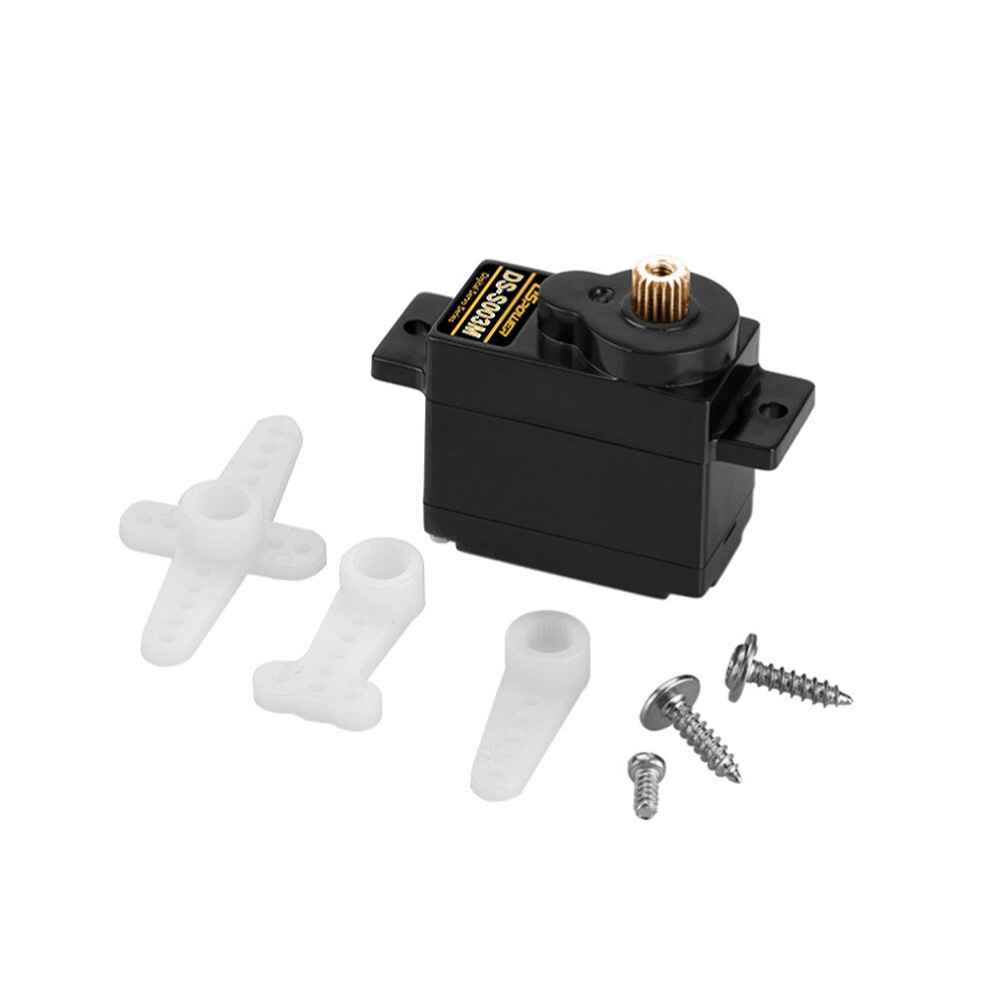

Package Included:
1 x RC Servo
