Description

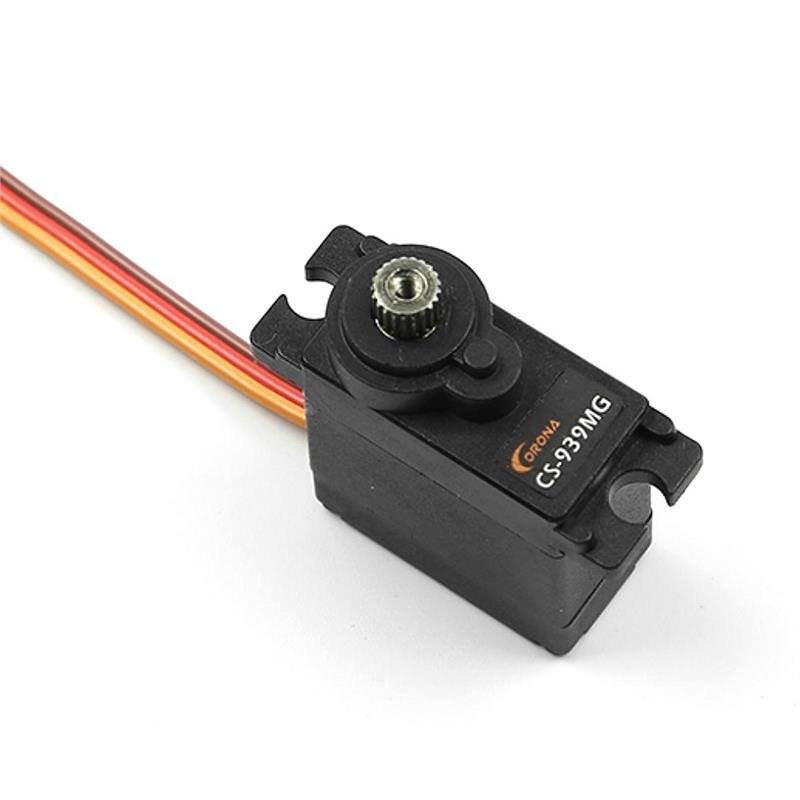

Corona DS939MG 2.5kg Metal Gear Digital Servo for RC Airplane Boat Model
The Corona DS939MG Digital Servo is a compact and powerful solution for RC airplane and boat models. Measuring 22.5×11.5×24.6mm and weighing just 12.5g, this servo offers a stall torque of 2.5kg.cm to 2.7kg.cm. It operates efficiently within a voltage range of 4.8V to 6.0V and features a quick operating speed of 0.14sec/60掳 to 0.13sec/60掳. The servo is equipped with durable metal gears and a ball bearing for smooth performance, and it includes a 215mm connector wire for easy installation. With an operating temperature range of -20掳C to +60掳C, it ensures reliable functionality in various conditions.
Description:
Brand: Corona
Item NO: DS939MG
Size: 22.5X11.5X24.6mm(0.88’x0.45’x0.96′)
Weight: 12.5g/0.44 oz
Operating Voltage: 4.8V / 6.0V
Operating Current: 200mA / 240mA
Operating Speed: 0.14sec.60o/ 0.13sec.60o
Stall Torque: 2.5kg.cm / 2.7kg.cm
Dead Band: 鈮?uSec
Operating Travel: 40o/one side pulse traveling 400us
Potentiometer: 2 slider/Direct Drive
Ball bearing: MR85
Gear: Metal
Connector wire: 215mm
Operating Temperature Range: -20鈯モ€?60鈯?br/>
Package Included:
1 x DS939MG 2.5kg Metal Gear Digital Servo
