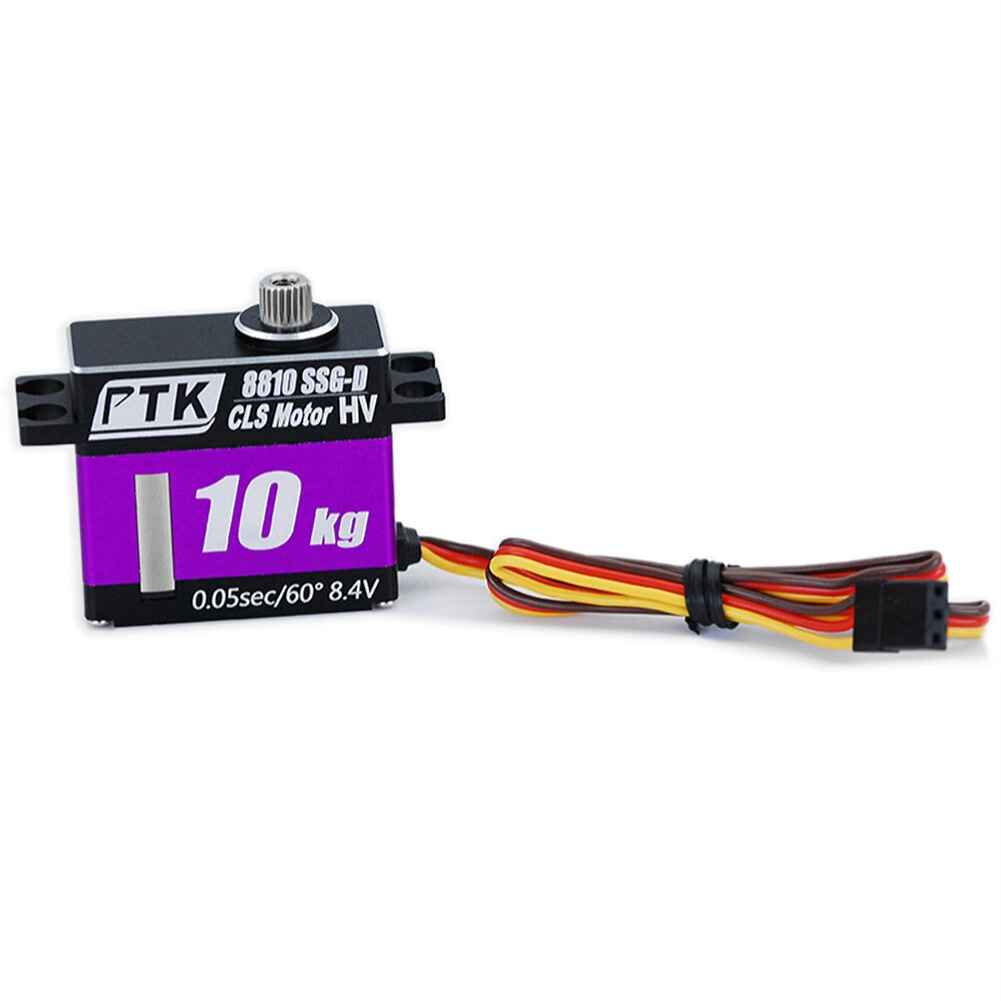

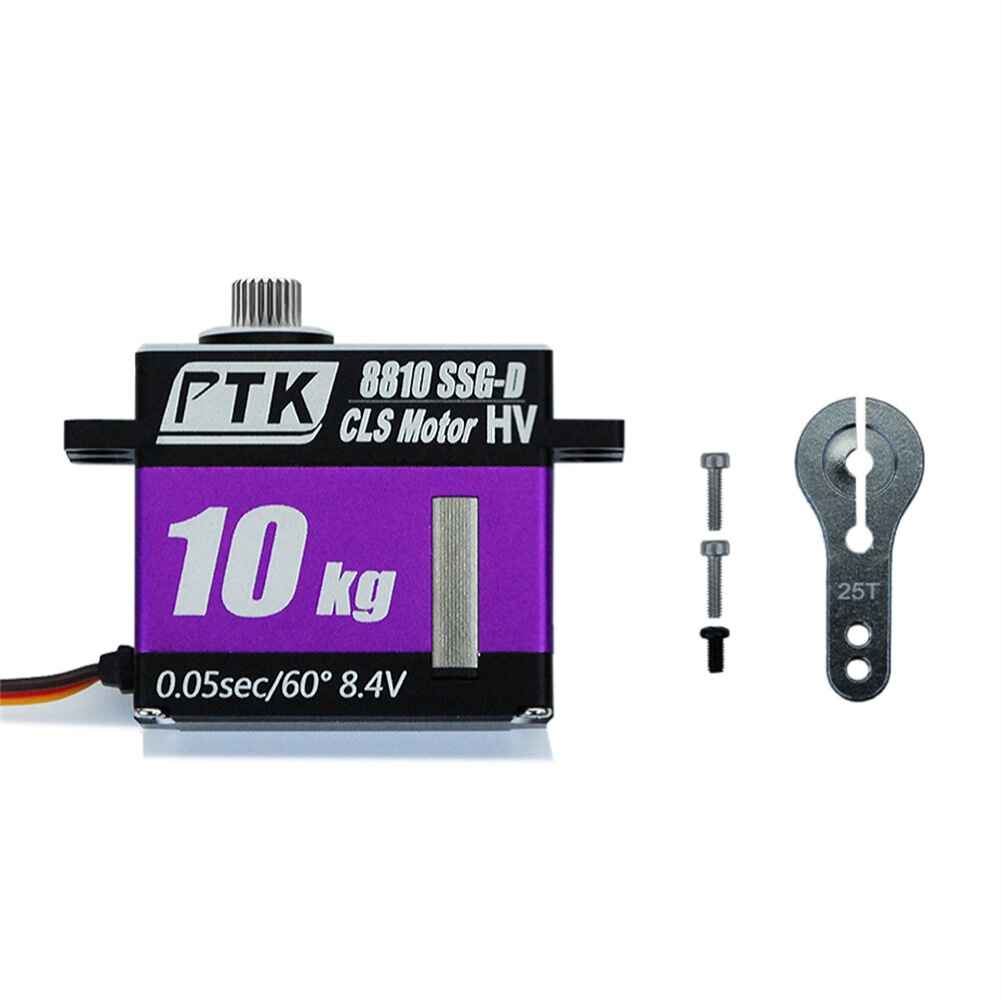

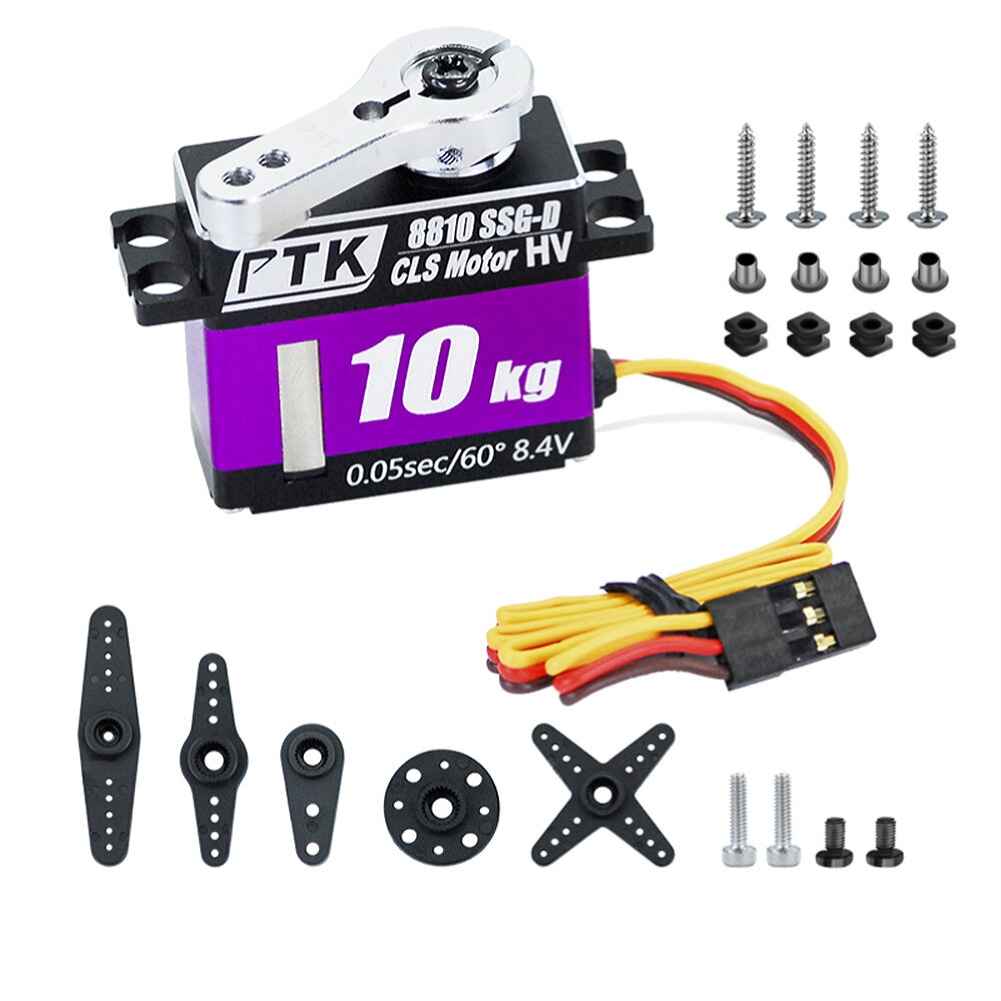

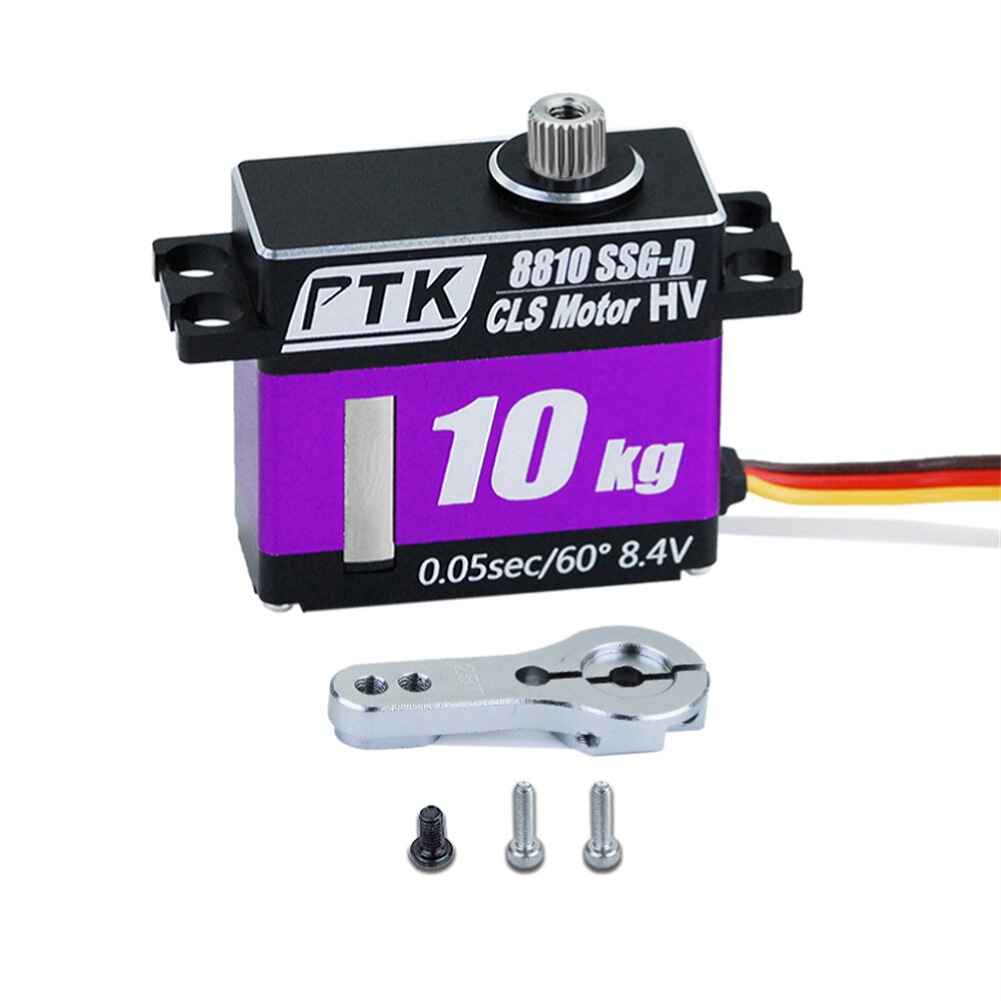

PTK 8810 SSG-D 10KG High Torque Stainless Steel Gear Coreless Digital RC Servo CNC Al Alloy Case for RC Helicopter Turbojets Airplanes Model RC Drone
The PTK 8810 SSG-D RC Servo is engineered for high-performance RC applications, featuring a robust stainless steel gear and a CNC aluminum alloy case. It operates efficiently across a wide temperature range from -15簞C to +70簞C, with a 180簞 operating travel and a refresh rate of 333Hz. This digital servo boasts a coreless motor, double ball bearings, and is programmable for precise control. With an operating voltage of 4.8V to 8.4V, it offers a stall torque of up to 10 Kg-Cm and varying speeds depending on voltage, ensuring versatile application in RC helicopters, turbojets, airplanes, and drones.
Specification:
Model: PTK 8810 SSG-D 10KG

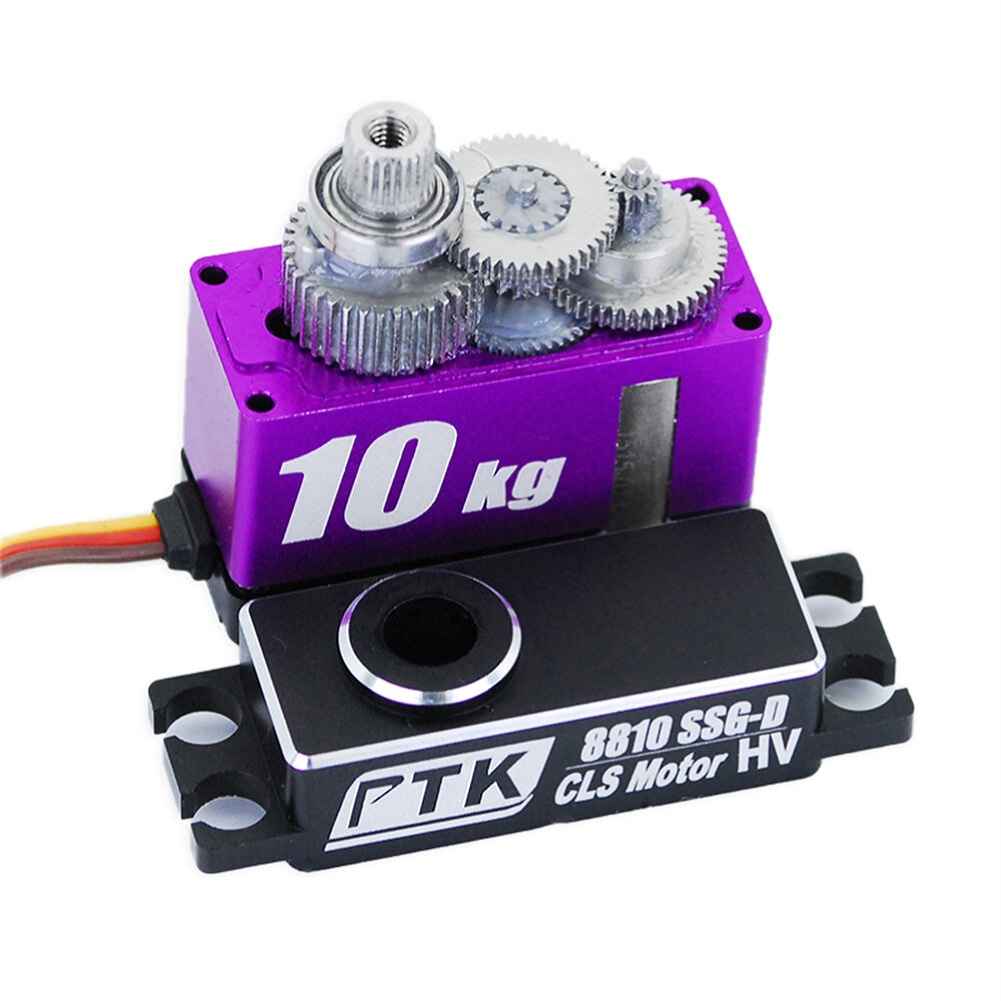

Gear Material: Stainless Steel Gear
Case Material: CNC Al Alloy
Operating Temperature: -15‵C~+70‵C
Operating Travel: 180‵呼10‵
Refresh Rate: 333Hz
Net Weight: 46g
Pulse Width: 500 To 2500uSec
Motor Type: Coreless Motor
Dead Band: 2譙
Neutral Position: 1520uS
Size: 35.5*15*32mm
Bearing: Double Ball Bearing
Operating Voltage: 4.8V~8.4V
Wire: JR 250mm
Mechanical Limit Angle: No Limit
Programmable: Yes
Operating Speed:
0.102 Sec/60‵ @ 5.0V
0.86 Sec/60‵ @ 6.0V
0.65 Sec/60‵ @ 7.4V
0.053 Sec/60‵ @ 8.4V
Stall Torque:
5 Kg-Cm @ 5.0V
6.5 Kg-Cm @ 6.0V
8 Kg-Cm @ 7.4V
10 Kg-Cm @ 8.4V
Package Included:
1 x RC Servo
