Description
DS M005 Power 2g Micro Digital Servo High-Speed Precision Lightweight for RC Drone Fixed-Wing F3P Aieplane Accessories

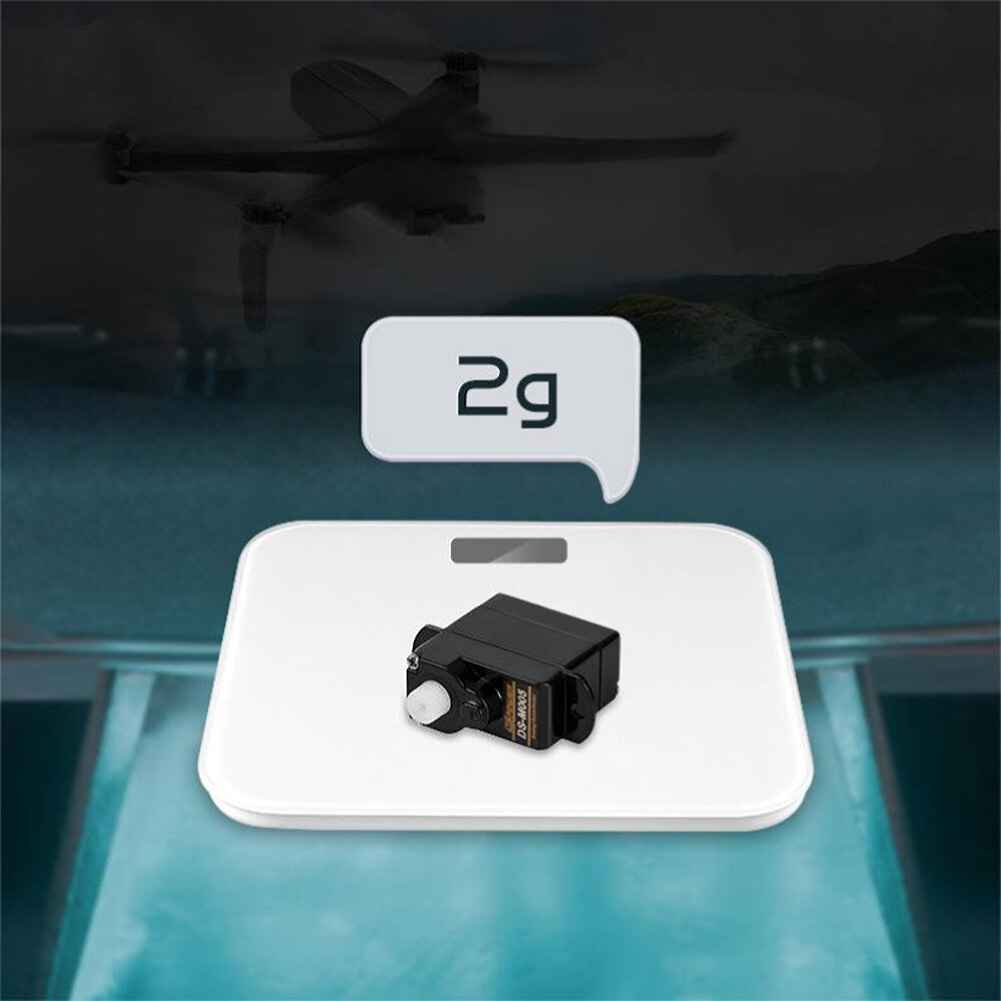

The DS Power DS-M005 Micro Digital Servo is engineered for high-speed precision and lightweight performance, ideal for RC drones and fixed-wing aircraft. Operating at a voltage of 3.7-4.2V, this servo offers a stall torque of 0.35kgf繚cm and a no-load speed of 0.075 sec/60簞. With a pulse width range of 500~2500繕s and an operating travel angle of 90簞, it ensures exceptional control and responsiveness. The servo weighs just 2.2g, making it perfect for applications where weight is critical. It features a PWM communication interface, a 150mm wire length, and a JR2.54 plug for easy connectivity.
Specification:
Brand: DS Power
Model: DS-M005
Operating Voltage: 3.7-4.2V
Static Current: 沌20mA
Stall Current: 沌350mA
Stall Torque: √0.35kgf宛cm
Rotating Direction: CCW (1000汪2000譙s)
No-load Speed: 0.075 sec/60‵
Pulse Width Range: 500~2500譙s (180‵)
Operating Travel Angle: 90‵ (1000~2000譙s)
Return Angle Deviation: 沌1‵
Weight: 2.2 呼 0.3g
Communication Interface: PWM
Wire Length: 150mm
Output Shaft: 28T/?3.90mm
Plug: JR2.54

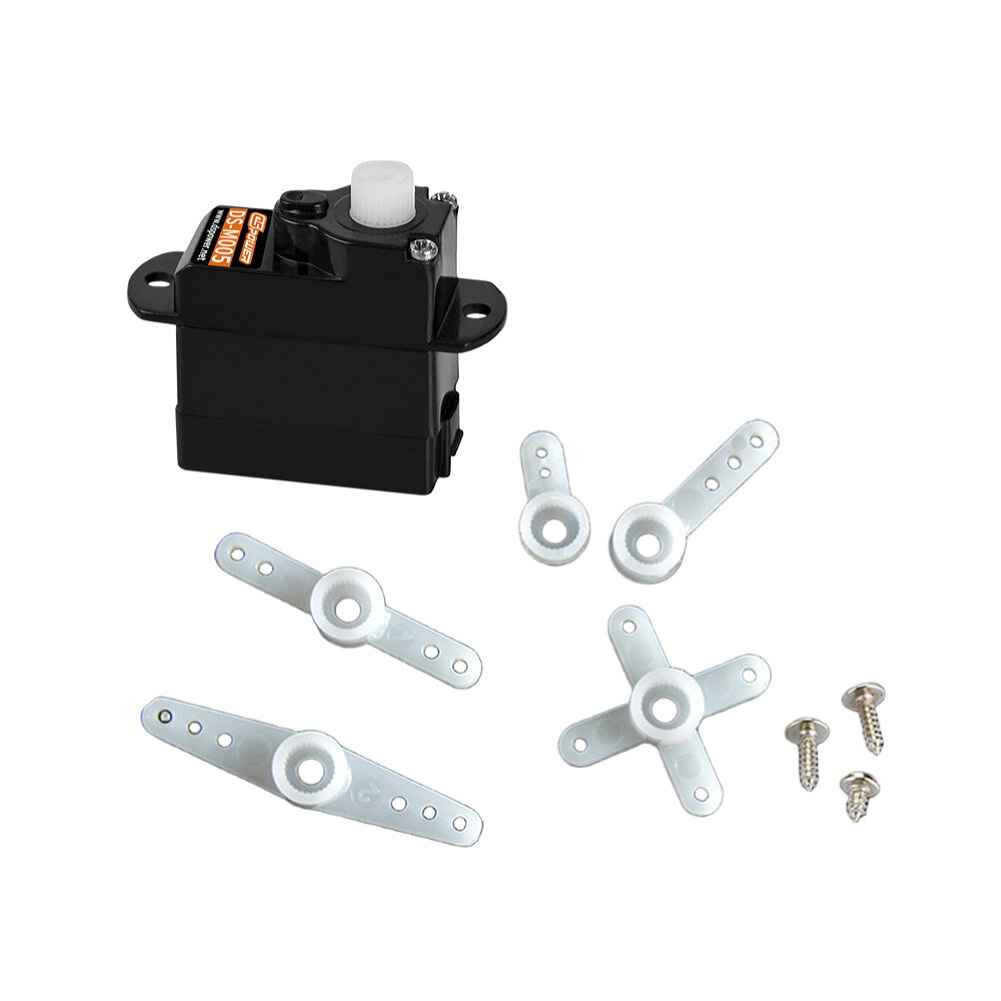

Package Included:
1 x RC Servo
